USER GUIDE
CSV1000 User Guide
Table Of Contents
Introduction..................................................... 2
Services & Important Safeguards .................................. 3
Product Specifications ........................................... 4
Calibration of CSV1000 (HG) ...................................... 4
Mounting Guide ................................................. 5
Mounting Guide (Continued) - Optional Floor Stand ................. 6
Test Face Application ............................................ 7
Maintenance and Service of Glare Lights ........................... 8
Remote Control Functions and Maintenance ........................ 9
Remote Control Functions and Maintenance (Continued).............10
Cleaning and Care ..............................................11
Disposal of Instrument ...........................................11
Important Tips and Storage .......................................11
Warranty........................................................12
Electrical Compatibility ...........................................13
CE Compliance ..................................................13
Legal Notices ...................................................14
1
www.good-lite.com | 1.800.362.3860 | 1.888.362.2576 fax
Introduction
CONGRATULATIONS on your purchase of the standardized CSV1000 (HG) vision
testing instrument. The device is CE marked and RoHS compliant.
PLEASE READ THIS GUIDE CAREFULLY BEFORE USING YOUR CSV1000 (HG)
INSTRUMENT. SAVE THIS GUIDE FOR FUTURE REFERENCE. FAILURE TO FOLLOW
THE GUIDES, WARNINGS AND CAUTIONS MAY RESULT IN SERIOUS PERSONAL
INJURY, PROPERTY DAMAGE AND/OR MAY VOID THE WARRANTY.
2
CSV1000 User Guide
Service & Important Safeguards
Service Information
WARNING: Any repairs requiring disassembly should be performed by Good-Lite
personnel. There are no user serviceable parts except for two (2) halogen glare
lamps and the battery in the remote control.
WARNING: To reduce the risk of fire, electrical shock, injury, or damage to the
instrument, please observe the following:
Do not use if instrument is damaged in any way.
Use this instrument only for its intended purpose as a standardized vision test. Never
leave the CSV1000 (HG) plugged in during long term storage.
Never insert or drop objects into any opening or crevice in the instrument.
Do not use on or near hot surfaces.
Only use the power cord supplied with the instrument. Do not use this power cord
with any other instrument.
To protect against risk of electrical shock, do not put the power cord in water or other
liquid.
Do not allow the power cord to hang over the edge of a table or touch hot surfaces.
Do not operate if power cord is damaged.
If the instrument is not functioning normally or has been dropped or damaged in any
way, return to Good-Lite for repair or replacement.
3
www.good-lite.com | 1.800.362.3860 | 1.888.362.2576 fax
Product Specifications
Input Voltage: 100VAC - 240VAC, 47-63Hz
Light Source - Glare (CSV1000 HG Only):
12v20w BAB/CG MR16
Dimensions:
CSV1000 = 25.75”W x 21”H x 3.9375”0
(65.40 cm x 53.34 cm x 10 cm)
CSV1000 HG= 27.4375”W x 21”H x 3.9375”0
(69.69 cm x 53.34 cm x 10 cm)
Weight: 30 lbs (13.6 kgs)
Calibration of the CSV1000 & CSV1000 HG
Calibration of the instrument is performed at the factory before it is shipped to the
user. The back light sources are calibrated to provide a light level at the testing
surface of 85 cd/m2The glare source is calibrated so that the glare intensity simulates
a pair of oncoming halogen car headlights as viewed from a distance of 150 feet.
Calibration of the instrument by the user is not advised and may invalidate the
warranty. The user can change the intensity of the glare sources during testing. If
the user chooses to change the glare intensity from the calibrated factory level, it
is recommended that the user record the glare source intensity as indicated by the
digital read out on the front of the instrument.
4
ESV1000
CSV1000 User Guide
Mounting Guide
Mounting to a Wall
FAILURE TO SECURELY MOUNT THE INSTRUMENT ON A WALL OR OPTIONAL
FLOOR STAND MAY RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE
AND MAY VOID THE WARRANTY.
Wall Mounted
The back of the CSV1000 (HG) instrument has (2) keyhole slots that are 16-inches
apart (40.64cm). Use fasteners designed for a wall mounting that have a rating of at
least 60 lbs (9 Kgs).
CSV1000
5
ESV1000
www.good-lite.com | 1.800.362.3860 | 1.888.362.2576 fax
Mounting Guide (Continued)
Floor Stand Mounted (Optional)
1. Insert tapered end of large pole into the caster base.
2. Attach T-pole to instrument with (4) thumb screws.
(Note: It may be necessary to lie the unit flat to install)
3. Insert T-pole with instrument attached into larger pole and pin at desired height.
CSV1000
6
CSV1000 User Guide
Test Face Application
1. Place Test Face near top surface of CSV1000 (HG) Instrument and attach to
instrument as shown.
2. Insert the bottom section of the Test Face behind the bottom of frame.
7
www.good-lite.com | 1.800.362.3860 | 1.888.362.2576 fax
Maintenance and Service (Optional)
The glare source lamps generate considerable heat and should not be touched while
the bulb is on or within 15 minutes after the bulbs have been turned o. When a glare
source bulb burns out, it can be removed and replaced by the user. The user can
replace the bulb by removing the retaining clip and safety lens, removing the expired
bulb, placing in a new bulb, and replacing the safety lens and retaining clip.
Note:
In order to control heat build-up, glare lights will automatically shut down within 60
seconds of being illuminated. To restart, press the Glare Source button on the remote
control. See Page 9 for remote control functions.
8
ESV1000
CSV1000 User Guide

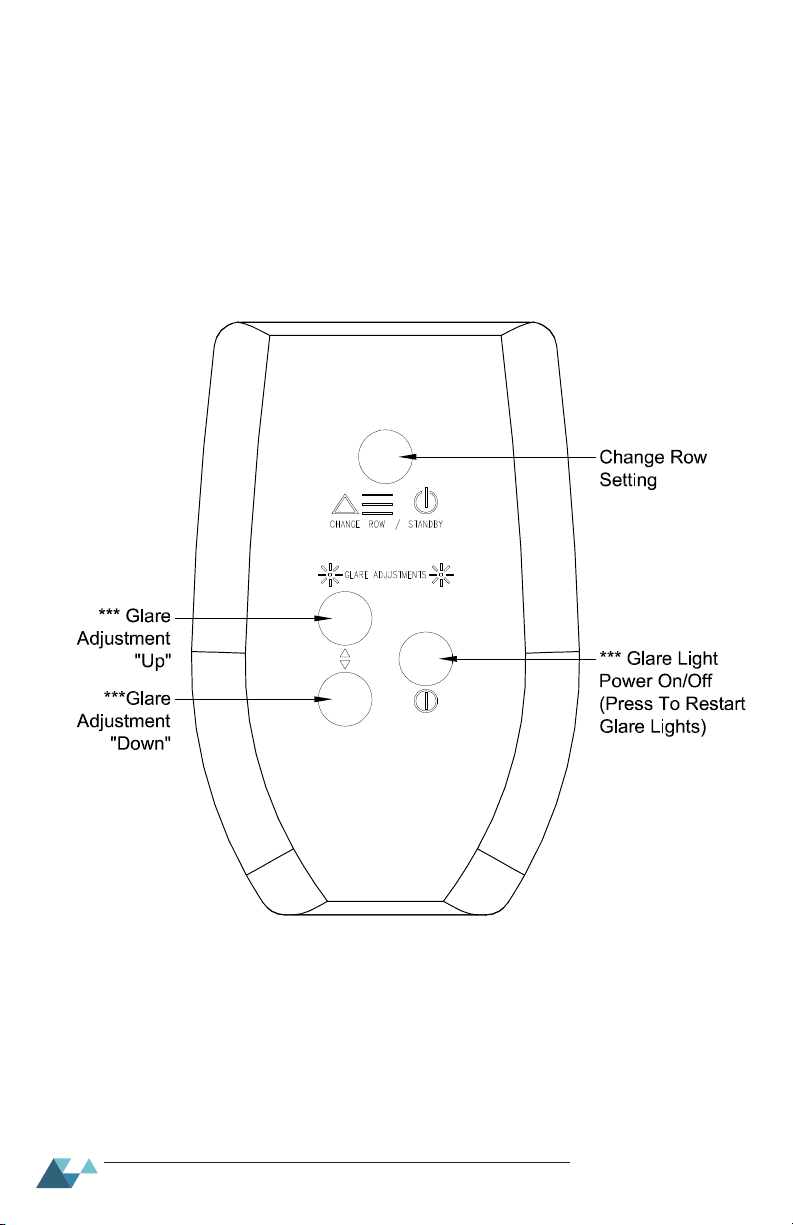

Remote Control Functions & Maintenance
*** Indicates Options Only Available on CSV1000 HG Model
9
