MICROWAVE OVEN
SERVICE MANUAL
MODEL : MV1615W
CAUTION
BEFORE SERVICING THE UNIT, READ THE
SAFETY PRECAUTIONS IN THIS MANUAL.
website: http://www.lgservice.com
CAUTION
SAFETY PRECAUTIONS
PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
a. Do not operate or allow the oven to be operated with the door open.
b. Make the following safety checks on all ovens to be serviced before activating the
magnetron or other microwave source, and make repairs as necessary; (1) Interlock
operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and
other damage), (4) damage to or loosening of hinges and latches, (5) evidence of
dropping or abuse.
c. Before turning on microwave power for any service test or inspection within the
microwave generating compartments, check the magnetron, wave guide or
transmission line, and cavity for proper alignment, integrity, and connections.
d. Any defective or misadjusted components in the interlock, monitor, door seal, and
microwave generation and transmission systems shall be repaired, replaced, or
adjusted by procedures described in this manual before the oven is released to the
owner.
e. A Microwave leakage check to verify compliance with the CSA Standard should be
performed on each oven prior to release to the owner.
• Proper operation of the microwave ovens requires that the magnetron be assembled to the
wave guide and cavity. Never operate the magnetron unless it is properly installed.
• Be sure that the magnetron gasket is properly installed around the dome of the tube whenever
installing the magnetron.
• Routine service safety procedures should be exercised at all times.
• Untrained personnel should not attempt service without a thorough review of the test
procedures and safety information contained in this manual.
FOREWORD
Read this Manual carefully. Failure to adhere to or observe the information in this Manual may result in exposing
yourself to the Microwave Energy normally contained within the oven cavity.
TABLE OF CONTENTS
(Page)
SAFETY PRECAUTIONS ........................................................................................................ Inside front page
SPECIFICATIONS.......................................................................................................................................... 1-1
CAUTIONS .................................................................................................................................................... 2-1
INSTALLATIONS............................................................................................................................................ 3-1
OPERATING INSTRUCTIONS....................................................................................................................... 4-1
CONTROL PANEL ................................................................................................................................ 4-1
CONTROL PANEL INSTRUCTIONS .................................................................................................... 4-2

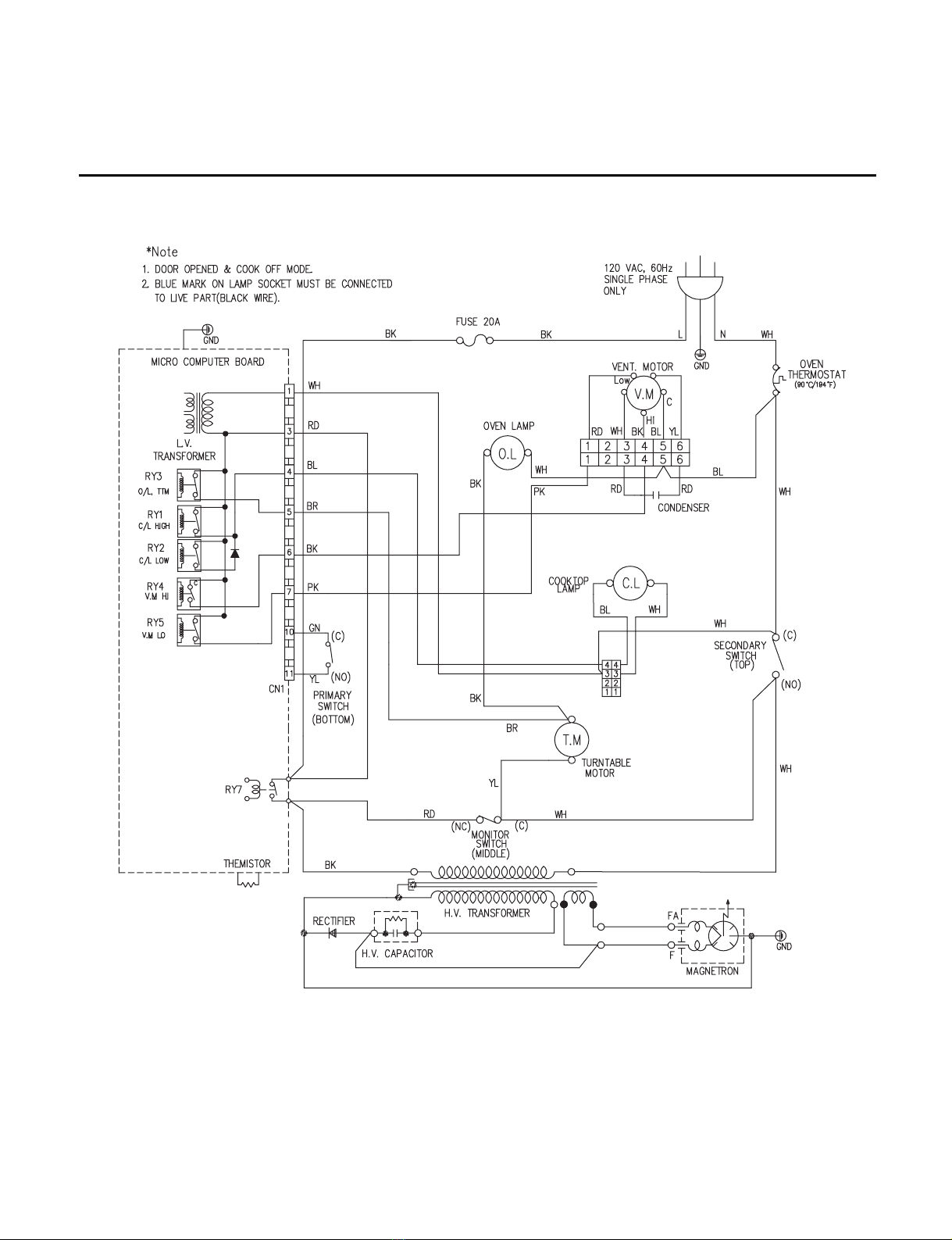

OVERALL CIRCUIT DIAGRAM...................................................................................................................... 5-1
SCHEMATIC DIAGRAM......................................................................................................................... 5-1

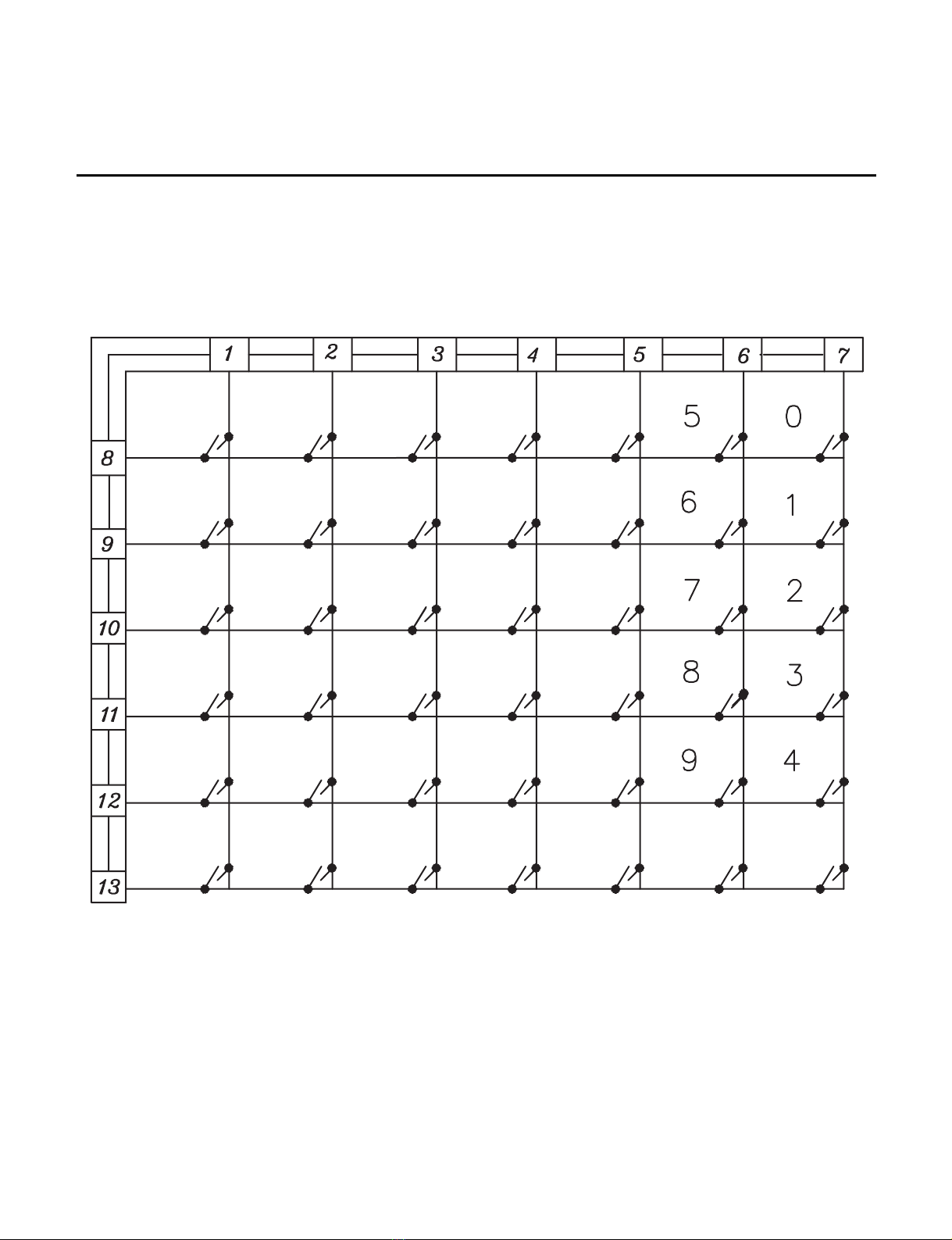

MATRIX CIRCUIT FOR TOUCH KEY BOARD ..................................................................................... 5-2
GENERAL INFORMATION FOR SERVICE .................................................................................................. 6-1
GENERAL PRECAUTIONS IN USE ..................................................................................................... 6-1
TRIAL OPERATION .............................................................................................................................. 6-1
FEATURES AND SPECIFICATIONS FEATURES................................................................................. 6-1
SERVICE INFORMATION ............................................................................................................................. 7-1
PRECAUTIONS AND REPAIR SERVICE TIPS..................................................................................... 7-1
MICROWAVE LEAKAGE TEST ............................................................................................................ 7-2
POWER OUTPUT MEASUREMENT .................................................................................................... 7-3
DISASSEMBLY INSTRUCTIONS ......................................................................................................... 7-4
INTERLOCK SYSTEM .......................................................................................................................... 7-12
INTERLOCK CONTINUITY TEST.......................................................................................................... 7-14
TEST AND CHECKOUT PROCEDURES AND TROUBLE SHOOTING................................................ 7-15
A. TEST PROCEDURES................................................................................................................ 7-15
B. CHECKOUT PROCEDURES..................................................................................................... 7-18
C. TROUBLE SHOOTING.............................................................................................................. 7-21
EXPLODED VIEW .......................................................................................................................................... 8-1
REPLACEMENT PARTS LIST .............................................................................................................. 8-8
SCHEMATIC DIAGRAM OF PCB ......................................................................................................... 8-10
PRINTED CIRCUIT BOARD ................................................................................................................. 8-11
PCB PARTS LIST................................................................................................................................... 8-12
1-1
SPECIFICATIONS
Rated Power Consumption ....................................
1,500W maximum (Microwave oven+Cook top lamp+Ventilation fan)
Microwave Output .................................................. 1,000W (IEC 60705)
Adjustable 100W through 1000W, 10 steps
Frequency .............................................................. 2,450 MHz ± 50 MHz
Power Supply......................................................... 120 VAC, 60 Hz
Rated Current ........................................................ 13 Amp. (Microwave oven+Cook top lamps+Ventilation fan)
Magnetron Cooling................................................. Forced Air Cooling
Rectification ........................................................... Rectification Voltage Double Half-Wave
Door Sealing ......................................................... Choke System
Safety Devices ...................................................... Oven Cavity Thermostat:
Open at 90°C±5°C
Fuse(20A)
Primary Interlock Switch
Secondary Interlock Switch
Interlock Monitor
Magnetron ............................................................. 2M214-39F
High Voltage Capacitor ......................................... Capacitor: 1.0µF, 2.1 KV AC
High Voltage ......................................................... Diode Diode; 350mA, 9.0 KV
Cook top Lamp ...................................................... 125 V, 30 W
Cavity Lamp .......................................................... 125 V, 30 W
Timer ..................................................................... Digital, up to 99 mim. 99 sec. (in each cooking stage)
Tray ....................................................................... Tempered Safety Glass
Overall Dimensions ............................................... 29 15 /16” (W)x16 7 /16” (D)x15 3 /8” (H)
Oven Cavity Size .................................................. 19 7 /8”(W)x14 3 /16”(D)x8 15 /16”(H)
Effective Capacity of Oven Cavity ......................... 1.5 Cu.ft.
Accessories ........................................................... Owner’s Manual & Cooking Guide, Installation Manual,
Exhaust Adapter, Exhaust Damper, Mounting Kit and Two
Filters, Rotating Ring Assembly
2-1
CAUTIONS
• DO NOT operate on a 2-wire extension cord during
repair and use.
• NEVER TOUCH any oven components or wiring during
operation.
• BEFORE TOUCHING any parts of the oven, always
remove the power plug from the outlet.
• For about 30 seconds after the oven stops, an electric
charge remains in the high voltage capacitor. When
replacing or checking, you must discharge the high
voltage capacitor by shorting across the two terminals
with an insulated screwdriver.
• Remove your watches whenever working close to or
replacing the Magnetron.
• DO NOT touch any parts of the control panel circuit. A
resulting static electric discharge may damage this
P.C.B.
• NEVER operate the oven with no load.
• NEVER injure the door seal and front plate of the oven
cavity.
• NEVER put iron tools on the magnetron.
• NEVER put anything into the latch hole and the
interlock switches area.
• Proper operation of the microwave oven requires that
the magnetron be assembled to the waveguide and
cavity. Never operate the magnetron unless it is
properly installed.
• Be sure that the magnetron gasket is properly
installed around the dome of the tube whenever
installing the magnetron.
Unlike other appliances, the microwave oven is
high-voltage and high-current equipment.
Though it is free from danger in ordinary use,
extreme care should be taken during repair.
THE OVEN IS TO BE SERVICED ONLY
BY PROPERLY QUALIFIED SERVICE
PERSONNEL.
MICROWAVE RADIATION
Personnel should not be exposed to the
microwave energy which may radiate from the
magnetron or other microwave generating
device if it is improperly used or connection.
All input and output microwave connections,
waveguide, flange, and gasket must be secure
never operate the device without a microwave
energy absorbing load attached.
Never look into an open waveguide or antenna
while the device is energized.

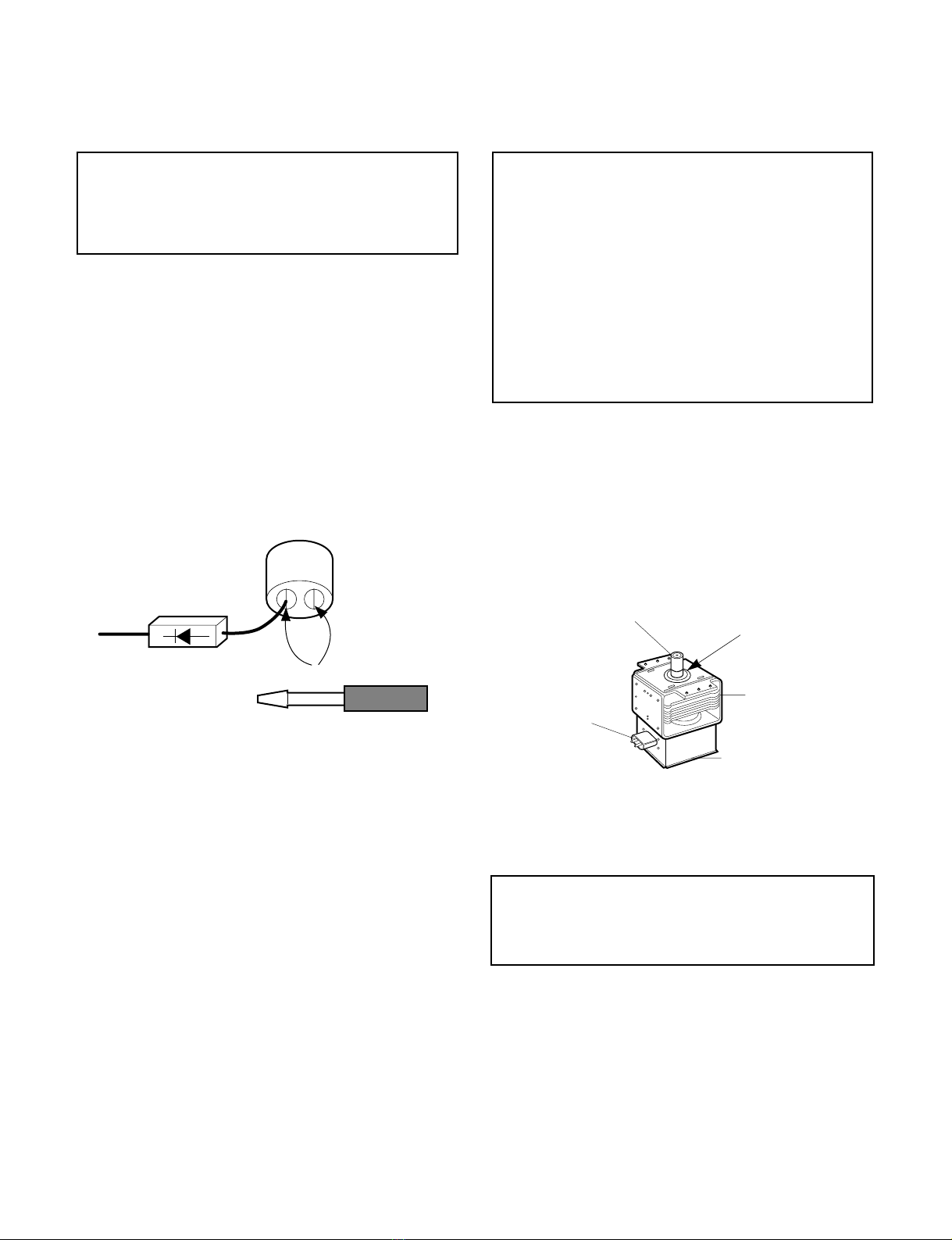

Gasket
ANTENNA
COOLING FIN
MAGNETRON
CHASSIS GROUND
FILAMENT
TERMINALS
MAGNETRON
3-1
INSTALLATIONS
PRECAUTIONS ON INSTALLATION
A. Plug the power supply cord into a 120V AC, 60Hz,
single-phase power source with a capacity of 15A
or 20A.
B. Avoid placing the unit in a location where there is
direct heat or splashing water.
C. Install the unit on the mounting plate firmly.
D. Place the unit as far away as possible from TV,
radio, etc. to prevent interference.
GROUNDING INSTRUCTIONS
For personal safety, this appliance must be fully
grounded at all times.
In the event of an electrical short circuit, grounding
reduces the risk of electrical shock.
The plug must be plugged into an outlet that is
properly installed and grounded.
BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.
WARNING
Improper use of the grounding plug can result in a
risk of electric shock.
Do not, under any circumstances, cut or remove the
third ground prong from the power cord plug.
CAUTION
This unit is equipped with a 3-prong plug for your
safety. If the wall outlet is a grounded 3-hole type,
the unit will be grounded automatically.

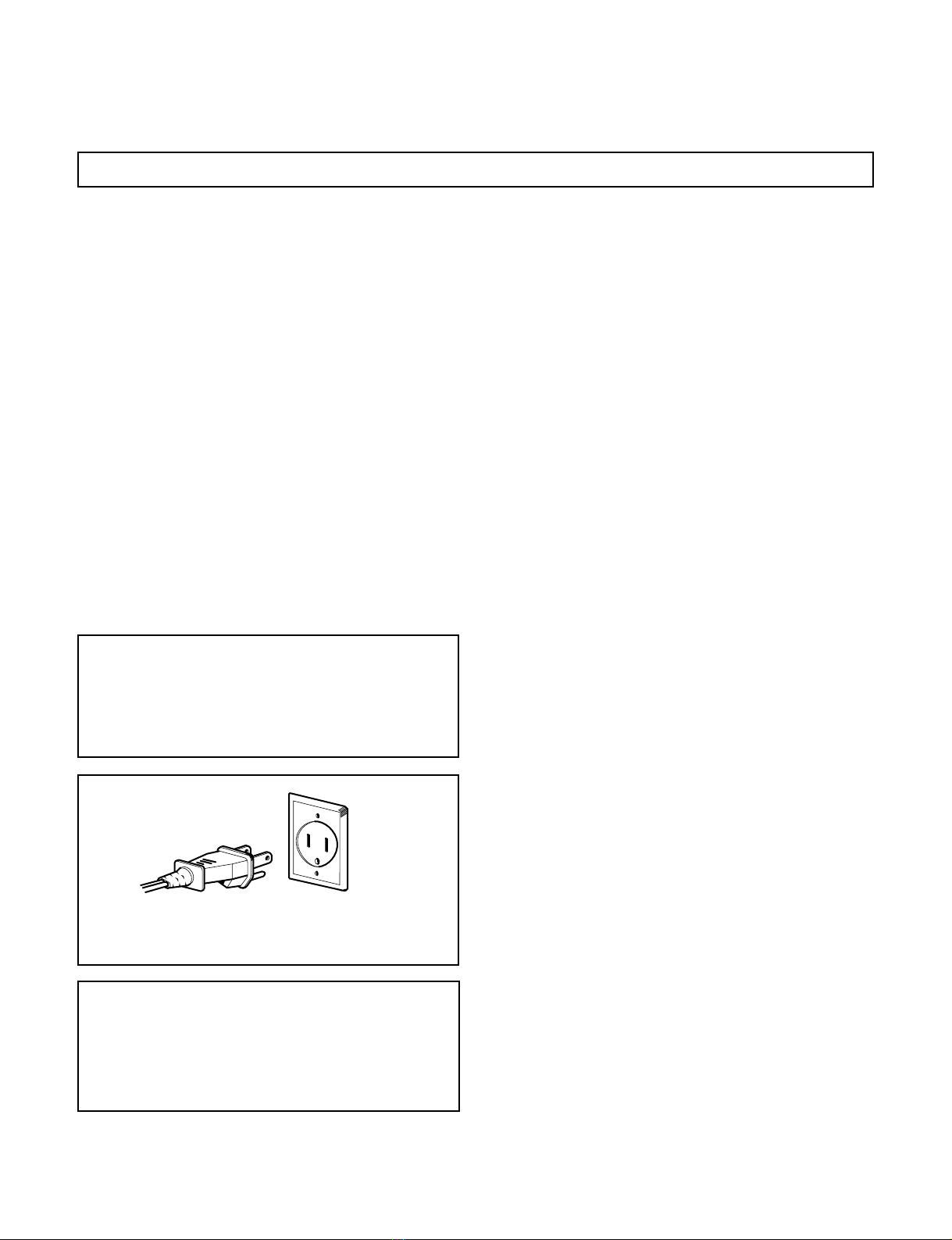

Plug with Ground
Prong
Properly Polarized
and Grounded
Outlet
4-1
OPERATING INSTRUCTIONS

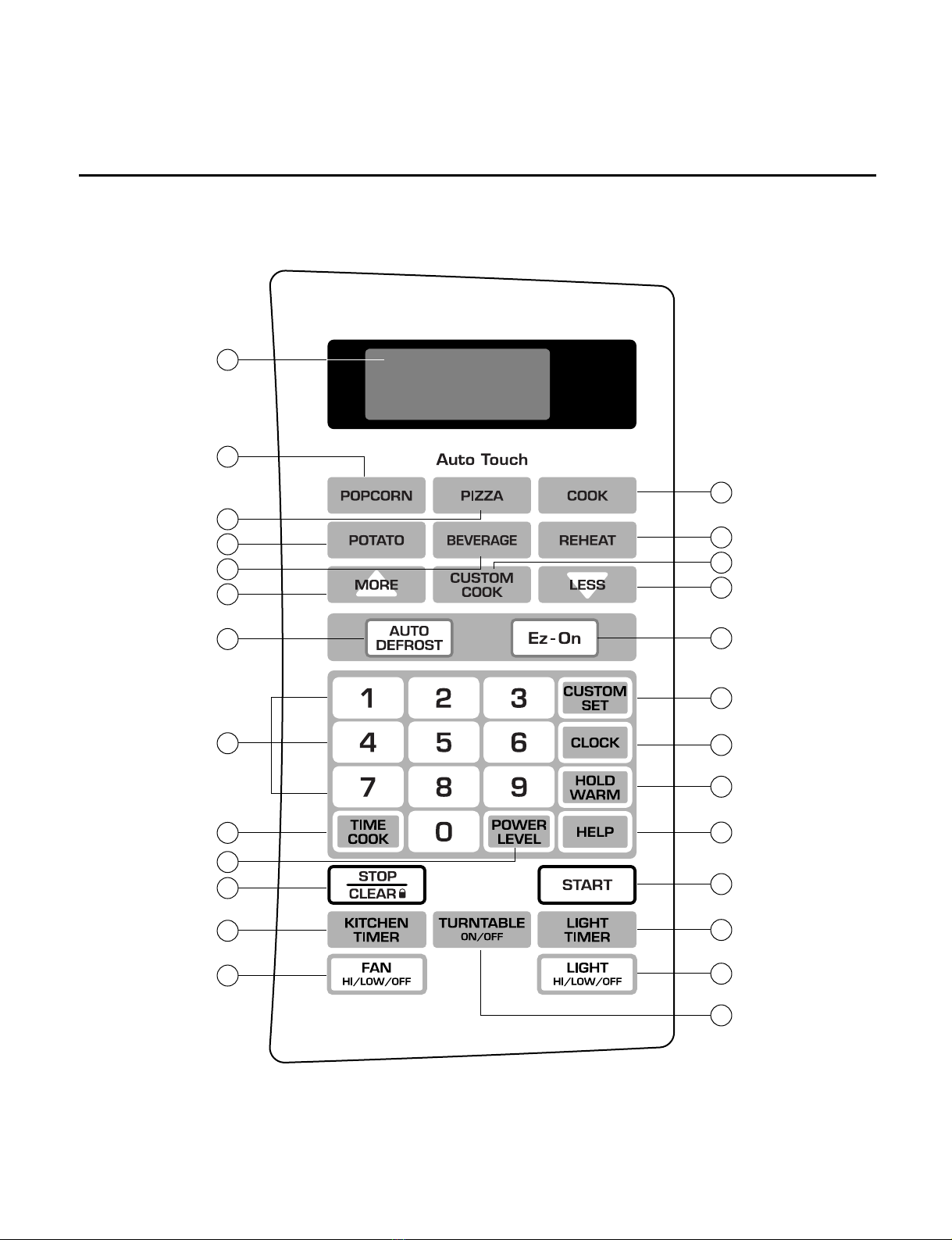

CONTROL PANEL
4
7
10
14
15
16
19
9
21
24
26
23
1
5
8
17
20
22
25
18
11
13
6
3
2
12
4-2
CONTROL PANEL INSTRUCTIONS
1. DISPLAY: The Display includes a clock and
indicators to tell you time of day, cooking time
settings and cooking functions selected.
2. POPCORN: Touch this pad when popping popcorn
in your microwave oven.
3. PIZZA: Touch this pad to reheat 1 to 3 slices.
4. COOK: Touch this pad to cook vegetables, rice, or
casseroles.
5. POTATO: Touch this pad to cook potatoes from 1 to
4.
6. BEVERAGE: Touch this pad to reheat one cup or
two cups a beverage.
7. REHEAT: Touch this pad to reheat dinner plate,
soup/sauce, casserole, roll/muffin.
8. MORE: Touch this pad to add ten seconds of
cooking time each time you press it.
9. CUSTOM COOK: Touch this pad to recall one
cooking instruction previously programmed into
memory.
10. LESS: Touch this pad to subtract ten seconds of
cooking time each time you press.
11. AUTO DEFROST: Meat, poultry, fish. Touch on
pad to select food type and defrost food by weight.
12. EZ ON: Touch this pad to set and start quickly at
100% power level.
13. NUMBER: Touch number pads to enter cooking
time, power level, quantities or weights.
14. CUSTOM SET: Touch this pad to change the
oven’s default settings for sound, clock, display
speed and defrost weight.
15. CLOCK: Touch this pad to enter the time of day.
16. HOLD WARM: Touch this pad to keep hot, cooked
foods safety warm in your microwave oven for up
to 99 minutes 99 seconds.
17. TIME COOK: Touch this pad to set a cooking time.
18. POWER LEVEL: Touch this pad to select a
cooking power level.
19. HELP: Touch this pad to learn how to use each
oven function.
20. STOP/CLEAR: Touch this pad to stop the oven or
clear all entries.
21. START: Touch this pad to start a function. If you
open the door after oven begins to cook, retouch
start.
22. KITCHEN TIMER: Touch this pad to set the
kitchen timer.
23. TURNTABLE ON/OFF: Touch this pad to turn off
the turntable. “OFF”will appear in the display.
24. LIGHT TIMER: Touch this pad to set the light
timer.
25. FAN HI/LOW/OFF: Touch this pad to turn the fan
on or off.
26. LIGHT HI/LOW/OFF: Touch this pad to turn on the
cooktop/countertop light.
5-1
OVERALL CIRCUIT DIAGRAM
SCHEMATIC DIAGRAM
5-2
MATRIX CIRCUIT FOR TOUCH KEY BOARD
TIME
COOK
FAN
HI/LO/OFF
HELP COOK
POPCORN
AUTO
DEFROST
LIGHT
HI/LO/OFF
CUSTOM
SET
REHEAT POTATO
KITCHEN
TIMER
CLOCKLESS Ez On
BEVERAGE
POWER
LEVEL
CUSTOM
COOK
LIGHT
TIMER N.C PIZZA
HOLD
WARM
T/TABLE
ON/OFF
STOP
CLEAR START N.C
N.C N.CMORE N.C N.C N.C N.C
Autres manuels pour MV1615W
1
Table des matières
Autres manuels Goldstar Four à micro-ondes
Goldstar
Goldstar MV-1310W Manuel d'utilisation et d'entretien
Goldstar
Goldstar MA-7802 Manuel d'utilisation et d'entretien
Goldstar
Goldstar MV-1500MG Manuel utilisateur
Goldstar
Goldstar MV-1525W Manuel d'utilisation et d'entretien
Goldstar
Goldstar MA-972M Manuel utilisateur
Goldstar
Goldstar MA-790W Manuel utilisateur
Goldstar
Goldstar MA-1417W Manuel d'utilisation et d'entretien
Goldstar
Goldstar MV1604ST Manuel utilisateur
Goldstar
Goldstar MA-7801 Manuel d'utilisation et d'entretien
Goldstar
Goldstar MA2120B Manuel utilisateur
Goldstar
Goldstar MA-1502W Manuel d'utilisation et d'entretien
Goldstar
Goldstar MV-1515W Manuel utilisateur
Goldstar
Goldstar MVH1615WW Manuel d'utilisation et d'entretien
Goldstar
Goldstar MV1526W Manuel utilisateur
Goldstar
Goldstar GoldStar MA7542W Manuel d'utilisation et d'entretien
Goldstar
Goldstar MV-1401W Manuel d'utilisation et d'entretien
Goldstar
Goldstar MV1502W Manuel d'utilisation et d'entretien
Goldstar
Goldstar MA-7000WCT Manuel d'utilisation et d'entretien
Goldstar
Goldstar MV1608WW Manuel d'utilisation et d'entretien
Goldstar
Goldstar MA-1303BRV Manuel utilisateur
