E EN

INSTALLATIONINSTRUCTIONS

PLEASE READ AND SAVE THESE INSTALLATION INSTRUCTIONS_

MV1502W

MV1502B

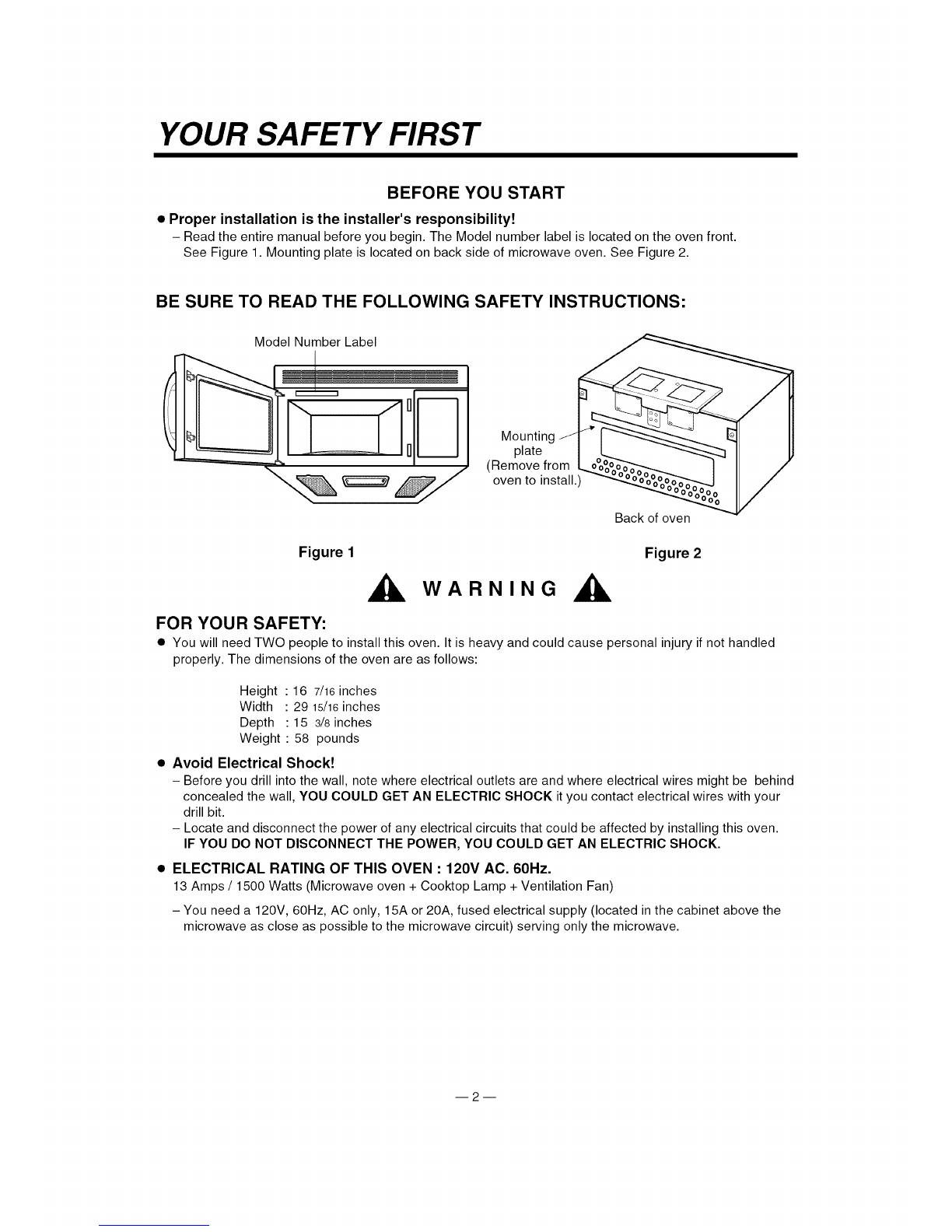

YOUR SAFETY FIRST

BEFORE YOU START

• Proper installation is the installer's responsibility!

- Read the entire manual before you begin. The Model number label is located on the oven front.

See Figure 1. Mounting plate is located on back side of microwave oven. See Figure 2.

BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:

IModel Number Label

Mounting

plate

(Remove from

oven to install.)

Back of oven

Figure 1 Figure 2

WARNING

FOR YOUR SAFETY:

• You will need TWO people to install this oven. It is heavy and could cause personal injury if not handled

properly. The dimensions of the oven are as follows:

Height :16 7/16inches

Width : 29 15/16inches

Depth : 15 3/8 inches

Weight : 58 pounds

•Avoid Electrical Shock!

- Before you drill into the wall, note where electrical outlets are and where electrical wires might be behind

concealed the wall, YOU COULD GET AN ELECTRIC SHOCK it you contact electrical wires with your

drill bit.

- Locate and disconnect the power of any electrical circuits that could be affected by installing this oven.

IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.

•ELECTRICAL RATING OF THIS OVEN : 120V AC. 60Hz.

13Amps /1500 Watts (Microwave oven + Cooktop Lamp+ Ventilation Fan)

-You need a 120V, 60Hz, AC only, 15A or 20A, fused electrical supply (located in the cabinet above the

microwave as close as possible to the microwave circuit) serving only the microwave.

YOUR SAFETY FIRST

•THIS APPLIANCE MUST BE GROUNDED!

- If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape

wire for the electric current. This appliance is equipped with a cord having a grounding wire with a

grounding plug.

• Place the plug into a properly installed and grounded outlet. See Figure 3.

• Do not use an extension cord. PROPERLY POLARIZED AND

• Keep the power cord dry and do not pinch or crush it. GROUNDED OUTLET

•DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE

POWER SUPPLY CORD GROUNDING PRONG!

This appliance MUST be grounded? ..t-_::;_L

Three-Pronged (Grounding) plug

Figure 3

WARNING

If you use the grounding plug improperly, you risk electric shock!

- Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you do

not completely understand the grounding instructions.

DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.

WARNING

Improper grounding could result in electric shock or other personal injury.

SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.

•DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!

- DO NOT try to operate the microwave oven with the door open.

- DO NOT tamper with or defeat the safety interlocks.

- DO NOT place objects between the microwave oven front face and the door.

- DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.

- DO NOT operate the microwave oven if it is damaged.

- The microwave oven door must close properly to operate safely.

- DO NOT USE THE MICROWAVE OVEN:

• Ifthe door is bent.

• Ifthe hinges or latches are broken or loose.

• Ifthe door seals, sealing surfaces or glass is broken.

- DO NOT ATTEMPT TO ADJUST OR REPAIR THE OVEN YOURSELF?

It should be adjusted and repaired by a qualified technician who can check for microwave leakage

after repairing the oven.

WARNING

If you do not use the microwave oven as instructed, you could

be exposed to excessive microwave energy.

YOUR SAFETY FIRST

• MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.

- Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should be

constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.

- ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.

- DO NOT mount the microwave oven to an island or peninsula cabinet.

- BE SURE the upper cabinet and rear wall structures are able to support 150 Ibs., plus the weight of any

items you place inside the oven or upper cabinet.

- Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.

- BE SURE you have enough space. See Figure 4 below for minimum vertical and horizontal clearance.

WARNING

If you do not mount the oven as instructed,

you risk personal injury and/or property damage.

30" rain. cabinet opening

30" rain. clearancefrom bottom

of cabinetto cookingsurface

or countertop

(Use templates included

with installation instructions)

-Grounded Plug

(inside upper cabinet)

Power Supply

CordHole

Figure 4

CAUTION

• Before you begin installing the oven, PLACE APIECE OF THE CARTON OR OTHER HEAVY

MATERIAL (a blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.

Failure to protect these surfaces could result inproperty damage.

PARTS, TOOLS, MATERIALS

THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:

NOTE: Depending on your ventilation requirements, you may not use all of these parts.

Damper/duct connector

(for roof-venting or wall-venting installation)

Not Actual Size

One power cord clamp and

One dark-colored mounting screw

(to hold the power cord)

Actual Size

Two tapping screws - Actual Size

(for attaching the damper duct connector) One lock pin and one washer-Not Actual size

One power cord clamp bushing - Actual Size

(for the cord hole in a metal upper cabinet)

Four 1/4" x 2" lag screws - Actual Size

(for wall stud holes) Four 1/4" x 3" toggle bolts - Actual Size

(for drywall holes)

Two 1/4" x 2" bolts - Actual Size

(for securing to the upper cabinet)

Two washers - Actual Size

(for the two upper cabinet bolts)

Four spring toggle heads - Actual Size

(for the toggle bolts)

NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall and

the mounting area must meet the 150 Ibs. weight requirement.

PARTS, TOOLS, MATERIALS

YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION:

Carton or other heavy material for covering the counter top.

Clear tape

(for taping the templates to the wall) Stud finder or thin nail.

Saber saw (for cutting vent

hloes for roof or wall venting)

Phillips screwdriver (for the screws)

Pencil I

Flat blade screwdriver (for the bolts)

Key hole saw (for the power cord hole)

3/8" and 3/4" wood drill bits ._

1/2" and 3/16"

drill bits

Plumb line

Measuring tape (metal preferred) Duct Tape

Small side cutters or tin snips Caulking gun

• If you have brick or masonry walls, you need special hardware and tools.

• The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft

damper.

STEP 1: PREPARE THE

ELECTRICAL CONNECTIONS

WARNING

AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!

1. Locate the grounded electric outlet for this oven in the

cabinet above the oven, as shown in Figure 4 Detail.

NOTE: The outlet should be on a circuit dedicated to the

microwave oven 120V, 60Hz., AC only, with a

20ampere fused electrical supply.

IMPORTANT: If you do not have the proper wall outlet, you

MUST have one installed by a qualified

electrician.

2. You will cut the power-supply-cord hole (shown in

Figure 4 Detail) later when you prepare the wall and

upper cabinet in Step 4.

NOTE: Do not use an extension cord.

Keep the power cord dry and do not pinch or

crush it.

Upper

Cabinet

-Grounded Outlet

Power-Supply-CordHole

Figure 4 Detail

WARNING

Improper grounding could result in

electric shock or other personal injury,

•DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER

SUPPLY CORD GROUNDING PRONG! This appliance MUST be

grounded!

STEP 2:

PREPARE THE VENTING SYSTEM

NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard

ductwork fittings and length are shown in Figure 9, page 9.

WARNING-FIRE HAZARD

THIS OVEN MUST BE PROPERLY VENTED!

You may vent your oven in one of three ways:

Roof-venting If your oven is located on an outside wall near the roof, as in Figures 6 (31/4" x

10" duct) and 8 (6" round duct.)

Wall-venting If your oven is located on an outside wall on the first floor of your house, as in

Figures 5 (3 1/4" x 10" duct) and 8 (6" round duct.)

Room-venting If your oven is located on an inside wall of your house, as in Figure 7.

NOTE: If you choose the rear exhaust method (roof-or wall-venting), be sure there is enough clearance

within the wall for the exhaust duct.

Wall Venting

cabinet

Wall venting

3 1/4"x10"

duct

Figure 5

through-the-wall

REMEMBER AS YOU INSTALL THE

VENTING:

• Keep the length of the ductwork and the

number of elbows to a minimum to

ventilate your oven efficiently.

See examples on page 9.

• Keep the size of the ductwork the same.

• Do not install two elbows together.

• Use duct tape to seal all joints in the duct

system.

• Use caulking to seal the exterior wall or

roof opening around the cap.

cabinet

Roof venting

Roof Venting

duct _

through-the-roof

Figure 6

Room Venting

cabinet

ov'

Figure 7

roof cap

6" min.

diameter wall cap

round "_';.'" ";!

elbow

3 1/4"to round

ducttransition

3 1/4" toround

ductworktransition

Figure 8

STEP 2:

PREPARE THE VENTING S YSYTEM

STANDARD FITTINGS

NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3"

extension duct installed between the damper assembly and the adapter to prevent the exhaust

damper sticking.

DUCT LENGTH

The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not

exceed the equivalent of 140 feet.

For best performance, do not use more than three 90 degree elbows.

Below are the standard fittings and their equivalent length in feet.

3 1/4"x10"

to 6"=5ft. 3 1/4"x10" roof

cap=24ft.

3 1/4"x10" 90°

elbow=25ft.

90°elbow

=lOft.

3 1/4"x10"

wall cap

=40ft.

45° elbow

=5ft.

3 1/4"x10"

flat elbow

=lOft.

Figure 9

To calculate the equivalent length of each duct piece used, see the examples below.

Examples

For 3 1/4"x10" SYSTEMS

3 1/4"x10" _ 6ft. _ [}2_wall cap

90 ° elbow _____2_ft.

1-3 1/4" x 10" 90 ° elbow = 25 ft.

1-Wall Cap = 40 ft.

8 feet straight duct = 8 ft.

TOTAL LENGTH =73 ft.

For 6" ROUND SYSTEMS

90° elbows _----- 6ft. ---_¢ wall cap

transi@

1-transition = 5 ft.

2-90°elbows = 20 ft.

1-Wall Cap = 40 ft.

8feet straight = 8 ft.

TOTAL LENGTH = 73 ft.

STEP 3:

PREPARE THE VENTING BLOWER

Your microwave oven is shipped with the blower assembled for roof venting. You need to adjust the blower if

you want wall-venting or room-vented (recirculating) installation.

_k, WARNING _k,

ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT.

•DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could

result in electrical shock.

REMOVE THE MOUNTING PLATE:

1. Remove any shipping materials and parts from

inside the microwave oven.

A thick, protective

covenng

2. Cover the counter top or cooktop with a thick,

protective covering to protect it from damage and

dirt. See Figure 10.

NOTE: If you have a free-standing range,

disconnect it, move it onto a piece of

cardboard or hardboard and pull it away

from the wall, so that you can get closer to

the upper cabinet and back wall for easier

measuring and drilling.

3. Remove mounting plate screw(s) (1 or 2 screws)

from the mounting plate as shown and discard.

(See Figure 11.)

4. This plate will be used as the rear mounting plate.

(It will be used to locate and mark the mounting

holes on the rear wall.)

5. Locate exhaust adaptor, grease filters and

hardware packet.

6. At this point, remove any adhesive tape (if there is

any), on the exhaust adaptor, the grease filters

and the power supply cord. Control panel side

Figure 10

Mounting

plate

Mounting plate

screw(s)

(1 or 2 screws)

Figure 11

ROOF-VENTED INSTALLATION:

This oven is shipped assembled for roof-vented.

You will need to install the exhaust adaptor

regardless of cabinet.

1. Attach the exhaust adaptor to the blower plate by

sliding it into the guides. (See Figure 12.)

iJ l :

-" _" _ Back

_Figure 12

Exhaust

adaptor

ilOi

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Goldstar Four à micro-ondes

Goldstar

Goldstar MS-105YG Manuel utilisateur

Goldstar

Goldstar MV1735W Manuel d'utilisation et d'entretien

Goldstar

Goldstar MA-2003B Manuel utilisateur

Goldstar

Goldstar MA-1012W/B Manuel d'utilisation et d'entretien

Goldstar

Goldstar MV-1555ST Manuel d'utilisation et d'entretien

Goldstar

Goldstar MVH1615WW Manuel d'utilisation et d'entretien

Goldstar

Goldstar MA-2117W Manuel utilisateur

Goldstar

Goldstar MA-7802 Manuel d'utilisation et d'entretien

Goldstar

Goldstar MA-1010W Manuel utilisateur

Goldstar

Goldstar GoldStar MA748W Manuel d'utilisation et d'entretien

Goldstar

Goldstar MV1610ST Manuel d'utilisation et d'entretien

Goldstar

Goldstar ms-71gmu Manuel utilisateur

Goldstar

Goldstar GoldStar MA7542W Manuel d'utilisation et d'entretien

Goldstar

Goldstar MV1604ST Manuel utilisateur

Goldstar

Goldstar MS-84MK Manuel utilisateur

Goldstar

Goldstar MA-1417W Manuel utilisateur

Goldstar

Goldstar MV-1401W Manuel d'utilisation et d'entretien

Goldstar

Goldstar ms-71gmu Manuel utilisateur

Goldstar

Goldstar MA-1417W Manuel d'utilisation et d'entretien

Goldstar

Goldstar MA6511W Manuel d'utilisation et d'entretien

Goldstar

Goldstar MA-1303BRV Manuel utilisateur

Goldstar

Goldstar MV1501BQ Manuel d'utilisation et d'entretien

Goldstar

Goldstar MA-7000WCT Manuel utilisateur

Goldstar

Goldstar MA2120B Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
