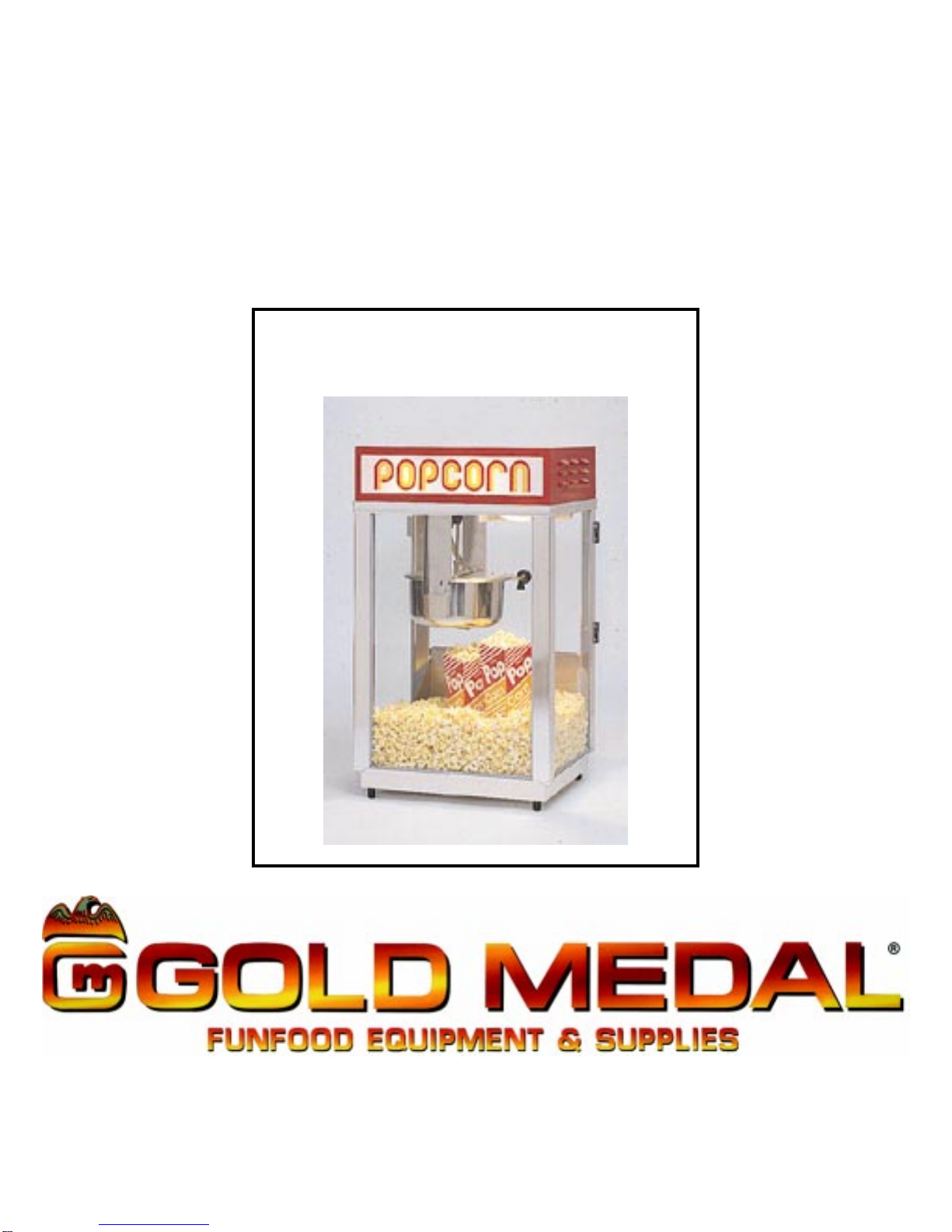

6 oz. Kettle Poppers
with
Love My Popper Kettle
Instruction Manual
Export Models #1871EX & #2660EX
PartNo.49217EX
RevisedJune 1996
Cincinnati, OH 45214-2089 USA
SAFETY PRECAUTIONS
NOTE
The information, specifications and illustrations contained in this manual represent
the latest data available at time of publication. Right is reserved to make changes as
required at the discretion of Gold Medal Products Company without notice.
Any alterations to this equipment will void the warranty and
may cause a dangerous situation. NEVER make alterations
to the equipment.
Make sure all machine switches are in the OFF position
before plugging the equipment into a receptacle.
Always wear safety glasses when servicing this equipment.
Machine must be properly grounded to prevent electrical shock
to personnel.
Do NOT immerse the kettle, warmer, or any other part of this
equipment in water.
Always unplug the equipment before cleaning or servicing.
This equipment is designed and sold for commercial use only. This
equipment is not to be used by the consumer in home use. Do not allow
direct contact of this equipment by the public when used in food service
locations. Only personnel trained and experienced in the equipment
operation may operate this equipment.
Carefully read all installation instructions before operating the equipment.
To avoid serious burns, do NOT touch the kettle while it is hot.
6 oz. Kettle Poppers
with Love My Popper Kettle
EXPORT MODELS #1871 AND #2660
1
INSTALLATION INSTRUCTIONS
INSTALLATION
Your new Gold Medal Six Ounce Kettle Popcorn Machine requires no additional assembly.
Remove all packing material and tape before starting operation.
OPERATING INSTRUCTIONS
CONTROLS AND THEIR FUNCTIONS
There are three switches on the popper.
LIGHT AND WARMER SWITCH
Turns on the heat to the bottom corn pan and heat light.
KETTLE MOTOR SWITCH
Turns on the motor which drives kettle agitator shaft.
KETTLE HEAT SWITCH
Turns on the heat element
AMOUNT OF POPCORN AND OIL
Your new popper is equipped with a six ounce (177 ml) corn measure cup. We recommend
flavored and colored coconut oil. Popcorn popped in coconut oil stays fresh longer. Coconut
oil does not leave black deposits in your kettle like other oils.
Corn charge - 6 oz. (177 ml)
Oil charge - 1.6 to 2.0 oz. (60 ml)
Flavacol - 1 tablespoon (8 cc)
POPPING INSTRUCTIONS
1. Turn KETTLE HEAT and KETTLE MOTOR switch ON.
2. Make test pop with 3 kernels of corn and 1 oz. (30 ml) of oil.
3. Load pre-measured popcorn and oil pouch into kettle.
4. When corn has popped, dump kettle.
5. Repeat cycle starting with Item #3; always pop 3-5 batches for best
popcorn.
To avoid
serious
burns, do
NOT touch
the kettle
while it is hot!
6 oz. Kettle Poppers
with Love My Popper Kettle
EXPORT MODELS #1871 AND #2660
2
CARE AND CLEANING
Each time you finish a series of poppings, wipe the outside of the kettle with a soft cloth to remove
any oil drippage on the outside of the kettle. After you finish popping for the day, allow kettle to
cool until it is not too hot to handle, but still warm. Unplug kettle and remove it from the machine.
With a cloth, wipe out the inside of the kettle, kettle lid, crossbar, outside and underneath of the
kettle.
Cleaning the cabinet of your machine is easy. Take a clean cloth and wipe excess grease from
the glass. Wipe the outside of the machine also. NOTE: Never use a glass or plastic cleaner that
contains ammonia. It will crack the plastic on the machine.
Unplug your machine bofore cleaning glass panel and case.
Never immerse the kettle in water. This will ruin the electrical
components and automatically void the guarantee.
6 oz. Kettle Poppers
with Love My Popper Kettle
EXPORT MODELS #1871 AND #2660
3
Description Part Number
6 oz. Corn Measure Cup 49049
A-Scoop 47145
Small Plastic Flavacol Cup 47678
Small 2 oz. (¼ cup oil) Measure
ACCESSORIES
MAINTENANCE INSTRUCTIONS
THE FOLLOWING SECTIONS OF THIS MANUAL ARE IN-
TENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO
ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE
NOT INTENDED FOR THE OPERATOR.
Adequate eye protection must be used when servicing this
equipment to prevent the possibility of injury.
Do NOT immerse the kettle, warmer, or any other part of this
equipment in water.
Unplug your machine before servicing.
6 oz. Kettle Poppers
with Love My Popper Kettle
EXPORTMODELS #1871 AND #2660
4
ORDERING SPARE PARTS
1.Identify the desired part by checking it against the photos, illustrations, and/or the parts list.
2.When ordering, please include part number, part name, and quantity desired.
3.Please include your model name and machine serial number (located on the machine
nameplate) with your order.
4.Address all parts orders to: Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
or, place orders at:
(513) 769-7676
Fax: (513) 769-8500
E-mail: [email protected]
6 oz. Kettle Poppers
with Love My Popper Kettle
EXPORT MODELS #1871 AND #2660
5

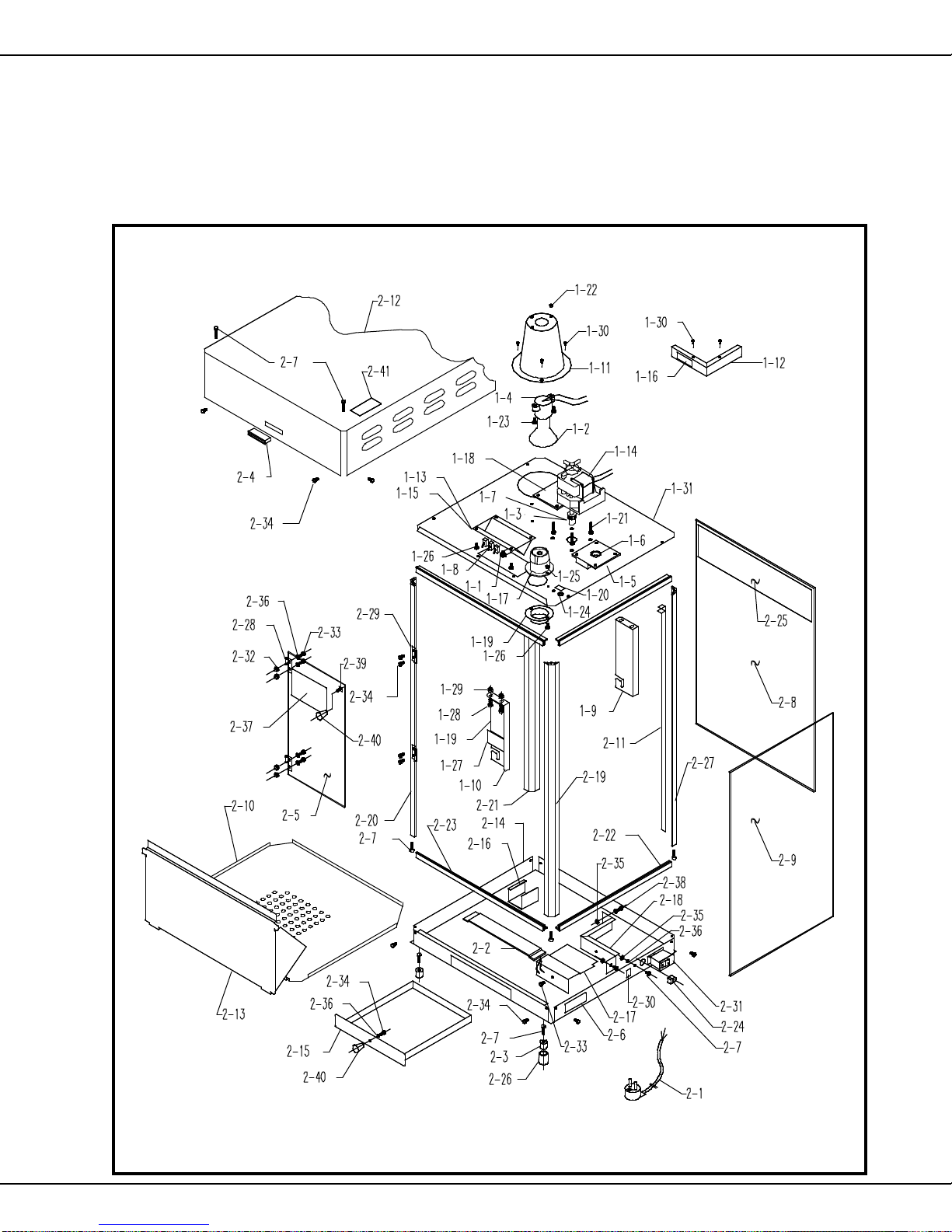

6 oz. KETTLE POPPER CABINET ASSEMBLY
6 oz. Kettle Poppers
with Love My Popper Kettle
EXPORT MODELS #1871 AND #2660
6
PARTS LIST - HANGER ASSEMBLY
Item No. Part No. Description
1-0 49337JX Complete Hanger Assembly
1-1 41033 Pilot Light
1-2 41671 Reflector Flood Light
1-3 41742 Set Screw #10-32 x 4,8mm
1-4 47047 Lamp Holder
1-5 47065 Gear Box w/ Bushing
1-6 47058 Flange Bushing
1-7 47059 Spur Gear
1-8 47201 Switch
1-9 49010 Front Hanger Arm
1-10 49009 Rear Hanger Arm
1-11 49480 Light Shield
1-12 47799 Light Shield Angle
1-13 49099 Switch Box
1-14 47121 Kettle Drive Motor
1-15 49116 Label, Switches
1-16 Warning, Max Lamp 75W
1-17 49330 Receptacle Assembly
49341 Black Recept.Wire Assembly
49342 White Recept. Wire Assembly
49343 Green Recept. Wire Assembly
1-18 49484 Motor Spacer
1-19 49322 #10-24 x 25,4mm Hex Machine Screw
1-20 74146 Hex Nut #8-32 Eslok
1-21 89125 #8-32 x 19mm Hex Head
1-22 74150 Washer #8 Internal Tooth
1-23 74149 Hex Nut #8-32
1-24 74141 Screw #8-32 x 9,5mm Panhead Phillips
1-25 87087 Label, Caution Hot
1-26 14821 Bolt, ¼-20 x 12,7mm Hex HD
1-27 74133 Hex Nut
1-28 47001 Pop Rivet
1-29 49331 Motor Plate
6 oz. Kettle Poppers
with Love My Popper Kettle
EXPORT MODELS #1871 AND #2660
7
PARTS LIST - CABINET ASSEMBLY
Model Model
#1871JX #2660JX
Item No. Part No. Part No. Description
2-0 49252 49026 Cabinet Assembly
2-1 22038 22038 Lead - In Cord
2-2 40031 40031 Heat Element 120V, 50W
2-3 41349 41349 Male Hinge, Short Right
2-4 41351 41351 Female Hinge, Long Right
2-5 47120 47120 Knob, Lid Lift
2-6 87179 87179 Glide
2-7 47561 47561 Magnetic Catch
2-8 49100 49100 Old Maid Pan
2-9 49103 49103 Strip Heater Bracket
2-10 49123 49123 Crutch Tip
2-11 77506 49158 Decal, Front Glass
2-12 49333 49332 Top Frame Assembly
2-13 49247 49346 Front Corner Post
2-14 49347 49347 Right Rear Corner Post
2-15 49348 49348 Left Rear Corner Post
2-16 49345 49345 Bottom Frame Assembly
2-17 49456 49456 Dome
2-18 49207 49207 Door
2-19 49208 49208 Front Glass 3,2mm x 384,2mm x 571,5mm
2-20 49209 49209 Side Glass 3,2mm x 333,4mm x 571,5mm
2-21 49210 49210 Drop Panel
2-22 49211 49211 Corn Pan
2-23 76190 76190 Screw #10-24 x 19mm Hex
2-24 77089 77089 Mount Bracket, Magnetic Catch
2-25 76026 76026 Strain Relief
2-26 49201 49201 Wiring Guard
2-27 75267 75267 Tee Bolt
2-28 47702 47702 #8-32 Acorn Nut
2-29 74142 74142 #8-32 x 6,4mm Panhead Phillips
2-30 74141 74141 #8-32 x 9,5mm Panhead Phillips
2-31 74149 74149 #8-32 Hex Nut
2-32 87149 87149 Label, Disconnect Power
2-33 47663 47663 Label, 6 Steps To Better Popping
2-34 49322 49322 #10-24 x 25,4mm Hex Hd Machine Screw
2-35 49212 49212 Rigid Channel 562mm
2-36 49213 49213 Rigid Channel 333,4mm
2-37 49214 49214 Rigid Channel 384,2mm
2-38 76097 76097 Label, Unplug Before Cleaning
2-39 49486 49486 Washer
2-40 74153 74153 #8-32 x 25,4mm Hex HD
2-41 49215 49215 Rear Glass Retainer Strip
2-42 49216 49216 Front Glass Retainer Strip
2-43 41350 41350 Male Hinge, Short Left
2-44 41352 41352 Female Hinge, Long Left
6 oz. Kettle Poppers
with Love My Popper Kettle
EXPORT MODELS #1871 AND #2660
8
6 oz. KETTLE ASSEMBLY
