Golden engineering XRS4 Manuel utilisateur
X-RAY
Golden Engineering, Inc.
6364 Means Road, Box 185
Centerville, IN 47330 USA
Phone: 1-765-855-3493
Golden Engineering
Portable X-ray Technology
18-20V X-RAY GENERATORS
OPERATOR’S
MANUAL
XRS3
XRS4
XR200
XR150
JULY 2021
ORIGINAL INSTRUCTIONS
1
CONTENTS
INTRODUCTION____________________________________________________________________ 3
WARNINGS _______________________________________________________________________ 4
PHYSICAL DESCRIPTION _____________________________________________________________ 5
CONTROL MODULE ____________________________________________________________ 7
REAR VIEW ___________________________________________________________________ 8
PHYSICAL DESCRIPTION _____________________________________________________________ 9
REMOTE CABLE CONNECTOR____________________________________________________ 11
DESCRIPTION OF OPERATION _______________________________________________________ 12
OPERATING INSTRUCTIONS _________________________________________________________ 13
RECOMMENDED PULSE SETTINGS ____________________________________________________ 15
NAVIGATING THE MENU____________________________________________________________ 16
HOME SCREEN - PULSES, DELAY, TRAINS ___________________________________________ 16
BASIC NAVIGATION ___________________________________________________________ 16
PULSE COUNT EXCEEDS DUTY CYCLE______________________________________________ 17
MANUALLY ENTERING PULSE TRAINS______________________________________________ 18
MULTIPLE PULSE TRAINS EXCEED DUTY CYCLE _______________________________________ 18
WORKING WITH PRESETS ______________________________________________________ 19
DEFINE PRESETS ___________________________________________________________ 19
RECALL PRESETS ___________________________________________________________ 19
RENAME PRESETS __________________________________________________________ 20
MENU SCREEN________________________________________________________________ 21
DISABLE DUTY CYCLE WARNING______________________________________________ 21
EXTRA SETTINGS __________________________________________________________ 21
VIEW LIFETIME PULSES______________________________________________________ 22
RESET PULSE COUNTERS ____________________________________________________ 22
ERROR MESSAGES_________________________________________________________________ 23
TROUBLESHOOTING _______________________________________________________________ 24
MAINTENANCE ___________________________________________________________________ 25
X-RAY DOSE MEASUREMENT ____________________________________________________ 25
TUBE REPLACEMENT ___________________________________________________________ 25
BATTERY DISPOSAL ____________________________________________________________ 25
INSTRUCTIONS FOR REPAIR _________________________________________________________ 26
DISASSEMBLY INSTRUCTIONS____________________________________________________ 26
REMOVING THE CONTROL MODULE __________________________________________ 26
INSTRUCTIONS FOR REPAIR _________________________________________________________ 27
REMOVING THE MAIN CONTROL BOARD_______________________________________ 27
REMOVING THE HEAD ______________________________________________________ 27
REMOVING THE OSCILLATOR BOARD AND ISOLATING THE HEAD ___________________ 27
CE CERTIFICATES __________________________________________________________________ 29
SPECIFICATIONS __________________________________________________________________ 31
SPARE PARTS AND ACCESSORIES _____________________________________________________ 32
2
WARRANTY ______________________________________________________________________ 34
RETURNING UNIT FOR REPAIR________________________________________________________ 34
3
X-ray generators from Golden Engineering are industrial type open beam X-ray generators intended to
radiograph inanimate objects. The devices are a pulsed X-ray device that produces X-ray pulses of very short
duration (10-50 nanoseconds). The energy produced by the X-ray generator varies from model to model, and
can be up to 370kVp, which makes it possible to radiograph up to one (1) inch (2.54 cm) of steel.
Each unit ships with two keys, two 20V battery packs, and one battery charger.
Many users choose to add other accessories like a Remote Cable or Carrying Case. Refer to the Spare Parts and
Accessories section for more details.
INTRODUCTION
RADIATION WARNING
The X-ray generator produces high levels of radiation and must be operated by qualied personnel
who have read the WARNINGS and OPERATING INSTRUCTIONS sections of the manual before
operating the device.
4
The X-ray generators from Golden Engineering are pulsed X-ray generators that emit hazardous ionizing
radiation when pulsing. The unit should only be operated by authorized personnel who are properly trained to
safely operate the X-ray generator. The X-ray generator must be registered with proper authorities prior to use
and should not be used to intentionally expose humans.
Develop and closely follow a safe operating system for using the X-ray generator. The safe operating system
must ensure that no one is exposed to radiation above the permissible limits which are 2 mR (0.02 mSv) per hour
for a member of the public. The safe operating system must ensure the X-ray generator is used within federal
and state guidelines.
All operators and users of the X-ray generator must wear a personal radiation monitoring
device, such as a TLD (thermoluminescent dosimeter), lm badge, and/or a pocket dosimeter
consistent with the appropriate federal, territorial or provincial standards. If an operator or
bystander is exposed to an unacceptable level of radiation
contact your Radiation Safety Ofcer and/or appropriate
health care provider.
Due to the short pulse width of the pulsed X-ray, survey meters of the Geiger-
Mueller and scintillator type do not accurately detect the radiation emitted
from pulsed X-ray generators.
Survey meters should be of the ionization chamber (ion chamber) type and should be used in the integration
mode. Survey meters must not be used in the rate mode because the pulsed X-ray generator does not produce
constant radiation. Pulsed X-ray generators produce very high rates of radiation for very short periods of time
resulting in either unrealistically high readings or no readings for a survey meter in rate mode.
The X-ray generators have no explosion proof rating and should not be used in an explosive atmosphere. The
Spark Gap could be a source of ignition.
WARNINGS
NOTE: Electronic dosimeters
and survey meters of the
Geiger-Mueller and scintillator
types may not detect the X-ray
Generator’s radiation pulses.
5
BEAM ANGLE
LABEL
COLLIMATOR
HANDLE
HIGH VOLTAGE PULSER/TUBEHEAD
The main body of the X-ray Generator
is the tube head. The head contains the
tube cavity, cold cathode type X-ray tube,
spark gap, high voltage capacitor, and
transformer.
The standard collimator
located on the front of the
head limits the X-ray beam to
40 degrees. Special order
collimators up to 85 degrees
are available.
PHYSICAL DESCRIPTION
The handle of the XR200 and XRS3 is attached
to the front and back of the Control Module.
The handle of the XRS4 is integral to the body.
XRS3
XR150 20V
6
BATTERY
RADIATION WARNING LABEL CONTROL MODULE
PICATINNY RAIL
The base of the unit contains an
identication label and a ¼-20
brass insert compatible with
standard camera tripods. The
base also accommodates a quick
release external tripod mount. The
identication label located on the
bottom of the generator lists the
manufacturer’s name and address,
model number, serial number,
weight, volt, amp, and production
date.
BATTERY PACK. The standard
battery pack is a DeWalt®
20V 2 amp hour Li Ion battery
(DCB203).
The X-ray generator is equipped a 21 mm
picatinny rail located on each side of the
housing.
BASE
XR200
XRS4
The main user interface for the
X-ray generator located on top of
the unit.
7

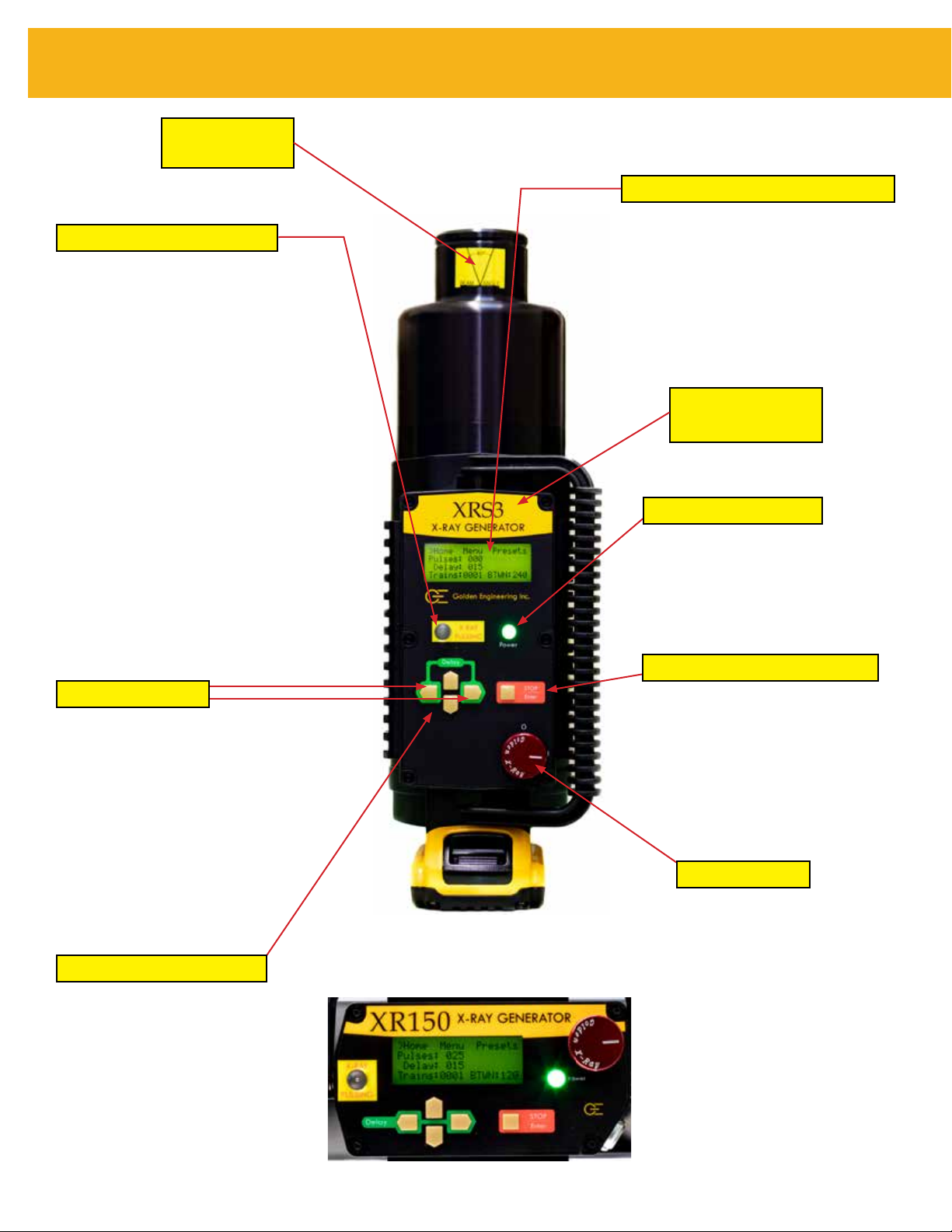

The 80 character LCD is the main
interface with the unit. See the
Operating Instructions for more details
on the various control screens.
X-RAY PULSING LIGHTS
ENTER / EMERGENCY STOP
KEY
POWER ON LIGHT
LIQUID CRYSTAL DISPLAY (LCD)
MODEL
IDENTIFICATION
DIRECTIONAL BUTTONS
DELAY SWITCH Stops the unit before it begins
pulsing or stops the unit in the
middle of a pulse train.
Also used as the enter button to
select desired option.
Pressing both Left and Right arrow
buttons simultaneously initiates
the delay mode, allowing the
operator to use the unit without
the remote cable.
Left, Right, Up and Down
buttons used to navigate
through the menu.
Blinks once per second after time
delay button or remote cable button
is pressed to warn that the X-ray
Generator is going to pulse. The light
stays on continuously while the unit is
pulsing.
This is a failsafe warning light. If the
light does not work the X-ray unit will
not pulse. See settings menu for fail-
safe override in emergency situations.
Illuminates when battery voltage
is applied to control module.
Main power switch to turn
the unit on and off.
CONTROL MODULE
BEAM ANGLE
LABEL
Top View
Control Module
8

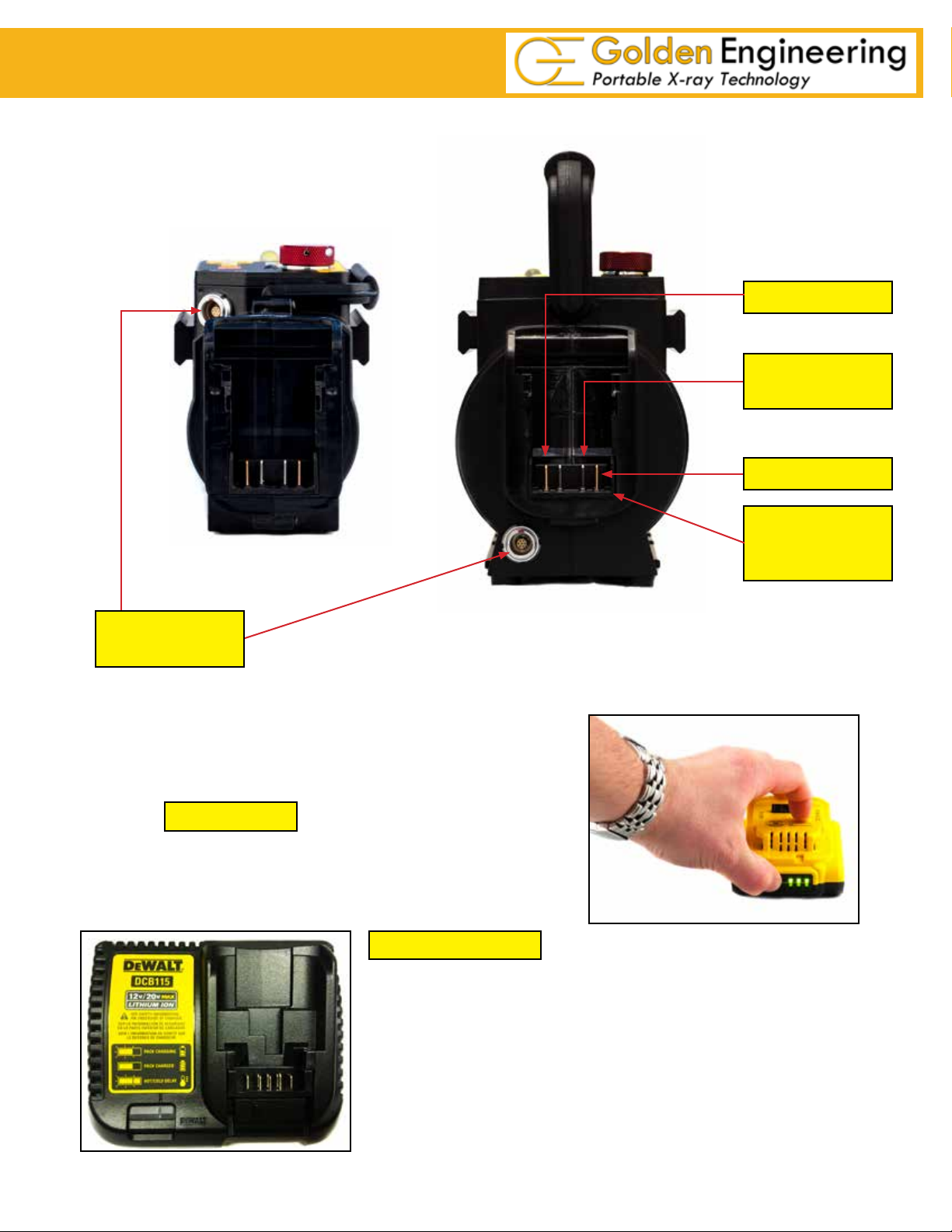

REAR VIEW
POSITIVE +
BATTERY
TERMINAL
BLOCK
TEMPERATURE
SENSOR
NEGATIVE -
Rear View
BATTERY PACK
The standard battery pack is a DeWalt® 20V 2 amp-
hour Li Ion battery (DCB203). The units are compatible
with batteries up to 12 amp-hours.
BATTERY CHARGER
The standard battery charger is the DeWalt® DCB115
charger for both 110V and 220V. (Note: DeWalt
model numbers may change). Battery charge time is
typically less than one hour.
See battery charger manual for additional instructions
and warnings.
REMOTE CABLE
CONNECTOR
9
QUICK RELEASE
TRIPOD MOUNT
TRIPOD MOUNT
RELEASE TAB
PHYSICAL DESCRIPTION
XRS3 - bottom
The nameplate identication
label located on the bottom
of the generator lists the
manufacturer’s name, model
number, serial number, weight,
volt, amp, and production date.
NAMEPLATE LABEL
