GOAL ZERO Switch 10 core Manuel utilisateur

Table of Contents

Get To Know Your Gear 2

Charge It 4

Solar Ready ℠ 5

Charge Your Gear 6

Troubleshooting 7

Technical Specifications 8

Français 10-17

日本語 18-25

Deutsch 26-33

Español 34-41

2 3

GET TO KNOW YOUR GEAR

Metal Collar

Flip-out

Charging Tip

USB Output

Flip-out Charging Tip

Battery

Indicator Light

2 3

GET TO KNOW YOUR GEAR

Metal Collar

Flip-out

Charging Tip

USB Output

Flip-out Charging Tip

Battery

Indicator Light

4 5

CHARGE IT

1. Using the flip-out charging USB tip, plug Goal Zero

Switch 10 into any live USB port and charge up in 3

hours.

2. Know it’s charging when the blue indicator lights

illuminate and flash.

3. Goal Zero Switch 10 is ready to go when all lights are

illuminated and holding steady.

Goal Zero Switch 10 allows for pass-through power so

you can charge your gear and Goal Zero Switch 10 at

the same time.

Check the battery level of Goal Zero Switch 10 by

pressing the button next to the indicator lights.

3 Hrs 1 Recharge

Goal Zero

Switch 10 Core

USB Port Phone

SOLAR READY℠

Goal Zero Switch 10 is engineered to charge quickly

from Goal Zero’s Nomad® Solar Panels.

1. Using the flip-out charging USB tip, plug Goal Zero

Switch 10 into the USB port on the back of the

Nomad panel.

2. Know it’s charging when the blue lights illuminate

and flash.

3. Goal Zero Switch 10 is ready to go when all lights are

illuminated and holding steady.

3 Hrs

Full Sun

1 Recharge

Goal Zero

Switch 10 Core

Nomad 7 Plus

Solar Panel

Sold Separately

Phone

4 5

CHARGE IT

1. Using the flip-out charging USB tip, plug Goal Zero

Switch 10 into any live USB port and charge up in 3

hours.

2. Know it’s charging when the blue indicator lights

illuminate and flash.

3. Goal Zero Switch 10 is ready to go when all lights are

illuminated and holding steady.

Goal Zero Switch 10 allows for pass-through power so

you can charge your gear and Goal Zero Switch 10 at

the same time.

Check the battery level of Goal Zero Switch 10 by

pressing the button next to the indicator lights.

3 Hrs 1 Recharge

Goal Zero

Switch 10 Core

USB Port Phone

SOLAR READY℠

Goal Zero Switch 10 is engineered to charge quickly

from Goal Zero’s Nomad® Solar Panels.

1. Using the flip-out charging USB tip, plug Goal Zero

Switch 10 into the USB port on the back of the

Nomad panel.

2. Know it’s charging when the blue lights illuminate

and flash.

3. Goal Zero Switch 10 is ready to go when all lights are

illuminated and holding steady.

3 Hrs

Full Sun

1 Recharge

Goal Zero

Switch 10 Core

Nomad 7 Plus

Solar Panel

Sold Separately

Phone

6 7

Goal Zero Switch 10 is designed to charge POVcameras,

phones, and other handheld USB-powered gear.

1. Using your gear’s charging cable, plug into Goal

Zero Switch 10’s USB output.

2. Goal Zero Switch 10 will automatically begin

charging when you plug in your gear.

You can also use the micro-USB cable included with

Switch 10 to charge compatible devices.

CHARGE YOUR GEAR TROUBLESHOOTING

Goal Zero Switch 10 Reset:

Plug Goal Zero Switch 10 into any live USB port to reset it.

Phone

Tablet

25% Boost

What It Powers:

POV Camera

7”

6 7

Goal Zero Switch 10 is designed to charge POVcameras,

phones, and other handheld USB-powered gear.

1. Using your gear’s charging cable, plug into Goal

Zero Switch 10’s USB output.

2. Goal Zero Switch 10 will automatically begin

charging when you plug in your gear.

You can also use the micro-USB cable included with

Switch 10 to charge compatible devices.

CHARGE YOUR GEAR TROUBLESHOOTING

Goal Zero Switch 10 Reset:

Plug Goal Zero Switch 10 into any live USB port to reset it.

Phone

Tablet

25% Boost

What It Powers:

POV Camera

7”

8 9

Ports:

USB port (output) 5V, up to 1.5A (7.5W max),

regulated

USB port (input) 5V, up to 1A (5W max)

General:

Chainable No

Weight 4 oz (113g)

Dimensions 4.5 x 1 x 1 in (11.4 x 2.5 x

2.5 cm)

Operating usage temp. 32-104 F (0-40 C)

Certs

Warranty 12 months

Goal Zero Switch 10 Core Recharger

TECHNICAL SPECIFICATIONS

Be sure to ACTIVATE YOUR WARRANTY

at goalzero.com/warranty

Charge times:

GOAL ZERO Nomad

7 Plus 3-5 hrs

USB Source 3 hrs

Battery:

Cell chemistry Li-ion NMC

Cell type 18650

Cell capacity 9.4Wh (3.6V, 2600mAh)

Lifecycles hundreds of cycles

Shelf-life Keep plugged in, or charge

every 3-6 months

Fuses none

Management system Charging and low-battery

protection built-in

8 9

Ports:

USB port (output) 5V, up to 1.5A (7.5W max),

regulated

USB port (input) 5V, up to 1A (5W max)

General:

Chainable No

Weight 4 oz (113g)

Dimensions 4.5 x 1 x 1 in (11.4 x 2.5 x

2.5 cm)

Operating usage temp. 32-104 F (0-40 C)

Certs

Warranty 12 months

Goal Zero Switch 10 Core Recharger

TECHNICAL SPECIFICATIONS

Be sure to ACTIVATE YOUR WARRANTY

at goalzero.com/warranty

Charge times:

GOAL ZERO Nomad

7 Plus 3-5 hrs

USB Source 3 hrs

Battery:

Cell chemistry Li-ion NMC

Cell type 18650

Cell capacity 9.4Wh (3.6V, 2600mAh)

Lifecycles hundreds of cycles

Shelf-life Keep plugged in, or charge

every 3-6 months

Fuses none

Management system Charging and low-battery

protection built-in

Autres manuels pour switch 10 core

Table des matières

Autres manuels GOAL ZERO Accessoires

GOAL ZERO

GOAL ZERO Venture 35 Manuel utilisateur

GOAL ZERO

GOAL ZERO FLIP24 Manuel utilisateur

GOAL ZERO

GOAL ZERO switch 10 core Manuel utilisateur

GOAL ZERO

GOAL ZERO SHERPA 100PD Manuel utilisateur

GOAL ZERO

GOAL ZERO Sherpa 100AC Manuel utilisateur

GOAL ZERO

GOAL ZERO Guide 10 Plus Manuel utilisateur

GOAL ZERO

GOAL ZERO FLIP36 Manuel utilisateur

GOAL ZERO

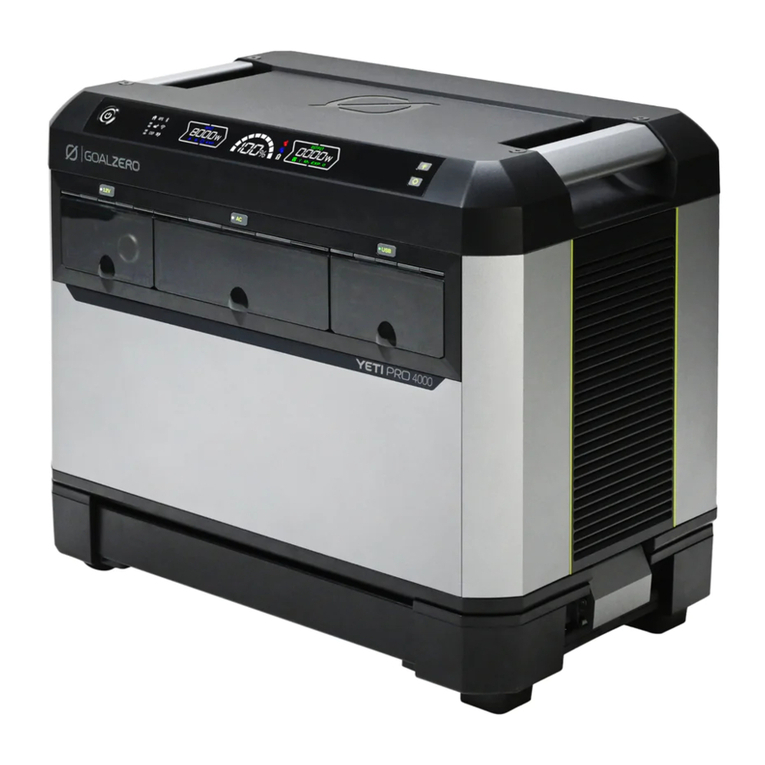

GOAL ZERO YETI PRO 4000 Manuel utilisateur
