GMC ANDROID INTERFACE Manuel utilisateur
Instruction Manual
DATE.
2018.09.14
GM
ANDROID INTERFACE
KIBERCAR
[ANDROID INTERFACE] GM
GM Power/CAN Cable Universal Cable
LVDS Cable AV Cable IR Cable
Speaker External GLONASS
GPS Antenna WiFi/BT Antenna x 2
MIC Key Pad
GM925-DEC-SUB (Option) GM925-MON-SUB (Option)
COMPONENTS
Choose SUB-BOARD between GM925-DEC-SUB and GM925-MON-SUB
KIBERCAR
[ANDROID INTERFACE] -GM
SPEC
※ ANDROID
OS
CPU
VPN
Memory
USB
USB 3.0
Wireless
GPS
HDMI OUT
Speaker
I/O
Temperature
Operating
Android 7.1.2(Nougat)
Six-Core 64bit Server Class Cortex-A72 Core @2.0Ghz,
Mali-T860 Quad-Core GPU (Total Ten-Core)
H.264/H.265/VP9 up to 4Kx2K@60fps (4K Video)
2GB DDR3
USB2.0 High Speed Port x 1
USB3.0 5.0Gbps Port x 1
2.4GHz/5GHz Dual-Band WiFi,
Support 802.11a/b/g/n/ac, Bluetooth 4.1
Ublox8 GPS(GLONASS/BEIDOU/GALILEO/QZSS/SBAS)
HDMI 2.0, Support maximum 4K@60Hz display
2W
Mic (voice recognition),
-20°C ~ 80°C
-15°C~ 70°C
※ INTERFACE
Input Spec.
Output Spec.
Power Spec.
I/O
2 x A/V Input ( external video source )
1 x CVBS ( Front Camera )
1 x CVBS ( Rear Camera )
1 x Audio L/R Output
1 x LVDS Output ( LCD Operation )
Input Power : 12V DC ~ 24V DC
Consumption Power : 12 Watt Max
Input : 10P Dip Switch
Output : 12V Output ( 3A Max )
DVB-T IR ( Remote Control )
DVD IR ( Remote Control )
KIBERCAR
[ANDROID INTERFACE] -GM
CONNECTOR PIN ASSIGNMENT
Power Cable
(POWER/CAN)
AV Cable
(AV IN)
Universal Cable
(AV IN/OUT)
135 7 911 13 15
24 6 810 12 14 16
1 3 5 7 9 11 13 15
Yellow Purple Green Green Brown White
BATTERY N.C 12V_OUT REVERSE N.C SW CAN BUTTON LIN
IN
TOUCH LIN
IN
2 4 6 8 10 12 14 16
Black Orange Blue Blue
GND N.C N.C REAR_12V OMNI KEY N.C N.C TOUCH LIN
OUT
1357911 13 15
2 4 6 8 10 12 14 16
1 3 5 7 9 11 13 15
White White White White White White White White
AV1_IN_V AV1_IN_R AV1_IN_L AV2_IN_V AV2_IN_R AV2_IN_L FRONT_IN REAR_IN
2 4 6 8 10 12 14 16
Black Black Black Black Black Black Black Black
GND GND GND GND GND GND GND GND
1357911 13 15 17 19 21
2 4 6 8 10 12 14 16 18 20 22
1 3 5 7 9 11 13 15 17 19 21
White White White White Orange Brown Green
SPK_P AUX_OUT_R AUX_OUT_L MIC_P FMT_ANT DVB-T IR DVD IR
2 4 6 8 10 12 14 16 18 20 22
Black Black Black Black White Black Red
SPN_N GND GND MIC_N IR_IN IR_GND IR_POWER
POWER/CAN
AV IN AV IN/OUT
KIBERCAR
[ANDROID INTERFACE] -GM
DIP S/W INFORMATION
ON 1 2 3 4 5 7 86 9 10
11
ON OFF
Pin No. On Off
1External Rear Camera Orignal Rear Camera
2External Front Camera Skip External Front Camera
3DVBT Mode Skip DVBT Mode
4DVD Mode Skip DVD Mode
5NC NC
6NC NC
7
Selection of Car Model
8
9
10
※ Selection of Car Model
8
7 9 10 Car Model
Off Off Off Off CHEVROLET CAMARO
Off Off On Off
CHEVROLET SILVERADO
CHEVROLET SUBURBON
CHEVROLET TAHOE
Off On Off Off CADILLAC ESCALADE, XT5, CT6
CHEVROLET EQUNIOX
KIBERCAR
[ANDROID INTERFACE] -GM

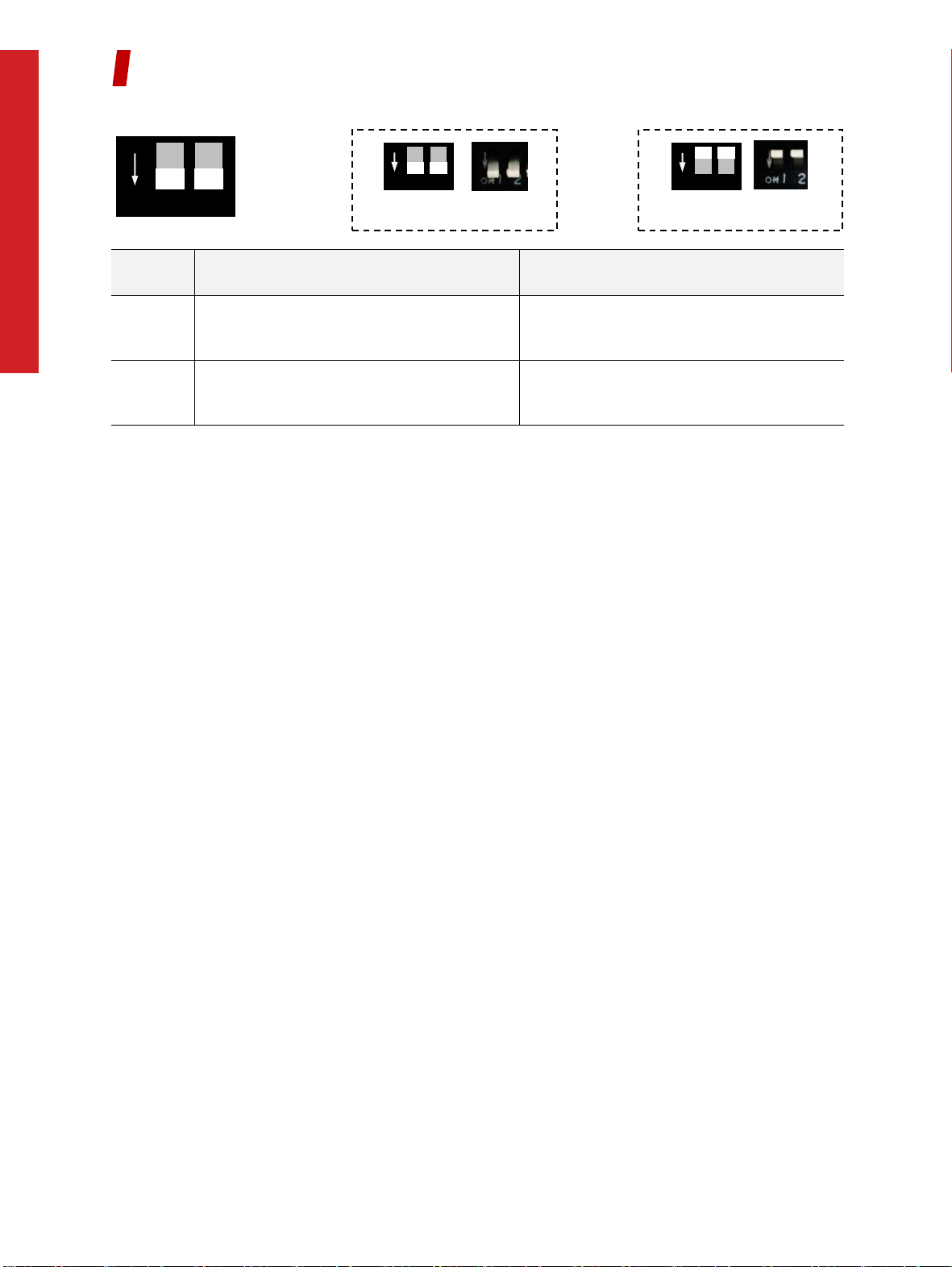

DIP S/W INFORMATION
ON OFF
Pin No. On Off
1NC NC
2Use External GPS Antenna
(DIP S/W 2 Must ON)
Use Car GPS Cable
(Option)
1 2
ON
1 2
ON 1 2
ON
KIBERCAR
[ANDROID INTERFACE] -GM
SCREEN VIEW
1NAVIGATION Quick icon for Navigation Application
2Multimedia Quick icon for Multimedia Application
3Music Player Music player Widget
4File Manager Quick icon for File Manager Application
5APPS Application List
6Back Button Return
7Home Button Home
8Multitasking 1. Multitasking
2. PIP Mode by Long Press
9APP Shortcut Quick icon
10 Sound Volume control
11 WiFi Open Wifi setting screen
12 Settings Open Android Settings
13 Zoom Tool Screen Zoom in / out
※ This icon will show when car monitor have “Resistive Touch”,
1 2 3
4 5
6 7 8 9 10 11 12
13
KIBERCAR
[ANDROID INTERFACE] -GM
CABLE DIAGRAM
※ AUX
Use the AUX connector using a cable
compatible with the AUX connector.
※CVBS Around View Camera
Using Around View system with IR cable.
※ DVB-T
Used after connecting DVB T audio R, L and
video
※ Front/Rear Camera
To use the front or Rear camera, use it after
connecting the power supply and the video
signal line.
AUX
REAR IN &FRONT IN
TV BOX
IR
KIBERCAR
[ANDROID INTERFACE] -GM
CHEVROLET SILVERADO / EQUNIOX / IMPALA / SUBURBON / TAHOE
CONNECT CAN/POWER DIAGRAM
110
B+ POWER
SWITCH CAN
BUTTON LIN
TOUCH LIN
GROUND
1
3
5
8
10
1
16
8
9
B+ POWER
SWITCH CAN
GROUND
TOUCH LIN
BUTTON LIN
1
4
8
14
15
CHEVROLET CORVETTE
CADILLAC ESCALADE
From CAR 6
5
10
1
B+ POWER
SWITCH CAN
BUTTON LIN
TOUCH LIN
GROUND
1
3
5
8
10
TOUCH IN
TOUCH OUT
TOUCH IN
TOUCH OUT
How to connect touch in/out cable to OEM connector.
KIBERCAR
[ANDROID INTERFACE] -GM
Cadillac Escalade Chevrolet Silverado
Chevrolet Camaro Chevrolet Corvette
CONNECT LVDS CABLE DIAGRAM
Determine the sub-board
and work position according to the vehicle.
Behind the Headunit
(Glove Box)
Behind the Monitor
Cadillac Escalade/XT5
Chevrolet Equinox
/Camaro/Impala
/Malibu/Corvette
GM925-MON-SUB V1.0
INOUT
Provied LVDS Cable
OEM LVDS Cable
Chevrolet Suburban/Tahoe
GMC Canyon
GM925-DEC-SUB V1.0
INOUT
Provied LVDS Cable
OEM LVDS Cable
ANDROID
INTERFACE
POWER/CAN KEYPAD LVDS OUT AV IN/OUT SW GPS WIFI/BT
DEBUG
DIP SW R-KEY HDMI OUT USB 2.0 MicroSD
AV IN
USB 3.0
