GLP Ipression XL Manuel utilisateur

Instruction Manual

from Software Version 1.09/0.3

(Manual Version 1.06)

e-mail: [email protected]

Internet: http://www.glp.de

R-

-G

G-

-B

GLP German Light Products GmbH

(Manual Version 1.06) / from Software Version 1.09/0.3)

For your notes:

R-

-G

G-

-B

GLP German Light Products GmbH

(Manual Version 1.06) / from Software Version 1.09/0.3)

Table of content

1 Description of Device........................................................................................................4

1.1

Safety Instructions.......................................................................................................................5

2 Preparation and Installation..............................................................................................6

2.1

Mounting......................................................................................................................................6

2.1.1

Mounting on the floor (upright) ....................................................................................7

2.1.2

Mounting in hanging position (Head down).................................................................7

2.1.3

Mounting in sideway position.......................................................................................8

2.2

Securing the Device ....................................................................................................................9

2.3

Connections.................................................................................................................................9

2.3.1

Power Supply...............................................................................................................9

2.3.2

DMX.............................................................................................................................9

3 The Menu Field ................................................................................................................10

4 DMX Channel Sheet.........................................................................................................12

5 Maintaining and Cleaning the I

L ............................................................17

5.1

Safety regulations..................................................................................................................... 17

5.2

Maintenance Intervals (rule-of-thumb) ..................................................................................... 17

6 Technical Specifications.................................................................................................18

7 Index.................................................................................................................................20

R-

-G

G-

-B

GLP German Light Products GmbH

(Manual Version 1.06) / from Software Version 1.09/0.3)

1 Description of Device

1. Moving head (actively and

passively cooled)

2. Arm with various cooling

vents

3. Tilt-lock to secure and lock

the tilt movement see also

1.1

4. LCD-Display/Menu (data

entry)

5. Base with various connectors

and Camlock mounting

system





Safety eyelets

base side 1

base side 2

6. DMX- Output (5 Pin)

7. DMX- Output (3 Pin)

8. Micro-fuse 6.3x32mm, T15A

9. Power On/Off

10.2x Safety eyelets

11.Powercon (Mains supply)

12.Blank panel

13.DMX- Input (3 Pin)

14.DMX- Input (5 in)

Note: Only connect one cable to the

DMX-Out/Input at a time!

R-

-G

G-

-B

GLP German Light Products GmbH

(Manual Version 1.06) / from Software Version 1.09/0.3)

1.1 Safety Instructions

The

is an advanced technology product. To guarantee

smooth operation, it is necessary to follow the following instructions.

The manufacturer of this device will not take responsibility of damages

through any disregard of the information in this user manual. Warranty claims

will also be cancelled in the event of the system casing being opened.

1. Make sure that before powering up the fixture, the fans and air inlets are

clean and not blocked by anything.

2. Before powering up the fixture, ensure that the moving head part of the

fixture can rotate unhindered through its full range of movement.

3. A safety distance of at least 0.5 m to any easily flammable material (e.g.

decoration material) must be adhered to.

4. Attention! Don’t touch the device during operation. Parts of the fixture can

become hot and can cause injuries and / or damages.

5. The system doesn’t contain any user serviceable parts. Opening the fixture

will void the manufacturers warranty.

6. Danger of burning. Wait at least 15 minutes after disconnecting the AC

power before changing the optical carrier on the fixture. Pay attention to

possible hot parts of the system.

7. Never look directly into the beam of light or one of the LEDs. Never use

optical apertures with a distance less than 0.5 m to observe the beam of

light. LED Class 2M. Not following these precautions can result in serious

injury to your eyes and in particular, your retina.

Attention:

LED Class 2M can cause injuries of your eyes even

without optical instruments in front of them or within a distance

of less than 0.5m and short exposure time.

Avoid direct radiation to your eyes!

8. To ensure proper operation, you must also follow the installation guide

described in chapter 2 of this manual. Operating the I

without suitable mounting devices can increase the risk of an accident.

9. The I

Lfeatures a unique small and lightweight design with

no specific carrying handles. Care needs to be shown when handling the

fixture to ensure that no unnecessary damage should occur. Fragile areas

include the LCD display and cover on one side arm and the front bezel.

Pressure in these areas could result in damages which will not be covered

by the standard warranty.

R-

-G

G-

-B

GLP German Light Products GmbH

(Manual Version 1.06) / from Software Version 1.09/0.3)

10. Repair-, maintenance- and installation work should only be performed by

qualified or GLP certified staff. You need to pay attention to the common

rules of technology that are not explicit mentioned in this manual.

11. Use only original spare parts. Any structural modification on the system will

terminate all warranty claims.

12. Please keep this instruction manual for future reference.

2 Preparation and Installation

2.1 Mounting

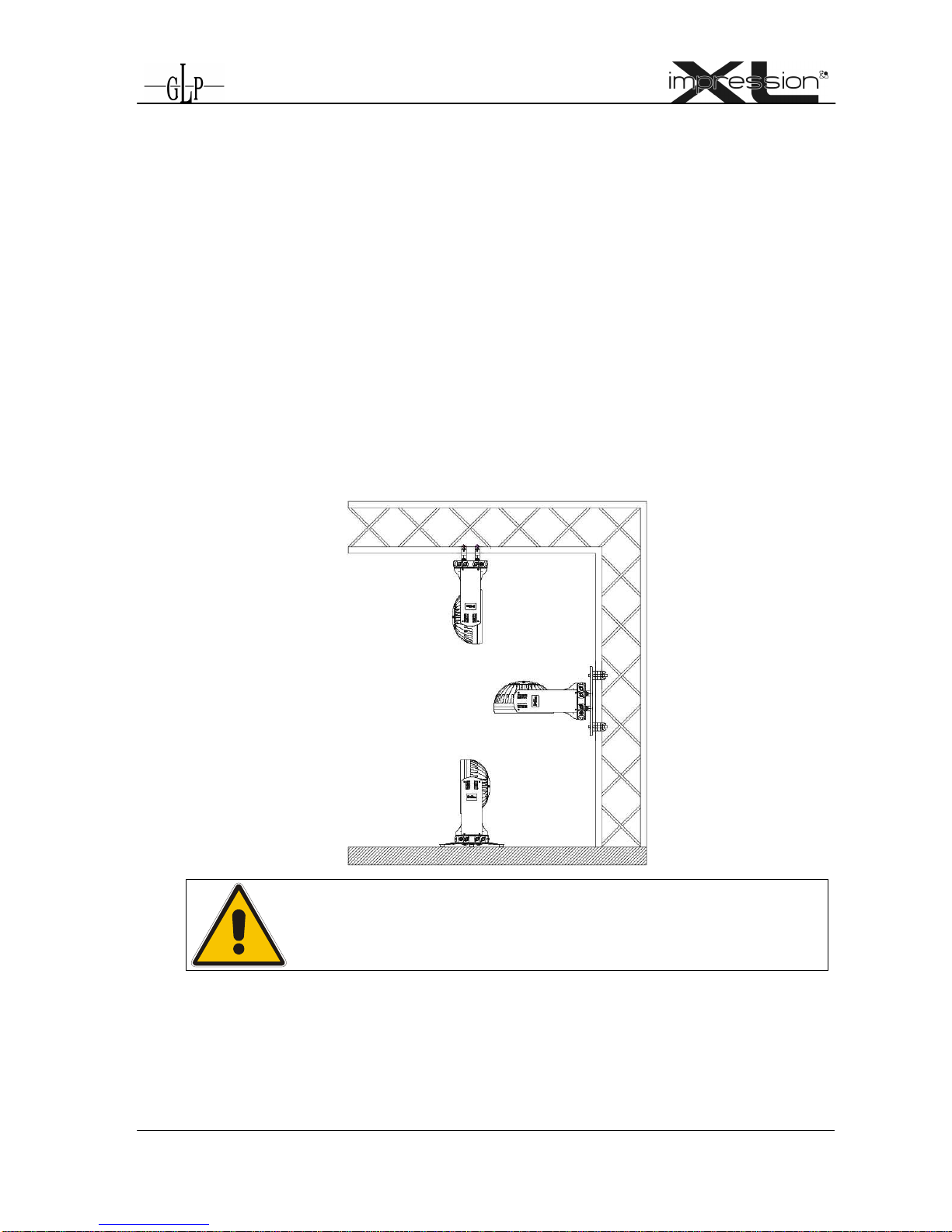

The I

is fully operational whether it hangs or is mounted to a

wall. It can also be operated while standing on the floor. Keep a safety distance

of 0.5 m from any easily inflammable materials (decoration etc.).

Pay attention to the regulations of: BGV C1 (former VBG 70)

and DIN VDE 0711-217.

The installation shall be done by qualified personal only.

For the various mounting positions of the I

L(standing on the

floor, sideways or hanging) different accessories kits are available. Using any

required kits, along with the standard mounting connectors on the base of the

fixture, will ensure a safe and firm installation.

R-

-G

G-

-B

GLP German Light Products GmbH

(Manual Version 1.06) / from Software Version 1.09/0.3)

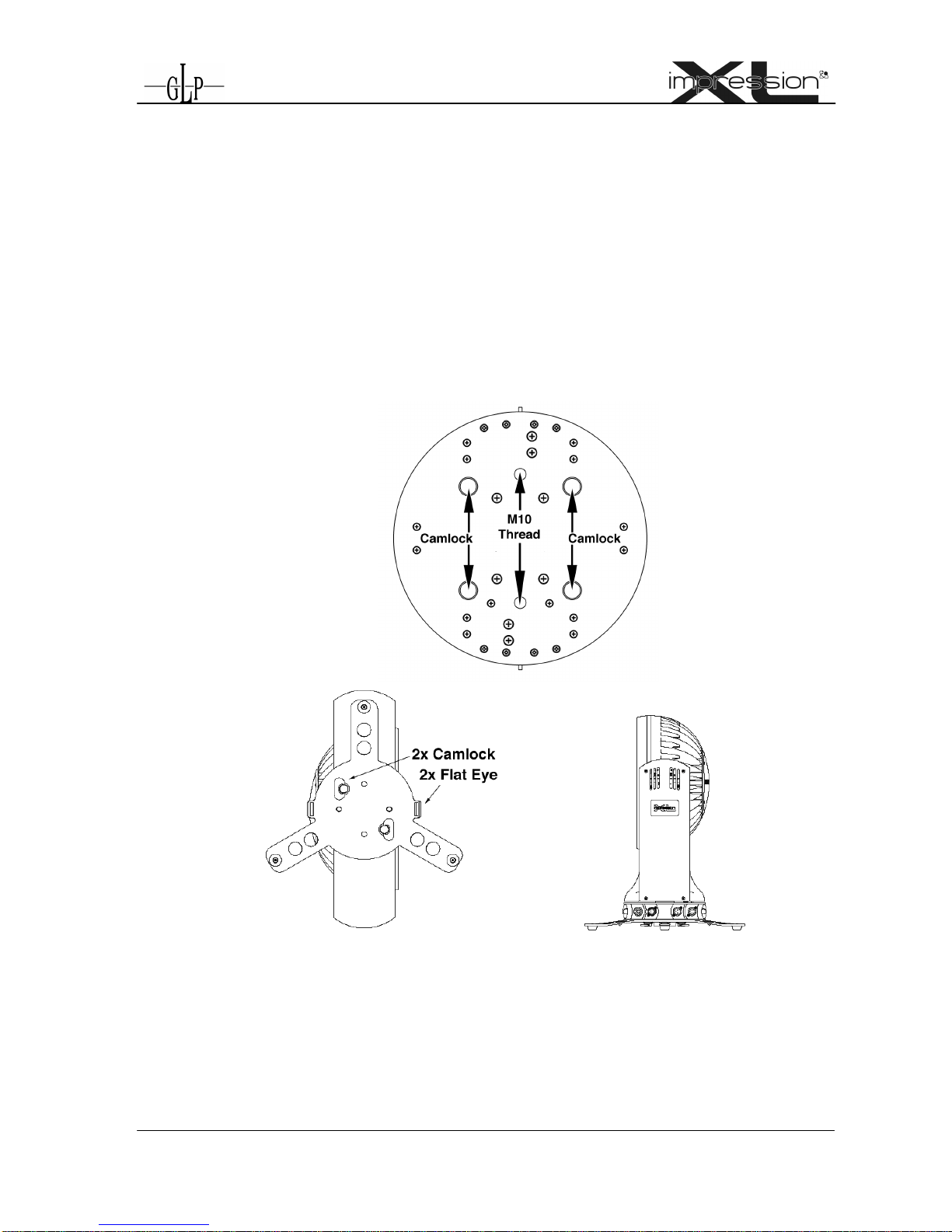

2.1.1 Mounting on the floor (upright)

To operate the I

NXL in an upright position, please use the

dedicated floor-stand which ships with all original fixtures. The floor

stand is mounted to the base of the fixture using the two Camlock

quarter turn fasteners. Line up and engage the camlock connectors from

the floor stand into the base of the fixture and turn the two fasteners 90°

to lock them. Do the opposite to release them again. On both sides you'll

find eyelets to pull though a fixing strap. This allows additional bracing of

the floor-stand during the upright operation.

2.1.2 Mounting in hanging position (Head down)

To operate the I

NXL in a hanging position, two omega

brackets can be mounted directly to the bottom of the base using the

four Camlock connectors.

R-

-G

G-

-B

GLP German Light Products GmbH

(Manual Version 1.06) / from Software Version 1.09/0.3)

2.1.3 Mounting in sideway position

To operate the I

Lin a sideways position, please use an

additional mounting bar, available from GLP or one of their agents.. This

mounting bar is fixed via the four camlock quick-release connectors. Two

half-couplers or clamps are then used to hang the mounting bar. This

technique is necessary to cope with the additional torque in this

mounting position. Never use the "Mounting in hanging position"

technique described above to secure the fixture in a sideway position, as

the fixtures base can become damaged, and a secure installation cannot

be assured.

Without mounting bar

R-

-G

G-

-B

GLP German Light Products GmbH

(Manual Version 1.06) / from Software Version 1.09/0.3)

2.2 Securing the Device

Regardless of the mounting method of the I

you'll have to use

a secondary safety wire. This safety wire can be attached to the fixture by

threading it through one of the two holes provided on the base of the fixture.

Ensure that the safety wire is securely fastened through the fixture and the

fixtures mounting support. Install a safety wire that can hold at least 10 times

the weight of the fixture

2.3 Connections

2.3.1 Power Supply

~100-240 Volt AC, 50-60 Hz, earth contact type plug - Powercon

Connected load 1200 VA (W) <=> T15A (micro-fuse 6.3x32mm)

Please see printing on the case for the correct mains supply!

Disconnect from the mains supply for changing the fuse and use

only the above described micro-fuse type.

2.3.2 DMX

USITT DMX-512 Standard input/output in 3 pole and 5 pole connectors.

3 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+]

5 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4/5 n.c.

The DMX- Addressing starts at the DMX- Address [001].

R-

-G

G-

-B

GLP German Light Products GmbH

(Manual Version 1.06) / from Software Version 1.09/0.3)

The Menu Field

You’ll find the control board on the side of the arm. It allows

you to make all necessary adjustments of the I

With the Mode-key you get into the main menu.

Afterwards you can navigate through the menu with the

Up/Down-keys. Push the Enter-key to get to the next menu

level or to confirm your settings. Select ON/ OFF function

settings with the Up/Down-keys. Confirm and save with the

Enter-key (the display shows OK). Push the Mode-key to

cancel the entry and go back to the main menu.

Mode

Scroll wheel - Up & Down

Enter



DOWN - UP 







MODE - ENTER 





Level1

Level 2

Level 3

Level 4

Remark

DMX Start

Address

001 Define the DMX start address

Special Manual DMX Manual control of all system functions

Pan Manual control for Pan (X-movement)

Speed

Movements Speed adjustment for Pan/Tilt movements 
