Assembly manual
Black Snapper L PRO
Seite 1von 16
Assembly manual Black Snapper L Pro
Status: September, 2014
Assembly manual
Black Snapper L PRO
Seite 2von 16
Assembly of the booms
In the kit, booms with 2 different lengths are included. The shorter booms have to be mounted to the front end of
the aircraft.
Before mounting the motors, please make sure that the threads for the motor wires point to the center frame.
When you finally tighten all screws, you will have to fine-adjust the rotation of the boom.
The mounting holes for the landing
skids have to face down.
Nicht im Lieferumfang
M3x15mm Distanzbolzen
am besten aus Metall.
Werden bei H3-3D Gimbal benötigt!
Make sure that the asymmetrical holes in the
motor plate match the threads in the motor
before you insert the cables.
Do not tighten the screws firmly already. You
will have to loosen them again when you
adjust the vertical alignment of the motor axis.
Assembly manual
Black Snapper L PRO
Seite 3von 16

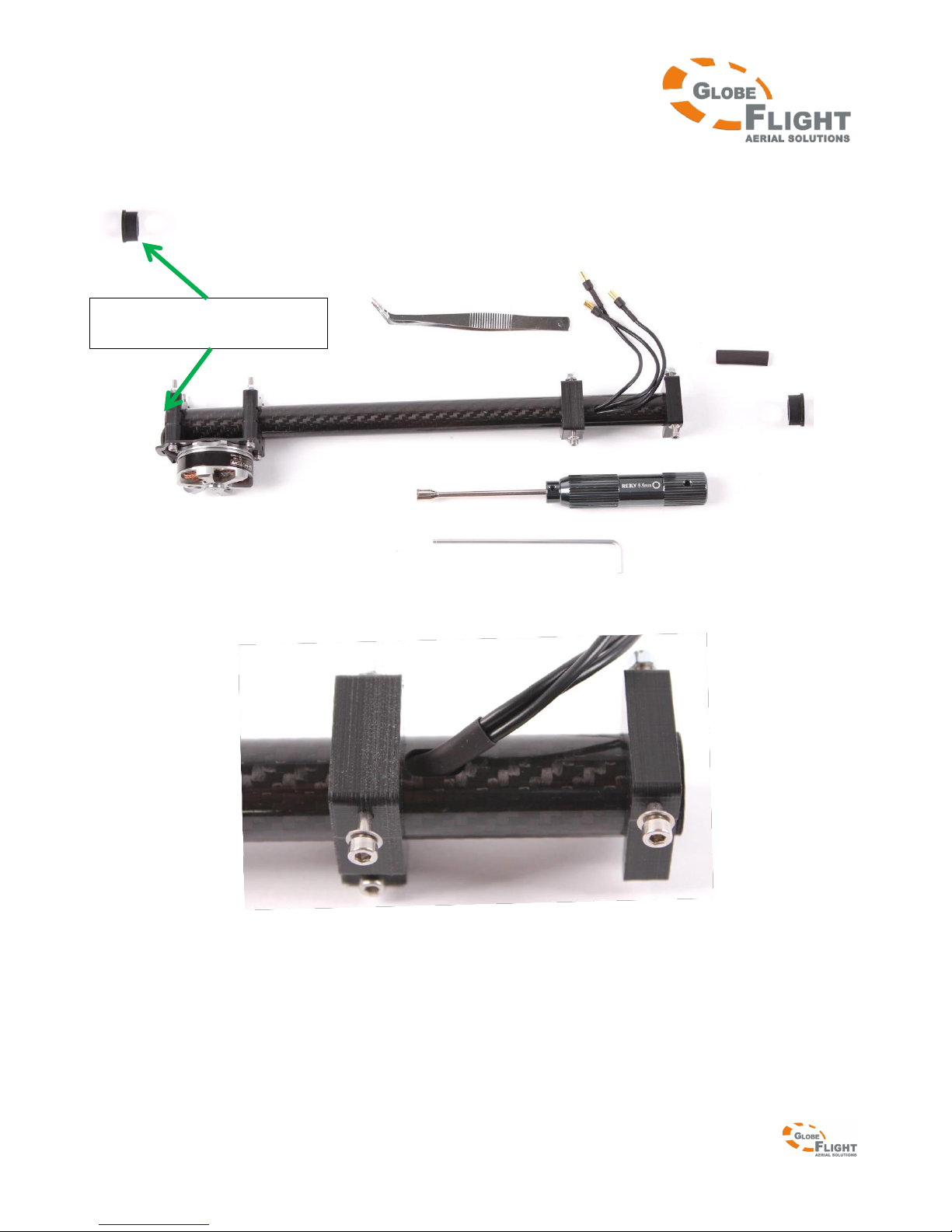

First, you have to thread the motor cables through the whole length of the boom. Then you have to bend the cables
back and thread them through the holes on the side using a pair of angled tweezers.
Please use heat shrink tube to protect the motor cables from the sharp edges. Avoid heating up the boom material!
Push the end cap into the tube
before you attach the motor.
Assembly manual
Black Snapper L PRO
Seite 4von 16
Overview over the compontents which have to be installed in the main frame
Assembly manual
Black Snapper L PRO
Seite 5von 16
Installation of the ESCs, Naza V2 PMU and Zenmuse GCU in the frame and soldering of the y-leads
Please mount the ESCs and the ESC wires like shown in the picture. The cable tie holds both ESC and the wires on the
mounting plate.
In this position, the folding mechanism can work unobstructedly and won’t damage the wires. The wires are almost
at the turning point of the boom, so they are protected from getting weaker or worn. If you mount the ESCs in a
different way, you risk damaging the wires!
Before you solder the cable harness, you should test fit the components into the frame. Doing so, you can measure
the approximately required cable length und cut them.
Assembly manual
Black Snapper L PRO
Seite 6von 16
Cable harness:
Power Molex (video TX)
BEC plug (reserve)
Solder the plug AFTER threading the cable
through the center frame
BEC plug (reserve)
Assembly manual
Black Snapper L PRO
Seite 7von 16
Installation of the NAZA V2 MC and of the RC receiver in the frame
-Before you install the receiver and the NAZA V2, you can connect them with the cable/s to get an
impression of the possible distance and where the receiver could be mounted.
At this point, you have to decide whether you would like to use a traditional receiver and connect each
channel directly, or whether you want to use a PPM receiver using only one cable with sum signal.
See the NAZA V2 wiring overview on page 6 of the English manual:
http://www.dji.com/product/naza-m-v2/download
-When mounting the NAZA V2, please make sure it is placed exactly in the middle of the frame and in the
CoG of the aircraft. The small arrow on the MC must point to the nose of the aircraft (to the gimbal) and
the line must be parallel to the middle axis of the main frame.
Gimbal /
aircraft nose
Assembly manual
Black Snapper L PRO
Seite 8von 16
Checking the direction of the motor rotation
Attach the booms including motors but without propellers to the frame and connect the three motor cables and the
ESC signal cable.
The motors have to be fixed in upright position and there shouldn’t be any loose objects around them.
Now it is time to adjust the first settings in the Assistant Software. The ideal power source is a regulated power
supply unit with a current limit set to 3 amps.
Choose “Basic“ – “Aircraft“ and then select “QuadRotorX“.
In the following, please click the “Motor Test“ button.
Confirm the warning message with „agree“.
Assembly manual
Black Snapper L PRO
Seite 9von 16
Checking the rotation direction
Now you can activate the fixed motors with a click on each button from “M1” to “M4“.
In case the rotation direction is different from the displayed image in the Assistant, simply swap 2 of the 3 motor
cables.
Assembly manual
Black Snapper L PRO
Seite 10 von 16
Installation of the booms and assembly of the frame –Schematic illustration:
- Please check all your components for available software updates before you proceed with the assembly.
