Globalmediapro IP09PHK Manuel utilisateur

IP/ PoE Transmission

User Manual

Model：IP09PHK

90W 4 Port Long Reach PoE Extender over CAT5e

Introduction

IP09PHK is a 90W 4 port PoE switch device that can extend the PoE signal for up to 500M to enable 4 PoE

devices. It can perfectly work with PoE cameras to establish an advanced CCTV system used in large

scale spaces, such as road intersections, supermarkets, amusement parks, parking garages and so on.

Features

●Must work with IP09PR.

●Extends 4 PoE signals over a coaxial cable, with a distance up to 500M.

●Network bandwidth up to 100Mbps.

●Supports IEEE 802.3af, and 802.3at PoE, Max. 30W for each port.

●Power from IP09PR or an external power adapter.

●Built-in a thermostatic fan.

●Built-in 15kV ESD, 40A EFT, and 25A surge protection on the RJ45 ports.

Diagram

Power from a PoE Switch

Power from a Power Adapter at IP09PR

Power from a Power Adapter at IP09PH

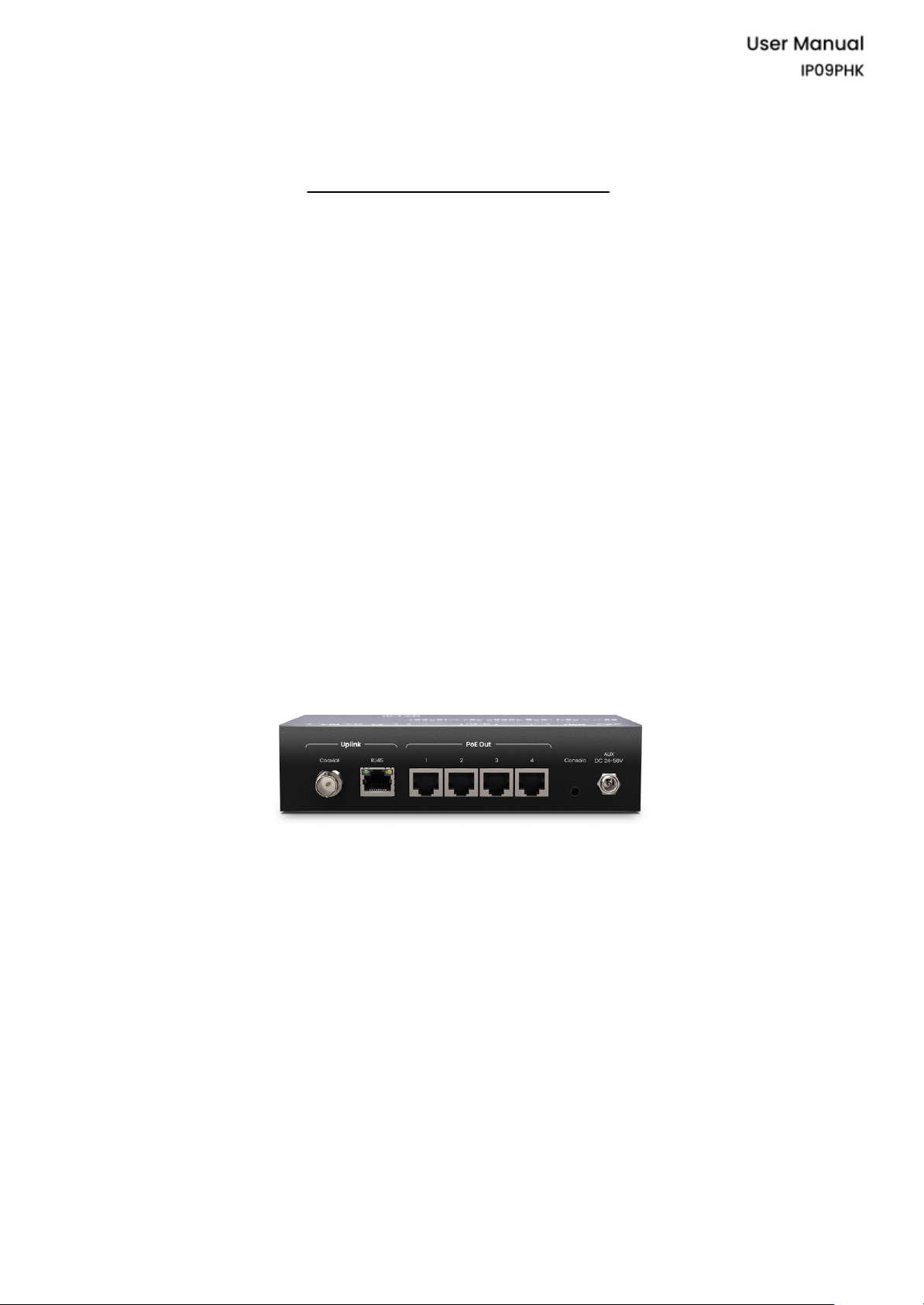

Panel View

Interface

Function

To indicate the power status.

Uplink

To indicate the uplink status.

Overload

To indicate the status of PoE load.

Link 1-4

To indicate the link output status.

PoE 1-4

To indicate the PoE connection status.

Uplink Switch

To switch uplink interfaces.

Coaxial

To connect IP09CPR.

RJ45

To connect IP09PR

PoE Out

To connect network devices.

Console

To update firmware.

AUX DC 24-56V

To connect a power adapter.

Interface

Function

Power Jack

To connect with DC48 ~ 56V adapter.

Power LED

To indicate the power status.

PortMode LED

To indicate the status of port Mode.

PortMode LED

To indicate the status of port Mode.

Jumper

Reserved.

DIP Switch

To switch modes.

RJ45

To connect a network device.

PoE LED

To indicate the PoE connection status.

RJ45

To connect IP09PH.

Description 1 – LED Indication

IP09PH LED Indicators

Front LED Color

Function

LED OFF

LED ON

LED Blinking

Green (On)

Power Status

Power OFF

Power ON

Blue (Uplink)

Uplink Status

Unlinked

100Mbps

10Mbps

Red (Overload)

Overload Status

Normal

Power Overload

Green (Link)

Port 1-4 Status

Unlinked

Linked

Data Transferring

Blue (PoE)

Port 1-4 PoE Status

PoE OFF

PoE ON

Rear LED Color

Function

LED OFF

LED ON

LED Blinking

Green (RJ45)

Link Status

Unlinked

Linked

Data Transferring

Yellow (RJ45)

Link Status

Unlinked

Linked

Data Transferring

IP09PR LED Indicators

Front LED Color

Function

LED OFF

LED ON

LED Blinking

Green (ON)

Power Status

Power OFF

Power ON

Power Saving

(Breathing)

Blue (1)

Port 1 Mode Status

Unlinked/Standard

Ethernet Mode

100BASE-T1

(Constantly

Blinking)

Hardware Failure

(Blink Twice)

Blue (2)

Port 2 Mode Status

Unlinked/Standard

Ethernet Mode

100BASE-T1

(Constantly

Blinking)

Hardware Failure

(Blink Twice)

Rear LED Color

Function

LED OFF

LED ON

LED Blinking

Blue (PoE)

PoE Status

PoE OFF

PoE ON

Description 2 – RJ45 Pinout

IP09PH Port 1-4

Color

Data

PoE

Orange-white

TX+

PoE+ (Data Pair)

Orange

TX-

PoE+ (Data Pair)

Green-white

RX+

PoE- (Data Pair)

Blue

PoE+ (Spare Pair)

Blue-white

PoE+ (Spare Pair)

Green

RX-

PoE- (Data Pair)

Brown-white

PoE- (Spare Pair)

Brown

PoE- (Spare Pair)

IP09PH Uplink

Color

Data

PoE

Orange-white

DATA 1 +

Power+

Orange

DATA 1 -

Power+

Green-white

DATA 2 +

Power-

Blue

Power+

Blue-white

Power+

Green

DATA2 -

Power-

Brown-white

Power-

Brown

Power-

IP09PR

Color

Data

PoE

Orange-white

TX+ (DATA1+)

PoE+ (Data Pair)

Orange

TX- (DATA1-)

PoE+ (Data Pair)

Green-white

RX+ (DATA2+)

PoE- (Data Pair)

Blue

PoE+ (Spare Pair)

Blue-white

PoE+ (Spare Pair)

Green

RX- (DATA2-)

PoE- (Data Pair)

Brown-white

PoE- (Spare Pair)

Brown

PoE- (Spare Pair)

Description 3 – Transmission Performance

Refer to the charts below to find the power amount in different distances (the distance is measured from

Rx to IP09PH).

Cable

Power Supply

100M

200M

300M

400M

500M

Network Bandwidth

100Mbps

Power Output (IP09PH)

CAT5e

90W PoE Switch

71.6W

51.6W

34.9W

25.8W

18.9W

CAT6

56V 120W Power

Adapter at IP09PR

72W

51W

33W

26W

20W

CAT6

48V 120W Power

Adapter at IP09PR

51W

33W

24W

17W

13W

Remark

1. Distance may vary by cable quality, installation, and the performance of connected devices.

2. Using CAT.5e UTP/ STP/ FTP, CAT.6 UTP, and 75Ω coaxial cables is recommended.

3. Using Ethernet (Solid Conductor) and coaxial (Solid Center Conductor) cables is recommended,

other types of cable may affect the performance of power transfer.

4. Refer to PSE & PD Chart below to calculate power input for PD.
