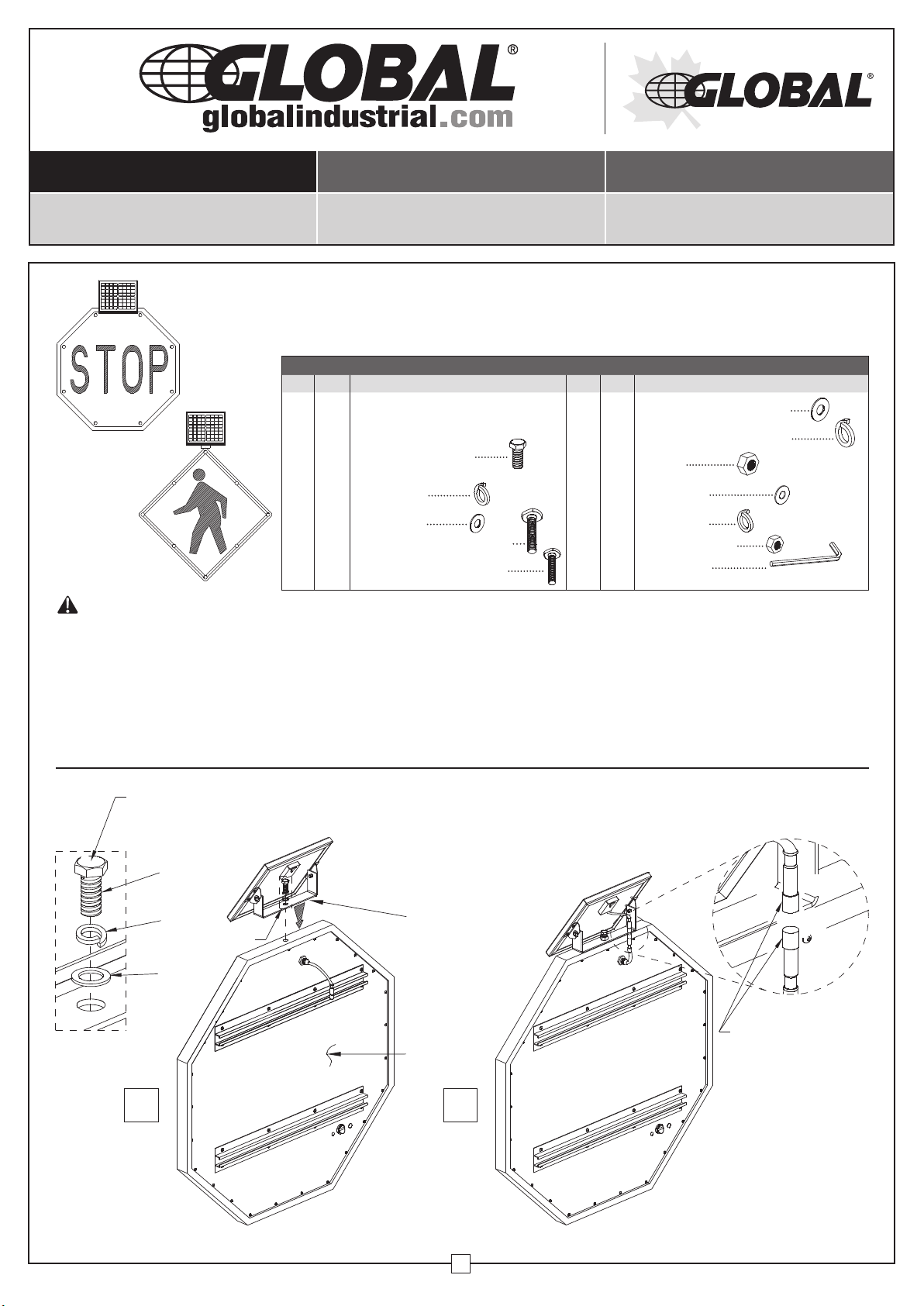

Global 708312 Manuel utilisateur
1
Solar Powered LED Sign
072318
21
globalindustrial.ca
Assembly Instructions Instrucciones de Ensamblaje Directives d’assemblage
Customer Service
US: 1-800-645-2986
Servicio de atención al Cliente
US: 1-800-645-2986
Service à la clientèle
Canada: 888-645-2986
CONTENTS
Ref. Qty. Description Ref. Qty. Description
1 1 Flashing Sign H6 412mm Diameter Plain Washer
2 1 Solar Panel Assembly
3 2 Pole Mounting Bracket H7 412mm Diameter Lock Washer
H1 1M10 x 1.5 x 25mm Lg.
Torx Pan Head Bolt H8 4M12 x 1.50
Hex Nut
H2 110mm Diameter
Lock Washer H9 28mm Diameter
Plain Washer
H3 110mm Diameter
Plain Washer H10 28mm Diameter
Lock Washer
H4 4M12 x 1.50 x 45mm Lg. T-Bolt H11 2M8 x 1.25 Hex Nut
H5 2M8 x 1.25 x 45mm Lg. T-Bolt 1Torx Allen Key
1AC Charger
Models 708312 708313
Connect solar panel
assembly to the sign
by connecting male
end of black chord
to female end and
screwing together.
Tighten with
torx allen key.
See
Detail A
Detail A
H1
2
1
H2
H3
WARNING
• Before proceeding with any assembly, installation,
maintenance, and/or troubleshooting, read all Warnings.
Failure to pay attention to them could result in serious injury
or death.
• Use OSHA- approved Protective Clothing and Devices,
Cut-proof Gloves, and Safety Glasses for all procedures.
Failure to do so could result in serious injury or death.
• Solar panels produce an electrical current. To reduce the
risk of injury, use shock-proof gloves and never perform any
procedure in or near standing water.
• Batteries must be disposed of according to local code.
DO NOT INCINERATE! Failure to heed this warning could
result in serious injury or death.
Assembly
Instructions
2
Solar Powered LED Sign
3
4
SPECIFICATIONS
Model
708312 708313
Type
Solar Powered Stop Sign,
MUTCD: R1-1
Solar Powered Pedestrian Crossing Sign,
MUTCD: R1-1
Material
Aluminum Aluminum
Solar Panel
Monocrystalline Silicone 18V, 10W Monocrystalline Silicone 12V, 5W
Reflective Film
3M Diamond Grade Reflective Film 3M Diamond Grade Reflective Film
LED
Monocrystalline Red LED 1W Monocrystalline Yellow LED 1W
Flashing Interval
50 times/minute 50 times/minute
Modes
Off, Flashing 12 hours/day, 24 hours/day Off, Flashing 12 hours/day, 24 hours/day
Battery
Lithium Ion (11.1V/10Ah), 5-7 Days working time after one full charge, 3-5 year lifetime
Visible Distance
2600 Feet 2600 Feet
MUTCD
MUTCD Section 2A.07 Retro Reflectivity and Illumination
Power
Switch
2.5"
Diameter
pole not
included U-channel
post not
included
See
Detail A
For pole mounting
For U-channel
post mounting
See
Detail B
Charging Port
12/24 Hour
Work Switch
Power Switch: Turns sign on and off
12/24 Hour Work Switch:
0. 12 hour will flash from dusk to dawn
1. 24 hour will flash 24/7
Detail B
H9 H10 H11
Detail A
H6 H7 H8 3
H4 H5
Note: This step requires
AT LEAST 2 people
