Global Sat TR-600G Manuel utilisateur

GLONASS AVL Tracking System

TR-600G

GlobalSat WorldCom Corporation

16F., No. 186, Jian 1

Rd, Zhonghe Dist.,

New Taipei City 23553, Taiwan

Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899

[email protected]

www.globalsat.com.tw

USGlobalSat Incorporated

14740 Yorba Court Chino, CA 91710

Tel: 888.323.8720 / Fax:

909.597.8532

[email protected]

www.usglobalsat.com

CONTENT

1. Introduction .......................................................................................................................................3

1.1 Introduction.............................................................................................................................3

1.2 Features ....................................................................................................................................3

1.3 Hardware Architecture ........................................................................................................4

1.4 Hardware specification ........................................................................................................5

1.5 Appearance..............................................................................................................................6

1.6 LED indicator...........................................................................................................................7

1.7 able description ...................................................................................................................8

1.8 Accessories ............................................................................................................................10

2 Operation............................................................................................................................................11

2.1 Install the SIM card............................................................................................................11

2.2 Install the GPS and GSM antenna ................................................................................12

2.3 Installing the Emergency button...................................................................................13

1. Introduction

1.1 Introduction

TR-600G is a multi-functional and economical communication platform for mobile positioning

applications. It integrates high sensitivity GPS/GLONASS/GALILEO module and Quad-band

850/900/1800/1900 GSM communication module with powerful microcontroller into a compact

board. TR-600G enclosed into a solid housing for simple installation. It provides Real Time

GPS/GLONASS/GALILEO positions anytime and anywhere in the open sky and offer the

precise position and vehicle status to control computer to display the necessary information

onto the maps. Benefits such as enhanced fleet management, improved vehicle safety, useful

emergency response, and goods/items transformation are all accomplished through the

implementation of TR-600G system.

1.2 Features

Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz system

Built-in high sensitivity GPS/GLONASS system with active antenna.

SupportsAT command via SMS/ TCP/UDP

Remote control via SMS/GPRS command

Real-time GPS position feedback and vehicle status monitoring

Built-in in digital outputs (3), digital inputs (3), an ACC input, 1 analog input, and 1 serial

port

Power supply for Li-ion battery and lead-acid battery

Supports multi geo-fence function

OTA(Over the air) firmware upgrade

Data buffer storage 3,000 points

Interval report depends on customization

Power low/lost detection alarm

Motion sensor

3 LED indicators for GSM, GPS, power status

1.3 Hardware Architecture

GPS antenna GSM antenna

Speaker

Microphone

CPU

GPS

Glonass

GSM

MODEM

Analog

Input

Digital

output

Digital

input

Li backup

Battery

USART/

RS-232

Motio

Sensor

Emergency

1.4 Hardware specification

Item Description

Dimension 98 mm X 71 mm X 22 mm

CPU High performance line ARM-base 32-bit MCU

GPS receiver High sensitive GPS/Glonass receiver

Temperature Operation -30℃ ~ + 80℃

Storage -40℃ ~ + 85℃

GPS Antenna SMAType connector. Active antenna ( 3.3~3.8V)

GSM Antenna SMA Type connector.

Communication Quad-Band GSM/GPRS/EDGE 850/900/1800/1900 MHz

Protocol Voice/SMS/GPRS (TCP/UDP)

Built-in Memory 32 Mb

GPS logging capacity 3000 points (Cell ID 1,400 points)

Emergency Input Negative trigger 1

Ignition (ACC) Input Positive trigger 1

Digital Input Port Negative trigger 2

Positive trigger 1

Digital Output Port Negative trigger 3 (300 mA)

Analog Input Port Analog Input 1( 0~28V)

Serial Port 115200 bps

Backup battery Internal 820 mAh Lion battery

Support external Lead-acid battery (12V/24V)

Sensor Motion sensor

1.5 Appearance

1 Peripheral interface port

2 I/O port

3 Power Status LED

4 GPS LED

5 GSM LED

6 For fixing device with screws

7 GSM antenna connector

8 For fixing device with belt

9 GPS antenna connector

10 SIM card holder

1 2

6 6

1.6 LED indicator

Power Status LED (Red)

LED Permanently On

State Main power on, device on

GPS LED (Yellow)

LED Permanently off Fast blinking (Once

every 1 second) Slow blinking (Once

every 3 seconds)

State GPS off GPS not fix GPS fix

GSM LED (Green)

LED Permanently off Fast blinking (Once

every 1 second) Slow blinking (Once

every 3 seconds)

State GSM off 1. TR-600G is

searching GSM

network

2. SIM card is

registering to GSM

network

TR-600G is registered

full service

1.7 Cable description

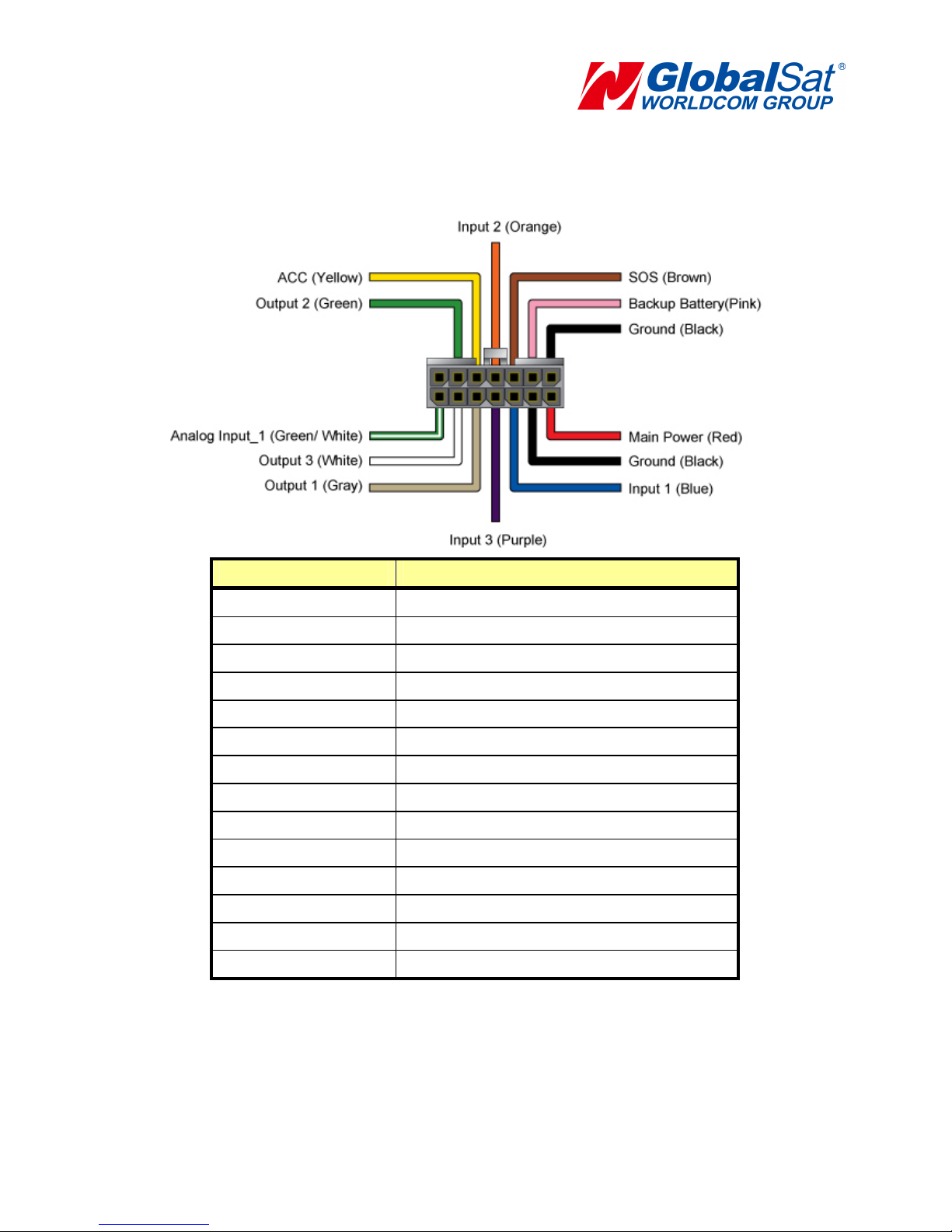

14 Pin I/O Cable

Wire Color Description

Green/ White Analog Input_1

White Digital Output 3 (Negative Trigger)

Gray Digital Output 1 (Negative Trigger)

Purple Digital Input 3 (Positive Trigger)

Blue Digital Input 1 (Negative Trigger)

Black Ground

Red Main Power

Green Digital Output 2 (Negative Trigger)

Yellow ACC (Positive Trigger)

Orange Digital Input 2 (Negative Trigger)

Brown Emergency (Negative Trigger)

Pink 12V/24V Backup Battery

Black Ground

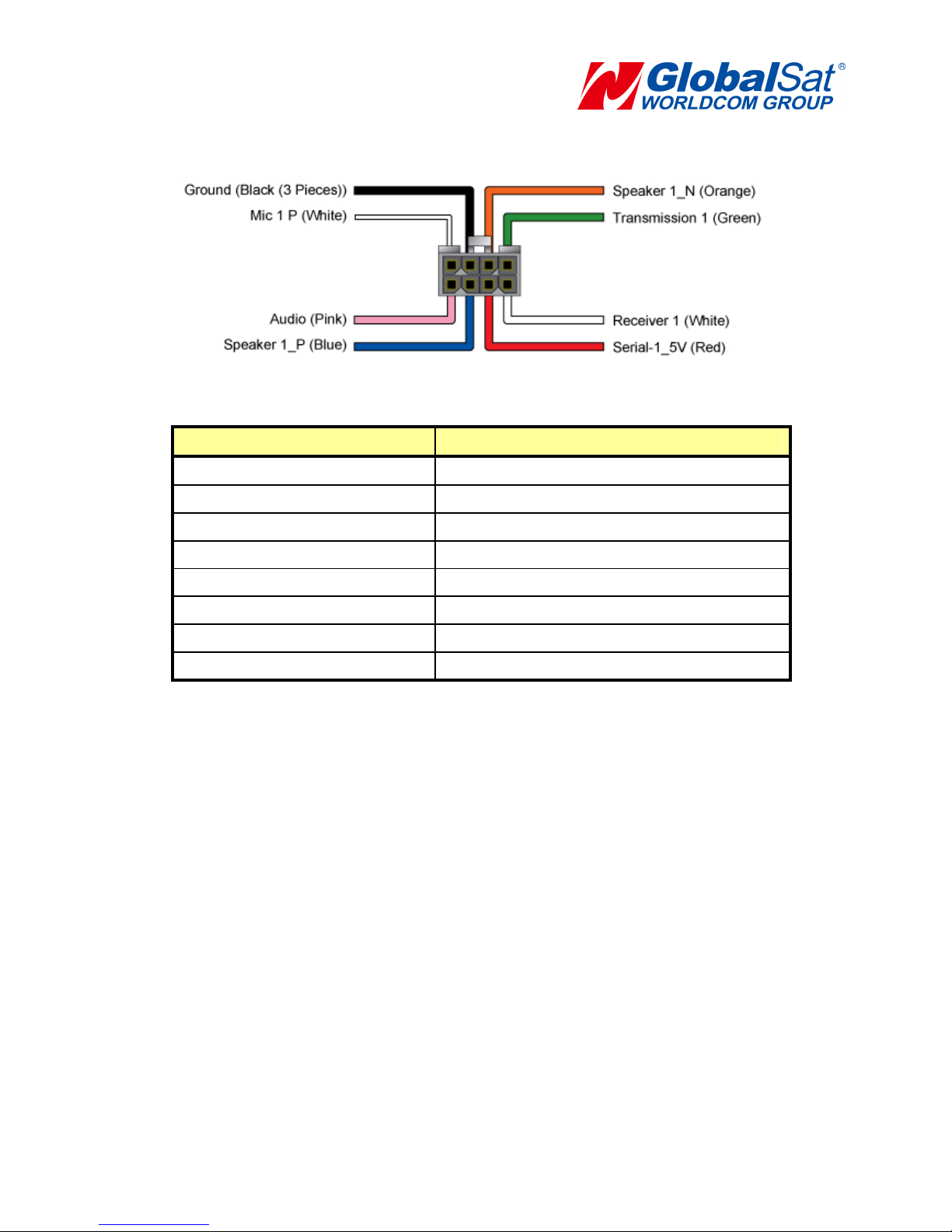

8 Pin Cable

Wire Color Description

Pink Audio_5V

Blue Speaker 1(Positive)

Red Serial-1_5V

White Receiver 1

White Microphone 1 P

Black (3 Pieces) Ground

Orange Speaker 1(Negative)

Green Transmission 1

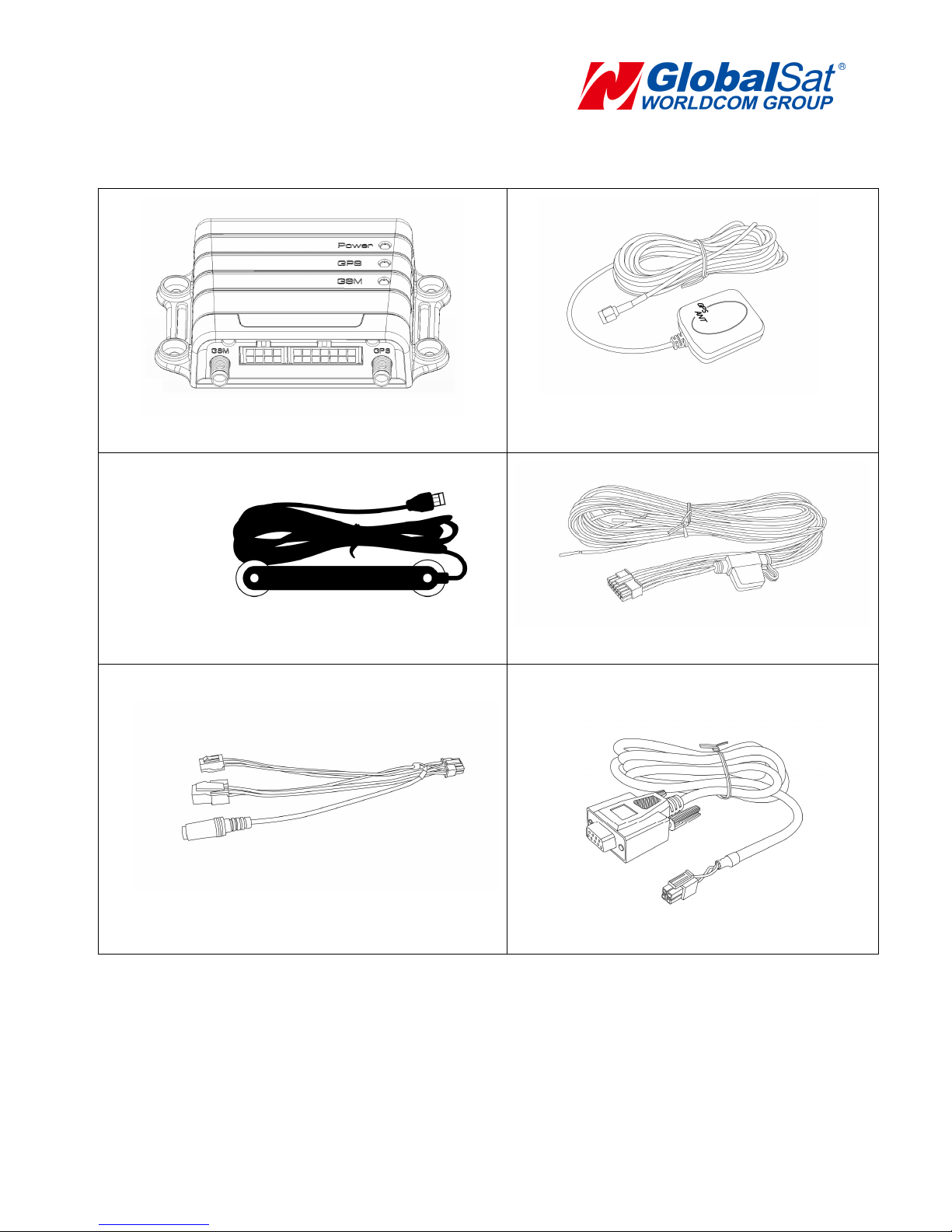

1.8 Accessories

Main Unit

GPS Antenna

GSM Antenna

14 Pin I/O Cable

8 Pin Cable

RS-232 Cable (Option)
