Global Industrial 293034 Manuel utilisateur

User's manual Manual del usuario Manuel de l'utilisateur

Customer Service

US: 1-800-645-2986

Servicio de atención al Cliente

US: 1-800-645-2986

Service à la clientèle

Canada: 888-645-2986

Conned Space Vent Fan

293034

8" Conned Space Vent Fan

Rotomold Plastic,

1000 CFM, 1/3 HP

293035

8" Conned Space Vent Fan

w/ Rotomold Plastic Canister

& 25' Duct, 1000 CFM

293036

12" Conned Space Vent Fan

Rotomold Plastic,

2700 CFM, 1 HP

293037

16" Conned Space Vent Fan

Rotomold Plastic

4000 CFM, 1 HP

Safety Instructions

Please observe the following safety instructions to avoid personal injury and property loss.

1) Not operate any fan with a damaged cord or Plug.

2) Do not move or adjust blower while in operation

3) Keep this unit out of the reach of children

4) Do not alter or modify your blower in any way. Only authorized Global Industrial replacement parts can be

used. Use of any unauthorized parts could cause hazards and void the unit’s warranty

5) Always store unit in a clean, dry environment when not in use. Care should be taken to prevent water from

entering the unit’s motor. In the case that the unit’s motor does become wet, ensure that the motor is dried

thoroughly before use.

6) Do not allow water near or inside the unit while in use to avoid risk of electric shock. Handle unit with care to

avoid causing damage or personal injury.

7) Always operate the blower on a at, level surface. Operating the unit where it could slip or fall increases the

risk of injury, re, or electrical shock.

8) Never operate the blower without the factory-installed safety screens in place. This will prevent liquids, gases,

and other materials from entering the blower.

9) Do not use b lower near combustible gas or ammable materials in order to avoid re or electrical hazards.

10) Do not attempt to disassemble or repair unit on your own. Instead, bring to the attention of your distributor or

a certied repair center. Never attempt to disassemble or repair unit while blower is plugged in.

11) Prior to use, ensure the air intake and outlet are free of obstructions to prevent the blower from overheating

and causing a shock or re hazard.

WARNING: Read entire manual before installation, operation or maintenance.

Conned Space Vent Fan

User's Manual

Operating Procedures

The Global Industrial line of commercial ventilator is designed to eciently and eectively ventilate, extract and

circulate air. Be sure to follow all instructions below to ensure safe and eective use.

1) Ensure that the unit is on a stable, level surface, and remains stationary while in use.

2) Plug the blower into a grounded outlet with the correct voltage and amperage. Ensure that the unit is plugged

into a grounded outlet with voltage and wattage outputs that correspond with the unit’s specications. For

maximum protection against electrical shock, ALWAYS use a circuit that is protected by a ground fault circuit

interrupter. If you are unsure about the outlet, check with a qualied electrician.

3) Ensure that the dial is turned to your desired speed setting before turning the unit on.

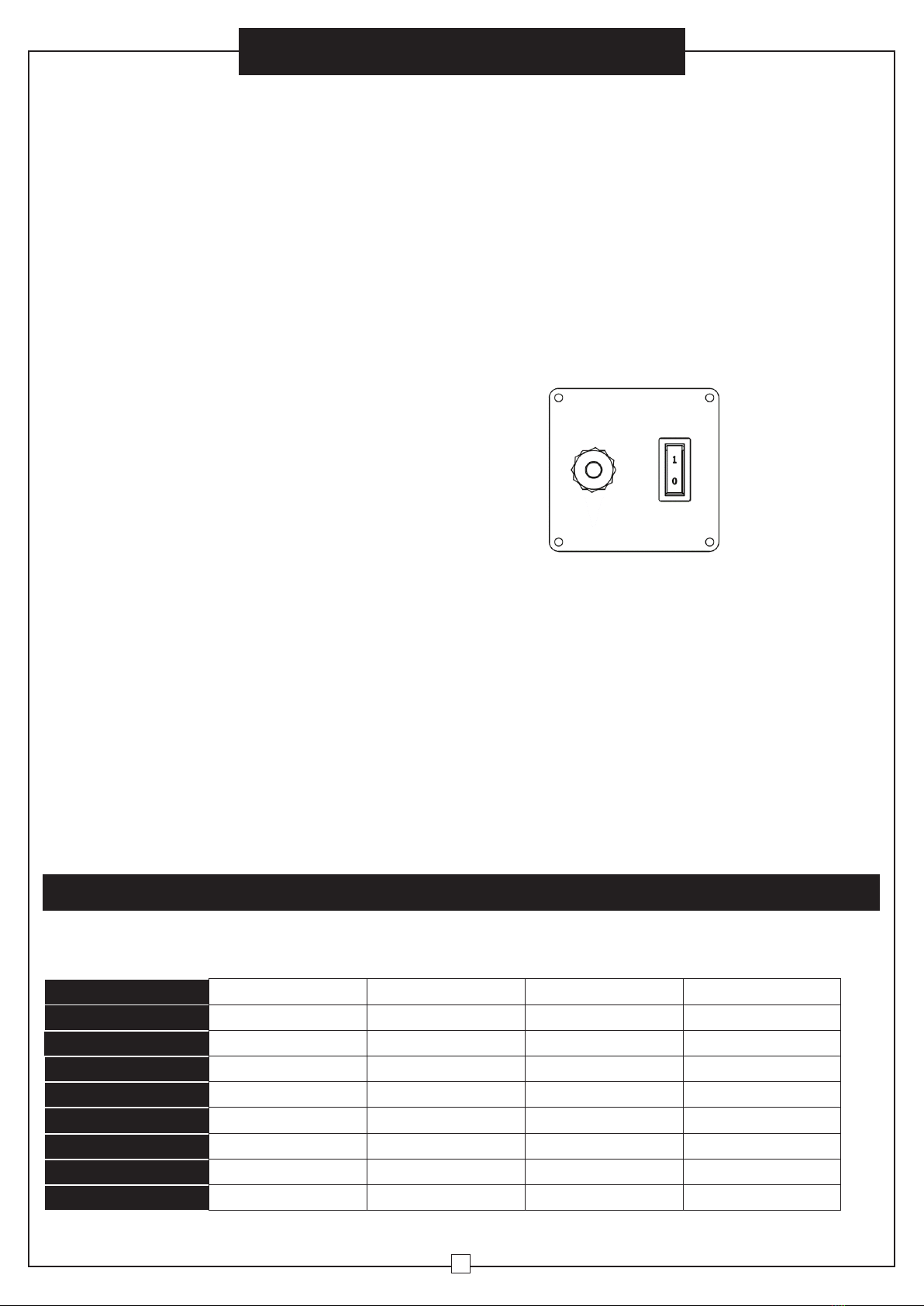

CONTROLS

The ventilate Fan series equip the Water proof 1 speed switch.

Control Fan Speed with the Switch

1- Turn the fan on

0- Turn the fan o

Model

293034

293035

293036

293037

P ower Input 115Volt/60hz 115Volt/60hz 115Volt/60hz 115Volt/60hz

P ower 1/3hp 1/3hp 1hp 1hp

C urrent

2.6amps

11amps

Motor Speed 3450rpm 3450rpm 3450rpm 3400rpm

Air Volume

1000cfm

3000CFM

4000cfm

Outlet Size 8inch 8inch 12inch 16inch

S ize 14x10x15inch 33x14x14inch 19.7x15.4x21.5inch 20x21x23inch

Weight

16lbs

37lbs

31lbs

39lbs

Specications may change without notice.

Maintenance

1) Inspect the electrical cord and wiring for damage or discoloration before use. NEVER use a blower that has a

damaged cord to avoid risk of electrical shock or re.

2) Inspect for loose fasteners before each use.

3) Clean safety screens of the unit before each use.

4) Listen for abnormal sounds and shut unit o immediately upon hearing unusual noises.

5) Keep unit clean and free of blockages or obstructions.

6) Use compressed air or a vacuum to remove lint and other debris from the motor, inlet, or fan blade.

7) Do not use a pressure washer, water hose, or other water source to clean the unit. Ensure that the unit is

completely dry before each use.

The blower has sealed bearings and cannot be lubricated. No oiling is necessary.

For information about authorized repair and maintenance contact Global Industrial.

Specifications

Trouble Shooting

BLOWER DOES

NOT TURN ON

1) Switch not turned on - in this case, ensure that the knob is in the correct

position to turn the unit on

2) Circuit breaker or GFCI has tripped - press ‘reset button before attempting

to turn the unit on

3) Cord or wires are loose or damaged - Inspect to ensure that cords and wires

are tight and free of damage

Faulty switch - Contact your distributor if inside warranty period

BLOWER STARTS AND THEN

TURNSOFF

1) Obstructed inlet/outlet - remove obstructions and ensure that both inlet and

outlets are clear before use.

Faulty motor - Contact your distributor if inside warranty period

BLOWER VIBRATES

1) Motor shaft is bent - Contact your distributor if inside warranty period

2) Fan blade is bent - Contact your distributor if inside warranty period

3) Excessive dirt built up on fan blade - Clean blade and ensure blade housing

is free of dust and dirt before use

BLOWER MAKES SCRAPING

NOISES

1) Damaged housing - Inspect housing for warps or dents. If housing is

rubbing against blade, contact your distributor.

MOTOR MAKES NOISE, BUT

BLOWER WON’T TURN ON

Damaged/faulty motor or motor shaft - Contact your distributor if inside

warranty period

2) Motor shaft screw holding fan blade is loose - tighten

Conned Space Vent Fan
