GLK Flex Gear Manuel utilisateur
User Manual
GLK FLEX GEAR 시스템
Version 3.0
No. OM-FC209-101
Model: “FLEX GEAR”
GLX-FC209
글꼴 : Yoon 초록우산어린이
Index
Parts list …………………………….……………….
…………………
FLEX GEAR parts list
Switch ……………………….………………..….…..
…….…….…
Control Box & Cable …………………………….….
…………………..……..……
FLEX GEAR ………………………….….
………………………...………..
FLEX GEAR functions
5
6
2
4
5
5
12
13
14
11
Bracket & FLEX GEAR install
Goldwing 1800 after 2018y ………………….…………….…..
……………..
Goldwing 1800 before 2017y ………………….…………….…..
…………….
Customer Service
Manual Guide …………………………….……………….
………………… 4
Goldwing 1500…………………………………….…………….…..
…………….
Harley Davidson………………………………….…………….…..………….
BMW K1600……………………………………….…………….….………….
Indian……………………………………………….…………….….……….
Kawasaki VN1700 Voyager…………………………….…………….…..……….
FLEX GEAR install ……………………………………….…………….…..
……….
Revision ………………….……………………………….………..…..…….…..
…
Warrenty & Conditions .……….……………………………….……………….
………
Q&A ………………………..………………..……………………..…
Check of Problem …………..………………………..…………......…..
……………..
42
Appendix
42
43
46
47
Start & Stop ..…….……….……………………………….……................
Operation Guide 40
40
39
Cautions
Control Box & Cable connection 35
Customer Service
GLK Co., Ltd.
If you have any questions about GLK FLEX GEAR, please contact us or the place
of purchase.
We will respond to you at the GLK customer center or the place of purchase.
Please contact us through the following contact information:
1. Please read the user manual included with this product.
2. Please access the website address: www.flexgear.co.kr
3. Please contact our office number: 031-999-6799
4. Please contact us by email: flexgear@flexgear.co.kr
5. Please read the product usage precautions and use it correctly.
6. After installing FLEX GEAR for customer information registration,
please send customer information to the head office.
3
•Specifications or appearance may change without notice due to product
improvement.
•This manual describes how to operate the GLK FLEX GEAR system.
•guide:
Includes precautions to avoid possible product malfunction or damage.
•note:
Includes instructions for optimal use and supplementary notes.
User manual guide

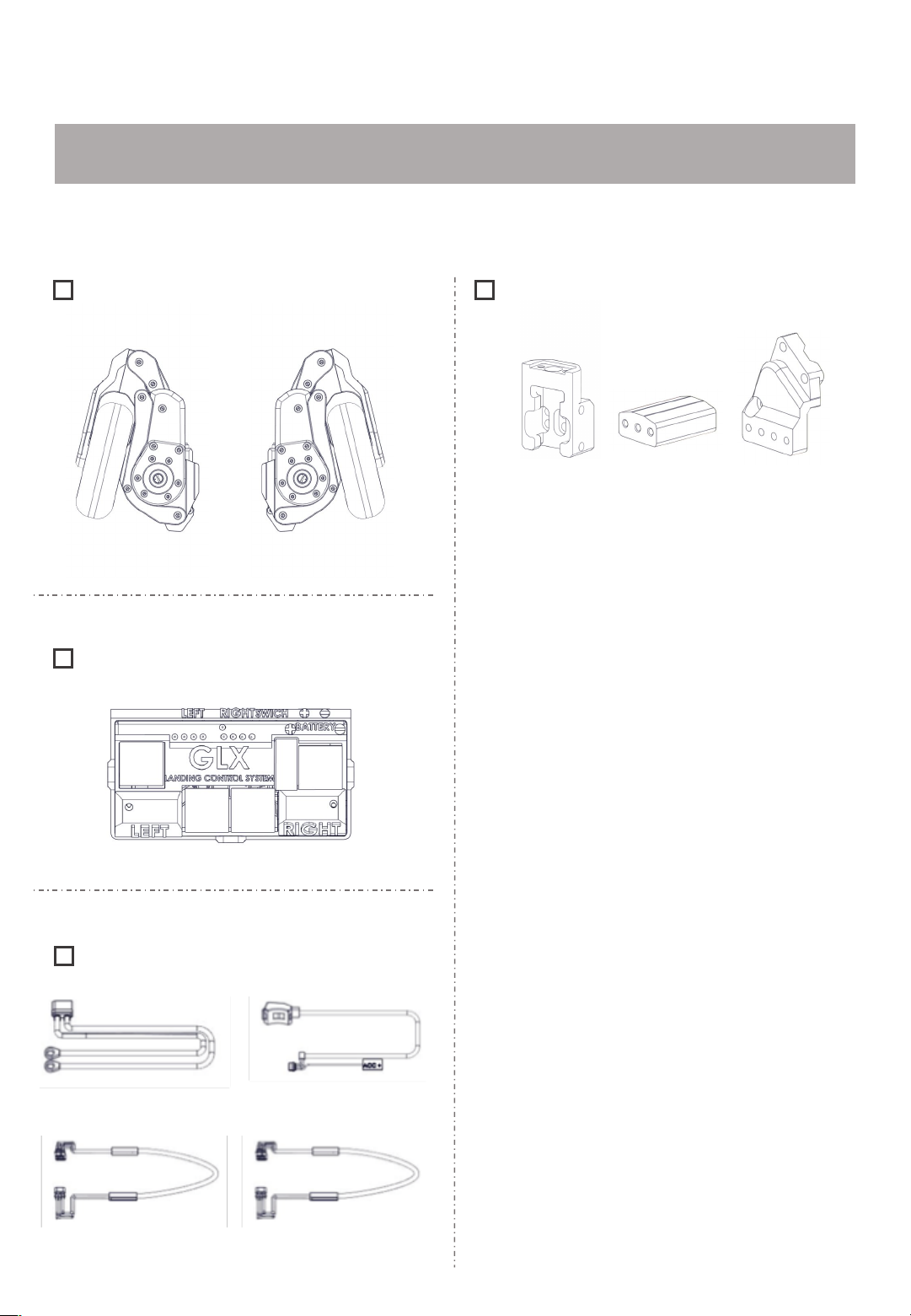

FLEX GEAR parts guide
Parts
Please check the components below.
For detailed dimensional data for each part, please refer to the 'Spec Data' page.
Control Box
Cable
Switch Cable
Battery Cable
FLEX GEAR Cable x 2 ea
FLEX GEAR
Left Right
4
Bracket
Sliding Bracket
Middle Bracket Mount Bracket
※Brackets have different shapes and names depending on
the model and year of the motorcycle.
FLEX GEAR Functions
FLEX GEAR Tip
•You can comfortably stand on your motorcycle when stopped.
If you are driving in the city, you will often be waiting for a signal at an intersection. With
the FLEX GEAR, you don't have to support the motorcycle with both legs.
•This is convenient for repeating stops when the vehicle is jammed.
Since motorcycles can't speed on narrow roads, it's even harder to stay centered. With
FLEX GEAR, you can only focus on the direction of the steering wheel when driving
slowly on narrow roads.
•Helps avoid falling when turning or making U-turns in narrow alleys.
If you have two or more people on a motorcycle, it becomes even more difficult to
balance. If you use the FLEX GEAR, you can minimize the shaking caused by the
passenger.
•Convenient for moving your motorcycle in a parking lot or garage.
There may be times when you are stuck in a parking space by an outside vehicle and
cannot ride your motorcycle. In this case, you will have to pull the motorcycle to get it out.
With the FLEX GEAR, you can move heavy bikes comfortably, reducing the risk of tripping
and other accidents.
•Helps prevent slipping at gas stations or underground parking lots with
slippery floors.
When reversing, there are many things you need to pay attention to, such as centering the
motorcycle, checking the surrounding environment, and securing visibility. With the FLEX
GEAR, you can focus more on the external environment to prevent accidents.
•When stopped, passengers in the rear seat can feel comfortable.
Due to the nature of large motorcycles, when the vehicle is congested, stopping
repeatedly causes fatigue to accumulate. Depending on the road conditions, you can use
the FLEX GEAR to drive comfortably.
Cautions
!
Before operating the FLEX GEAR, please read all attached warnings and instructions before
using it to prevent personal injury or property damage.
5
It's really hard for a rider to get up a motorcycle that has fallen over. With the FLEX
GEAR, you don't have to worry about losing your center of gravity and falling.
Name
Switch
Parts name & Functions
Switch
A manual switch is used to prevent
unintentional movement of the FLEX
GEAR while riding a motorcycle.
The FLEX GEAR takes about 2 seconds to
complete.
1. When the green button on the switch is
pressed, the FLEX GEAR goes up.
2. If the button on the switch is not
pressed, the FLEX GEAR will not
move.
3. When the red button on the switch is
pressed, the FLEX GEAR goes down.
Parts name Functions
※Switch may be provided differently for each motorcycle
model.
6
이미지 변경 필요
스위치 사진 변경 필요
Name
Control Box
Control Box & Cable
The LED sensor on the control box
indicates the operating status of the FLEX
GEAR.
If the LED sensor does not light, check the
connection status of each cable.
①Left FLEX GEAR : Lifting
②Left FLEX GEAR : Completed
③Left FLEX GEAR : Landing
④Left FLEX GEAR : Completed
⑤Power
⑥Right FLEX GEAR : Completed
⑦Right FLEX GEAR : Landing
⑧Right FLEX GEAR : Completed
⑨Right FLEX GEAR : Lifting
Name Function
Name
Switch Cable
Power Cable
FLEX GEAR
Cable
7
컨트롤박스 변경 예정
FLEX GEAR
Lifting
Landing
8
Function
①FLEX GEAR Landing / Lifting position control
②Auto fuse / Circuit breakers
The more you push the landing limit sensor into the motorcycle, the more the FLEX GEAR will unfold, and the
more you pull it outward, the less it will unfold.
The more you push the lifting limit sensor into the motorcycle, the more the FLEX GEAR folds, and the more
you pull it outward, the less it folds.
Auto fuse prevents motor overload.
If the auto fuse protrudes about
10mm,After 10 seconds, press to return
to the original position.
Stick
out
Bottom Landing
Sensor
Top Lifting
Sensor
※If the auto fuse protrudes, the FLEX GEAR does
not work.
Normal
③FLEX GEAR install up/down position control
Functions
By locating the cushioning rubber at the inner point
where the main housing and the middle frame are
connected, external shocks from the road are
minimized.
④Shock Absorption - Rubber Suspension
With the bolts in the photo
tightened all the way
<- If you unscrew the bolt
again The FLEX GEAR
position goes down.
If the bolt is re-tightened
-> The FLEX GEAR
position goes up.
After connecting the sliding bracket and the FLEX GEAR, adjust the installation height
through the tightening degree of the bolts. After that, use the mood bolts to fix the
position.
※For details, refer to the ‘Installation’
page
9
⑤Manual operation function
**Use minus(-) screwdriver.**
If the FLEX GEAR does not work,
You can manually manipulate the FLEX GEAR using a minus screwdriver.
**Right FLEX GEAR**
Turn clockwise = Lifting
Turn counterclockwise = Landing
Please check the installation manual for your motorcycle.
Parts of the motorcycle frame may be damaged in order to assemble the bracket (but
only for some models).
If the installation of the bracket is hindered by accessories other than the FLEX GEAR,
please remove the accessory.
Install
Bracket & FLEX GEAR install
Cautions
!
10
