Glasdon LED SIGNMASTER Manuel utilisateur

LED SIGNMASTER CONVERSION INSTRUCTIONS

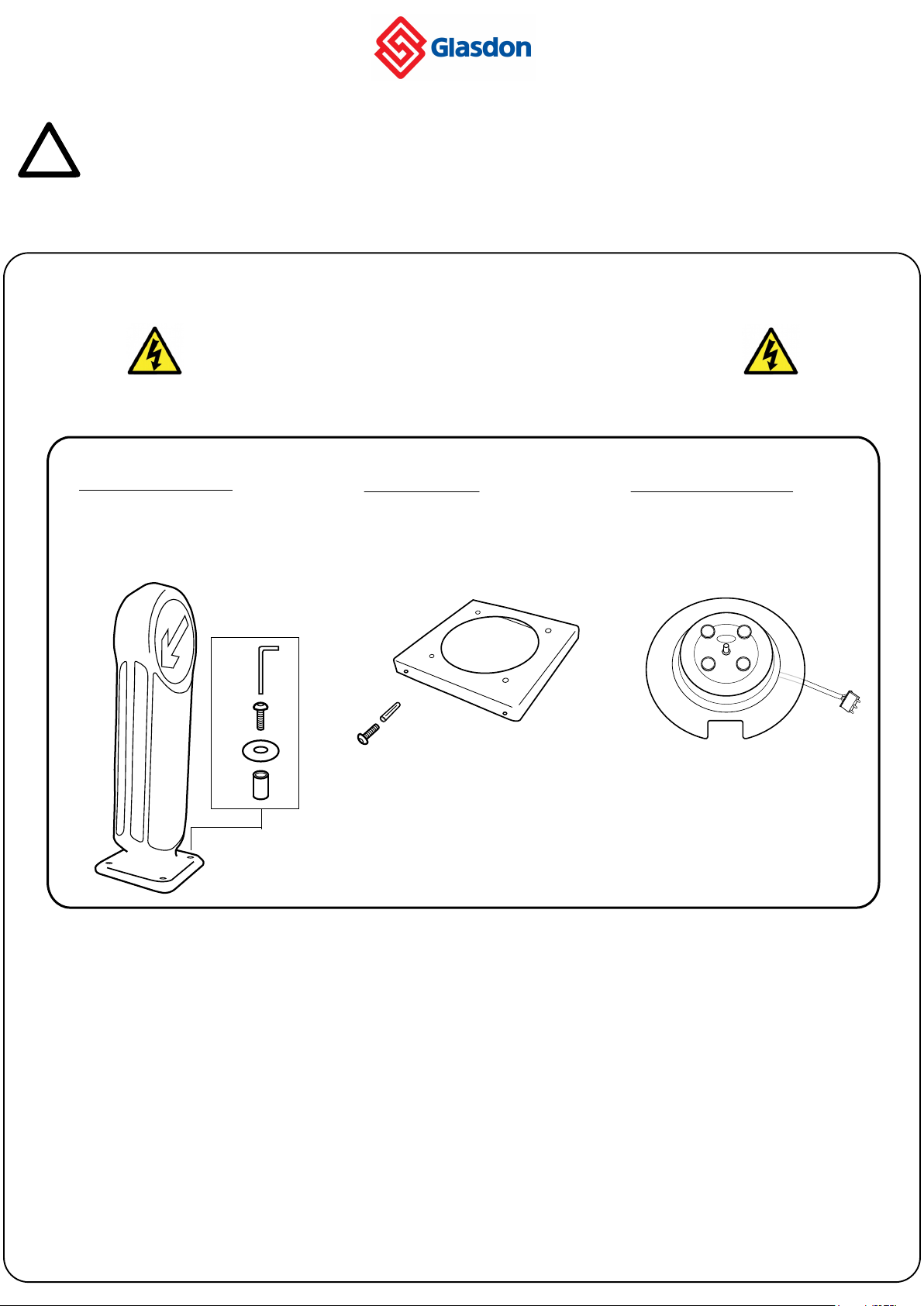

KIT CONTENTS

UNIVERSAL INSTRUCTIONS - covers certain Haldo,True Signs & Signature Base Boxes

Ensure that personnel carrying out this conversion have the relevant qualifications/certificates and

all work is carried out in accordance with BS6771:2008/I.E.E. Wiring Regulations 17th Edition.

Ensure that all relevant personnel read the points listed within this leaflet and that a copy is given

to staff involved with the installation and maintenance of this product.

Glasdon recommends that a full Health and Safety analysis is carried out prior to installation.

IMPORTANT: ISOLATE PRIOR TO INSTALLATION

F - Adaptor Plate x1

G - Nylon Plug x4

H - Coach Screws x4

(13mm Spanner Required)

I - LED Conversion Plate x1

PLEASE NOTE THAT THE DIAGRAMS ARE FOR ILLUSTRATIVE PURPOSES ONLY, SHAPE MAY VARY

DEPENDING ON EXISTING BOLLARD AND CONVERSION KIT PURCHASED

(For Diamond Traffic Installations Please Turn to Page 4)

A - Signmaster Bollard x1

B - Allen Key 6mm x1

C - M10 x 50 Screw x4

D - Washer x4

E - Spacer x1

*Shape of plate may differ

from the illustration above

DO NOT HANDLE CIRCUIT WHEN GREEN LED IS LIT

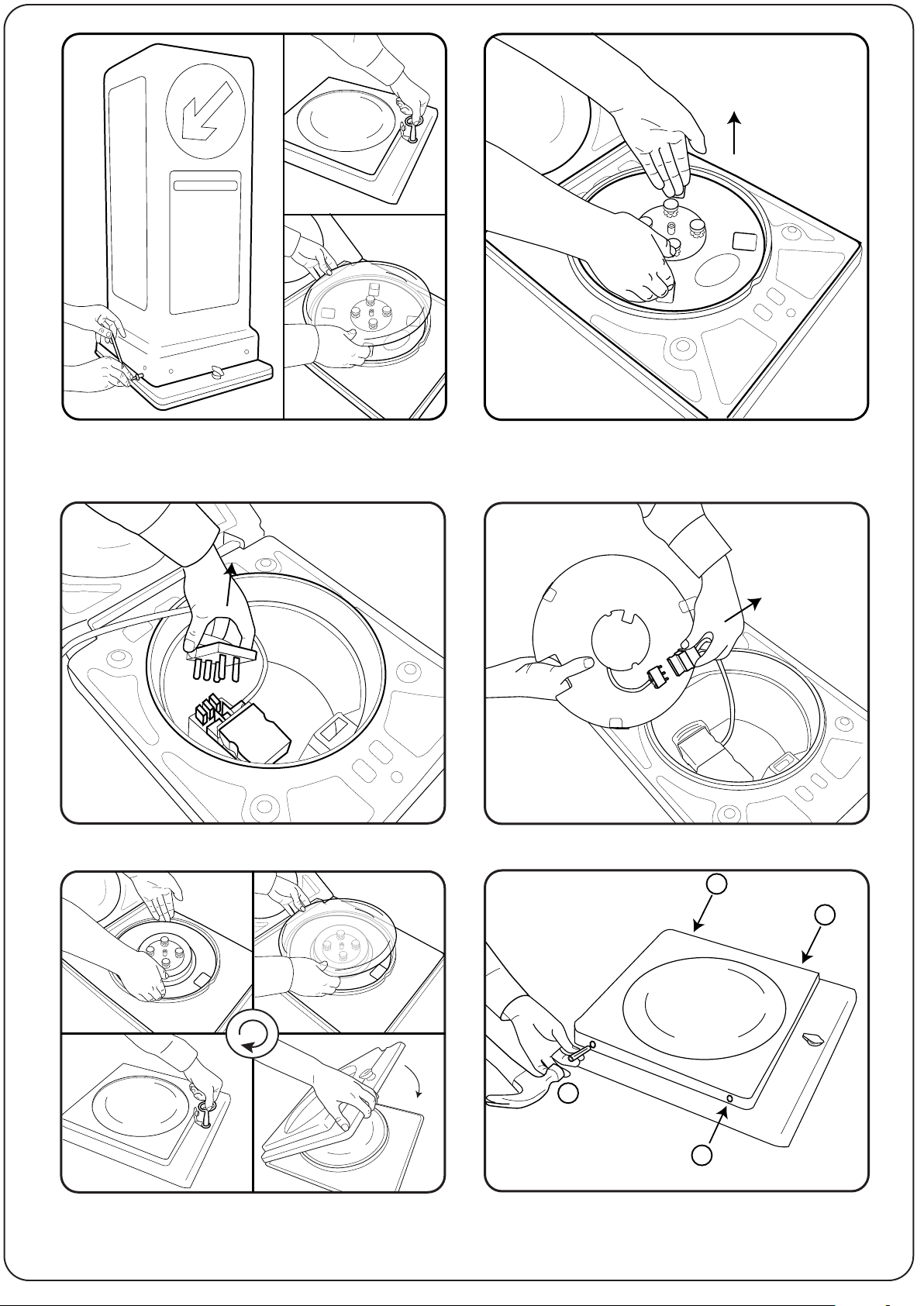

Firstly, remove the existing bollard from the base box by

removing the screws using an allen key (see Figure 1). When

removed unlock the box using the key supplied (Fig. 2), lift

open the unit and lift off the lens (Fig. 3) and put to one side.

Lift out the existing light plate using the handles,

shown above, to gain access to the inside of the unit

(Note: Do not unplug the plate until step 6).

Isolate the Safety Cutout Box by lifting the lever

and lifting out the removable section.

It is now safe to unplug the existing light plate

and then plug in the new LED light plate.

Now the new LED light plate is connected, the safety cut out box can

be replaced and the unit can be closed by repositioning the new LED

light plate (to check if the LEDs are working simply place your thumb

over the phototransistor), replacing the lens, closing the lid and locking.

711

10 9

Ensure all existing fixings are removed from the

hole (e.g. white nylon spacers). Insert a Nylon

Plug (provided) into each of the four holes on

Position your new Signmaster bollard on top of

the Adaptor Plate.

Place a Spacer into each of the holes on the

base of the Signmaster.

Now position a washer and an M10x50 Screw (both

provided) into each of the four holes on the Signmas-

ter and tighten using the 6mm Allen Key provided.

The Coach Screws (provided) can now be

screwed into each hole and tightened using a

13mm Spanner.

The Adaptor Plate is now positioned on top of

the unit.

For Diamond Traffic Base Boxes follow the ‘Universal

Instructions’ however after the existing bollard is removed

(Step 1) the existing Adaptor Plate must be removed by

removing the 2 screws (located at the rear) & front locking

screw using a 13mm socket spanner and Diamond Traffic key.

Note: Keep the front locking screw for use later.

During the fixing of the new Adaptor Plate (Steps 12

& 13) only 2 screws and 2 washers are inserted as

shown above and tightened using the 5mm allen key

provided. Use the front locking screw (removed

earlier) to secure the new adaptor plate to the base

box.

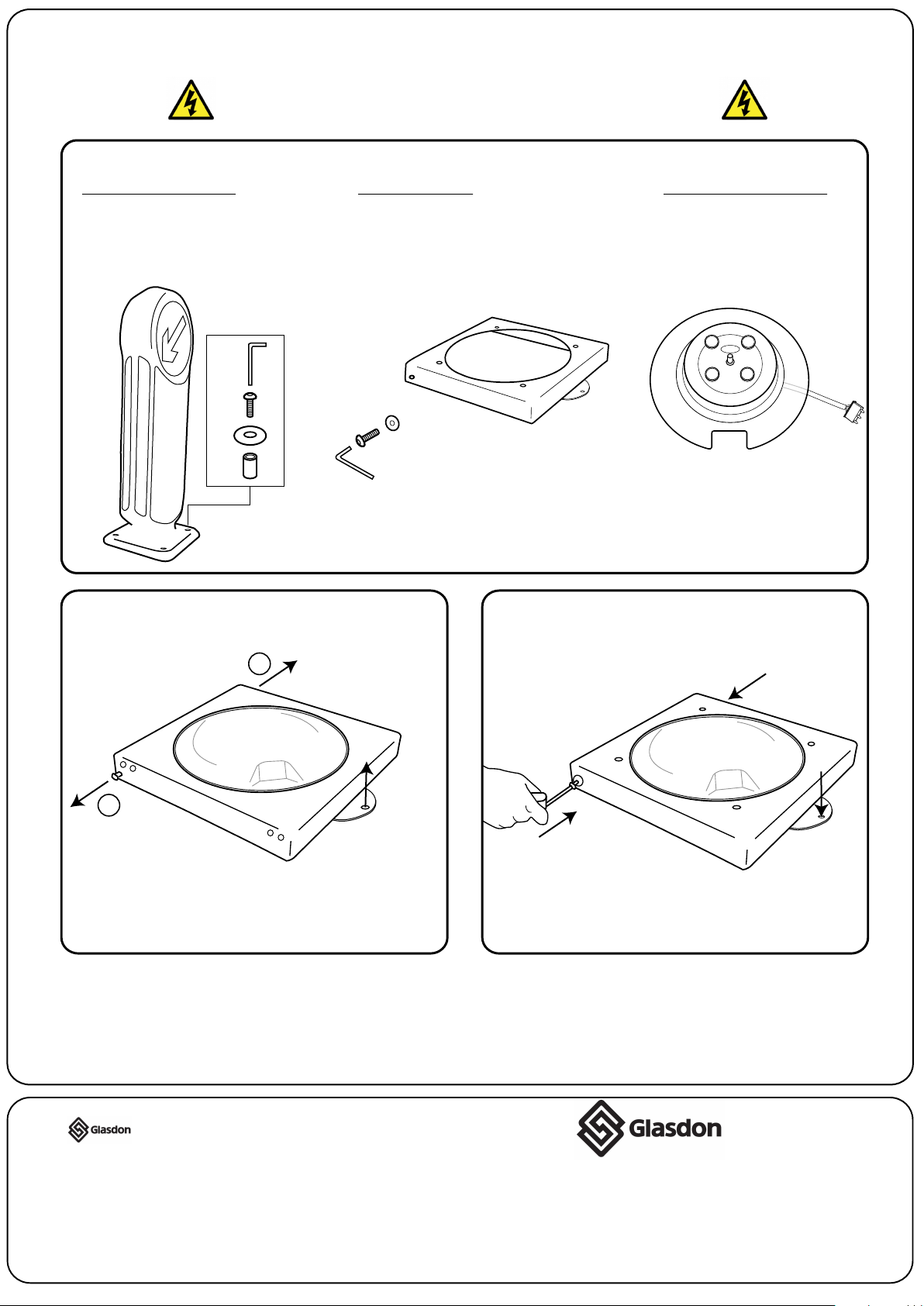

KIT CONTENTS

DIAMOND TRAFFIC INSTRUCTIONS - covers certain Diamond Traffic Base Boxes

IMPORTANT: ISOLATE PRIOR TO INSTALLATION

A - Signmaster Bollard x1

B - Allen Key 6mm x1

C - M10 x 50 Screw x4

D - Washer x4

E - Spacer x1

J - LED Conversion Plate x1F - Adaptor Plate x1

G - Allen Key 5mm x1

H - M8 x 30 Screw x3

I - M8 Washer x3

AND SIGNMASTER ARE RADEMARKS OR REGISTERED TRADEMARKS OF GLASDON

GROUP OR ITS SUBSIDIARIES IN THE U.K AND OTHER COUNTRIES

• A planned maintenance schedule or regular inspection is recommended, replacing

components as necessary.

• Replacement components are available direct from GLASDON.

• GLASDON cannot be held responsible for claims arising from incorrect installation,

unauthorised modifications or misuse of the product.

Issue 1 December 2008 C000/0337

Glasdon UK Ltd reserve the right to alter specifications without prior notice.

Glasdon U.K Limited

Preston New Road

BLACKPOOL

Lancashire FY4 4UL

Tel: 01253 600410

Fax: 01253 792558

email: [email protected]

web: www.glasdon.com

Front

Locking

Screw

*Fixing method may differ

from the illustration above
