Glacier bay F51AC074ORB Instructions de montage

INSTALLATION AND CARE GUIDE

Questions, problems, missing parts?

Before returning to the store, call Glacier Bay Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday

9 a.m. - 6 p.m., EST, Saturday

1-855-HD-GLACIER (1-855-434-5224)

HOMEDEPOT.COM/GLACIERBAY

THANK YOU

We appreciate the trust and conﬁdence you have placed in Glacier Bay through the purchase of this lavatory

faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see

our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!

SKU#

304700969

304700968

304774952

Model#

F51AC074CP

F51AC074BNV

F51AC074ORB

TWO-HANDLE LAVATORY FAUCET

THD 09/2017 REV.02

□Observe all local plumbing and building codes.

□Cover the drain in your sink to avoid losing parts.

□Review the care and cleaning section included in this guide.

□This product is engineered to meet the EPA WaterSense ﬂow requirement. The ﬂow rate is governed by the

aerator or ﬂow controller. If replacement is ever required, be sure to replace it with a WaterSense compliant

aerator or ﬂow controller to retain the water conserving ﬂow rate of this product.

Important Information..............................2

Warranty ...................................................2

Pre-installation.........................................2

Planning Installation ................................2

Tools and Hardware Required..................2

Package Contents....................................3

Installation................................................4

Operation...................................................7

Care and Cleaning ....................................8

Troubleshooting........................................8

Service Parts.............................................9

Table of Contents

Important Information

Warranty

Pre-installation

Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our

limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of

defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.

Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD Glacier (1-855-434-

5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer

purchaser must be made available for all Glacier Bay warranty claims.

This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse or normal wear and

tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended

a ﬁve year limited warranty from the date of purchase, with all other terms of this warranty applying except the

duration of warranty.

Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitations may not apply to you. This warranty gives you speciﬁc legal rights and you may also have other

rights that vary from state to state and province to province. Please see a store or contact 1-855-HD Glacier for

more details.

Before you begin to install this product, ensure that all parts are present. Compare parts with the package

contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service for

replacement parts.

LIMITED LIFETIME WARRANTY

PLANNING INSTALLATION

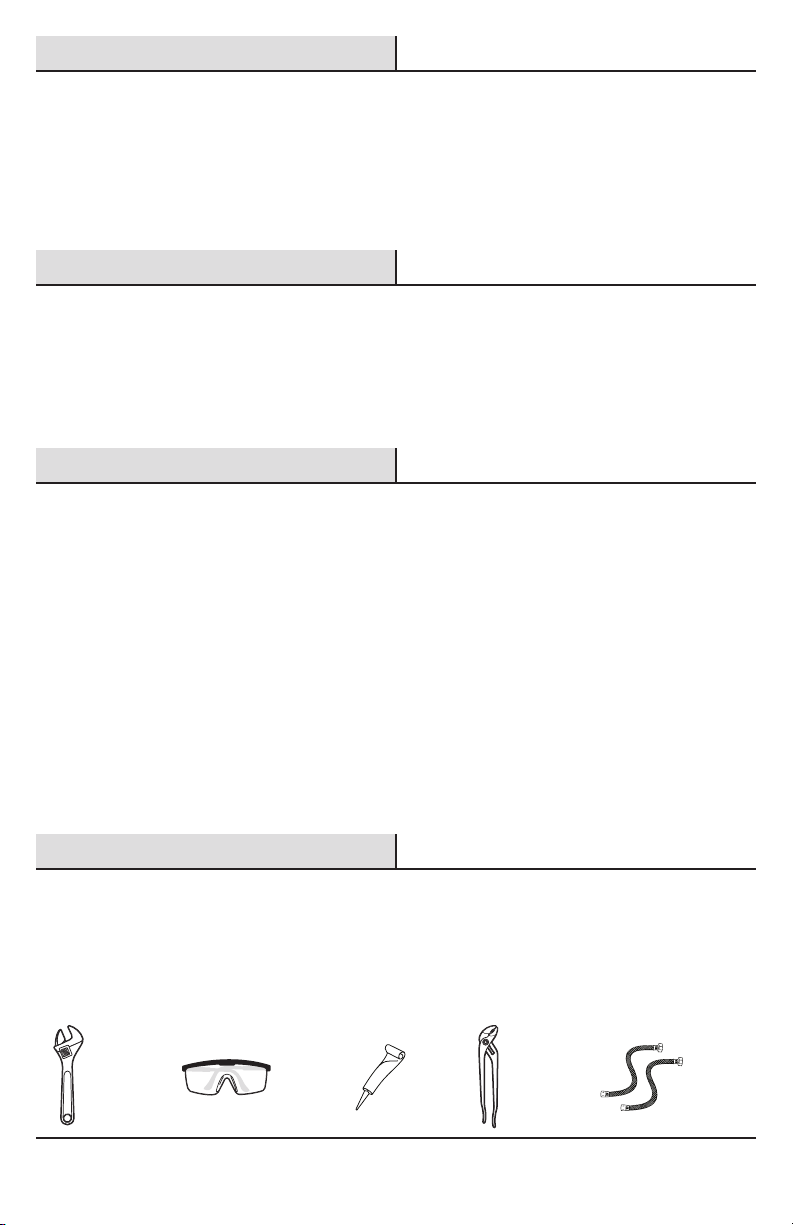

TOOLS AND HARDWARE REQUIRED

SILICONE

Adjustable

wrench

Safety

goggles Sealant Channel-lock

pliers

(2) Supply

lines

3HOMEDEPOT.COM/GLACIERBAY

Please contact 1-855-HD-GLACIER for further assistance.

Pre-Installation (continued)

PACKAGE CONTENTS

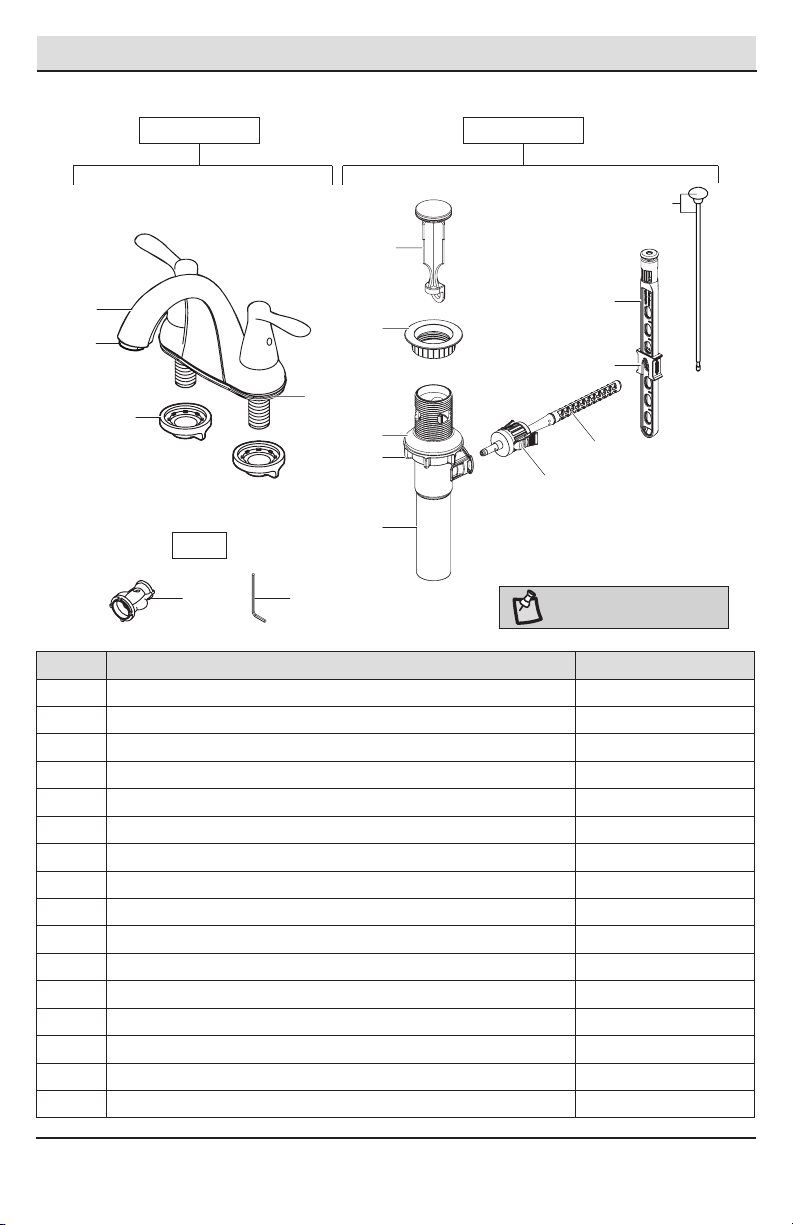

Faucet Assembly Drain Assembly

Tool

O P

NOTE: *Items come pre-assembled.

Part Description Quantity

A Faucet 1

B Aerator 1

CMounting nut 2

DPop up stopper 1

EDrain ﬂange 1

FRubber washer 1

GLock nut 1

HDrain body 1

IJoint 1

JHorizontal rod 1

KLift rod strap 1

LClip 1

MLift rod 1

NGasket 1

O Wrench 1

P Hex wrench 1

Installation

NOTE: If the sink is uneven, use silicone under the

gasket (N).

CAUTION: Always turn off the water supply before

removing an existing faucet or replacing any part of a

faucet. Open the faucet handle to relieve water pressure

and ensure that the water is completely shut off.

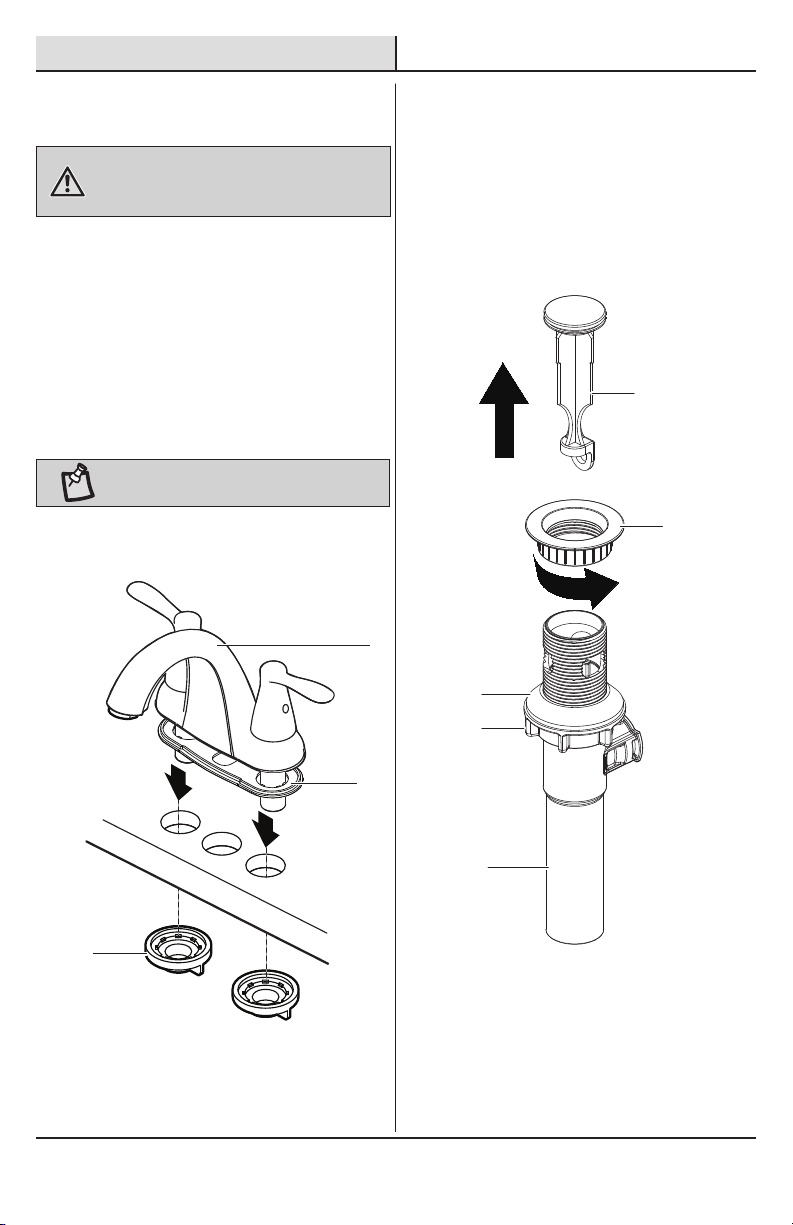

1 Installing the faucet assembly 2 Preparing the pop-up assembly

□Remove the pop up stopper (D) and drain ﬂange

(E) from the drain body (H).

□Screw the lock nut (G) all the way down, and

push the rubber washer (F) down.

□Shut off the water supply. Remove the old

faucet.

□Clean off the mounting surface.

□Ensure the gasket (N) is on the bottom of the

new faucet (A).

□Place the faucet (A) through the mounting holes

in the sink.

□Secure the faucet (A) to the sink using the

mounting nuts (C) provided.

5HOMEDEPOT.COM/GLACIERBAY

Please contact 1-855-HD-GLACIER for further assistance.

Installation (continued)

Insert 2

Insert 1

SILI

3 Installing the drain body 4 Installing the stopper and

horizontal rod

□Apply silicone sealant (not included) under the

drain ﬂange (E) and place the drain ﬂange (E)

over the drain hole in the sink.

□From underneath the sink, screw the drain body

(H) onto the drain ﬂange (E). Ensure that the

opening (1) for the ball rod on the drain body (H)

faces towards the rear of the sink.

□Tighten the rubber washer (F) and lock nut (G)

on the drain body (H). Do not overtighten.

□Before installation, unscrew the protective cap

(1) from the horizontal rod (J).

□Insert the stopper (D) into the drain hole in the

sink.

□Insert the horizontal rod (J) into the drain body

(H) and through the hole of the stopper (D). See

insert 1.

□For easier removal and cleaning, rotate the

stopper (D) 90 degrees so that the horizontal

rod (J) does not go through the hole in the

stopper (D). See insert 2.

□Make sure the joint (I) on the horizontal rod (J)

inserts into the drain body (H) completely, as

shown (2). You can press the two sides of the

joint (I) to remove the horizontal rod (J).

Installation (continued)

5 Installing the lift rod

6 Attaching the horizontal rod and strap

□Slide the lift rod (M) through the faucet (A).

□Slide the lift rod (M) down into the lift rod strap (K) until it clicks into the lift rod strap (K).

□Press the rod (J) down to ensure the stopper (D) is in the maximum open position.

□Slide the clip (L) upward, adjust the location of the lift rod strap (K) to the appropriate height and insert the

horizontal rod (J) with the correct hole of the lift rod strap (K).

□Move the lift rod strap (K) in or out to choose an appropriate location.

□Slide the clip (L) downward until it secures with the horizontal rod (J).

NOTE: If the pop up lift rod strap (K) is interfering with your installation, the lift rod strap (K) can be cut shorter. Once you have identiﬁed

the proper hole in the lift rod strap (K) that is necessary for your installation, you may cut off the bottom portion of the lift rod strap (K).

NOTE: If a shorter lift rod (M) is required for your installation, you may call Glacier Bay Customer Service for assistance.

Hole

7HOMEDEPOT.COM/GLACIERBAY

Please contact 1-855-HD-GLACIER for further assistance.

Installation (continued)

7 Checking the operation of the

pop up

□Operate the lift rod (M) up and down to verify

that the stopper (D) opens and closes correctly.

□Use 1/2 in. I.P.S. faucet connections (1), or a

3/8 in. O.D. ball-nose riser (2) with supply line

coupling nuts (3) (not included).

□Use a wrench to tighten the connections. Do not

over tighten or torque the copper supply line.

8 Making the water supply

connections

Operation

9 Flushing and checking for leaks

IMPORTANT: After installation is complete, remove the

aerator to ﬂush the water lines. Do not lose the gasket in

the aerator.

□Ensuring the handles are in the off position, turn

on the water supply and check for leaks. If you

discover any leaks, check your connections to

ensure they are installed properly.

□Remove the aerator (B) and housing (if applicable).

Turn on the hot and cold handles to allow the

water to run for at least one minute. This ﬂushes

away any debris that could cause damage to

internal parts.

□Turn off the water and reinstall the aerator (B) and

housing (if applicable).

Problem Possible Cause Solution

There are leaks from the

handle.

□The bonnet nut is loose.

□The O-ring on the cartridge is

dirty or damaged.

□Tighten the bonnet nut.

□Clean or replace the O-ring.

The aerator leaks or has a

reduced water ow.

□The aerator is dirty or mis-ﬁtted.

□The cartridge may be clogged.

□Remove the aerator and check for

debris.

□Remove the cartridge and check for

debris.

□Ensure the aerator is properly

installed.

The water will not shut off

completely.

□The locking nut is loose or

cartridge is not positioned

correctly.

□Remove the handle and cartridge to

check the rubber seat and spring.

□Tighten the lock nut.

□Clean or replace.

The sink drain at the base of

the sink is leaking.

□The sink surface is rough or

irregular.

□Apply additional silicone sealant to

the beveled side of the drain ﬂange.

□Retighten and test for leaks.

Care and Cleaning

Troubleshooting

NOTE: Refer to the service parts section in this manual for a

detailed drawing showing the location of the parts listed below.

□To clean, wipe down with a damp cloth and towel dry.

□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will be

voided.

9HOMEDEPOT.COM/GLACIERBAY

Please contact 1-855-HD-GLACIER for further assistance.

*Specify Finish

Service Parts

3.1

5.1

5.2

3.2

11.

12.

10.

Part Description Part No.

1 Metal Handle A069382*

2 Index Button A66G325

3.1 Adaptor & Screw (H) A66D574H

3.2 Adaptor & Screw (C) A66D574C

4 Retainer Nut & Washer A663631*

5.1 Ceramic disc cartridge (C) A507004N

5.2 Ceramic disc cartridge (H) A507003N

Part Description Part No.

6 Putty Plate A011005*

7 Mounting nut A504023*

8 Aerator A500026N-51-T*

9 Lift rod A025041*

10 ClickInstall™ drain

assembly A505032*

11 Wrench A031245

12 Hex Wrench(H2.5 * 19 mm

L * 53 mm L) A031000NI

Many replacement cartridges, aerators, and drain

assemblies can be purchased at your local The

Home Depot store or online at HOMEDEPOT.COM.

Questions, problems, missing parts?

Before returning to the store, call Glacier Bay Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday

9 a.m. - 6 p.m., EST, Saturday

1-855-HD-GLACIER (1-855-434-5224)

HOMEDEPOT.COM/GLACIERBAY

Retain this manual for future use.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Glacier bay Équipements de cuisine et de salle de bain

Glacier bay

Glacier bay 873W-6101 Instructions de montage

Glacier bay

Glacier bay HD67573W-6001 Instructions de montage

Glacier bay

Glacier bay 4124F Manuel utilisateur

Glacier bay

Glacier bay FW6AC012CP Instructions de montage

Glacier bay

Glacier bay Carla HD67826-0008D2 Instructions de montage

Glacier bay

Glacier bay HD67855W-6001 Instructions de montage

Glacier bay

Glacier bay VT3322G2 Manuel utilisateur

Glacier bay

Glacier bay F51A0074CP Instructions de montage

Glacier bay

Glacier bay HD67540-1008D2 Instructions de montage

Glacier bay

Glacier bay HD67495-1008D2 Instructions de montage

Glacier bay

Glacier bay HDQFP1B4201CP Instructions de montage

Glacier bay

Glacier bay 461-3001 Instructions de montage

Glacier bay

Glacier bay 3ABRB-00-001 Manuel utilisateur

Glacier bay

Glacier bay HD67552-0401 Instructions de montage

Glacier bay

Glacier bay FP1B4201CP Instructions de montage

Glacier bay

Glacier bay HD67568-1101 Instructions de montage

Glacier bay

Glacier bay HD873X-5D35 Instructions de montage

Glacier bay

Glacier bay 67556-0001 Manuel utilisateur

Glacier bay

Glacier bay HD67099-0B01 Instructions de montage

Glacier bay

Glacier bay HD67798W-1308D2 Instructions de montage

Glacier bay

Glacier bay HD874X-0001 Instructions de montage

Glacier bay

Glacier bay 65828-1001 Instructions de montage

Glacier bay

Glacier bay FP1B4202SS Instructions de montage

Glacier bay

Glacier bay HD67735-0008D2 Instructions de montage

Manuels Équipements de cuisine et de salle de bain populaires d'autres marques

Grohe

Grohe BRIDGEFORD 33 870 Manuel utilisateur

Hans Grohe

Hans Grohe Zenio Metro 31811000 Manuel utilisateur

Gröne

Gröne Zedra 32 555 Manuel utilisateur

Transform

Transform QL045 Manuel utilisateur

Sanela

Sanela SLU 09PTB Manuel utilisateur

Lefroy Brooks

Lefroy Brooks C1-1400 Instructions de montage

Grohe

Grohe Rapido E Manuel utilisateur

Danze

Danze D302455 Manuel utilisateur

Waterworks

Waterworks CEKM30 Feuille d'instructions

Helvex

Helvex Omega TV-298 Manuel utilisateur

Tribata.

Tribata. GEORGIAN G5393 Manuel utilisateur

Alpha Bidet

Alpha Bidet Alpha One Manuel utilisateur

InSinkErator

InSinkErator H/HC3300 Manuel d'installation

Clou

Clou Xo type 1 Manuel utilisateur

Kohler

Kohler Contra 26448T-4 Manuel utilisateur

Grohe

Grohe Bridgeford 20 158 Manuel utilisateur

Hans Grohe

Hans Grohe Croma Select S 180 Showerpipe EcoSmart... Manuel utilisateur

Wickes

Wickes MONO SINK MIXER Manuel utilisateur
