Assembly and installation manual

Fixed Mosquito Screen 2012

ASSEMBLY AND INSTALLATION MANUAL FIXED MOSQUITO SCREEN 2012

It is important for the safety of persons and the integrity of the product to read these instructions carefully before installing, opera-

ting, repairing or using the screen for the rst time.

important

This document is an integral part of the titled mosquito screen

model and is intended for the installer. It contains specic

information regarding its cutting and a complete guide to the

sequence of operations for its assembly and installation.

It also contains information required to give presumption of

conformity with the European Construction Products Directive

and European Standard EN 13561:2004+A1:2008 as referred to

in accompanying documents.

Information on general requirements for the use, handling, ins-

tallation, maintenance and disposal of the mosquito net can be

found in the document “Mosquito screens: prescriptions for the

user and installer” available at saxun.com.

Both documents make up a complete instruction manual

and an essential tool to properly operate your mosquito screen

during its life cycle: installation, use, maintenance and disposal at

the end of its useful life.

We recommend that you download both documents and keep

them linked to the mosquito screen for future reference. The

information they contain is an essential part of the product.

Index

1. Components 3

2. Assembly 4

3. Installation 6

ASSEMBLY AND INSTALLATION MANUAL FIXED MOSQUITO SCREEN 2012

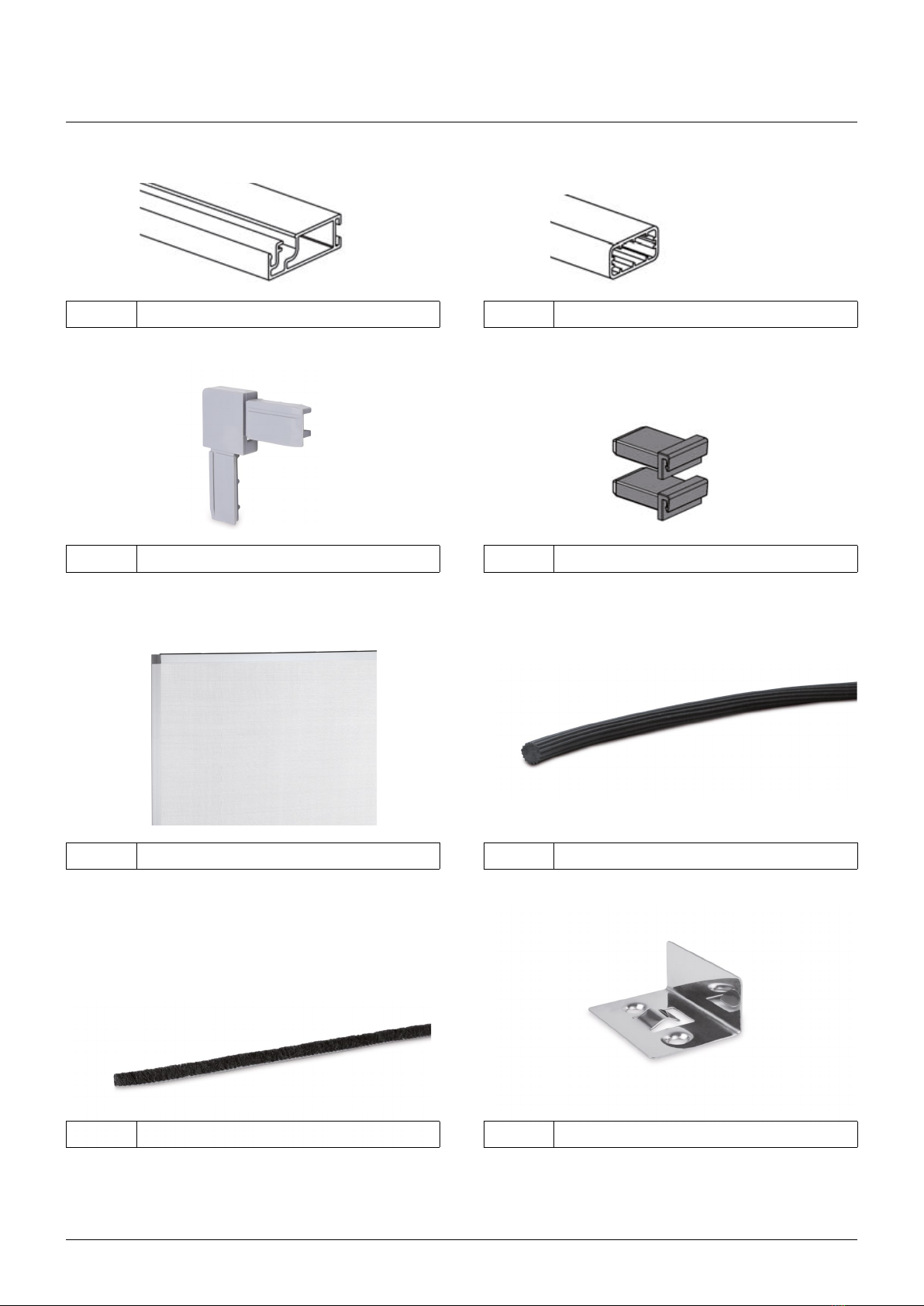

1. Components

008145

Fixed mosquito screen prole

008170

Cross screen prole

008011

Fixed mosquito screen angles

008154

Cross bar cap (2 units)

008092

PVC-coated breglass mesh

008082

Rubber band

008083

Brush 69x55 mm

008090

Stainless steel bracket

ASSEMBLY AND INSTALLATION MANUAL FIXED MOSQUITO SCREEN 2012

2. Assembly

2.1 Measures and allowances

Step 1

Take measurements of the dimensions of the opening where the

mosquito screen will be installed.

It is advisable to take two measurements of each dimension

(height and width) and use the smallest measurement of each to

cut the prole.

2.2 Insert brush in proles

Once the proles of the xed mosquito screen have been cut to

the desired size, insert the brush into them through the external

groove of the prole designed for this purpose.

2.3 Frame assembly

Fit the mounting angles onto the proles of the xed mosquito

screen, checking that both the angles and the proles are as-

sembled on the correct side.

Step 2

Cut the proles with the following allowances:

Height (H)= -64 mm

Width (L)= -64 mm

ASSEMBLY AND INSTALLATION MANUAL FIXED MOSQUITO SCREEN 2012

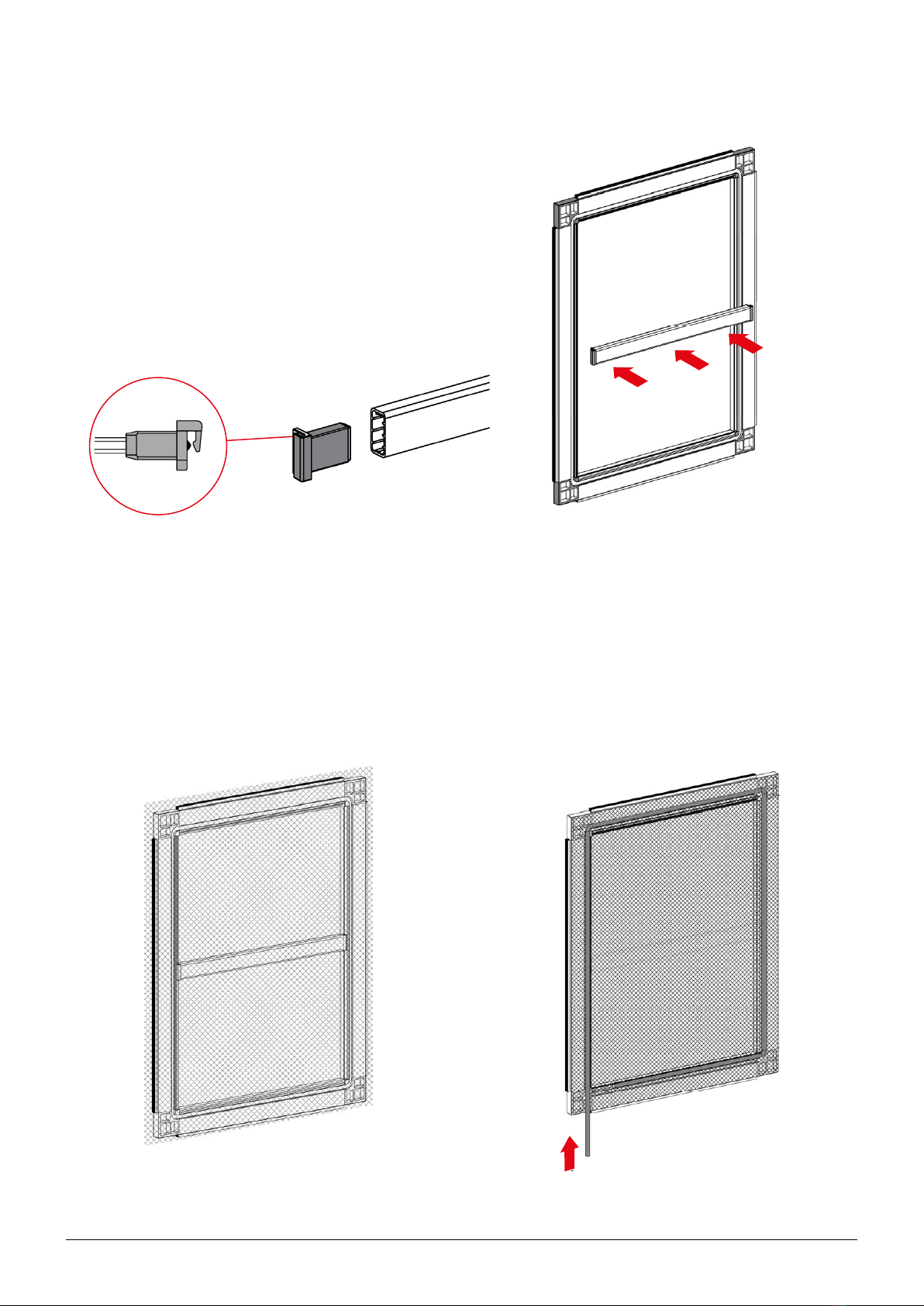

2.4 Installation of the cross bar

(Reinforcement prole)

If the size of the mosquito screen is greater than 1,500 mm in

height or width, it would be advisable to install a crossbar (rein-

forcement prole) cutting it with the following allowance: interior

size of the hole -4 mm.

Insert the studs into the crossbar plugs until they protrude

approximately 0.50 mm from the inside and place the plugs at

the ends of the prole. Once installed, clip the crossbar to the

centre of the screen.

2.5 Installation of the breglass mesh

With the frames mounted, we will cut the breglass mesh,

approximately 55 mm larger than the external measurement of

the frame opening, and we will x it to the frame using the rubber

band, introducing it into the rail and all around its perimeter, ten-

sioning the fabric at the same time.

ASSEMBLY AND INSTALLATION MANUAL FIXED MOSQUITO SCREEN 2012

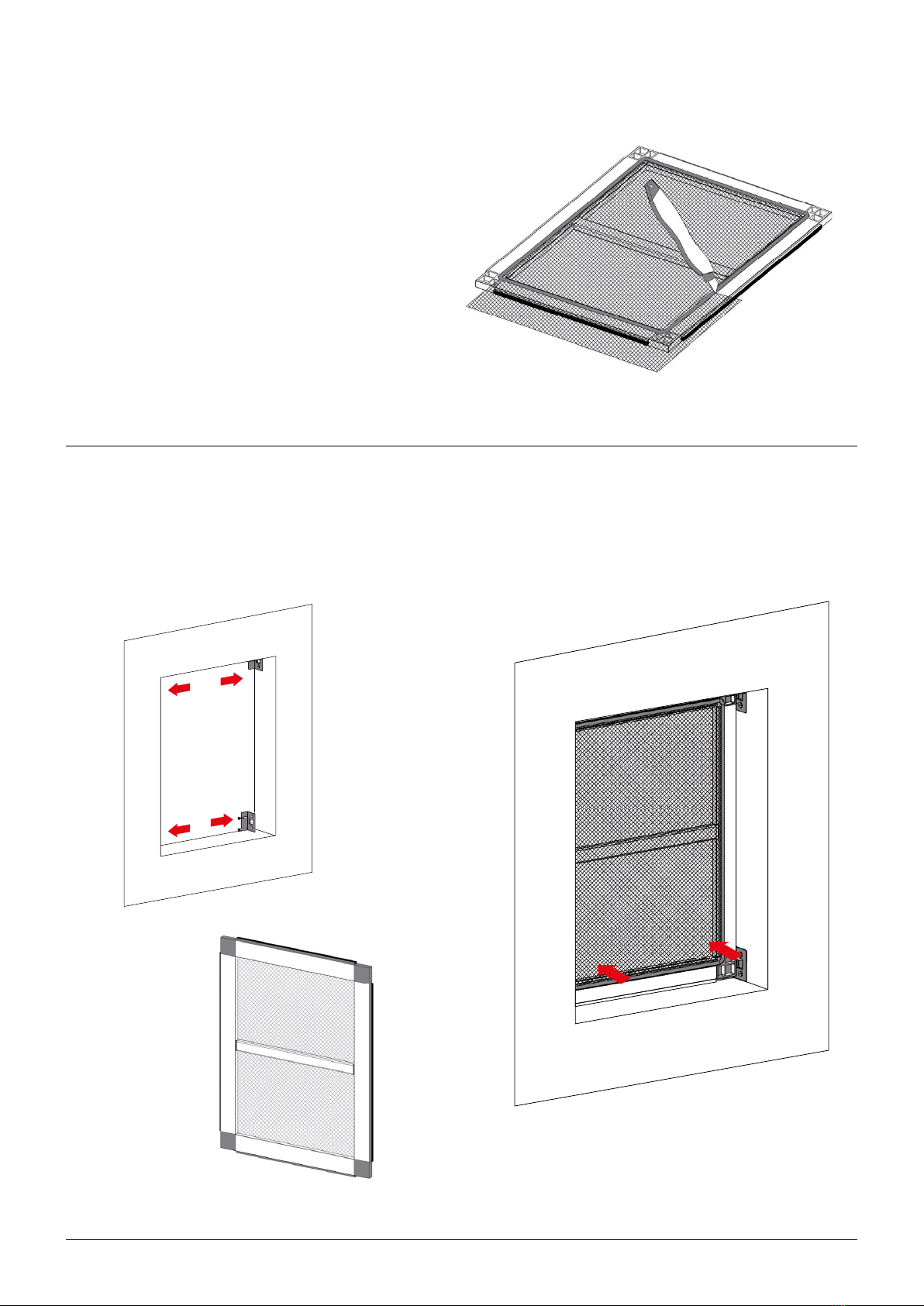

2.6 Cutting Of The Fiberglass Mesh

Once the fabric has been installed and stretched in the frame,

cut the excess with a knife, taking care to cut the fabric in the

right area, so as not to damage it.

3. Installation

Step 1

Screw the stainless steel brackets on all four corners of the

construction site where the installation of the 2012 xed mosqui-

to screen is to be installed

Step 2

Insert the mosquito net by pressing until it clicks on the brackets.

MK0622 · EN · 01 · 0522

Giménez Ganga, S.L.U.

Polígono Industrial El Castillo

C/ Roma, 4

03630 • Sax (Alicante) • España

saxun.com
