Gilson PIPETMAX Manuel utilisateur

www.gilson.com/contactus

LT255601-01 1/6

Instructions

CHAPTERF|PIPETMAX ALIGNMENT UTILITY

TABLE OF CONTENTS

RUN PIPETMAX ALIGNMENT UTILITY | 2

Start Alignment Utility | 2

Install Alignment Head | 3

Connect Alignment Cable and Align Clips | 4

Align PIPETMAX | 5

Remove Alignment Head | 5

Reconnect External Safety Interlock Sensor | 6

TROUBLESHOOTING | 6

This document describes how to use the PIPETMAX Alignment Utility,

including how to install the alignment head.

The PIPETMAX Alignment Utility is installed as part of

the TRILUTION® micro Software installation or via the

PIPETMAX Package Updater.

Run the PIPETMAX Alignment Utility to ensure proper alignment. It is only

necessary when setting up the instrument for the first time, or if instructed to

do so by your local Gilson representative.

2/6 PIPETMAX ALIGNMENT UTILITY |INSTRUCTIONS

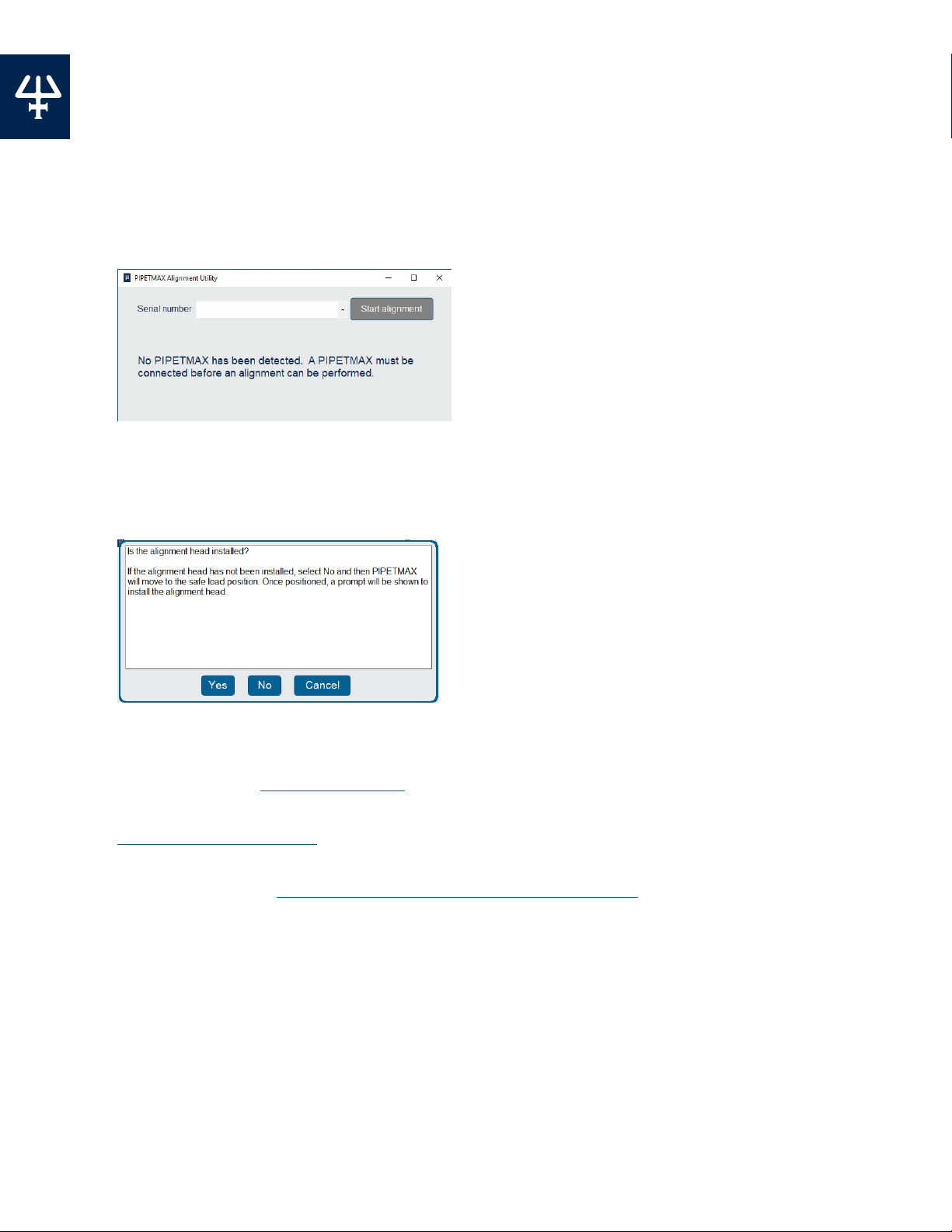

Run PIPETMAX Alignment Utility

Start Alignment Utility

1. Click the Start button and then select:

(All apps) > Gilson Applications > PIPETMAX Alignment Utility.

The utility starts and then searches for a connected PIPETMAX. If PIPETMAX is not

connected, a message appears:

Connect PIPETMAX. The utility will automatically scan to search for a connected

PIPETMAX and then will display the serial number when one is connected.

2. Select Start Alignment. A message box appears:

If the alignment head is installed, the alignment cable is connected, the clips are

positioned correctly, and the rotating cover or fume hood door is closed, select Yes and

then proceed to Align PIPETMAX on page 5.

If the alignment head is not installed, select No and then proceed to

Install Alignment Head on page 3.

If the alignment cable is not connected and/or the clips are not positioned properly, select

No and then go to Connect Alignment Cable and Align Clips on page 4.

3/6PIPETMAX ALIGNMENT UTILITY | INSTRUCTIONS

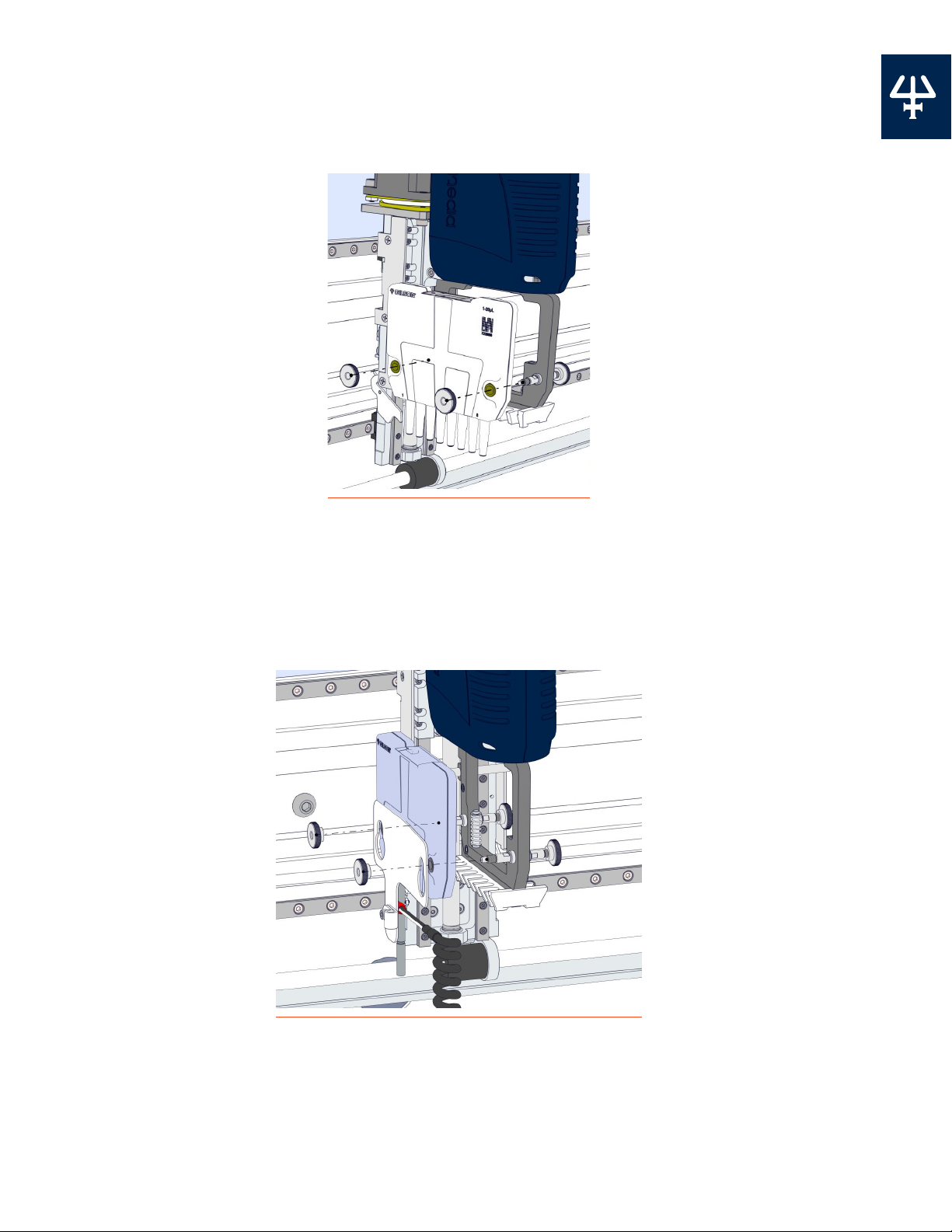

Install Alignment Head

Remove Left Pipette Head

Remove the left pipette head by removing the thumb nuts securing it to the upper pipette

head assembly.

Figure 1

Pipette Head Removal

Install Alignment Head

Install the alignment head on the left side of the upper pipette head assembly using the

thumb nuts. Ensure proper alignment of the pipette head against the upper pipette head

assembly before tightening the thumb nuts.

Figure 2

Alignment Head Installation

4/6 PIPETMAX ALIGNMENT UTILITY |INSTRUCTIONS

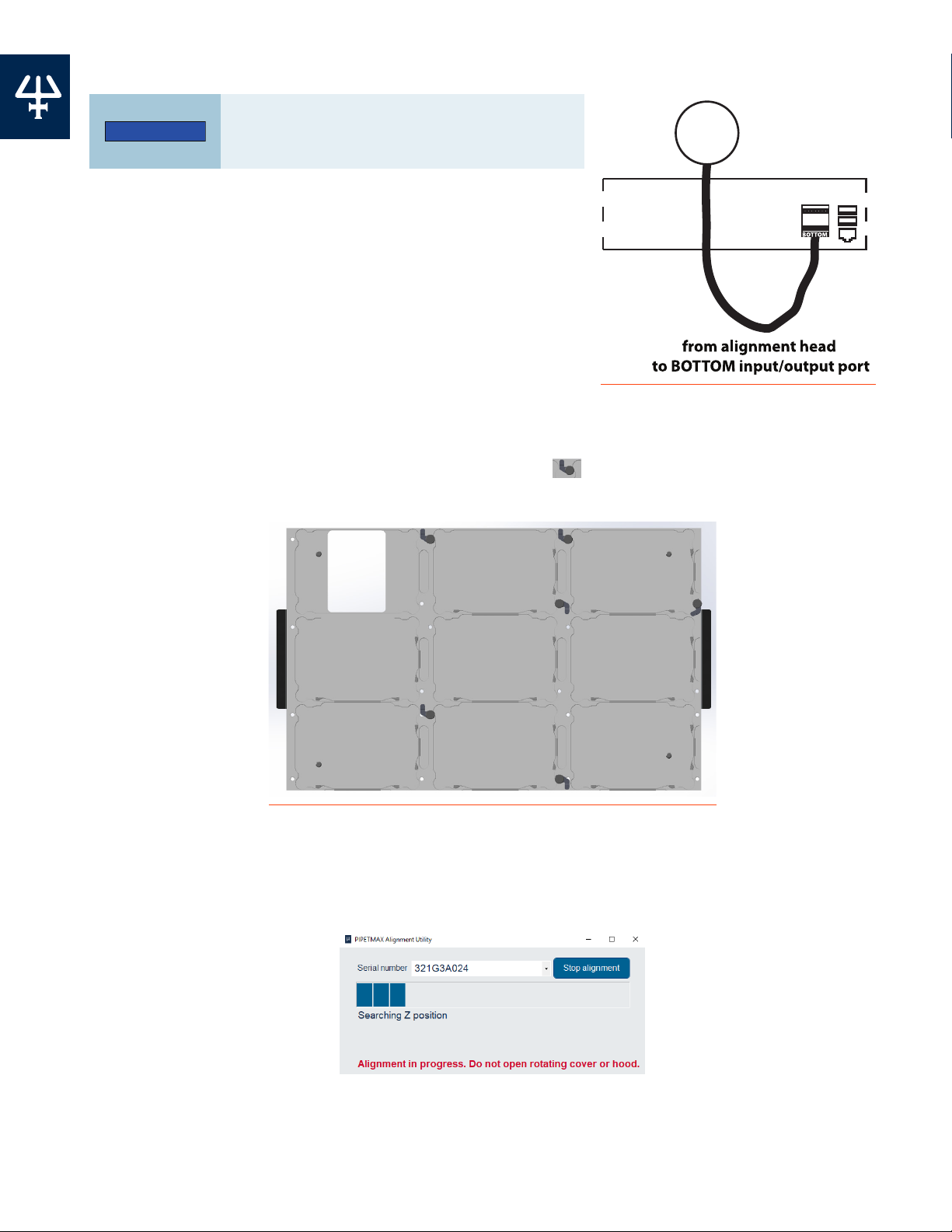

Connect Alignment Cable and Align Clips

NOTICE

If the alignment head is installed, but the

cabling is not connected and the alignment

starts, it may damage the alignment head.

1. If your PIPETMAX does not have a rotating cover and

uses the external safety interlock sensor, disconnect

the BOTTOM terminal block connector from the

input/output ports on the rear panel.

2. Pass the end of the alignment cable with pre-wired

connector through the access hole at the back of

PIPETMAX.

3. The connector is labeled BOTTOM because it connects

to the bottom set of input/output ports on the rear

panel of PIPETMAX. Make the connection.

4. The clips to secure the tip racks on the tray can

interfere with the alignment. Ensure that the clips ( ) are positioned as shown in the

diagram below, and that the thumbscrews have been tightened.

Figure 4

Proper Clip Position During Alignment

5. Close the rotating cover or the fume hood door.

6. Select OK to start running the alignment.

Figure 3

Alignment Cable Connection

5/6PIPETMAX ALIGNMENT UTILITY | INSTRUCTIONS

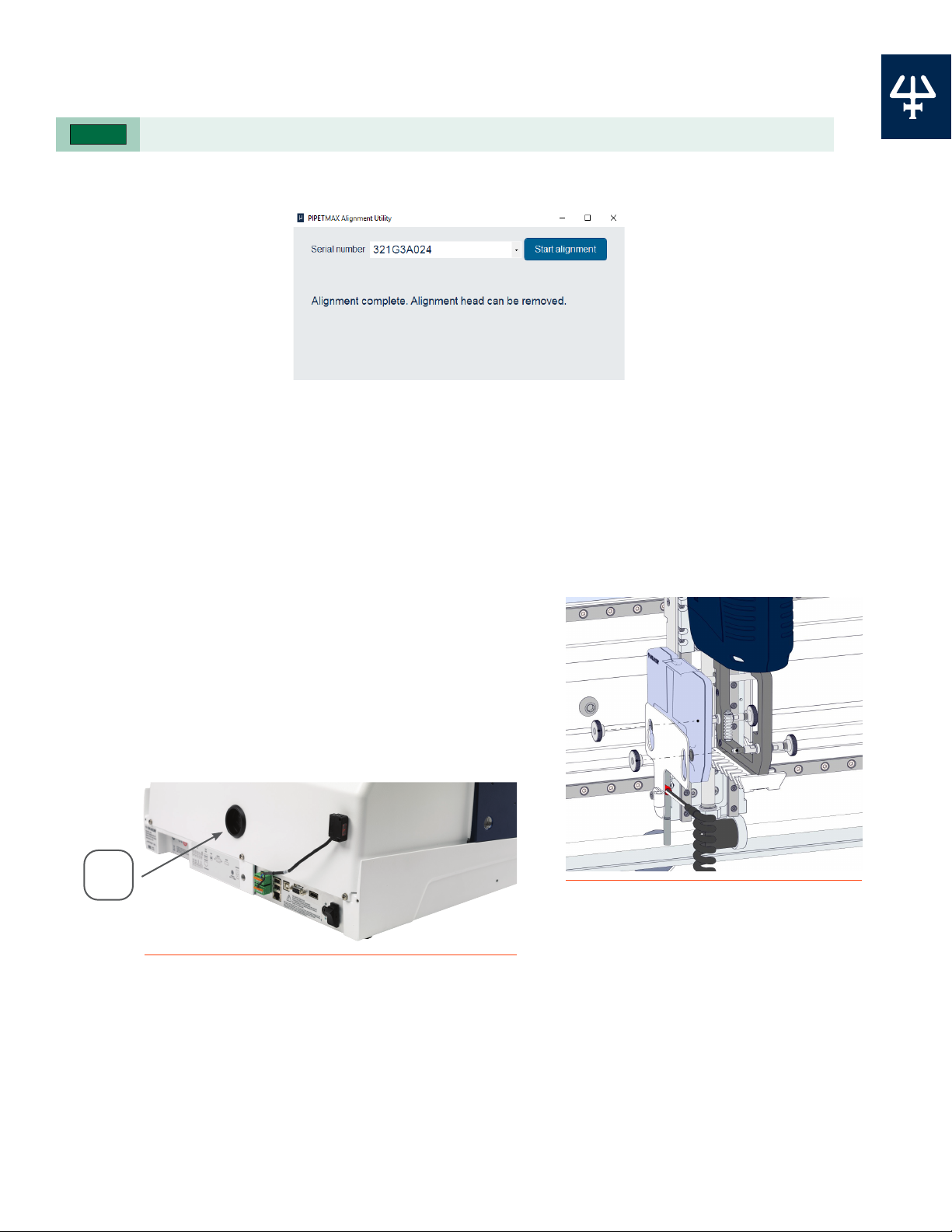

Align PIPETMAX

Wait approximately 6 minutes while the alignment runs.

NOTE

If the rotating cover or fume hood door is opened while running, the alignment is canceled.

A notification appears when the alignment is complete. Remove the alignment head.

Stop Alignment

To stop the alignment while it is running and before it is finished, select Stop Alignment. The

alignment will stop when it finishes its current action and revert back to the original offset

values.

Emergency Stop

To stop PIPETMAX immediately, press the red STOP button on the front of PIPETMAX.

Remove Alignment Head

Remove the alignment head by disconnecting the

terminal block connector from the rear panel, and

then removing the thumb nuts securing it to the upper

pipette head assembly. Cover the hole on the rear panel

from the exterior using the black plug supplied in the

accessory package.

black

plug

Figure 6

Black Plug in Access Hole on Rear Panel

Figure 5

Alignment Head Removal

6/6 PIPETMAX ALIGNMENT UTILITY |INSTRUCTIONS

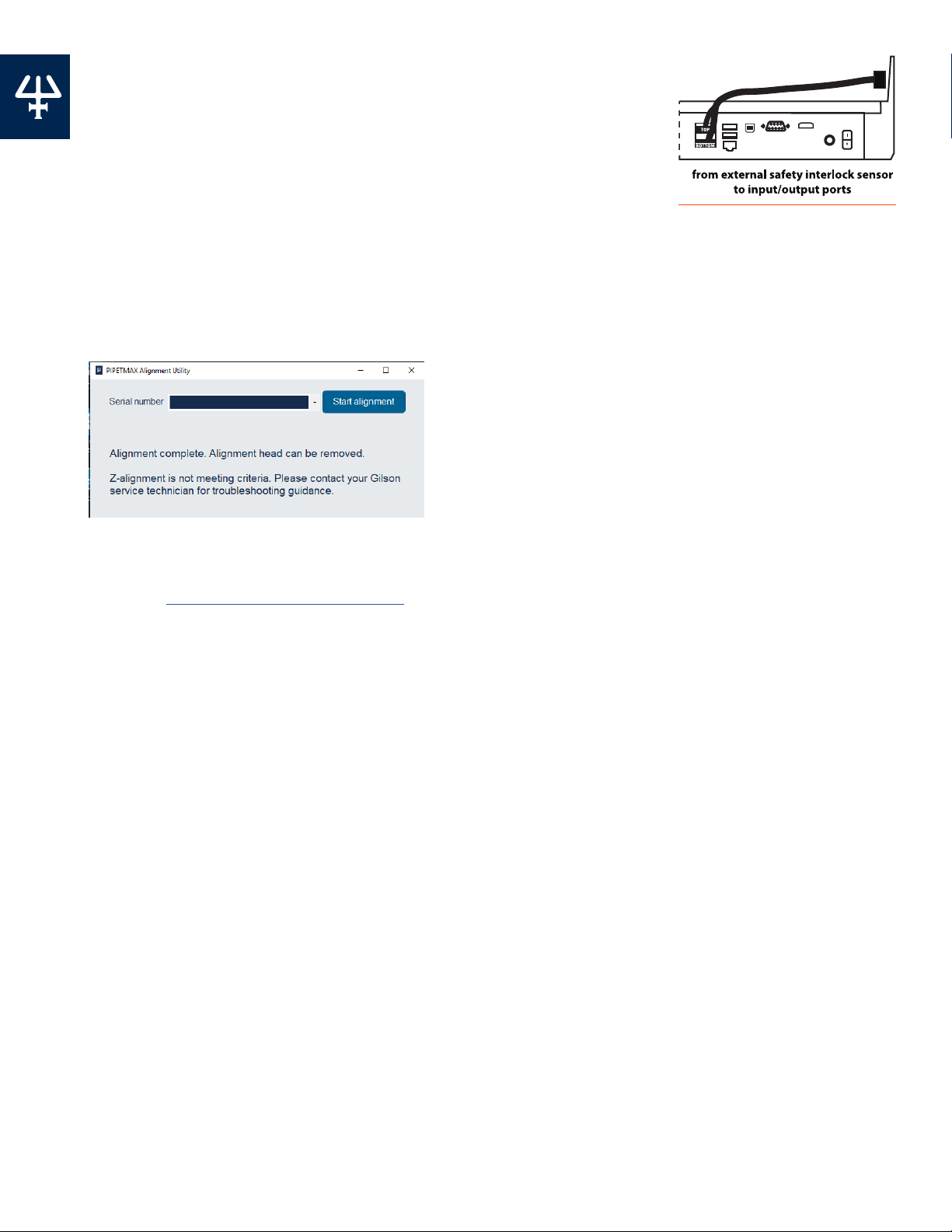

Reconnect External Safety Interlock Sensor

If your PIPETMAX does not have a rotating cover, it requires

an external safety interlock. The external safety interlock was

disconnected prior to running the alignment. Reconnect the

BOTTOM terminal block connector to the input/output ports on

the rear panel.

Troubleshooting

If you see the following message, remove and reinstall the removable tray and then rerun the

PIPETMAX Alignment Utility.

If you encounter any trouble or have concerns while running the alignment, please do not

hesitate to contact your local Gilson representative. Specific contact information can be

found at www.gilson.com/contactus.

Figure 7

External Safety Interlock

SensorConnections
