Gigabyte GV-NX86T256D Manuel utilisateur

Apr. 17, 2007

VGA Card

GV-NX86T256H/GV-NX86T256D/GV-NX86T256HP

VGACard

Apr. 17, 2007

GV-NX86T256H/GV-NX86T256D

/GV-NX86T256HP

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

GV-NX86T256H/

GV-NX86T256D/

GV-NX86T256HP

GeForce™8600 GT Graphics Accelerator

User's Manual

Rev. 101

12MD-NX86T2H-101R

without the expressed, written permission of GBT.

Trademarks

Third-party brands and names are the property of their respective owners.

Notice

Please do not remove any labels on VGA card, this may void the warranty of this VGA card

Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a

commitment to update the information contained herein.

Macrovision corporation product notice:

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.

Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing

uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

GV-NX86T256H Graphics Accelerator - 2 -

English

Table of Contents

1. Introduction ......................................................................................... 3

1.1. Features ..................................................................................................... 3

1.2. Minimum System Requirements ................................................................... 3

2. Hardware Installation ........................................................................... 4

2.1. Board Layout .............................................................................................. 4

2.2. Hardware Installation ................................................................................... 6

3. Software Installation .......................................................................... 10

3.1. Windows® XP Driver and Utilities Installation ............................................... 10

3.1.1. Operating System Requirement ................................................................................. 10

3.1.2. DirectX Installation ......................................................................................................... 11

3.1.3. Driver Installation .......................................................................................................... 12

3.1.4. Taskbar Icon ................................................................................................................. 14

3.1.5. Display Properties Pages ............................................................................................ 15

3.1.6. nView Properties pages (Note)........................................................................ 25

3.2. Windows®2000 Driver Installation ............................................................. 30

4. Troubleshooting Tips ........................................................................ 31

5. Appendix .......................................................................................... 32

5.1. Reflash BIOS in MS-DOS Mode ................................................................ 32

5.2. Resolutions and Color Depth Table (In Windows®XP) ............................... 33

Introduction- 3 -

English

1. Introduction

1.1. Features

•Powered by NVIDIA®GeForce™8600 GT Graphics Processing Unit (GPU)

•Supports PCI Express x16

•Integrated with 256 MB GDDR3 memory

•Supports DirectX 9.0c & 10

•Supports NVIDIA® SLI™ (Scalable Link Interface) technology (Note)

•Supports AV / S-Video / TV-Out and HDTV output

•Supports 2 DVI-I connectors

•Supports 2 D-sub connectors (by adapter)

•Supports HDCP (High-bandwidth Digital Content Protection) technology(Note2)

1.2. Minimum System Requirements

•Hardware

- Intel®Pentium®4 orAMD AthlonTM

- 128 MB of system memory; 2 GB or more for best performance

- Optical drive for software installation (CD-ROM or DVD-ROM drive)

- A power supply with 450-watt is recommended

•Operating System

- Windows®Vista

- Windows® XP with Service Pack 2 (SP2)

- Windows®XP Professional x64 Edition

- Windows®2000

•SLITM Configuration

If you are planning on using this graphics card as part of an SLITM system, the

following is required:

- An SLITM certified motherboard with two PCI Express x16 slots and correct PCIe

chipset driver

- Two GV-NX86T256H/GV-NX86T256D/GV-NX86T256HP

- A power supply with 1000-watt or above is recommended

- An SLITM bridge connector

(Note) SLI technology requires a PCI Express motherboard with two x16 physical connectors.

Graphics cards working in an SLI configuration must be with the same model name

(i.e. GV-NX86T256H) and from the same vendor (i.e. GIGABYTE TECHNOLOGY).

(Note2) Only for GV-NX86T256H/GV-NX86T256HP.

GV-NX86T256H Graphics Accelerator - 4 -

English

2. Hardware Installation

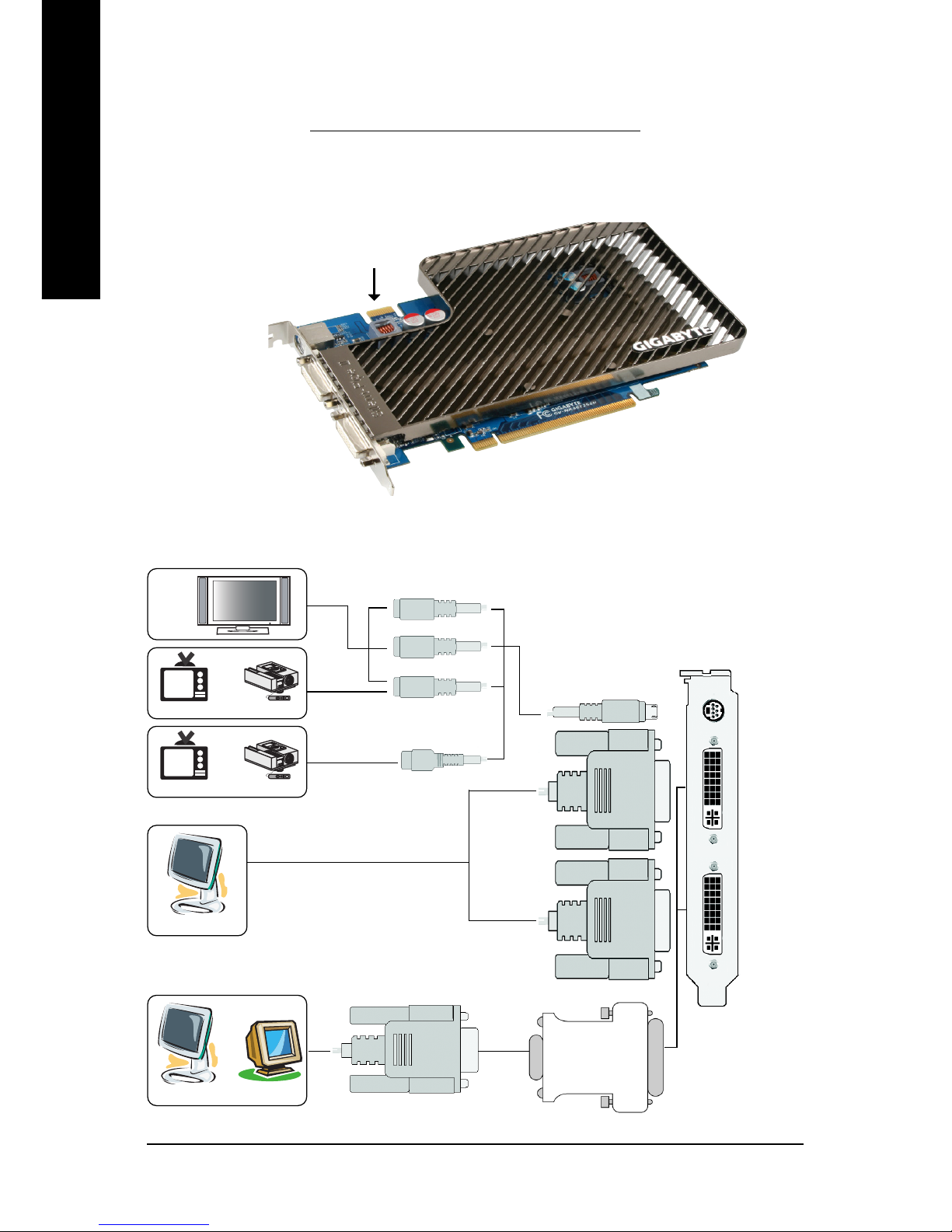

2.1. Board Layout

TV-Out

DVI-I

Connector

S-Video Output

Pb/AV Output

NTSC / PAL TV Projector

HDTV

NTSC / PAL TV Projector

Digital LCD Monitor

DVI Output

DVI-I to D-Sub

Adapter

VGA Output

Analog LCD Monitor Analog Monitor

DVI-I

Connector

TV-out

DVI-I Connector 1

DVI-I Connector 2

SLI Connector

Hardware Installation- 5 -

English

Expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some

precautions whenever you work on your computer.

1. Turn off your computer and unplug power supply.

2. Use a grounded wrist strap before handling computer components. If you do not have

one, touch both of your hands to a safely grounded object or to a metal object, such as

the power supply case.

3. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by static

electricity, so the card should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat. The operator

should be wearing an anti-static wristband, grounded at the same point as the anti-static

mat.

Inspect the card carton for obvious damage. Shipping and handling may cause damage

to your card. Be sure there are no shipping and handling damages on the card before

proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON

THE CARD.

In order to ensure your graphics card working correctly, please use official

Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem

on the graphics card.

GV-NX86T256H Graphics Accelerator - 6 -

English

2.2. Hardware Installation

Installing Your graphics card.

Now that you have prepared your computer, you are ready to install your graphics accelerator

card.

To remove the existing graphics card:

1. Power off the computer and monitor, then

disconnect the display cable from the back

of your computer.

2. Remove the computer cover. If necessary,

consult your computer's manual for help in

removing the cover.

3. Remove any existing graphics card from

your computer.

Or, if your computer has any on-board

graphics capability, you may need to disable

it on the motherboard. For more information,

please see your computer documentation.

Hardware Installation- 7 -

English

You are now ready to proceed with the installation of the graphics card driver. Please refer

to next chapter for detailed instructions.

To TV / VCR To Flat Panel Display

2. Replace the screws to fasten the card in

place, and replace the computer cover.

3. Plug the display cable into your graphics

card; then turn on the computer and monitor.

To connect a flat panel directly to your

graphics card, use the DVI-I connector. To

connect a VGA monitor to the DVI-I

connector, plug the DVI-I to D-sub adapter

intotheDVI-Iconnector,thenplugthemonitor

cable into the adapter.

Connect a flat panel

Connect a VGA monitor via DVI-I to D-sub adapter

To install your new graphics card:

1. Locate the PCI Express x16 slot. Ifnecessary,

remove the metal cover from this slot; then

align your graphics card with the PCI

Express x16 slot, and press it in firmly until

the card is fully seated.

* Please make sure that the gold edge connectors of the graphics card is securely inserted.

GV-NX86T256H Graphics Accelerator - 8 -

English

GIGABYTE Video Adapter for Nvidia Graphics Cards

(1) Connecting HDTV

Connect your HDTV cables to the video adapter

according to the corresponding color.

(Y= Green, Pr= Red, Pb= Blue)

(2) Connecting S-Video

If your TV has a S-Video connection, connect the S-

Video cable from your TV to the S-Video Out port on the

adapter.

(3) Connecting AV Output

If your TV has a Composite video connection, you can

connect the RCA cable from your TV to the AV Out port

on the adapter.

Connect to the TV-Out port

on the graphics card.

S-Video Out HDTV Component

(Y+Pr+Pb)

AV Out
