Gigabyte GS27F Manuel utilisateur

GAMING MONITOR

GS SERIES USER GUIDE

GS27F / GS27Q / GS32Q

The trademarks mentioned in this manual are legally registered to their respective

owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of

GIGABYTE.

Changes to the specifications and features in this manual may be made by

GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted,

or published in any form or by any means without GIGABYTE’s prior written

permission.

• In order to assist in the use of this monitor, carefully read the User Guide

• For more information, check on our website at:

https://www.gigabyte.com

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress

and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing

Administrator, Inc.

CONTENTS

INTRODUCTION..................................................4

Package Contents ...............................................4

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

GETTINGSTARTED6

Installing the Stand Base ........................................6

Cable Management .............................................7

Adjusting the Viewing Angle.....................................8

Installing a Wall-Mount Bracket (Optional) ........................9

USINGTHEDEVICE 10

Turning the Power On/O ..................................... 10

Selecting the Input Source..................................... 11

OPERATIONS 11

Quick Menu ................................................... 11

Function Key Guide ........................................... 13

APPENDICES................................................... 22

Specications ................................................. 22

Supported Timing List ......................................... 23

Troubleshooting .............................................. 24

Basic Care..................................................... 24

GIGABYTE Service Information ................................. 24

SAFETYINFORMATION 25

Safety Precautions ............................................ 25

Stability Hazard Precautions ................................... 26

User Comfort Recommendations............................... 26

REGULATORYINFORMATION.................................... 27

- 4 -

INTRODUCTION

PackageContents

The following items come with your packaging box. If any of them is missing,

please contact your local dealer.

Note: Please keep the packaging box and packing materials for possible

transportation of the monitor.

Monitor

Quick Start Guide

Stand

Monitor Base

Warranty Card

DP Cable

(GS27Q/GS32Q)

HDMI Cable

(GS27F)

Power Cable

- 5 -

ProductOverview

FrontView

RearView

1Power LED 2Control button

1HDMI ports (x2) 3Headphone jack

2DisplayPort 4AC IN jack

DPHDMI-1 HDMI-2

HDMI-1 HDMI-2 DP AC

DPHDMI-1 HDMI-2

HDMI-1 HDMI-2 DP AC

- 6 -

GETTING STARTED

InstallingtheStandBase

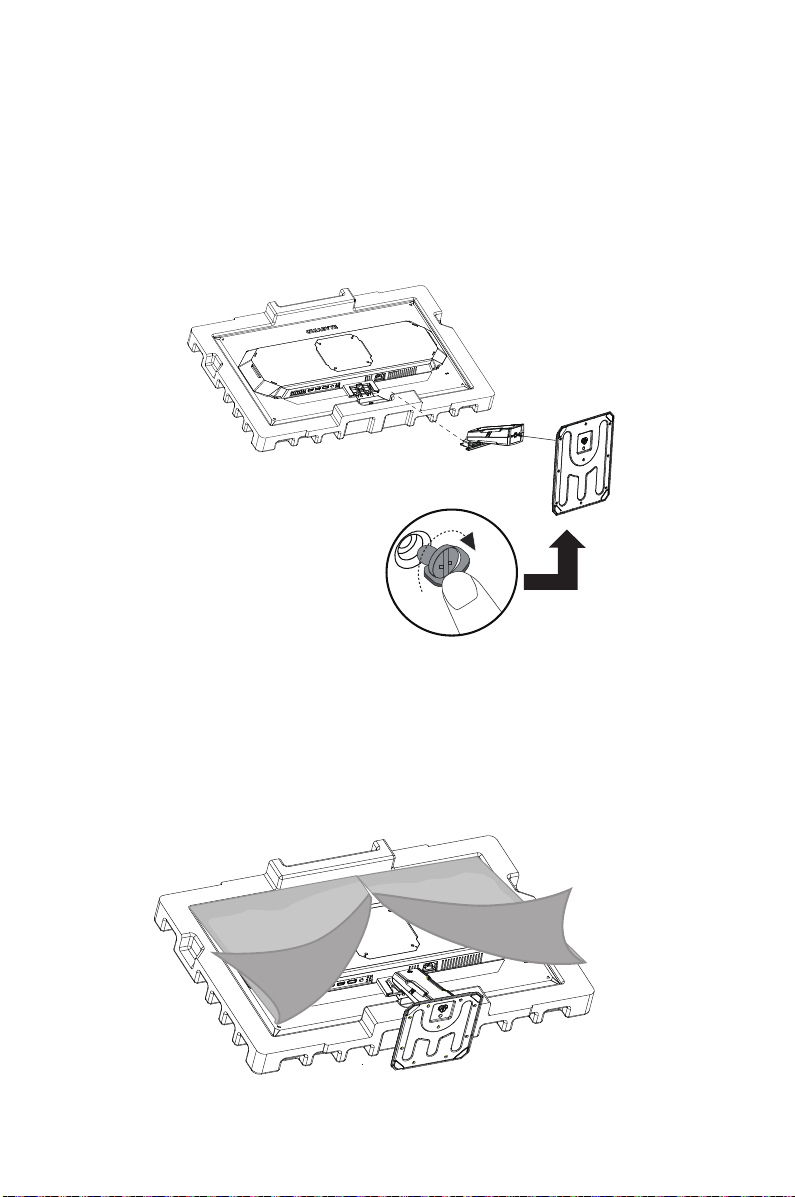

1. Position the monitor face down on a flat surface with its protective foam

underneath and with its Styrofoam bag covered.

2. Fit the stand riser and stand base together with a coin, a screwdriver, or the

pull ring attached on the stand base.

3. Tear apart the Styrofoam bag. Fit the stand riser to the groove on the back of

the monitor. Push the stand until it snaps into place.

4. Take the monitor from the protective foam by holding its stand riser. Place it

upright on a table.

- 7 -

CableManagement

1. Take out the cable clip from the EPS.

2. Snap the cable clip into the stand, then pass the power cord and the cable

through the cable clip in the stand to connect them to the monitor.

- 8 -

AdjustingtheViewingAngle

1. Place one hand on the base to prevent the monitor from tipping over during

the adjustment.

2. Place the other hand on the top-center of the screen and apply forward or

backward pressure to adjust the angle to the desired viewing angle (-5° to 20°).

20°

5°

- 9 -

InstallingaWall-MountBracket(Optional)

Use only 100 x 100 mm compliant wall mount kit. Install the wall mount according

to the manufacturer’s instructions.

1. Position the monitor face down with its protective foam or with a nonabrasive

cloth underneath.

2. Align the wall-mount bracket installation holes with the screw holes on the

back of the monitor.

3. Use the screws to secure the bracket in place.

Note: To mount the monitor on the wall, refer to the installation guide that is

included in the wall-mount bracket kit.

100 mm

HDMI-1HDMI-2 DP AC

100 mm

HDMI-1HDMI-2 DP AC

- 10 -

USING THE DEVICE

TurningthePowerOn/Off

Make sure the power switch next to the AC power input jack is switched to ON.

PowerOn

1. Connect one end of the power cable to the AC IN jack at the rear of the monitor.

2. Connect other end of the power cable to a power outlet.

3. Press the Control button to turn on the monitor. The Power LED will light in

white, indicating the monitor is ready to use.

PowerOff

Press the Control button for 2 seconds to turn off the monitor.

Note: When the Main menu appears on the screen, you can also turn off the monitor

by moving the Control button down ( ). Refer to page 13.
