Gigabyte GSmart MS802 Manuel utilisateur

MS802│

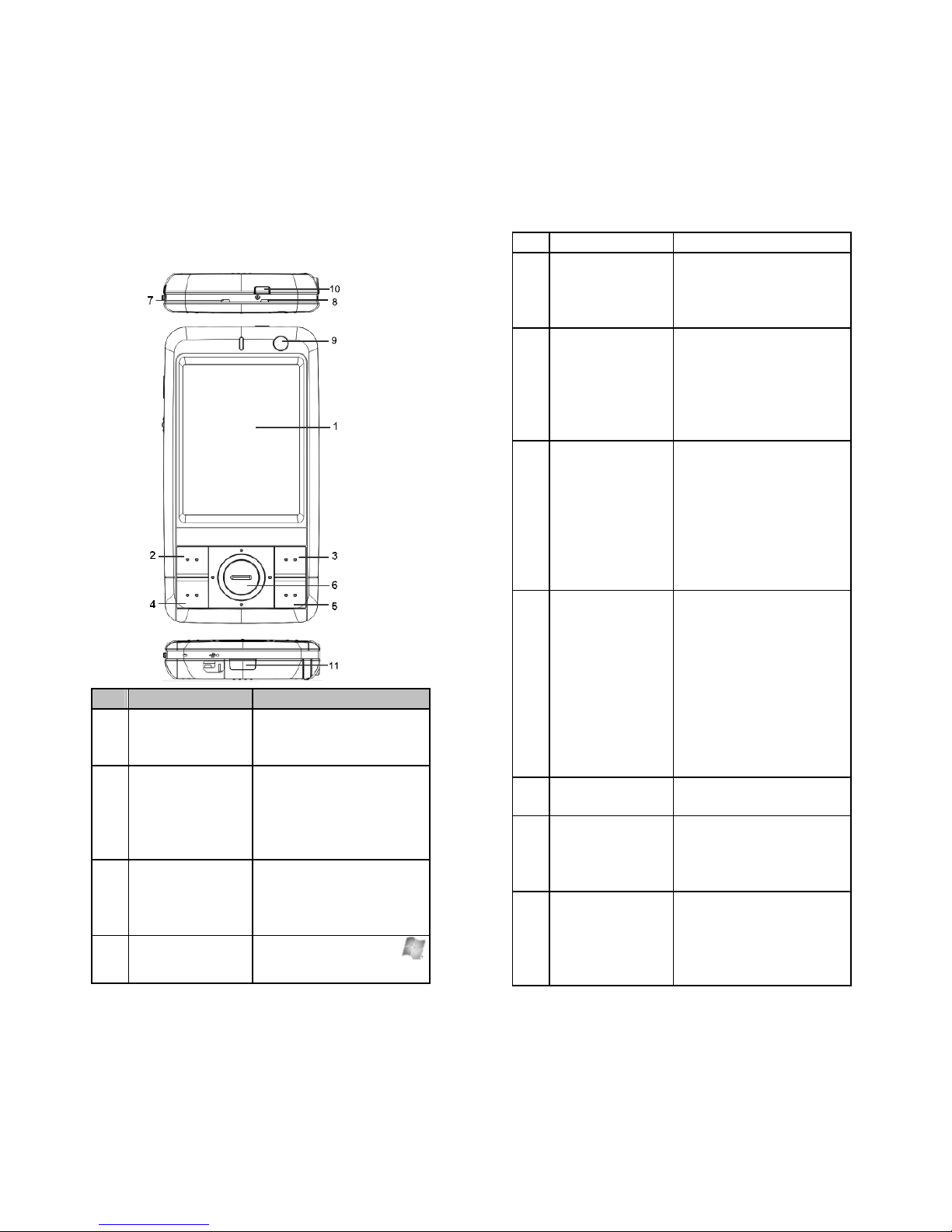

Getting to Know Your Device

No. Item Function

1 Touch Screen

Display screen. Use

stylus to select items on

the screen.

2 Talk/Send Key

You can make or

answer a call by

pressing Talk/Send key,

or go to Phone Dialer

screen.

3 End Key

Press this key to end a

call or to return to

Today screen from any

screen.

4 Windows Flag

Key Press the Windows

key to open Start menu

options.

5 GPS Key

Long press this key to

execute GPS function

or application. OK as

default.

6 Navigation Key

Press up, down, left

and right directions to

navigate. Tap the

center key to execute

the selected function or

application.

7 LED Indicator1

The LED indicator

indicates the status of

your device by showing

different colors.

Green: Mobile network

is detected.

Red: Charging

activated.

8 LED Indicator2

The LED indicator

indicates the status of

your device by showing

different colors.

Blue: Bluetooth is

activated.

Orange: Wi-Fi is

activated.

Purple: Notification,

GPS signal is detected.

9Front Camera

Lens

Use when making

Video calls.

10 Power On/Off

Press and hold Power

key for a few seconds

to power on/off your

device.

11 Mini USB slot

Use USB connector to

synchronize data with

your desktop PC, to

transmit data or to

charge the battery.

MS802│

12 Reset Hole

Use something

shaped like a needle

to insert it to reset your

phone.

13 Camera Key

Press and hold

camera key to launch

camera function.

14 Volume Key

Slide this key upwards

or downwards to

adjust volume.

15 Micro SD card

slot

You can insert your

Micro SD card here.

16 Headset Plug

Plug in headset, and

then you can listen to

the FM radio, music

via the headset or use

the device's

hands-free kit.

17 Stylus Use the stylus to touch

the screen panel.

18 Speaker Besides using stereo

headset, you may play

music/voice through

the built-in speaker.

19 Camera Lens

The CMOS camera on

the back of the device

supports 3-mega-pixel

photo and high-quality

video.

20 Battery Cover

Push and slide out the

cover to replace

battery and unlock

SIM card hatch.

Insert the Battery & SIM Card

Before inserting/removing a SIM card, please make

sure that MS802 is powered off and is not

connected to any power supply.

1. Check the back of your MS802. Push the button

located at the bottom of your device, and pull

the battery cover, and then remove the battery.

2. Find the SIM card carrier on the upper-left

MS802│

corner of the device.

3. Insert the SIM card with the metal contacts

facing down into the carrier.

4. Return the battery back to the battery slot,

battery cover back onto the device in that order.

5. Push the battery cover back, and then you will

hear “click”.

Today Screen

The main screen displays the following information:

1. Start menu

Tap “Start” to open Windows Start menu on the

upper-left corner of the screen. To return to Today

screen at any time, tap Start > Today.

2. Status & Icon area

Display notification icons and system status. You

can tap the icon to look into the detail or settings of

the function.

3. Today screen

On Today screen, this area contains shortcuts to

certain programs and important information of

today. To change Today screen settings, tap Start >

Settings > Personal tab > Today

4. Command area

Depending on different mode, this area contains

different features such as menu options, input

panel and commands to create or edit a file.

5. Pop-up menu

It allows you to access an item quickly. Tap the

selected item to perform an action. To cancel this

pop-up menu, tap other areas of this screen.

Status Type Icon Description

Main battery power is

full. The level of

battery power is

shown in percentage.

Low battery. Please

recharge.

Battery

Battery is charging.

Call forward.

Calls

Call on hold.

MS802│

Data call.

You have missed calls.

Voice call in active.

3G network is

connected.

GPRS is in range.

GPRS is connected.

Building connection to

GPRS.

Bluetooth is activated.

Connections

Wi-Fi is activated; a

Wi-Fi network is in

range; Wi-Fi network

is connected.

Strong signal.

No signal.

Roaming.

GPS signal is trying to

connect, and is

connected.

GPS Tracking is trying

to connect.

GPS Tracking is

connected.

Location Message

GPS signal is trying to

detect.

Signal

Location Message

GPS signal is

detected.

Message

You have one or more

new message(s).

You have one or more

new voice mail(s).

You have one or more

instant message(s).

System volume.

Phone volume.

Ringer is on.

Volume

Ringer is off.

Quick Menu

Memory Management,

Adjust Brightness,

Quick Menu Setting.

Install and Charge Battery

When you use the device for the first time, please

make sure the battery is installed and is charged

fully.

1. Insert a battery to the battery slot.

2. Plug your charger into an outlet, and plug the

other end to your device. The device will start

charging automatically.

3. It takes 3 hours to fully charge your battery with

a traveler charger for the first time. Besides, it

takes 6-8 hours to fully charge your battery with

a battery charger for the first time. Unplug the

device from the charger, when the charging is

completed, and then you may use the device.

4. When the LED light is in red, it means the

battery is charging.

5. When the LED light is in green, it means the

charging is completed.

6. The battery icon on task bar on Today

screen shows the battery status. You may also

check the battery status in Start > Settings >

System tab > Power > Battery tab.

MS802│

Power On

Press Power On / Off key on the top of the device

to turn on the device.

Power Off

Press and hold Power On / Off Key on the top of

the device for about 5 seconds while the power is

on.

Open Battery Cover

1. Check the bottom of your device, and then you

will find a button.

2. Push this button.

3. Pull the battery cover to open it.

About

This function contains information about your

device. Select Today > Settings > System tab >

About

Version tab displays important device information,

including the amount of memory installed. On

Device ID tab, you can change your device name,

if you are unable to connect to a network because

another device with the same name is already

connected. On Copyrights tab, you can check the

copyrights about this device. On Device Info tab,

you can check the information of the software,

hardware, and phone.

Micro SD Card(Optional)

When the memory is insufficient, this device cannot

allocate memory automatically, you may follow the

steps below to release more memory:

1. Select Start > File Explorer

2. Use “File Explorer” to move some files to Micro

SD card. Select, and hold the highlighted items

by stylus, and select “Cut” or “Copy” on the

pop-up menu; then select “Paste” after you

move to Micro SD card.

3. Use “File Explorer” to delete the unwanted files.

Select Start > Messaging > Menu > Options >

Storage tab. If you have inserted a memory card,

check “When available, use this storage card to

store attachments”, and the attachments will be

MS802│

saved to memory card automatically.

Specifications

Item Specification

System Information

Operating

System

Windows Mobile 6.1

Professional

Processor Marvell PXA 270 520 MHz

Memory ROM 256 MB, RAM 128MB

Size

Dimensions

(mm) 117 x 59.8 x 14.8 mm

Weight (in

grams) 130 g (Including battery)

Battery

Capacity Lithium Polymer 1300 mAh

Standby time Up to 150 hours

Talk time Up to 4 hours

Charging

time Up to 4 hours

Display Characteristics

Type 2.8”, 65,536 TFT LCD touch

panel

Resolution 320 x 240 pixels

Band

Band HSDPA; UMTS2100; GSM

900/1800/1900

Connectivity

Bluetooth Bluetooth 2.0

Modulation: GFSK

Band:2.4 - 2.4835GHz

Output power:0dbm

(Typical)

WLAN

WLAN 802.11b/g

Wireless Technology: OFDM

and DSSS

Operating frequency: 2.412 -

2.462GHz

WLAN 802.11b Output

power:12dbm (Typical)

WLAN 802.11g Output

power:10dbm (Typical)

GPRS GPRS Class 12

WAP WAP 2.0

CSD Y

Modem

dial-up Y

USB Mini USB 2.0


Format JPEG, GIF, PNG, BNP, WBMP

Max Size

(per) Depends on available RAM

Audio

Format MP3, WAV, WMA, MIDI, AAC

Max Size Depends on available RAM

Video

Format 3GP, MPEG4, WMV

Max Size Depends on available RAM

Phonebook

Size Depends on available RAM

MS802│

Ringtone

Type MP3, WMA, AMR

Polyphone 48 polyphonic mid file

Digital Camera

Type JPEG

Pixels 3.0 mega pixels

Front

Camera 0.3 mega pixels VGA

Auto Focus

(Rear

Camera)

Macro Mode Y

Video

Recording Y

Message

Windows

Live

Messenger

SMS Y

MMS Y

E-mail Y

External Memory

Type Micro SD Card

Max Size Maximum to 4GB

Operating Temperature

Temperature -10℃~45℃

If this document is modified, please download the

latest version on the GSmart official website.

GIGA-BYTE COMMUNICATIONS INC.

B2, No. 207, Sec. 3, Beixin Road,

Xindian, Taipei, 231, Taiwan

+886-2-89132220

www.gigabytecm.com

Note: Specifications may vary in some regions.

Autres manuels pour GSmart MS802

Table des matières

Autres manuels Gigabyte Téléphone portable

Gigabyte

Gigabyte U60 Ultra Mobile PC Manuel utilisateur

Gigabyte

Gigabyte GSmart G1305 Manuel utilisateur

Gigabyte

Gigabyte GSmart i Manuel utilisateur

Gigabyte

Gigabyte GSmart i300 Manuel utilisateur

Gigabyte

Gigabyte GSmart MW702 Manuel utilisateur

Gigabyte

Gigabyte GSmart t600 Manuel utilisateur

Gigabyte

Gigabyte g-YoYo Manuel utilisateur

Gigabyte

Gigabyte GSmart MS802 Manuel utilisateur

Gigabyte

Gigabyte GSmart G1305 Manuel utilisateur

Gigabyte

Gigabyte GSmart S1205 Manuel utilisateur

Gigabyte

Gigabyte GSmart G1345 Manuel utilisateur

Gigabyte

Gigabyte GSmart i300 Manuel utilisateur

Gigabyte

Gigabyte GSmart G1355 Manuel utilisateur

Gigabyte

Gigabyte GSmart t600 Manuel utilisateur

Gigabyte

Gigabyte GSMART Mika MX Manuel utilisateur

Gigabyte

Gigabyte GSmart M3447 Manuel utilisateur

Gigabyte

Gigabyte GSmart G1310 Manuel utilisateur

Gigabyte

Gigabyte GSmart i120 Manuel utilisateur

Gigabyte

Gigabyte GSmart S1200 Manuel utilisateur

Gigabyte

Gigabyte GSmart i120 Manuel technique

Gigabyte

Gigabyte GSmart G1315 Manuel utilisateur

Gigabyte

Gigabyte GSmart i350 Manuel utilisateur

Gigabyte

Gigabyte GSmart i350 Manuel utilisateur

Gigabyte

Gigabyte Sierra S1 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
