G1310│
1
Your Phone
This section introduces you to the hardware of the device.
No.
Items
Functions
1
Earphone jack
Use a headset for hands-free
conversation or listening to
music.
2
Power
• Press and hold for several
seconds to turn the phone on
or off.
• To set your phone to the
sleep mode, press the power
button briefly. Press again to
turn on the display.
3
Earpiece
The source of music and
voice.
4
Touch screen
Display screen.
5
LED
• Power status notification.
• Other notification. (New
message / Missed call / New
Mail).
6
P-sensor
The screen will turn off
automatically when taking the
device close to face on call.
7
Light sensor
Adjust the brightness of the
screen according to the
environment.
G1310│
2
8
Home
• Go back to Home Screen.
• Press and hold to bring up
recent activities.
9
Menu
Press to view the options of
menu.
10
Search
Connect to the website or find
features in the phone.
11
Return
Return to the previous page.
12
Talk Key
• Make or answer a call.
• Activate phone function.
13
End Key
•End or reject a call.
•To set your phone to sleep
mode, press the power button
briefly. Press again to turn on
the display.
14
Recent
Applications
Key
Press to bring up recent activities.
15
MIC
Sound Receiver.
16
Strap hole
For hanging cell phone strap.
17
Micro USB port
• Connect USB cable to PC as a
modem / USB mass storage.
• Connect USB cable and the AC
adapter to charge the battery.
G1310│
3
No.
Items
Functions
18
Volume
Press upwards or downwards
to increase or decrease the
volume. Slide down the key
fully to enter vibrate mode.
19
Micro SD Slot
You can insert your Micro
SD card.
20
Camera Key
• Tap to activate the camera.
• In Camera/Camcorder mode,
press to take a photo or
video.
G1310│
4
No.
Items
Functions
21
Speaker
The speaker of music and
voice.
22
Flash LED
Help photo shooting.
23
Camera
The camera on the back of the
device supports 5-mega-pixel
photo and high-quality video.
24
Back cover
You need to open the cover to
install or uninstall the battery
and the SIM card.
NOTE: The battery can also be charged while
connecting to a computer.
G1310│
5
Installing or uninstalling the SIM Card,
Battery, and Memory Card

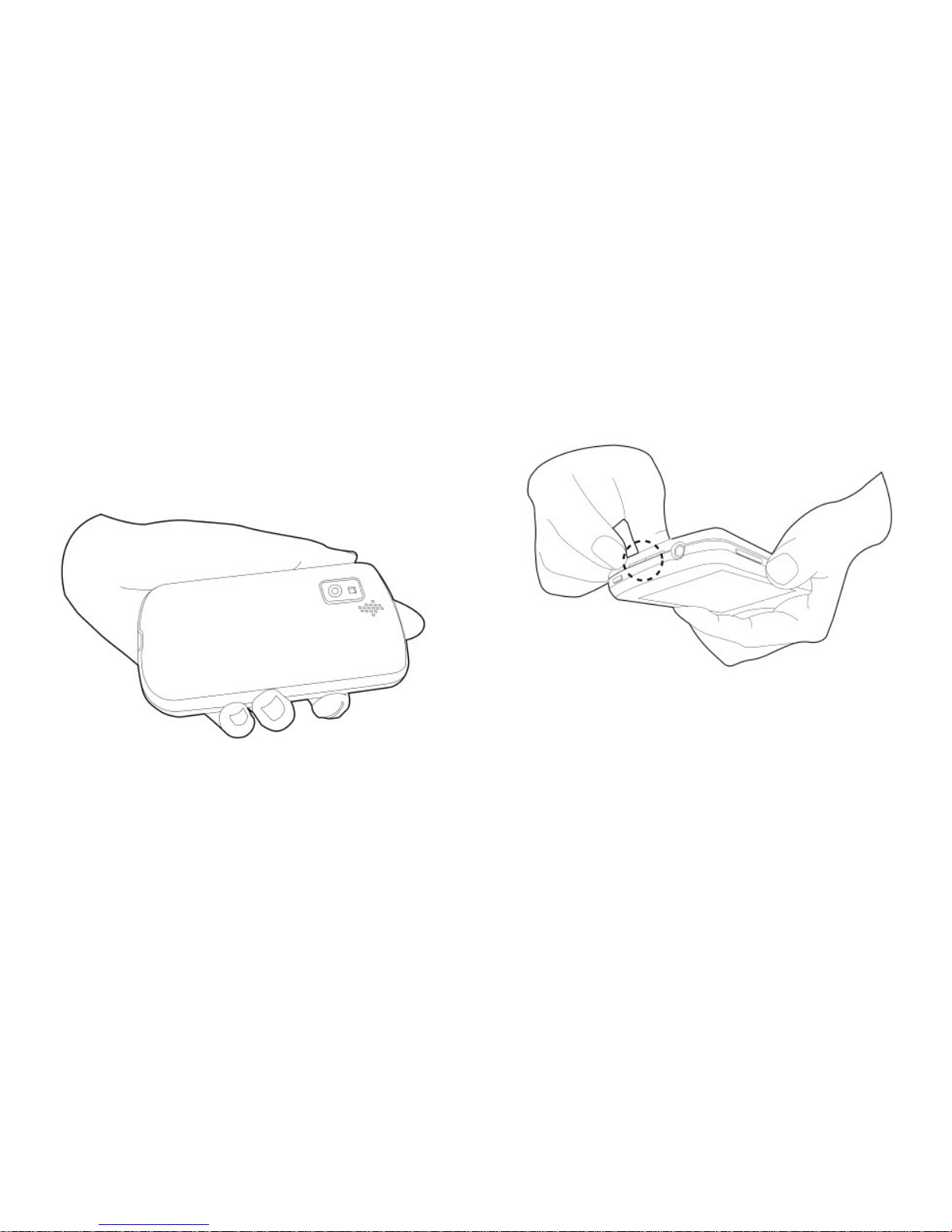

To remove the back cover
1. Turn over your phone with the back cover facing up.
2. Please move your fingertip into the slot located at the
top of the back cover.
G1310│
6
3. Place your palm close to the back cover. Then pull the
back cover with your fingertip to remove it.
SIM card
The SIM card contains your phone number, memory
storage, and the details of the network service.
To insert the SIM card
Insert the SIM card. Make sure the gold contacts are
facing down and the cut-off corner is facing towards the
battery slot. There are two slots for two SIM cards. Upper
slot is for SIM2, and SIM1slot is on the underside.
G1310│
7

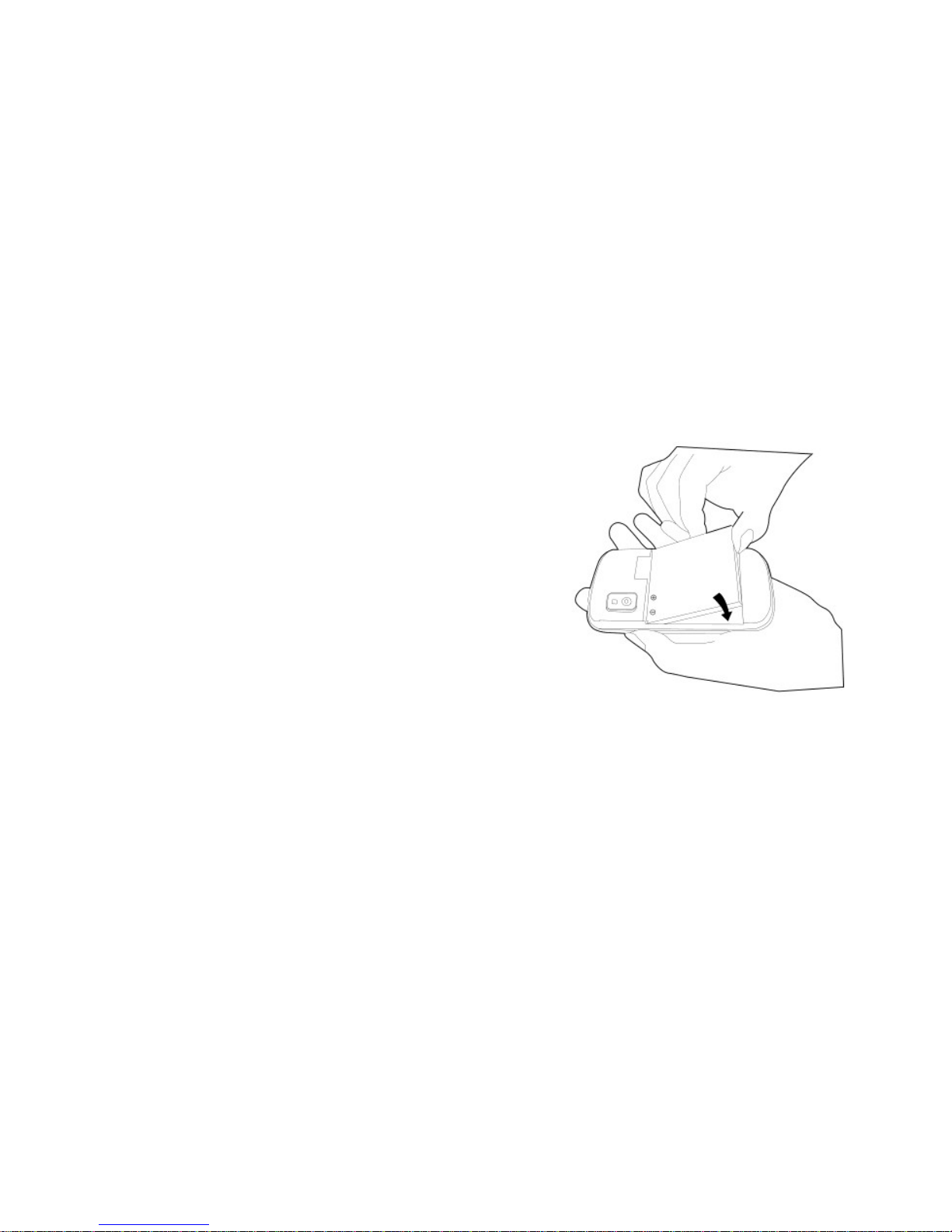

To remove the SIM card
1. Remove battery.
2. Use your finger to slide the SIM card from the card slot.
Battery
Your phone comes with a rechargeable battery. Battery
life varies depending on the network, used applications,
and the type of connections attached to your phone.
To insert the battery
Insert the battery. Make sure the contact of the battery is
aligned with the connector on the battery slot.
G1310│
8
To remove the battery
Use your fingertip to lift the battery, and then remove it.
NOTE: To ensure battery performance and avoid the
risk of fire:
• Use only the original battery designated for the
phone.
•Do not store the battery in temperatures below -10ºC
or higher than 45ºC
Replace the back cover
1. Please insert the hook of the bottom of the back cover
into the slot of the phone.
G1310│
9

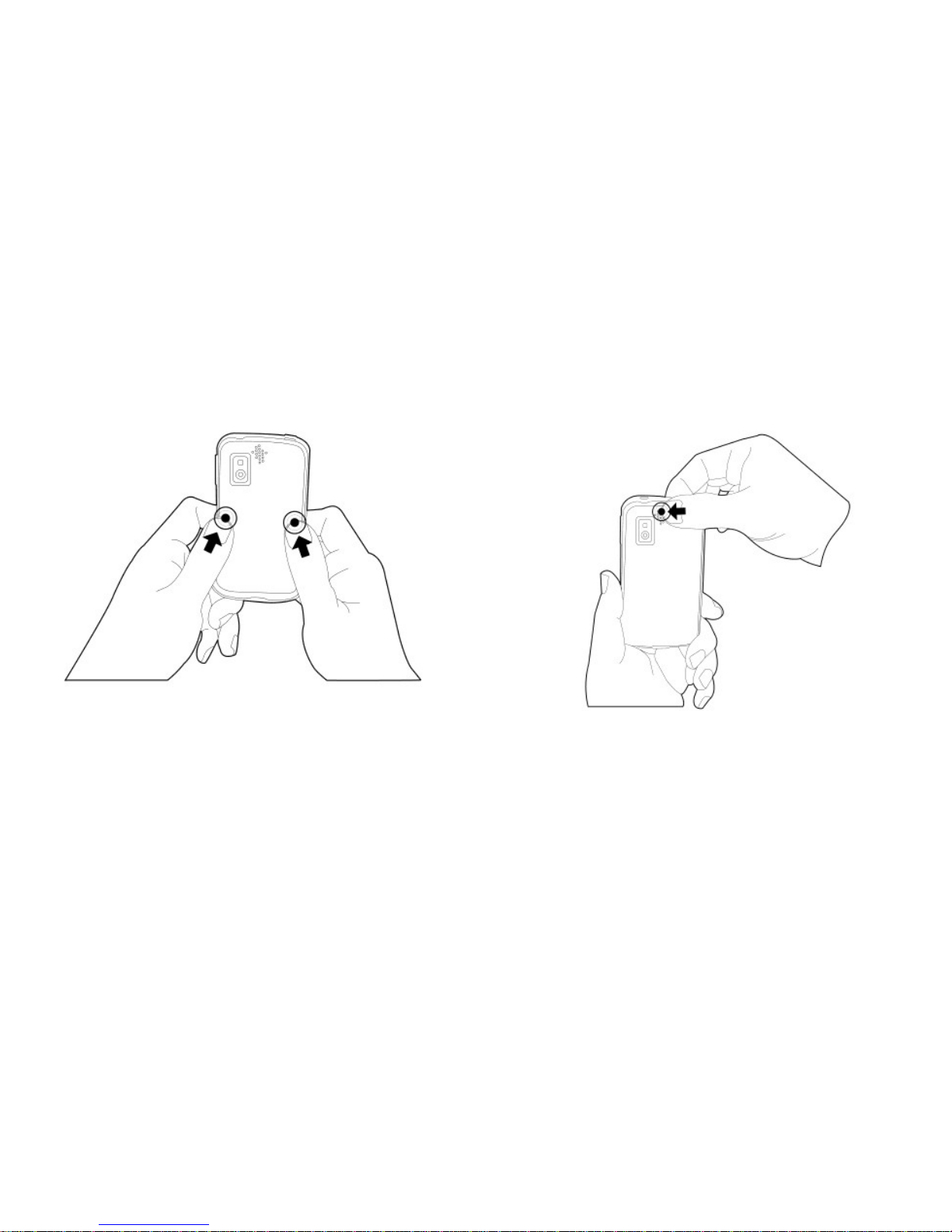

2. With your right and left thumbs, press the middle of the
back cover.
3. Then, press the top of the back cover until it clicks into
place.
G1310│
10
Memory card
You will need a microSD card for your photos, music,
videos, and other data.

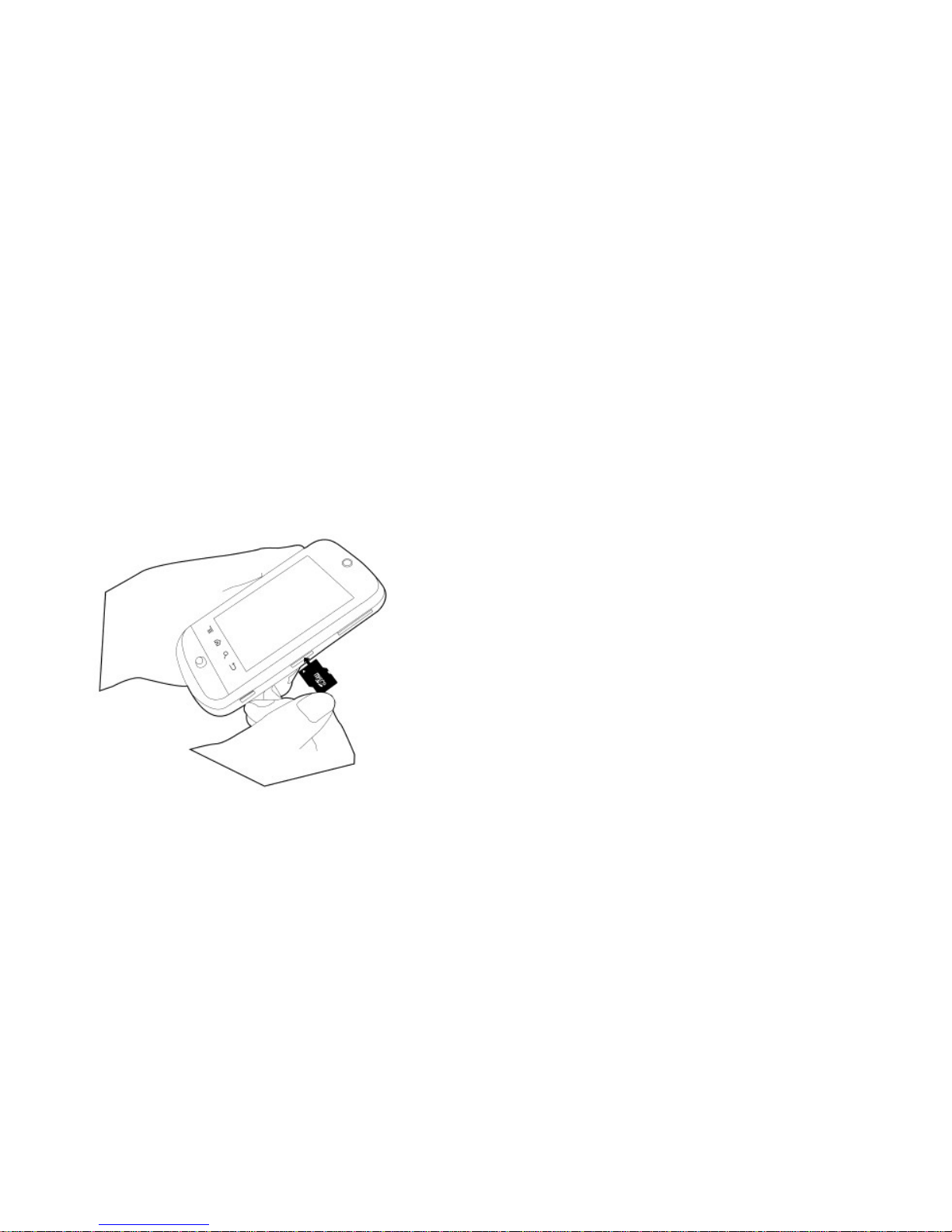

To install the memory card
1. Insert the memory card with the gold contacts facing
down.
2. Push the memory card until it clicks into place.
To remove the memory card
1. For safe removal, tap Application Drawer > Settings >
SD card & phone storage > Unmount SD card.
2. Push the memory card down to eject it from the slot.
Charging the Battery
When you take your phone out of the box for the first time,
the battery is only partially charged. Please charge your
phone until the battery meter becomes full.
1. Connect the USB cable to the AC adapter, and then,
connect to the device via the USB cable.
2. Plug the AC adapter to an outlet to start charging.
NOTE:
• The battery can also be charged when you connect
your phone to the computer.
• To ensure safety, do not remove the battery from
the phone while the AC adapter is connected or
while it is being charged.
