Gigabyte GN-BT06T Manuel utilisateur

Bluetooth Media Adapter

GN-BT06T

User’s Guide

February 2006 - Revision 1.0

Contents

Chapter 1 Getting To Know Your BT06T.........................2

Overview..........................................................................................2

Features...........................................................................................2

Package Contents ..........................................................................2

Rear Panel.......................................................................................3

Front Panel......................................................................................4

Side Panel .......................................................................................4

LEDs ................................................................................................5

Chapter 2 Connecting the BT06T ................................. 6

Transmitter Mode ...........................................................................6

Receiver Mode................................................................................7

Chapter 3 The GN-BT06T Utility ................................. 12

Installing the Utility ......................................................................12

Changing the PIN Code ...............................................................15

Appendix A Specifications............................................ 17

Appendix B Warranty..................................................... 18

GN-BT06T Bluetooth MediaAdapter

Chapter 1

Getting To Know Your BT06T

Overview

The GIGABYTE GN-BT06T Bluetooth Media Adapter is truly a unique Bluetooth

product, the only one of its kind. The GN-BT06T is the solution to eliminating

running cables from your computer to your home stereo system, wirelessly

streaming audio source of any format to your home stereo system. But there’s

more to the GN-BT06T mode switching turns it into a Bluetooth transmitter,

wirelessly streams audio source from the audio jack-in to your Bluetooth

headset. Pairing button enables the GN-BT06T to easily connect to Bluetooth

devices and also be connected to.

Features

 Extreme Solution for Bluetooth StereoAudio

 Support:

♦ Advanced Audio Distribution Profile, v1.0

♦ Audio/Video Remote Control Profile, v1.0

 Easy Operation

 Elaborate Amplifier and Speakers

 Support change PIN/Passkey by USB

 No driver

Package Contents

• GN-BT06T Bluetooth Media Adapter X 1

• Power adapter X 1

• USB Cable X 1

• RCA Cable X 1

• Line In/Out Cable X 1

• User Guide on CD-ROM X 1

If there are any missing or damaged parts, please contact your local distributor

or dealer immediately.

Using a power supply with a different voltage rating than the one included with

the BT06T may cause damage and void the warranty for this product.

GN-BT06T Bluetooth Media Adapter

    

Rear Panel

Figure 1: Adapter’s Rear Panel

Power Input The Power port is where you will connect the

power adapter.

Line Input Audio input from a computer or mp3 player.

Line Output Audio output to speakers or headphone.

RCA Audio Output Audio output to any speaker with RCA connector.

Mode Switch Set the device in Transmitter mode or Receiver

mode.

GN-BT06T Bluetooth MediaAdapter

Front Panel

Figure 2: Adapter’s Front Panel

Power Switch Power On/OFF the GN-BT06T.

Paring Button Pairing with Bluetooth enabled device.

Side Panel

Figure 3: Adapter’s Side Panel

USB Port You can change the pin key for GN-BT06T through the USB

port. The USB port can also work as power in port when

connecting to PC by using USB cable.

Antenna External Antenna 2dBi





 

GN-BT06T Bluetooth Media Adapter

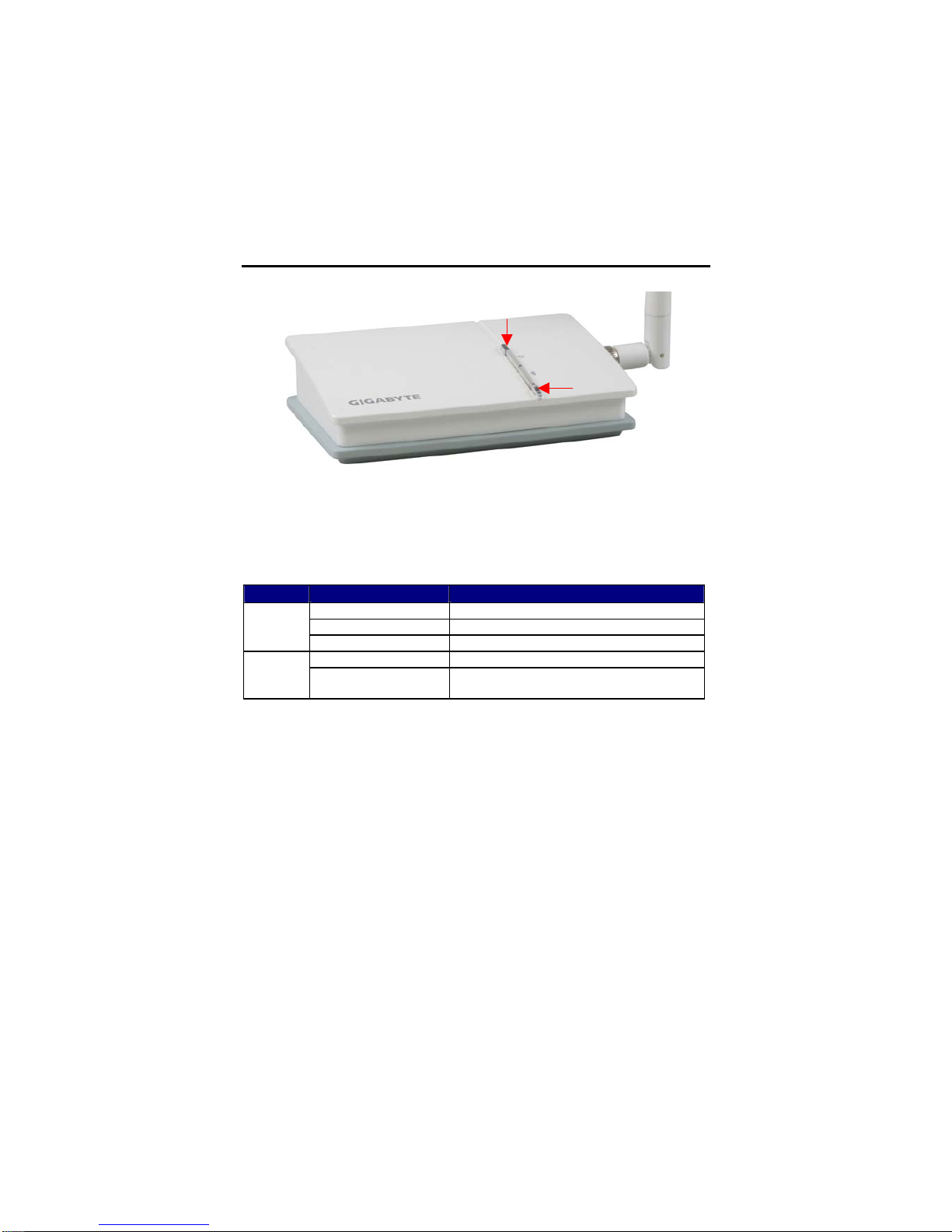

LEDs

Figure 4: LED Layout

The table below describes the LED indicators on the front panel of the

GN-BT06T.

LED STATUS DESCRIPTION

Green In Transmitter Mode.

Orange In Receiver Mode.

Power Off Power off.

Flashing Blue LED In streaming Mode

Status Blue & Green are

Flashing by turns In pairing mode.

GN-BT06T Bluetooth MediaAdapter

Chapter 2

Connecting the BT06T

The GIGABYTE GN-BT06T Bluetooth media adapter supports two operation

modes: Transmitter Mode and Receiver Mode. Let you can enjoy the music

from a Bluetooth Headphone or speaker and other AV devices.

Transmitter Mode

Figure 5: Transmitter Mode Diagram

Step 1 Plug the power adapter cord into the adapter’s power jack and then

plug the power adapter into a power outlet.

Step 2 Connect the mp3 player or other media devices to the Line Input port

of the GN-BT06T.

Step 3 Switch on the power. And set the GN-BT06T in Transmitter mode.

Now, the power led will be green light.

Step 4 Turn on your Bluetooth Headphones and make sure it in pairing

mode. Then, press the pairing button of the GN-BT06T for more than

one second. The GN-BT06T starts pairing with the Bluetooth

Headphones.

Step 5 The status LED will glitter in both blue and green colors and then

glitter in blue color only. Now, you can enjoy the music from the

headphones is directed through the Bluetooth Wireless Stereo Audio

system.

GN-BT06T Bluetooth Media Adapter

Receiver Mode

Figure 6: Receiver Mode Diagram

Step 1 Plug the power adapter cord into the adapter’s power jack and then

plug the power adapter into a power outlet.

Step 2 Connect the Line Output from the GN-BT06T to the speaker or other

Stereo Audio system.

Step 3 Switch on the power. And set the GN-BT06T in Receiver mode. Now,

the power led will be orange light.

Step 4 Connect the Bluetooth USB Dongle to your PC.

Step 5 Then, please open the Bluetooth Configuration screen. (Please refer

to your Bluetooth USB Dongle user’s guide for installing instruction.

Below Configuration Screen comes from IVT, you may have different

Bluetooth Dongle Configuration Screen in your Bluetooth Dongle

Package)

GN-BT06T Bluetooth MediaAdapter

Figure 7: Bluetooth Configuration – Main Window

Step 6 Press the pairing button of the GN-BT06T for more than one second.

Step 7 Searching the GN-BT06T by Bluetooth USB Dongle.

Figure 8: Bluetooth Configuration – Searching
