Giant TWIST FREEDOM Manuel utilisateur

Express

WELCOME, AND CONGRATULATIONS

On your purchase of a new Giant electric vehicle; the fun of pedaling your new Giant

Twist is only moments away.

Safety First.

You should completely read through this owner’s manual before you take your new Giant Twist

for a spin. By doing so, you will have a greater understanding for the general operation of the

various components found on your new electric vehicle. You will learn many of the components

you once recognized as part of a electric vehicle have changed significantly. Safe riding

instructions are equally important and shouldn’t be overlooked. So even if you are an experienced

cyclist, please take a moment to read through this manual before you ride.

Sharing the Joy of the Ride.

Nothing makes us happier than seeing people out riding bikes. For over thirty years Giant has

manufactured distributed quality bicycles for every type of terrain and rider imaginable. Giant

bicycles have allowed millions of cyclists just like you the opportunity to live happier, healthier

lives because of the joy, exercise, and sheer exhilaration riding a bicycle brings. And it’s this

commitment to sharing the joy of the ride that inspires us to continually offer the world’s most

innovative bicycles.

Approval and conformity

This Twist bicycle fulfils the requirements of the following EC directive:

Electro Magnetic Compatibility directive (89/336/EEC).

Learn More.

We encourage you to get connected and learn more about proper riding and safety through your

local Authorized Giant Retailer. The independent bike shop retailers are the best in the nation at

providing sales and service for any and all your bicycle related needs. It’s the only place you’ll

find knowledgeable assist you with everything you’ll need to get the most out of your bike and

your ride.

Enjoy.

1. What’s it called ….………………………………………….………….….........……….....4

A. General

B. Battery and charger

C. Handlebar and stem

2. Battery and charger operation..…….....……………………………………………..…..8

A. Battery charging

B. Refresh charging

C. Battery lock key

D. Range for BATTERY

E. Safety Precautions

3. How things work .......................................................................................................14

A. PAP ( Pedal activated power)

B. Power control switch

C. Left hand control

1. Assist mode select button

2. Regenerative button

3. Front light Button

4. Battery level indicator

5. Malfunction model

D. Carrier

4. Service & Maintenance………............…….…………………………………………….17

A. Recommendation for washing

B. Avoid leaving your bicycle out in the weather

5. Troubleshooting guide ….................……………………………………………………18

6. Guarantee …………................…………………………………………….………………19

NOTE:

This manual is not intended as a comprehensive use, service, repair or maintenance manual. Please see

your dealer for all service, repairs or maintenance.

CONTENTS

A. General

1. Handlebar 7. Rear Pannier Bag and Battery Cover

2. Fork 8. Battery Lock

3. Hub motor 9. Rear light

4. Chainwheel (torque sensor integrated) 10. Mudguard

5. Driver 11. Multi-speed Rear Hub/Sprocket

6. Carrier

1. What it is called

Twist Freedom

General

1. Handlebar 7. Battery sets

2. Fork 8. Battery Lock

3. Hub motor 9. Rear reflector

4. Chainwheel 10. Mudguard

5. Driver 11. Multi-speed Rear Hub/Sprocket

6. Carrier

Twist Express RS

B. Battery and Charger

C. Handlebar and Stem (Freedom CS)

1. Battery 5. Twist Freedom Charger

2. Grip 6. Charger plug

3. Battery Lock 7. Power source plug

4. Charging socket

1. Handlebar 4. Power control switch

2. Left hand control 5. Gear shifter

3. Handlebar stem 6. Gear indicator

Handlebar and Stem (Express RS)

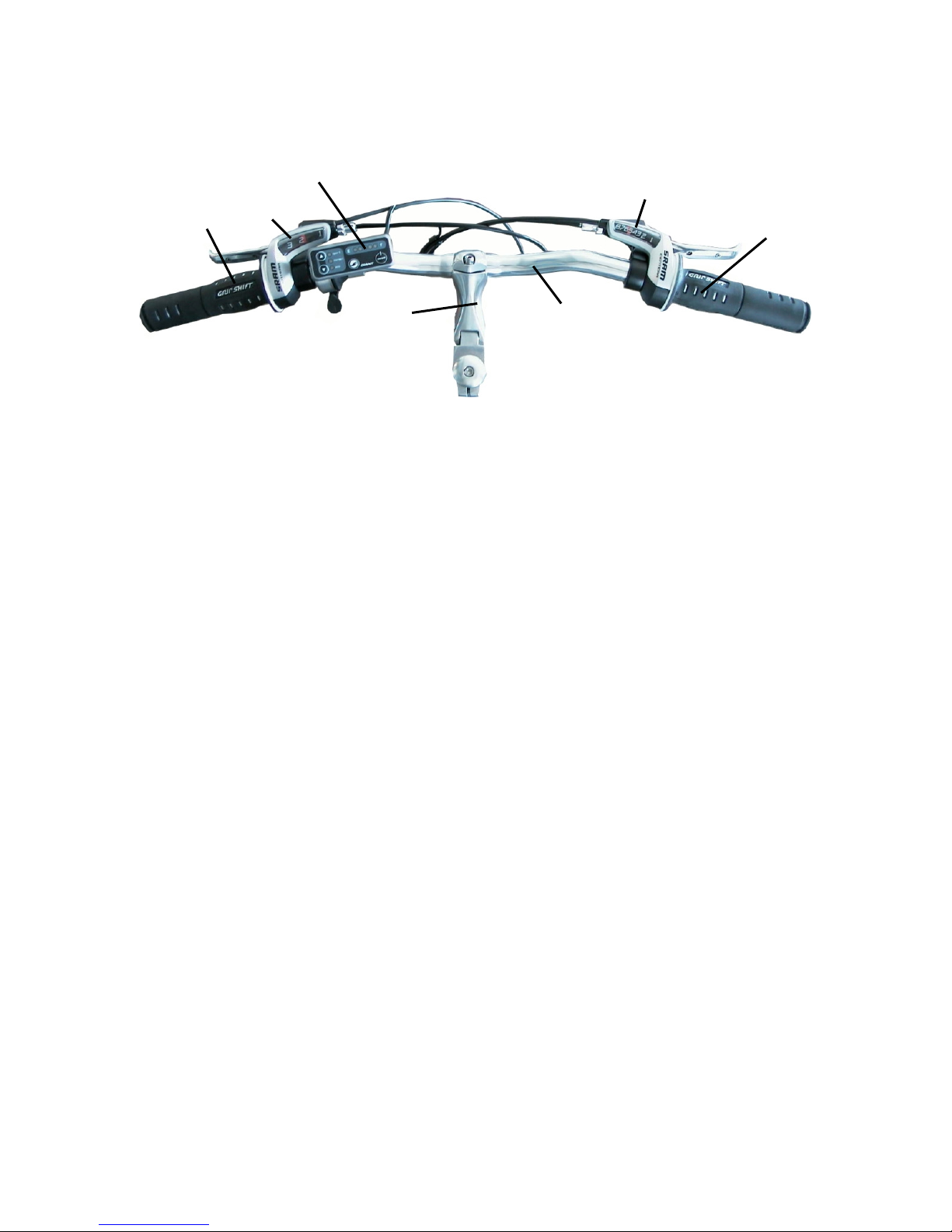

1. Handlebar 4. Gear shifter

2. Left hand control 5. Gear indicator

3. Handlebar stem

CAUTION: Battery must be fully charged before first ride, or if the bike has not been ridden for over a

month!!

Charge the battery in a room with a temperature between 0°C - 40°C (32-104 degree F)

If you notice a strange smell or smoke, stop the charging procedure immediately! Take your battery to

your authorized Giant retailer for service or replacement.

Do not recharge the battery for over 24 hours!! This could seriously reduce the life of the battery.

Charge the battery every 3 months when the battery is in storage!

A. Normal Charging

Step 1

Turn the Power Control Switch (on right side of the

handlebar) of Twist Freedom CS to the “off” position

and turn off the power (in the display) of Twist

Freedom CS Lite/Express RS

Step 2 Follow steps A and B to open the Rear Pannier bag

Step 3 Turn the battery lock key to the “OPEN” position and

at the same time push the top of the battery pack

outward to 45 degrees.

2. Battery and charger operation2. Battery and charger operation

Step 4 Lift the battery pack out of its holder.

Step 5 Place the battery in a horizontal position and then

insert the Twist Freedom charger plug into the

battery’s charging socket.

Step 6 Connect the power source plug into an electric

outlet (AC 110~240 volts) and make sure that all

poles are fully inserted into the socket.

Caution:

KEEP THE AREA WHERE THE BATTERY IS

CHARGED WELL VENTILATED AND FREE

FROM LITTER OR ANYTHING ALSE

COMBUSTIBLE TO AVOID FIRE FROM SPARKS

OR OVERHEATING.

Step 7 Confirm that LED lamp of the charger lights up red.

The light should remain constant and not flash.

When charging is finished (which could take

approximately 6hours) the light will go out. The

battery is fully charged.

Caution!

DO NOT CHARGE BATTERY FOR MORE THAN

24 HOURS!!

Step 8 Disconnect the battery from the charger, after the charge is completed. Unplug the charger’s

power source plug from the electrical outlet.

Step 9

Mount the battery into its holder.

Step A

Slide the battery pack into its holder at a 45-degree

angle. Make sure the “GIANT” logo on the battery is

on the outside of the bicycle.

Step B

Replace the grip. Gently pivot the battery pack to an

upright position until the battery pack snaps into

place. If the battery pack does not pivot easily,

remove it and reposition it in the holder and try

again.

Step 10 Make sure that the battery is secured in the “LOCK”

position, so that it can not move from side to side.
