Ghost OMEN Manuel utilisateur
WIRELESS MACHINE
CONTENTS
MACHINE BREAKDOWN 3
TECHNICAL DATA 4
RCA CONNECTION 5
MAIN BODY 6
GRIP DETAILS 7
OMEN BUTTON CONTROLS 8
MOTION CONTROL 9
BATTERY CHARGER 10
MAINTENANCE & WARRANTY 11
MACHINE BREAKDOWN
3
Traditional RCA
back connection.
Wireless connection
powered by a
rechargable Li-ion
battery.
Tilt control enables
the user to change
voltage seemlessly.
Updated direct drive motor
encasing a brand new reinforced
oil bearing for seemless rotations.
A ‘middle of the road’ cam stroke
of 3.5mm, suitable for all tattoo
styles and techniques.
Smooth contact
plate for quick
connection changes.
Autoclavable 32-36mm
ergonomic grip. Shape and size
chosen by artists from the Omen’s
predecessing machine.
Made from 6063 graded
aluminium alloy.
Inside ratchet mechanism design
allows for adjustable needle
depth.
TECHNICAL DATA
4
Operang Voltage:
Stroke:
Drive:
Dimensions:
Weight (with baery):
Weight (without baery):
Weight (with RCA back):
5 - 12 V
3.5 mm
Direct Drive
32mm Dia, 135mm H
207.5g
180g
189g
PACKAGING SYMBOLS
Liming the use of disposable baeries &
the greenhouse gases produced from
manufacturing, Li-ion baeries can be
reused to help the environment.
Recyclable packaging.
The WEEE Symbol means that electrical
and electronic items should not be
disposed of in your dustbin or wheelie
bin, but should be recycled.
UKAS is recognised by government, to assess
against internaonally agreed standards,
organisaons that provide cerficaon, tesng,
inspecon and calibraon services.
The CE symbol must be affixed to many products
before they can be sold on the European market.
The Ghost OMEN can be controlled via
moon/lt controls.
USB Connecon required for use of
the OMEN Baery Charger.
Charging speed is faster compared to
other generic chargers.
Charger Connecon: USB Type A
RCA CONNECTION
5
The Ghost OMEN Wireless Machine has a detachable back,
meaning the arst can switch between the RCA connecon
back or the wireless back whenever they need to.
Somemes, tradion just can’t be beaten.
MAIN BODY
6
The main body of the Ghost OMEN is made up of 2 parts, with
the interchangable RCA connecon or wireless back and the
core. The core contains an updated direct drive motor &
reinforced oil bearing combinaon made specifically for the
OMEN. A smooth connecon pad allows the arst to change
from wireless to wired seemlessly.
GRIP DETAILS
7
The inside of the grip has been designed with a needle depth
adjustment ratchet, for accuracy when changing needle depth.
The 6063 graded aluminium alloy grip is completely
autoclavable.*
* For recommended autoclave sengs and warranty cover please refer to page 11.
36mm
32mm
The Ghost OMEN Grip has
kept the favoured shape of its
predecessor, only growing from
25mm to 32mm for a more
hand-filling feel.

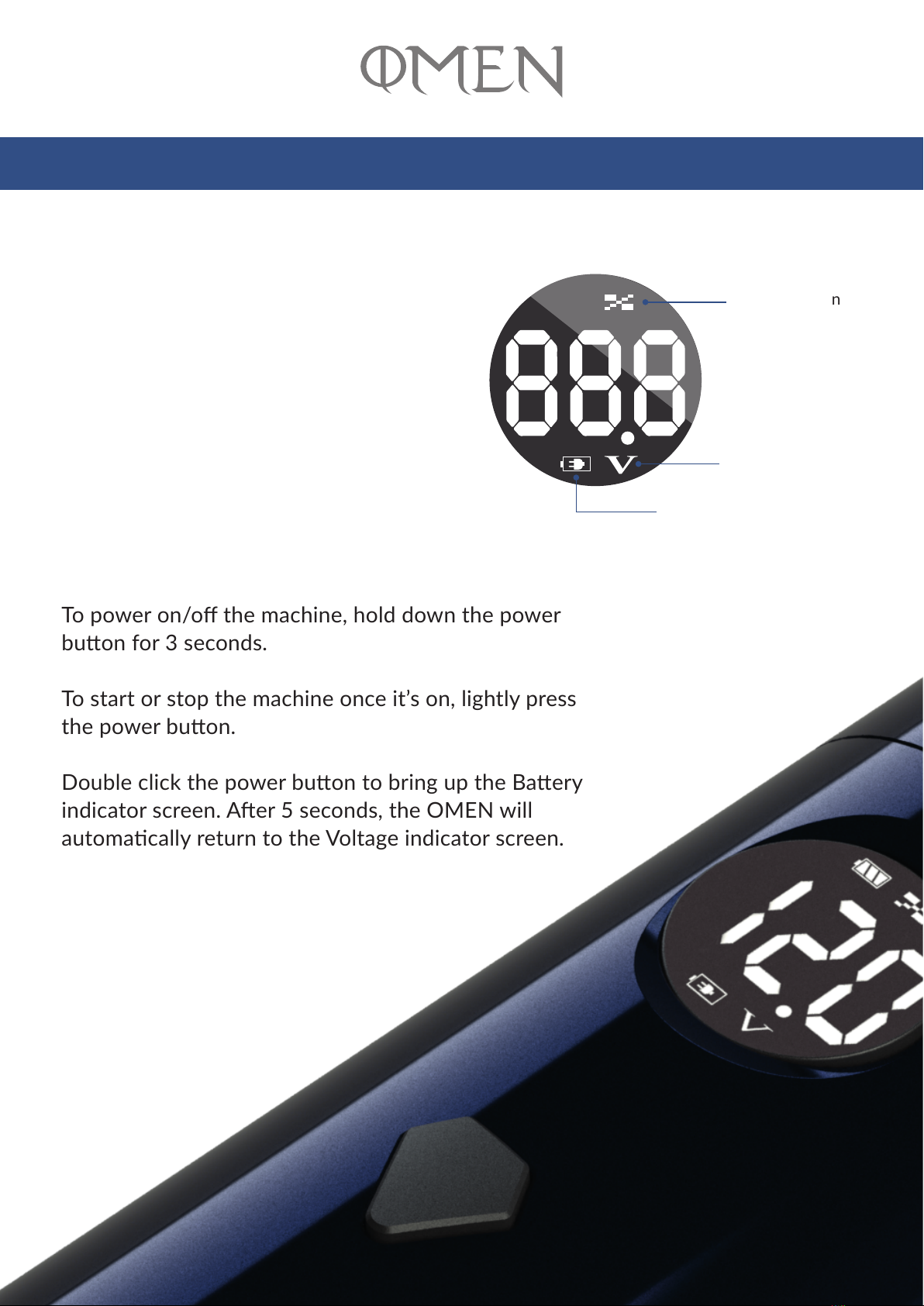

BUTTON CONTROLS
8
LED Display
Screen 1 displays the current
machine voltage, which is shown
in 0.2V increments.
Screen 2 displays the current
charge percentage for the
rechargable Li-ion baery.
Baery Screen
Indicator
Voltage Screen
Indicator
Appears when
baery below 20%
Buon Controls
To power on/off the machine, hold down the power
buon for 3 seconds.
To start or stop the machine once it’s on, lightly press
the power buon.
Double click the power buon to bring up the Baery
indicator screen. Aer 5 seconds, the OMEN will
automacally return to the Voltage indicator screen.
MOTION CONTROL
9
Decrease Voltage Increase Voltage
Moon Controls
The voltage of the Ghost OMEN can be increased and decreased by the use of its
one-of-a-kind moon control.
To use the moon controls the machine must be running.
Whilst the machine is running, hold down the power buon and lt the OMEN to
the le or right depending on whether voltage needs to be increased or
decreased.
To decrease the voltage, lt the machine to the le. To increase the voltage, lt
the machine to the right.
The OMEN’s voltage fluctuates in 0.2 volt increments, between 5 - 12 volts.
BATTERY CHARGER
10
Created for the Ghost OMEN Wireless Pen Machine,
this charger is strictly for the use of charging the
OMEN Li-ion rechargable baeries.
With its speed charging trait, the OMEN Baery
Charger will fully charge the baeries 30% quicker
compared to standard baery chargers.
The USB-A charging cable already aached
to the base of the charger makes it
convenient for in studio use and
portability purposes.
Whilst charging, the coloured LED on the front of the
Baery Charger will indicate whether the baery is either
partly or fully charged.
If the LED is red in colour, the baery currently charging is
partly charged,
If the LED is green in colour, the baery currently charging
is fully charged and ready for use.
The OMEN Rechargable Li-ion
Baeries that are included with the
OMEN are strictly only for use with
the Ghost OMEN Pen Machine.
12000 mAh
Minimum 5 hours working me.
3 hours charging me.
