GFI System ORCA DELAY Manuel utilisateur

User Manual

ORCA

DELAY

Table of Contents

1 Inputs Page 1

2 Outputs 1

3 Expression Input 1

4 Tap-Tempo Input 2

5 Knobs and Buttons 3

8 Options 6

9 Global Settings 6

10 Expression / Ramping Setup 7

11 Factory Reset 8

6 Footswitches and LEDs 4

7 Saving Presets 5

USER M A NUAL

All manuals and user guides at all-guides.com

User Manual

ORCA

DELAY

USE R M A NUAL

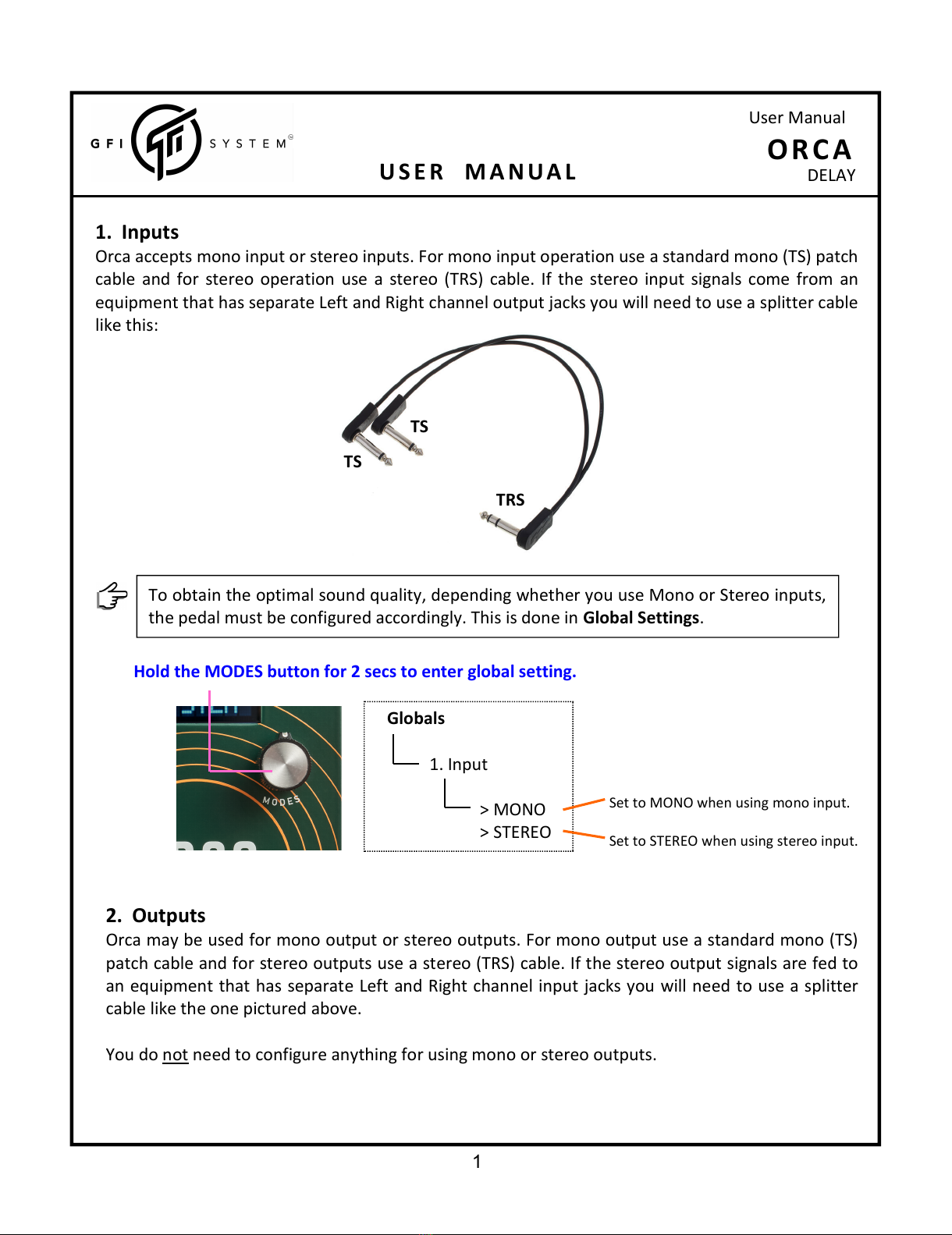

1. Inputs

Orca accepts mono input or stereo inputs. For mono input operation use a standard mono (TS) patch

cable and for stereo operation use a stereo (TRS) cable. If the stereo input signals come from an

equipment that has separate Left and Right channel output jacks you will need to use a splitter cable

like this:

TRS

To obtain the optimal sound quality, depending whether you use Mono or Stereo inputs,

the pedal must be configured accordingly. This is done in Global Settings.

Hold the MODES button for 2 secs to enter global setting.

Globals

1. Input

> MONO

> STEREO

2. Outputs

Orca may be used for mono output or stereo outputs. For mono output use a standard mono (TS)

patch cable and for stereo outputs use a stereo (TRS) cable. If the stereo output signals are fed to

an equipment that has separate Left and Right channel input jacks you will need to use a splitter

cable like the one pictured above.

You do not need to configure anything for using mono or stereo outputs.

Set to MONO when using mono input.

Set to STEREO when using stereo input.

All manuals and user guides at all-guides.com

User Manual

ORCA

DELAY

USE R M A NUAL

OUTPUT

EXPRESSION

MONO IN

STEREO IN

TAP TEMPO

< use TRS cable >

< use TS cable >

MONO OUT

STEREO OUT

< use TRS cable >

< use TS cable >

3. Expression Input

An expression pedal may be used to control any one of the primary parameters, alternatively a tap

tempo pedal may be used to remotely send tap tempo signal to the pedal.

INPUT

Expression Pedal requirement.

Some expression pedal on the market has its

wiper connected to the Ring instead, this will

not work with Orca. Make sure you get the

suitable type : Wiper-to-Tip.

Wiper resistance value should be 10 to 20

KOhm.

4. Tap Tempo Input

A tap-tempo pedal may be connected to the EXP/TAP input to remotely tap in the tempo. The

switch contact must be ‘Normally-Opened’ (NO) type.

TS cable & plug

TAP

PEDAL

wiper

Tip

Ring Resistance value

10K Ohm

25K Ohm

Auto detection

Upon power up Orca will automatically detect the presence (or absence) of an expression

pedal or a tap-tempo pedal. Therefore, after plugging/unplugging the external gear you need

to reboot Orca to let it detect the changes.

All manuals and user guides at all-guides.com

User Manual

Every knob is also a button. The following operations can be done on each knob :

TURN PUSH or TAP HOLD TWIST ( hold and turn )

Here’s a summary of what each knob and each switch does, this is just a quick reference, more detailed

explanation will be given in the next chapter.

 Turn - adjust primary parameters.

 Push - toggle expression mapping for the parameter.

 Hold - enter expression heel/toe value setup.

 Twist - Adjust secondary parameter (see table below).

 Turn - select modes.

 Push - Enter OPTIONS menu.

 Hold - enter GLOBALS setting menu.

 Twist - Adjust secondary parameter (see table below).

ORCA

DELAY

KNOB 1, 2, and 3

KNOB 4

5. Knobs and Buttons

Primary Parameters Secondary Parameters

knob 1 knob 2 knob 3 knob 1 knob 2 knob 3 knob 4

DIGITAL (1 sec) Time Repeats Level Mod Speed Mod Depth Tone Ping-Pong

TAPE (1 sec) Time Repeats Level Wow Flutter Loss Ping-Pong

DIFFUSE (1 sec) Time Repeats Level Verb Decay Tone Ping-Pong

AMBIENTAL (840 ms) Time Repeats Level Mod Speed Mod Depth Glitter Pitch

Modes

All manuals and user guides at all-guides.com

ON/OFF LED PRESET LED

Orange: Preset A, Green : Preset B

User Manual

TEMPO LED

Momentary Operation

< when bypassed > ~ Holding the Engage/Ramp button down for at least 1/2 sec triggers mo-

mentary operation, i.e pedal will revert to bypassed state when footswitch is released.

Ramping

< when engaged > ~ Holding the button for at least 1/2 sec triggers ramping operation : a

mapped parameters is ramped from its initial value to pre-configured final value, and stays at

that final value for as long as the footswitch is held down. When switch is released the parame-

ter gradually returns to its initial value.

A/B - TAP switch Priority.

Priority for the AB/TAP footswitch can be reversed in Global setting (see page 6 for details).

A/B - TAP SWITCH

TAP

-> bypass / engage

HOLD (when bypassed) for > 500 ms

-> engages momentarily

HOLD (when engaged) for > 500 ms

-> start parameter ramping.

TAP (at least 2x)

-> set a new tempo.

HOLD for 1 second

-> toggle between preset A and

preset B*.

ORCA

DELAY

ENGAGE / RAMP SWITCH

6. Footswitches and LEDs

All manuals and user guides at all-guides.com

User Manual

Save to:

A <-> B

Press and Hold both buttons

ORCA

DELAY

Tap the left button to save to preset A, or

Tap the right button to save to preset B.

~ release the hold when the screen reads:

If, after entering the Preset-Save scene, you change your mind and would like to exit

without saving any changes, you can do so by :

 Holding both buttons again for 2 seconds.

 Doing nothing for 5 seconds, you will automatically return to the main scene.

8. Options

7. Saving Presets

Tap/Push the MODES button to enter Options menu.

Use the MODES knob/button to navigate around the menu.

Options

1. Sub-Div 1/4

3/4

2/3

1/8

1/3

2. Ms/Bpm MS

BPM

- options settings are specified on per/preset basis.

All manuals and user guides at all-guides.com

User Manual

9. Global Setting

Press and hold the MODES button for 2 secs to enter Globals menu.

Use the MODES knob/button to navigate around the menu.

Globals

1. Input Mono

Stereo

2. SumMono No

Yes

3. Tempo Preset

Global

4. Priority A/B

Tap

: normal operation.

: output signals are summed.

: use tempo as saved in preset.

: use global tempo.

: Changing preset is priority.

: Tap-tempo is priority.

: input signal is mono

: input signal is stereo.

The Priority setting determines how the A/B-Tap button behaves.

Priority set to A/B

 Tapping the A/B-Tap button toggles between preset A and preset B.

 Holding the A.B-Tap button for 1 second enters tap-tempo mode where the button

functions as tap-tempo button. The button reverts back its normal function as preset-

change button after 2 seconds of non-activity on the button.

Priority set to Tap-Tempo (default)

 Tapping the A/B-Tap button sets a new tempo.

 Holding the A.B-Tap button for 1 second toggles between preset A and preset B.

ORCA

DELAY

All manuals and user guides at all-guides.com

User Manual

ORCA

DELAY

10. Expression / Ramping Setup

Setting up the Heel and Toe values for expression pedal (and ramping function).

Suppose you want to map a parameter knob to the expression pedal or the ramping function :

 Turn the knob until you find the desired Heel value.

 Hold down the knob. After 2 seconds the screen will show the Heel / Toe information, keep

holding the knob down.

 Now turn the knob (while still holding it down) to find the desired Toe value. When you find

it, release the knob.

The parameter is now mapped to the expression pedal and ramping function. Rocking the ex-

pression pedal will sweep the mapped parameter to any value within the range specified by Heel

and Toe values.

The Toe value set using the above procedure will also be the “end value” for the Ramping function.

Heel position Toe position

Changes to the Heel and Toe values are automatically saved into the current preset.

Heel 20

Toe 80

Up to 3 primary parameters may be mapped to the expression pedal / ramping function.

Push the knob’s button to toggle the parameter mapping.

Exp Pedl

mapped

Exp Pedl

unmapped

PUSH once

All manuals and user guides at all-guides.com

Specifications :

 Input impedance : 1 MOhm.

 Output impedance : 1K Ohm.

 DAC / ADC resolution : 24 bits.

 Current consumption : ~110 mA.

 Weight : 0.6 Kg (1.6 lbs).

 Dimension : 12 (L) x 7.2 (W) x 5.5 (H) cm

 Power source : 9VDC (negative center).

Key Features :

 2 presets.

 4 select delay algorithms.

 Mono / Stereo input and output.

 Expression pedal and tap-tempo input.

 Momentary action supported.

Visit the product page at our website for more demo videos, sound clips, FAQs, and updates.

This product is designed and manufactured by :

User Manual

Email : info@gfisystem.com (inquiry)

gfisys@gmail.com (support)

Web : www.gfisystem.com

GFI System

ORCA

DELAY

11. Factory Reset

Turn the MODES knob to select No / Yes, then push the MODES button

to confirm - factory reset will be performed and the pedal will start as

normal.

Press and hold the MODES button while powering up the pedal.

Keep holding until the screen reads: Reset?

NO YES
