Getac UX10

Self-Maintenance Manual

2 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Content

Battery Pack (P/N 541314110007)

Handle (P/N 340141100008)

IO Door (P/N 340141100022)

DC Door (P/N 344141100011)

SSD DOOR (P/N 340141100017)

SSD (P/N 523445961008)

KBD Right Cap (P/N 344141100030)

KBD Left Cap (P/N 344141100031)

Cap Screw(P/N 371103010070)

3 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Battery Pack (P/N 541314110007)

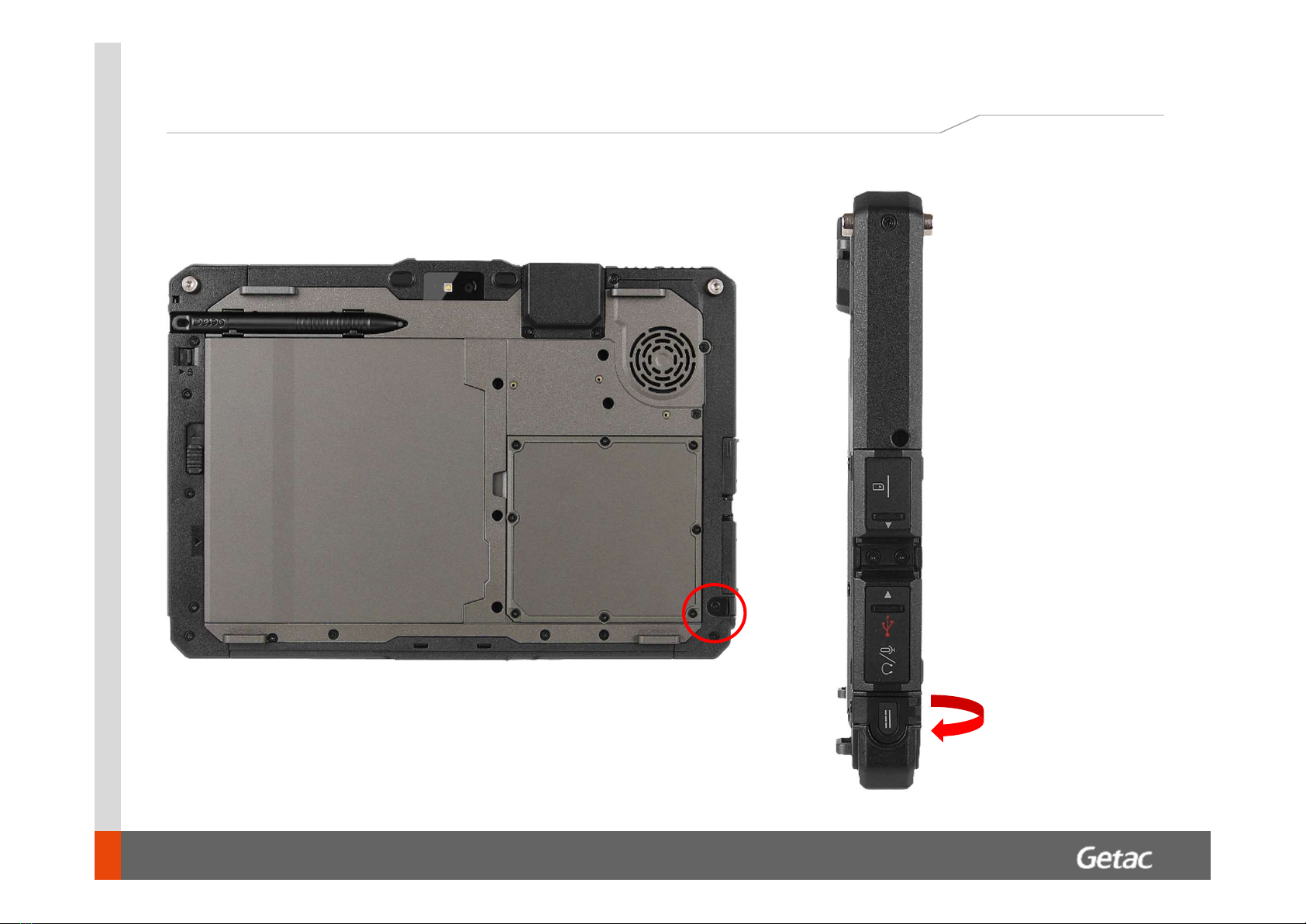

Slide the security lock of the battery release latch to the unlocked position (1). Slide the battery release

latch upwards (2). The battery pack will slightly pop up. Remove the battery pack from its compartment

(3).

4 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Using TORX® T15 key wrench, remove the four screws (371102610027), then remove the two D-rings.

Handle (P/N 340141100008)

5 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Remove the two screws (370102100421) lock the USB door, then remove the USB door.

IO Door (P/N 340141100022)

6 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Remove the one screws (370102100421) lock the DC door, then remove the DC door.

DC Door (P/N 344141100011)

7 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Remove the eight screws (370102010421) lock the SSD door, then remove the SSD door

SSD DOOR (P/N 340141100017)

8 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Remove the one screw (370102010421) lock the SSD module, remove the THERMAL-PAD. Pull out

the SSD module from the connector.

SSD (P/N 523445961008)

9 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Fasten the two screws (371103010070) to lock the KBD cap

The screw torque force value: 7 ~ 7.5kg/f.cm

KBD Cap (P/N 344141100030---Right, P/N 344141100031---Left)

Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.
