GeoVision GV-Mini Manuel utilisateur

GV-Mini System

UseUser’s Manual

MI-UM-A

Under the copyright laws, this manual may notbe copied, in whole or in part, without the

written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is accurate.

GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no

responsibility for errors or omissions. No liability is assumed for incidental or consequential

damages arising from the use of the information or products contained herein. Features and

specifications are subject to change without notice.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Tel: +886-2-8797-8377

Fax: +886-2-8797-8335

http://www.geovision.com.tw

Trademarks used in this manual: GeoVision, the GeoVision logo and GV series products are

trademarks of GeoVision, Inc.

March 2019

Welcome to the GV-Mini System User’s Manual.

The Manual provides an overview of the GV-Mini System and its accessories. It also

includes the instructions to guide you through the installation and use of the GV-Mini

System:

Chapter 1, Introduction

Identifies the accessories and options of the GV-Mini System.

Chapter 2, Overview

Identifies the components of the GV-Mini System.

Chapter 3, Getting Started

Provides step-by-step instructions on setting up the GV-Mini System.

Chapter 4, Troubleshooting

Suggests courses of action if the GV-Mini System doesn’t seem to be working

properly.

User’s Manual for GV-Mini System

Contents

Safety Instructions .................................................................................................. iii

Chapter 1 Introduction........................................................................................... 1

1.1 Packing List .................................................................................................1

1.2 Options ........................................................................................................1

1.3 Supported Software .....................................................................................1

Chapter 2 Overview ............................................................................................... 2

2.1 Front View....................................................................................................2

2.2 Rear View ....................................................................................................3

Chapter 3 Getting Started...................................................................................... 4

3.1 Basic Installation..........................................................................................4

3.2 Windows Setup Installation..........................................................................5

3.3 System Restoration......................................................................................7

3.4 Updating GV-Mini System............................................................................8

3.5 Installation of 2.5-inch HDD/SSD.................................................................9

Chapter 4 Troubleshooting ..................................................................................11

Appendix ……………………………………………………………………………….. 13

A. Frame Rate Limit for GV-NVR / VMS.............................................................13

B. Total Frame Rate and Max. No. of Channels Supported for GV-NVR / VMS .14

iii

Safety Instructions

Observe these safety instructions to help ensure against injury to yourself and damage

to the product.

Read all safety and installation instructions before you operate the product.

Do not operate the product in high humidity areas or expose it to water or moisture.

Do not put the product in an unstable, a slanting or vibrated place.

Do not block any ventilation opening.

Do not install the product near any heat sources such as radiator, heat register or

other apparatus that produce heat.

Operate the product using only the type of power source indicated on the marking label.

1. Do not defeat the safety purpose of the grounding-type plug. A grounding plug has

two blades and a third grounding prong. The third prong is provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

Do not overload wall outlets or extension cords, as this may cause fire or electric

shock.

Do not use the product when abnormality occurs, such as emitting smoke from the

product, smelling burning, being damaged by drop, invasion of foreign objects inside the

product, etc. Be always sure to remove the AC adaptor at once and contact your dealer.

Do not use accessories or attachments not recommended by the manufacturer, as they

may cause hazards and void the warranty.

Do not attempt to service the product yourself, as removing the casing may expose

you to dangerous voltage and void the warranty.

Introduction

Chapter 1 Introduction

1.1 Packing List

The GV-Mini System package includes the following items. If any of the items are missing or

damaged, contact your dealer to arrange a replacement.

Important: Please keep the original carton and all packing materials for future shipping need.

1. GV-Mini System

2. 19V, 120W Power Adapter

3. Power Cord (by region)

4. Download Guide

1.2 Options

Optional devices can expand your system’s capabilities and versatility.

VESA Bracket The bracket allows for mounting the unit on the rear of a computer monitor.

1.3 Supported Software

1. GV-NVR

2. GV-VMS

3. GV-ASManager

4. GV-FR Server (coming)

5. GV-Smart Retail (coming)

Chapter 2 Overview

2.1 Front View

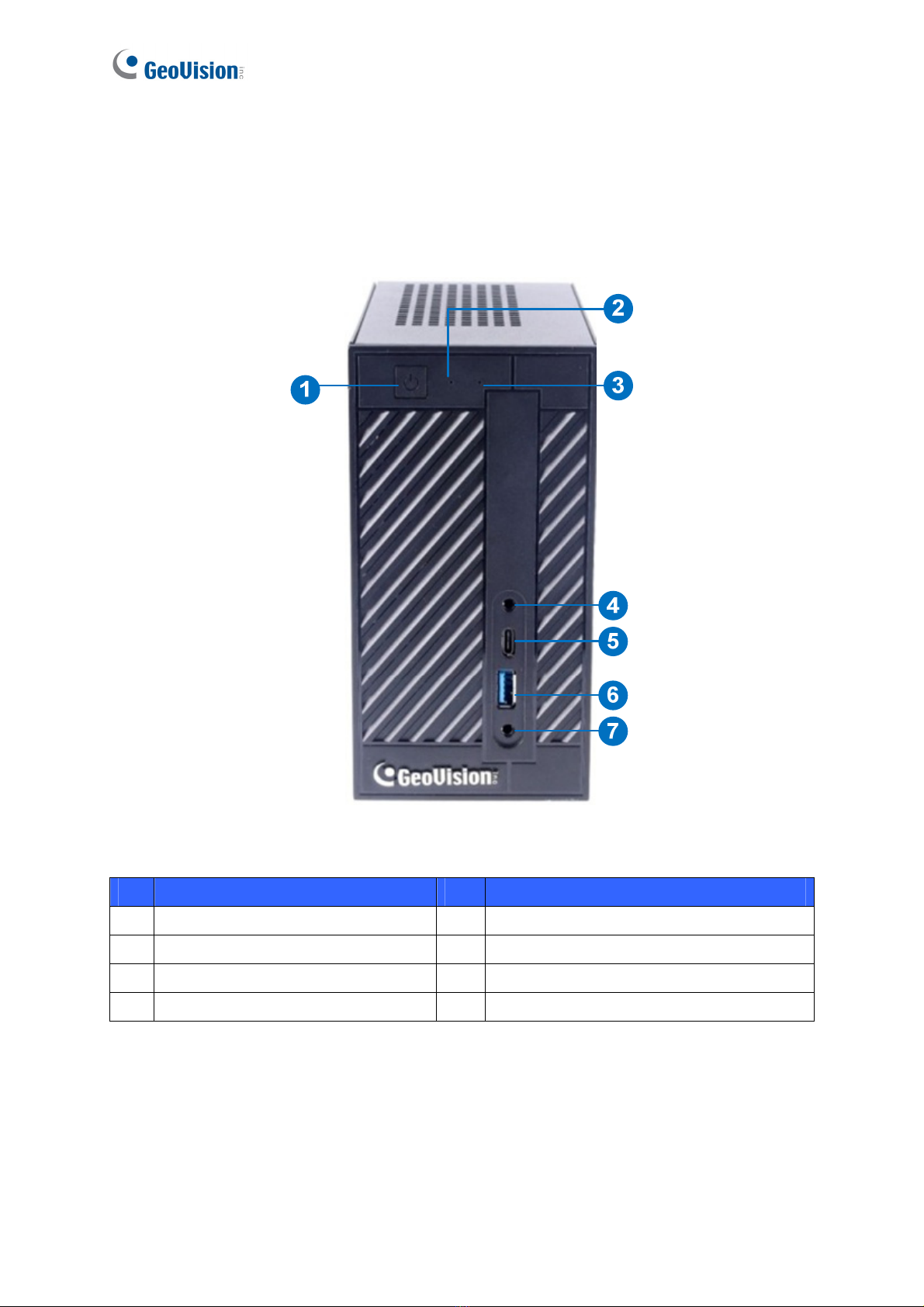

Figure 2-1

No. Name No. Name

1 Power Button 5 USB 3.1 Gen 1 (Type-C)

2 Power LED 6 USB 3.1 Gen 1 (Type-A)

3 HDD LED 7 Headphone/Headset

4 MIC-In

Overview

2.2 Rear View

Figure 2-2

No. Name No. Name

1. DC Jack (for 19V 120W Power Adapter) 6. COM port

2. DisplayPort 7. Gigabit LAN port

3. HDMI Port 8. Key Lock (Anti-tampering)

4. VGA Port 9. Kensington Lock (Anti-theft)

5. USB 3.1 Gen 1 (Type-A) 10 USB 2.0 Port

Chapter 3 Getting Started

3.1 Basic Installation

This section describes all the equipments required to program and operate the GV-Mini

System.

Figure 3-1

1. Using the supplied power cord, connect one end to the AC input and the other end to the

power outlet.

2. Using the DisplayPort / VGA / HDMI cable supplied by the monitor manufacturer, connect

up to 2 monitors for simultaneous displays.

3. Connect the mouse and keyboard to the USB ports.

4. Using the RJ-45 cable, connect one end to the Ethernet port and the other end to Network.

Once the above hardware is properly connected, press the Power button on the front panel to

start the system. It takes about 1 minute for startup.

Getting Started

3.2 Windows Setup Installation

The Windows setup is preparing your computer for first use.

1. After the Windows starts, this setup screen appears. Select your language and click Next

to continue.

Figure 3-2

2. Select your regional settings and time zone and click Next to continue.

Figure 3-3
