GeoVision GV Series Manuel utilisateur

GV-Surround Video IP Camera

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use. SV48000-QG-A

Quick Start Guide

Under the copyright laws, this manual may not be copied, in whole or in part,

without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is

accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind

and assumes no responsibility for errors or omissions. No liability is assumed

for incidental or consequential damages arising from the use of the information

or products contained herein. Features and specifications are subject to

change without notice.

Note: No memory card slot or local storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Tel: +886-2-8797-8377

Fax: +886-2-8797-8335

http://www.geovision.com.tw

Trademarks used in this manual: GeoVision, the GeoVision logo and GV

series products are trademarks of GeoVision, Inc. Windows is the registered

trademark of Microsoft Corporation.

November 2019

Contents

Note for Connecting to GV-VMS ..........................................................iii

Note for Recording................................................................................iii

Note for Installing Camera....................................................................iv

Note for Silica Gel Bags........................................................................iv

Optional Accessories.............................................................................v

1. Introduction......................................................................................1

1.1 Packing List ............................................................................................................1

1.2 Overview.................................................................................................................2

2. Installation........................................................................................3

3. Connecting the Camera ..................................................................6

4. Accessing GV-SV48000...................................................................8

4.1 Web Browser ..........................................................................................................8

4.2 Checking the Dynamic IP Address .........................................................................9

4.3 Configuring the IP Address...................................................................................10

5. The Integrated Web Interface .......................................................12

5.1 Expansive Mode ...................................................................................................12

5.2 Camera Settings...................................................................................................13

6. Upgrading System Firmware ........................................................14

7. Restoring to Factory Default ........................................................15

7.1 Using the Web Interface.......................................................................................15

7.2 Directly on the Camera.........................................................................................15

Note for Connecting to GV-VMS

The GV-SV48000 is designed to work with GV-VMS, a video management system. Note the

following when the camera is connected to GV-VMS:

1. By default, the images are recorded to the memory card inserted in GV-SV48000.

2. Once the camera is connected to the GV-VMS, the resolution set on the GV-VMS will

override the resolution set on the camera’s Web interface. You can only change the

resolution settings through the Web interface when the connection to the GV-VMS is

interrupted.

Note for Recording

1. By default, the images are recorded to the memory cards inserted in the GV-SV48000.

Make sure the Record to the local storage always as a secondary backup option is

enabled in Monitoring Settings. If this option is disabled, the camera will stop recording

to the memory card while the live view is accessed through Web browsers or other

applications.

2. Mind the following when using a memory card for recording:

•Recorded data on the memory card can be damaged or lost if the data are accessed

while the camera is under physical shock, power interruption, memory card

detachment or when the memory card reaches the end of its lifespan. No guarantee is

provided for such causes.

•The stored data can be lost if the memory card is not accessed for a long period of

time. Back up your data periodically if you seldom access the memory card.

•Memory cards are expendable and their durability varies according to the conditions

of the installed site and how they are used. Back up your data regularly and replace

the memory card annually.

•To avoid power outage, it is highly recommended to apply a battery backup (UPS).

•Replace the memory card when its read/write speed is lower than 6 MB/s or when the

memory card is frequently undetected by the camera.

•It is recommended to use Micro SD card of MLC NAND flash, Class 10 for optimal

performance.

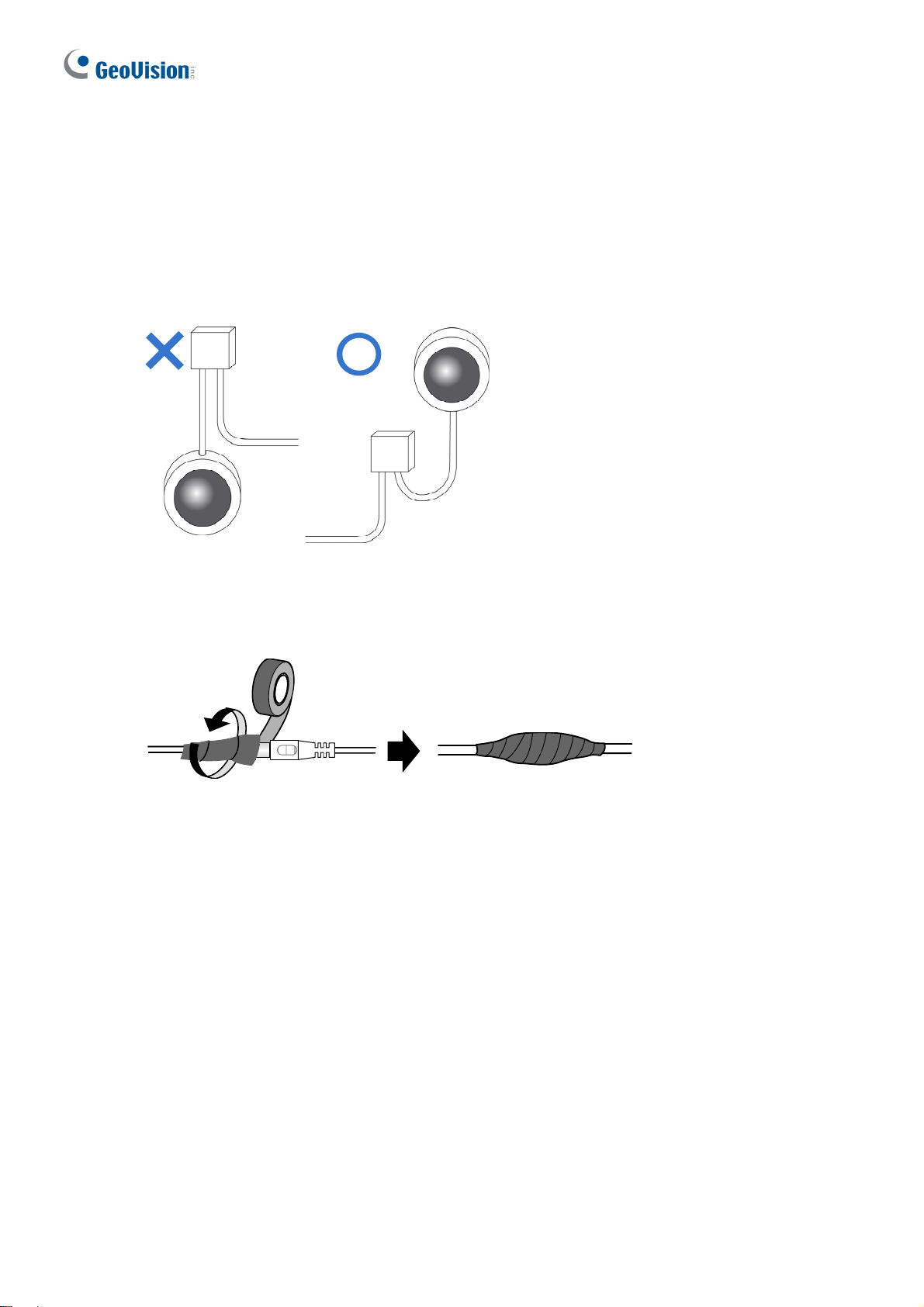

Note for Installing Camera

When installing GV-SV48000, be sure that:

1. The camera is set up above the junction box to prevent water from entering the camera

along the cables.

2. Any PoE, power, audio and I/O cables are waterproofed using waterproof silicon rubber

or the like.

3. The screws are tightened and the cover is in place after opening the camera cover.

Note for Silica Gel Bags

1. The silica gel bag loses its effectiveness when the dry camera is opened. To prevent the

lens from fogging up, use the supplied adhesive tape and replace the silica gel bag every

time you open the camera, and conceal the gel bag in the camera within 2 minutes of

exposing to open air.

2. When the camera is shipped, a silica gel bag will be included inside the camera. For

first-time users, replace the silica gel bag prior to the installation to avoid foggy live view.

iii

Optional Accessories

Optional devices can expand the capabilities and versatility of your camera. Contact our sales

representatives for more information.

Name Details

GV-PA901

Power over Ethernet (PoE)

Adapter

The GV-PA901 is a Power over Ethernet (PoE) adapter

designed to provide power to the IP device through a single

Ethernet cable to the GV-SV48000 camera.

GV-Mount Accessories The GV-Mount Accessories provides a comprehensive lineup

of accessories for installation on ceiling, wall and pole. For

details, see GV-Mount Accessories Installation Guide online.

1. Introduction

Welcome to the GV-SV48000 Quick Start Guide. In the following sections, you will learn the

basic installations and configurations of GV-SV48000. For the settings on the Web interface

of GV-SV48000, see GV-IP Camera Firmware Manual.

1.1 Packing List

•GV-SV48000

•GV-Mount103-1 (Bracket, Cap, Tube)

•RJ-45 Connector

•Hex Wrench

•Silica Gel Bag

•Download Guide

•Warranty Card

1.2 Overview

No. Name Function

1 Lens Receives image input.

2 Infrared LED Flashes red upon successful load default.

3 Default button Push and hold to load default. See section 7.2 Directly on the

Camera.

4 SD card slot Inserts a Micro SD card to store recording data.

5 Silica Gel Bag Keeps the camera dry.

6 Camera number Label for each individual camera.

2. Installation

GV-SV48000 can be mounted on the ceiling using the supplied Straight Tube Mount:

GV-Mount103-1. Make sure the ceiling has enough strength to support the camera and the

mount.

Required items:

•Screws for ceiling x 4 (Self-prepared)

•Micro SD card x 4 (Self-prepared)

•Screwdriver x 1 (Self-prepared)

Optionally extend with:

•GV-Mount702

1. Assemble GV-Mount103-1 by rotating the supplied mounting bracket, tube and mounting

cap together.

2. Make sure the tubes are properly screwed. Tighten the screws using the 2 mm hex key.

3. On the back of the camera, use a screwdriver to remove the 5 screws on the back plate

and remove the plate.

4. Insert a Micro SD card to each of the SD card slots. The labels correspond to the camera

numbers labeled on the back of the camera.

5. Replace 2 Silica Gel Bags in the marked area.

6. Close and secure the back plate.

7. Secure the safety lock to the back of the camera.

8. Thread the camera wires through the hole in the center of the mounting cap.
