Genie S-85 Manuel utilisateur

Operator's Manual

85 ANSI/CSA

North America

South America

Asia

with

Maintenance

Information

Seventh Edition

Third Printing

Part No. T107108

Operator's Manual Seventh Edition • Third Printing

S-85 Part No. T107108

Front Matter

Important

Read, understand and obey these safety rules and

operating instructions before operating this

machine. Only trained and authorized personnel

shall be permitted to operate this machine. This

manual should be considered a permanent part of

your machine and should remain with the machine

at all times. If you have any questions, contact us.

Internet: www.genielift.com

E-mail: [email protected]

Contents

Introduction ........................................................... 1

Symbol and Hazard Pictorials Definitions............. 3

General Safety ...................................................... 5

Personal Safety................................................... 11

Work Area Safety................................................ 12

Legend ................................................................ 21

Controls............................................................... 22

Inspections.......................................................... 30

Operating Instructions......................................... 42

Transport and Lifting Instructions ....................... 52

Maintenance ....................................................... 56

Specifications...................................................... 60

Seventh Edition: Third Printing, February 2014

Genie and "S" are registered trademarks of Terex South Dakota,

Inc. in the U.S.A. and many other countries.

These machines comply with

ANSI/SIA A92.5

CAN B.354.4

Seventh Edition • Third Printing Operator's Manual

Introduction

Part No. T107108 S-85 1

Introducti on

Owners, Users and Operators:

Thank you for choosing our machine for your

application. Our number one priority is user safety,

which is best achieved by our joint efforts. We feel

that you make a major contribution to safety if you,

as the equipment users and operators:

1 Comply with employer, job site and

governmental rules.

2 Read, understand and follow the instructions

in this and other manuals supplied with this

machine.

3 Use good safe work practices in a

commonsense way.

4 Only have trained/certified operators,

directed by informed and knowledgeable

supervision, running the machine.

Danger

Failure to obey the instructions and

safety rules in this manual will result

in death or serious injury.

Do Not Operate Unless:

You learn and practice the principles of safe

machine operation contained in this operator’s

manual.

1 Avoid hazardous situations.

Know and understand the safety rules

before going on to the next section.

2 Always perform a pre-operation inspection.

3 Always perform function tests prior to use.

4 Inspect the workplace.

5 Only use the machine as it was intended.

You read, understand and obey the

manufacturer’s instructions and safety

rules—safety and operator’s manuals and

machine decals.

You read, understand and obey employer’s

safety rules and worksite regulations.

You read, understand and obey all applicable

governmental regulations.

You are properly trained to safely operate the

machine.

Operator's Manual Seventh Edition • Third Printing

Introduction

2 S-85 Part No. T107108

Hazard Classification

Decals on this machine use symbols, color coding

and signal words to identify the following:

Safety alert symbol—used to alert

you to potential personal injury

hazards. Obey all safety

messages that follow this symbol

to avoid possible injury or death.

Indicates a hazardous situation

which, if not avoided, will result in

death or serious injury.

Indicates a hazardous situation

which, if not avoided, could result

in death or serious injury.

Indicates a hazardous situation

which, if not avoided, could result

in minor or moderate injury.

Indicates a property damage

message.

Intended Use

This machine is intended to be used only to lift

personnel, along with their tools and materials to

an aerial work site.

Safety Sign Maintenance

Replace any missing or damaged safety signs.

Keep operator safety in mind at all times. Use mild

soap and water to clean safety signs. Do not use

solvent-based cleaners because they may damage

the safety sign material.

DANGER

WARNING

CAUTION

NOTICE

Seventh Edition • Third Printing Operator's Manual

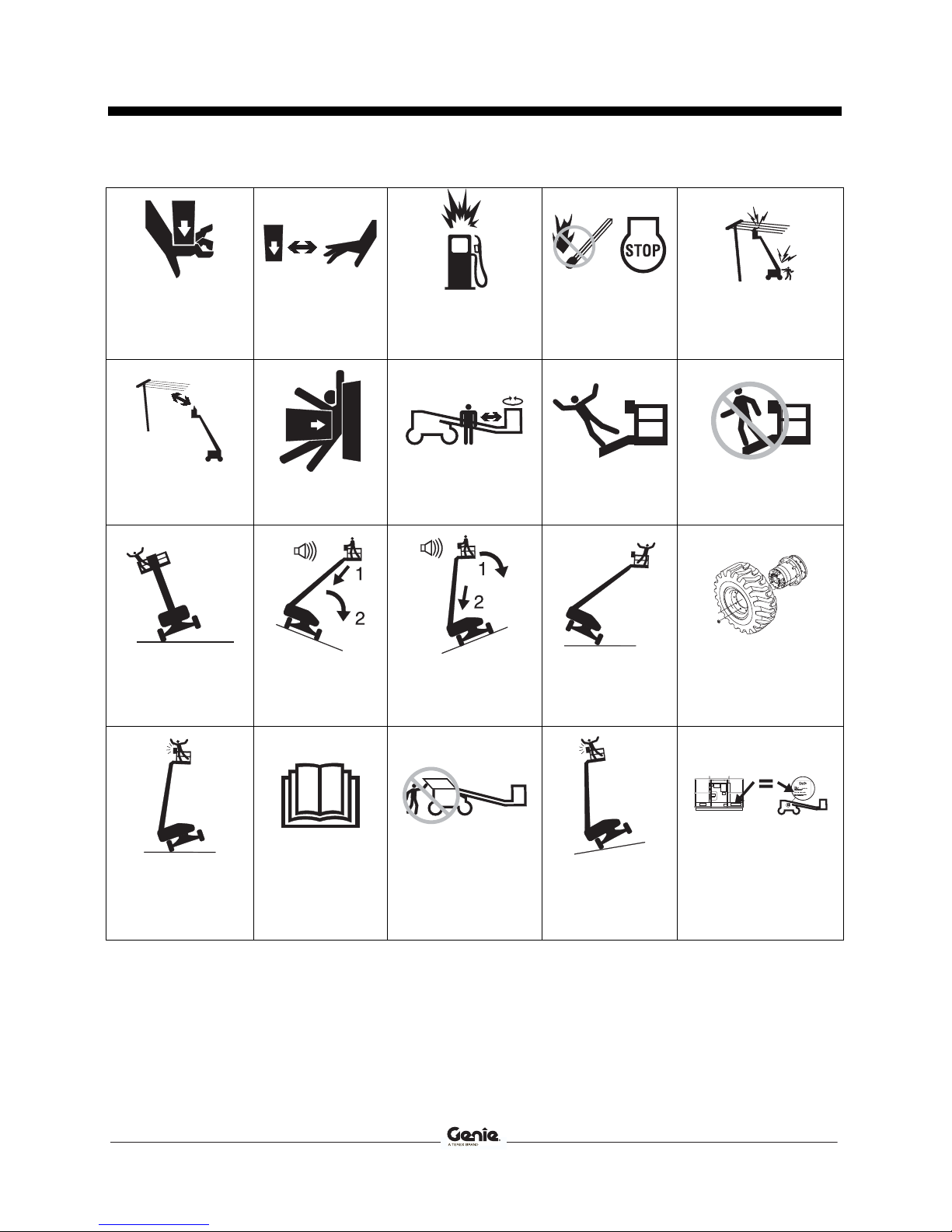

Symbol and Hazard Pictorials Definitions

Part No. T107108 S-85 3

Symbol and Hazard P ictorials Definiti ons

Crush hazard Keep away from

moving parts

Explosion hazard No smoking.

No flame.

Stop engine.

Electrocution hazard

Maintain required

clearance

Crush hazard Keep away from path

of moving platform

Fall hazard Keep off this surface.

Tip-over hazard Platform downhill:

1Retract boom.

2Lower boom.

Platform uphill:

1Lower boom.

2Retract boom.

Tip-over hazard Replace tires with tires

of same specification.

Tip-over hazard Read the

operator’s manual

Only trained

maintenance

personnel should

access compartments

Tip-over hazard See serial label for rated

capacity.

Operator's Manual Seventh Edition • Third Printing

Symbol and Hazard Pictorials Definitions

4 S-85 Part No. T107108

Lanyard attachment

point

Wheel load Voltage rating for

power to platform

Pressure rating for

air line to platform

Have fire extinguisher

near.

Electrocution hazard Avoid contact Tie-down instructions Read the service

manual

Weight of welder

reduces capacity

Keep open

flames away.

Explosion / Burn

hazard

Explosion hazard Do not use ether or

other high energy

starting aids on

machines equipped with

glow plugsll

Tie-down instructions Fire hazard

Seventh Edition • Third Printing Operator's Manual

General Safety

Part No. T107108 S-85 5

General Safety

Operator's Manual Seventh Edition • Third Printing

General Safety

6 S-85 Part No. T107108

Seventh Edition • Third Printing Operator's Manual

General Safety

Part No. T107108 S-85 7

Operator's Manual Seventh Edition • Third Printing

General Safety

8 S-85 Part No. T107108
