Genie TZ-20 Guide de configuration

Genie TZ-34/20 Part No. 133554

Operator's Manual Fourth Edition • Fourth Printing

Fourth Edition: Fourth Printing, October 2014

"Terex" is a registered trademark of Terex USA, LLC in the USA

and many other countries.

These machines comply with

ANSI A92.2

Complies with EC Directive 2006/42/EC

See EC Declaration of Conformity

Printed on recycled paper

Printed in U.S.A.

Important

Read, understand and obey these safety rules

and operating instructions before operating this

machine. Only trained and authorized personnel

shall be permitted to operate this machine. This

manual should be considered a permanent part of

your machine and should remain with the machine

at all times. If you have any questions, call Genie.

Internet: http://www.genielift.com

e-mail: awp.techpub@terex.com

Contents

Introduction........................................................... 1

Symbol and Hazard Pictorials Deﬁnitions............. 4

General Safety...................................................... 6

Work Area Safety................................................ 14

Legend................................................................ 19

Controls .............................................................. 20

Inspections ......................................................... 22

Operating Instructions ........................................ 34

Transport and Lifting Instructions ....................... 38

Maintenance....................................................... 40

Speciﬁcations ..................................................... 44

Reporting Safety Defects.................................... 46

Part No. 133554 Genie TZ-34/20 1

Operator’s Manual

Fourth Edition • Fourth Printing

About this manual

Genie appreciates your choice of our machine for

your application. Our number one priority is user

safety, which is best achieved by our joint efforts.

This book is an operation and daily maintenance

manual for the user or operator of a Genie

machine.

This manual should be considered a permanent

part of your machine and should remain with the

machine at all times. If you have any questions,

contact Genie.

Product Identiﬁcation

The machine serial number is located on the serial

label.

Intended Use

This machine is intended to be used only to lift

personnel, along with their tools and materials to

an aerial work site.

Bulletin Distribution and

Compliance

Safety of product users is of paramount

importance to Genie. Various bulletins are used

by Genie to communicate important safety and

product information to dealers and machine

owners.

The information contained in the bulletins is tied to

speciﬁc machines using the machine model and

serial number.

Distribution of bulletins is based on the most

current owner on record along with their

associated dealer, so it is important to register

your machine and keep your contact information

up to date.

To ensure safety of personnel and the reliable

continued operation of your machine, be sure to

comply with te action indicated in a respective

bulletin.

Introduction

2 Genie TZ-34/20 Part No. 133554

Operator’s Manual Fourth Edition • Fourth Printing

Contacting the Manuafacturer

At times it may be necessary to contact Terex.

When you do, be ready to supply the model

number and serial number of your machine,

along with your name and contact information. At

minimum, Terex should be contacted for:

Accident reporting

Questions regarding product applications and

safety

Standards and regulatory compliance information

Current owner updates, such as changes in

machine ownership or changes in your contact

information. See Transfer of Ownership, below.

Transfer of Machine Ownership

Taking a few minutes to update owner information

will ensure that you receive important safety,

maintenance and operating information that

applies to your machine.

Please register your machine by visiting us on the

web at www.genielift.com or by calling us toll free

at 1-800-536-1800.

Danger

Failure to obey the instructions and

safety rules in this manual will result

in death or serious injury.

Do Not Operate Unless:

You learn and practice the principles of safe

machine operation contained in this operator’s

manual.

1 Avoid hazardous situations.

Know and understand the safety rules

before going on to the next section.

2 Always perform a pre-operation inspection.

3 Always perform function tests prior to use.

4 Inspect the workplace.

5 Only use the machine as it was intended.

You read, understand and obey the

manufacturer’s instructions and safety rules—

safety and operator’s manuals and machine

decals.

You read, understand and obey employer’s

safety rules and worksite regulations.

You read, understand and obey all applicable

governmental regulations.

You are properly trained to safely operate the

machine.

Introduction

Part No. 133554 Genie TZ-34/20 3

Operator’s Manual

Fourth Edition • Fourth Printing

Hazard Classiﬁcation

Decals on this machine use symbols, color coding

and signal words to identify the following:

Safety alert symbol—used to

alert you to potential personal

injury hazards. Obey all safety

messages that follow this symbol

to avoid possible injury or death.

DANGER

Indicates a hazardous situation

that if not avoided, will result in

death or serious injury.

WARNING

Indicates a hazardous situation

that if not avoided, could result in

death or serious injury.

CAUTION

Indicates a hazardous situation

that if not avoided, could result in

minor or moderate injury.

NOTICE

Indicates information considered

important, but not hazard related

(e.g. messages related to property

damage)

Safety Sign Maintenance

Replace any missing or damaged safety signs.

Keep operator safety in mind at all times. Use mild

soap and water to clean safety signs. Do not use

solvent-based cleaners because they may damage

the safety sign material.v

Introduction

4 Genie TZ-34/20 Part No. 133554

Operator’s Manual Fourth Edition • Fourth Printing

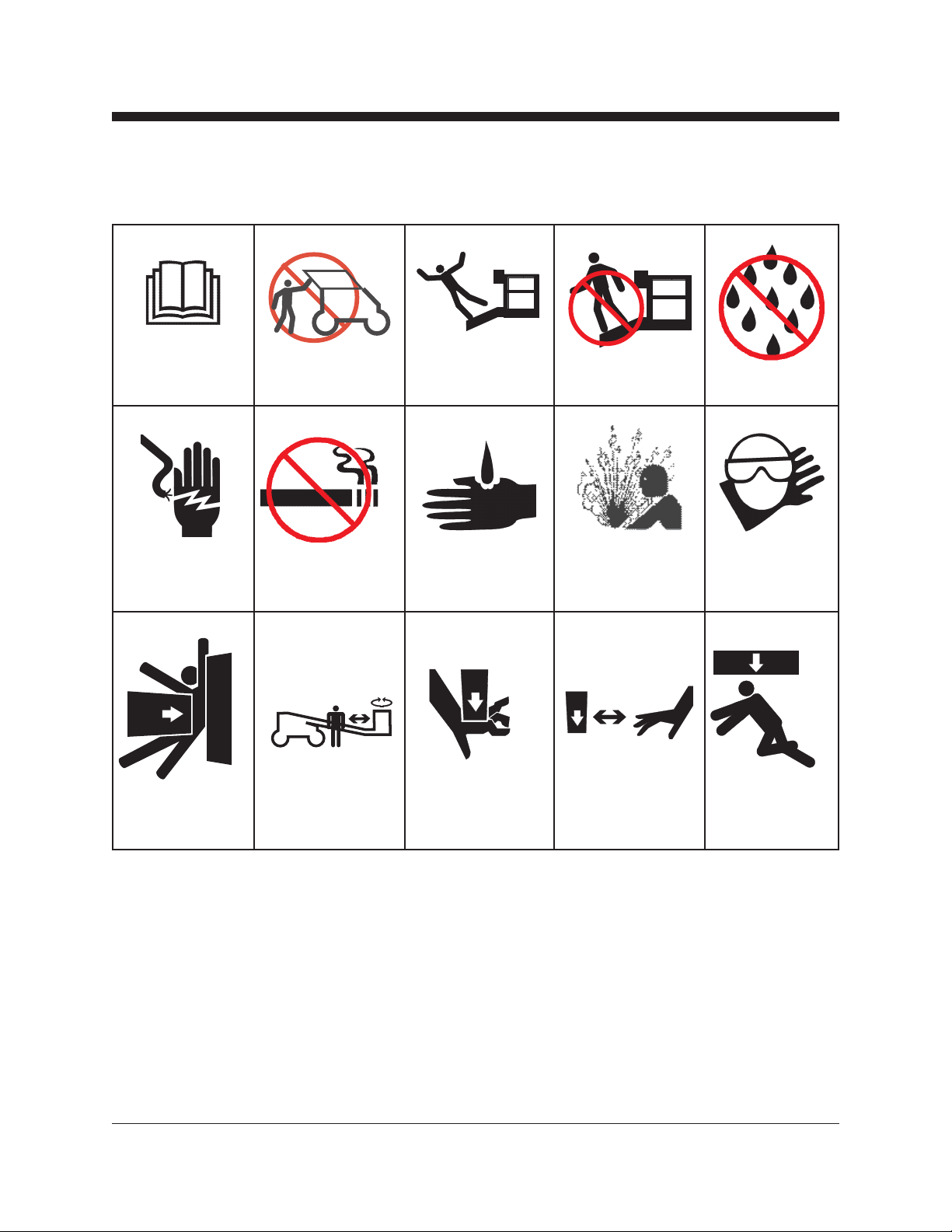

Symbol and Hazard Pictorials Deﬁnitions

Read the

operator’s

manual.

Electrocution/burn

hazard.

Crushing Hazard.

Corrosive acid.

No smoking. Explosion/burn

hazard.

Crushing hazard. Stay clear of

moving platform.

Crushing hazard. Keep away from

moving parts.

Wear protective

clothing.

Only trained

personnel.

Fall Hazard Keep off boom. Do not expose to

water or rain.

Part No. 133554 Genie TZ-34/20 5

Operator’s Manual

Fourth Edition • Fourth Printing

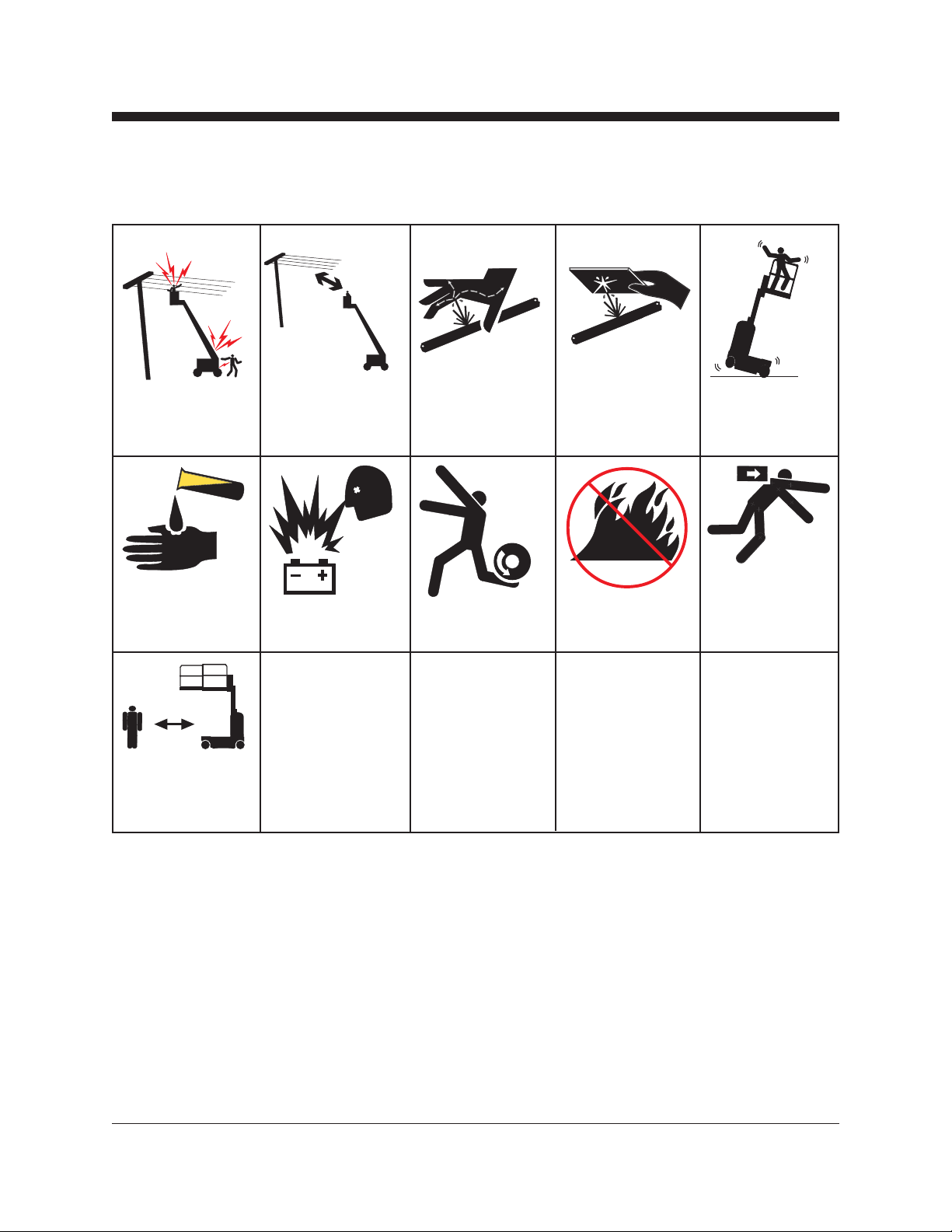

Symbol and Hazard Pictorials Deﬁnitions

Corrosive acid. Explosion hazard. Crushing hazard. No ﬂame. Crushing hazard.

Stay clear of

moving machinery.

Electrocution

hazard.

Maintain required

clearance.

Injection Hazard. Do not check for

hydraulic leaks

with hands.

Tip-over Hazard.

6 Genie TZ-34/20 Part No. 133554

Operator’s Manual Fourth Edition • Fourth Printing

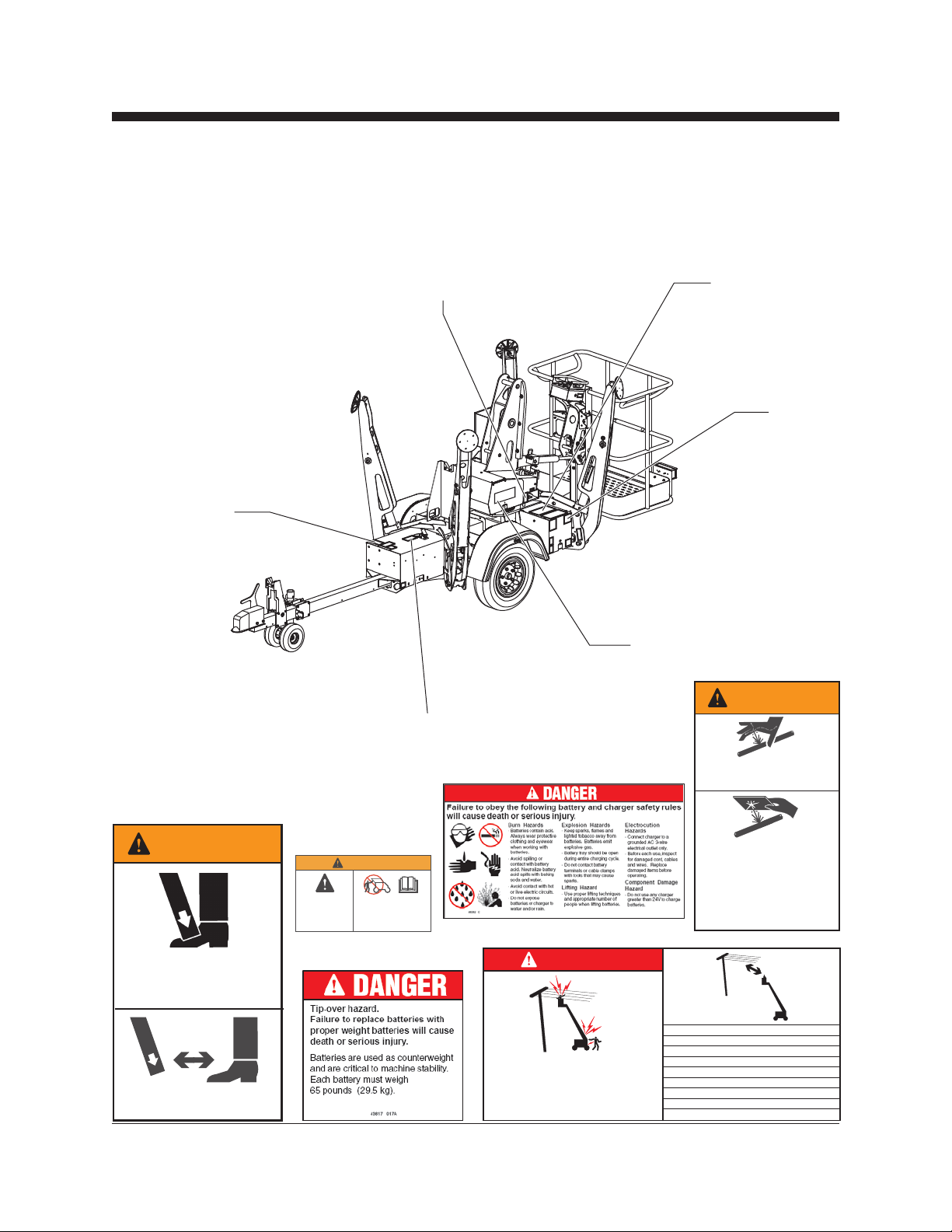

General Safety

82505 A

Crushing Hazard.

Contact with moving

parts will cause death

or serious injury.

Keep clear of elevated

components.

Crushing hazard.

Lowering the outriggers or tires

onto a person's foot can result

in serious injury.

82506 B

Keep clear of outriggers and

tires before lowering.

WARNING

82506

1263140

46262

43617

82505

82479

Electrocution Hazard

Death or injury can result from contacting electric

power lines.

Always contact the electric power line owner. The

electric power shall be disconnected or the power

lines moved or insulated before machine operations

begin. 1263140 A

DANGER

Maintain required clearance.

LineVoltage Required Clearance

0 to 300V Avoid Contact

300V to 50KV 10 ft 3.05 m

50KV to 200KV 15 ft 4.60 m

200KV to 350KV 20 ft 6.10 m

350KV to 500KV 25 ft 7.62 m

500KV to 750KV 35 ft 10.67 m

750KV to 1000KV 45 ft 13.72 m

Manifold Side / Platform End TZ-34

Part No. 133554 Genie TZ-34/20 7

Operator’s Manual

Fourth Edition • Fourth Printing

General Safety

82506 46262

43617

1263140

82558

28175

Crushing hazard.

Lowering the outriggers or tires

onto a person's foot can result

in serious injury.

82506 B

Keep clear of outriggers and

tires before lowering.

WARNING

82506

1263140

43617

Electrocution Hazard

Death or injury can result from contacting electric

power lines.

Always contact the electric power line owner. The

electric power shall be disconnected or the power

lines moved or insulated before machine operations

begin. 1263140 A

DANGER

Maintain required clearance.

LineVoltage Required Clearance

0 to 300V Avoid Contact

300V to 50KV 10 ft 3.05 m

50KV to 200KV 15 ft 4.60 m

200KV to 350KV 20 ft 6.10 m

350KV to 500KV 25 ft 7.62 m

500KV to 750KV 35 ft 10.67 m

750KV to 1000KV 45 ft 13.72 m

82558 B

Injection Hazard

Escaping fluid under pressure can

penetrate skin, causing serious injury.

Relieve pressure before disconnecting

hydraulic lines. Keep away from leaks

and pin holes. Use a piece of cardboard

or paper to search for leaks. Do not use

hand.

Fluid injected into skin must be

surgically removed within a few hours

by a doctor familiar with this type of

injury or gangrene will result.

WARNING

Compartment access

is restricted.

Contact with

components under

any cover may result

in serious injury.

Only trained maintenance personnel

should access compartments. Access

by operator is only advised when

performing Pre-operation Inspection.All

compartments must remain closed and

secured during operation.

28175 H

WARNING

46262

Hydraulic tank side Side / Hitch End TZ-34

8 Genie TZ-34/20 Part No. 133554

Operator’s Manual Fourth Edition • Fourth Printing

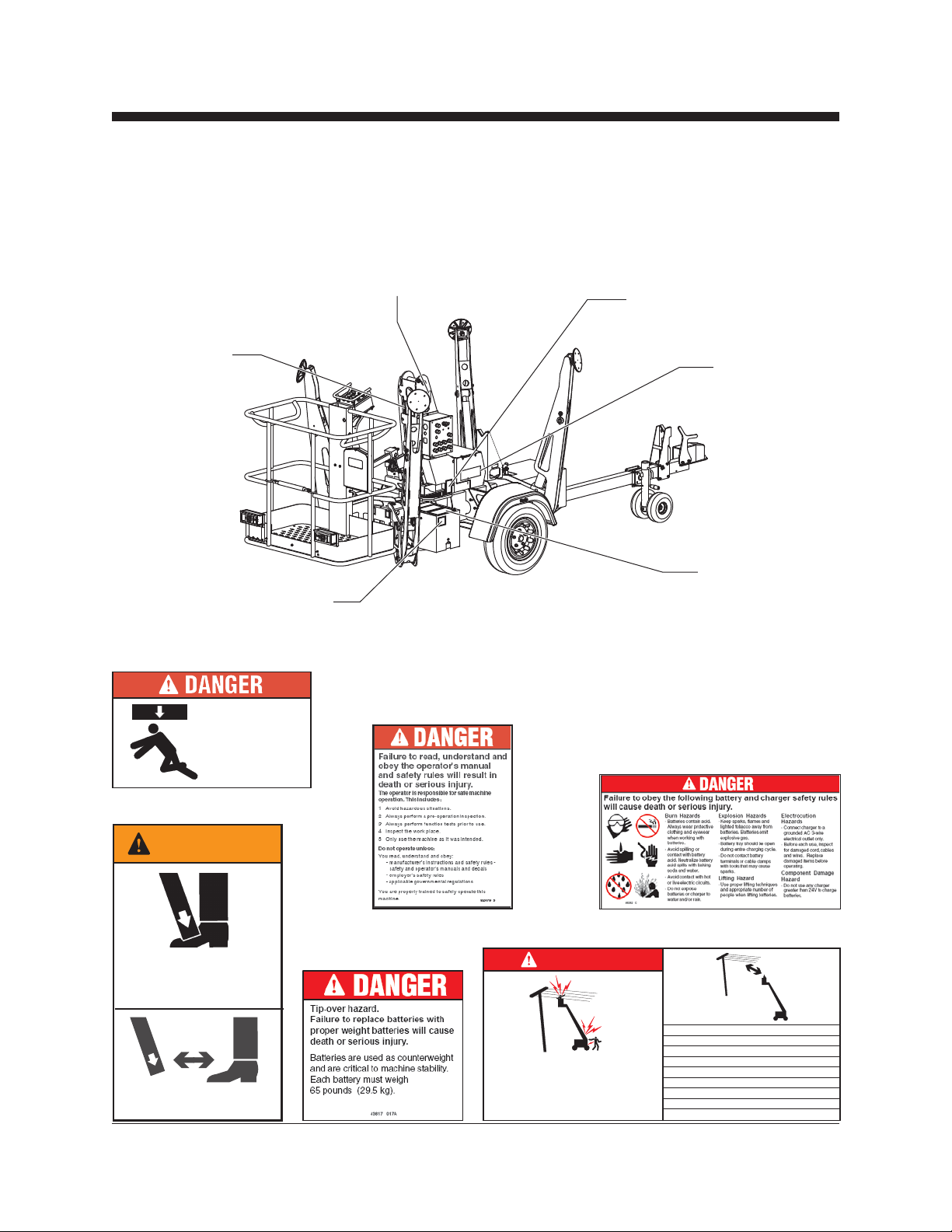

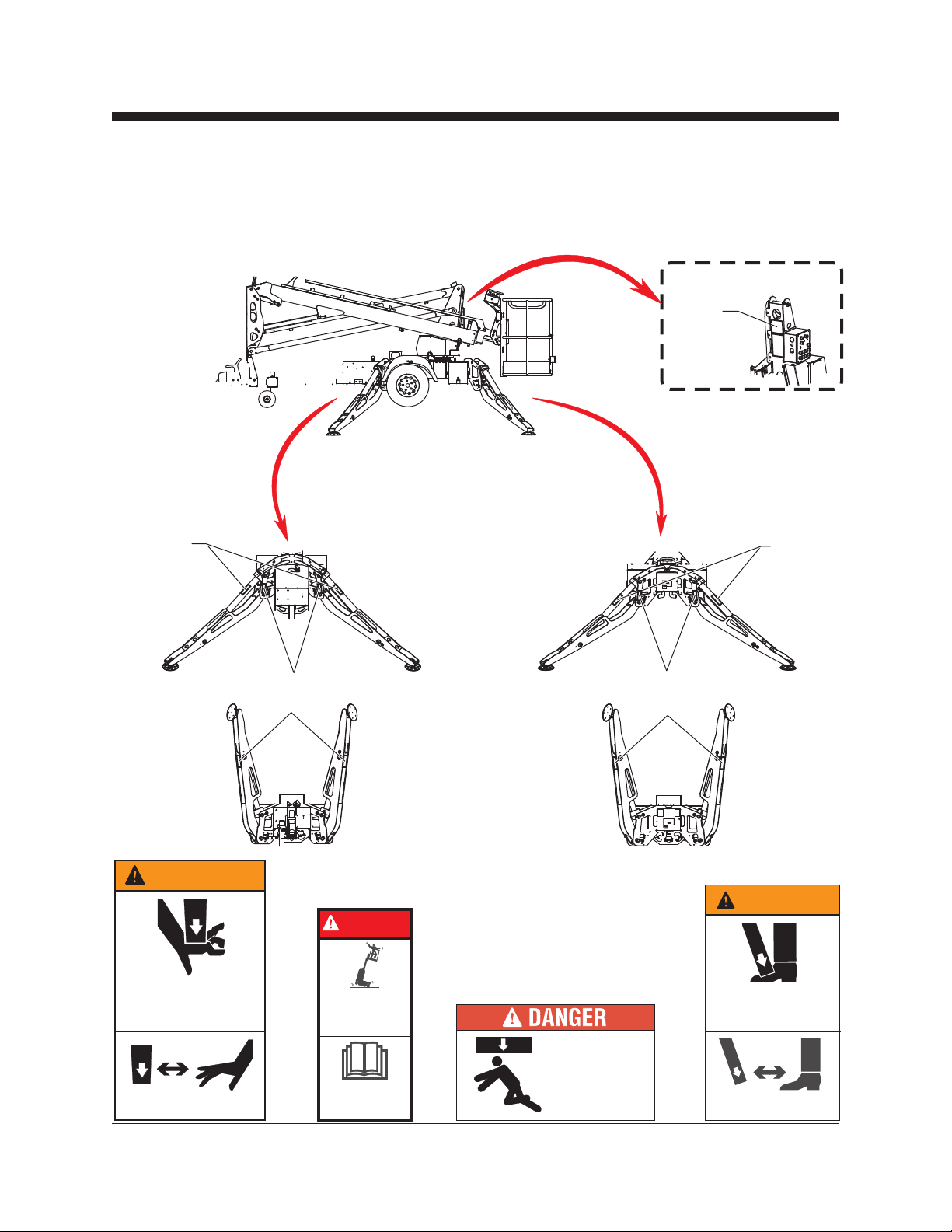

General Safety

Crushing hazard.

Lowering the outriggers or tires

onto a person's foot can result

in serious injury.

82506 B

Keep clear of outriggers and

tires before lowering.

WARNING

28161

28161 28161

82506

82506 82506

72832 72832

28161 C

Crush Hazard

Contact with moving parts can

result in death or serious

injury.

WARNING

Keep away from moving parts.

Front and Rear view outriggers

82505

72832

DANGER

Do not alter or

disable limit switch.

72832 D

Tip-over hazard.

Machine tip-over will

result in death or

serious injury.

82505 A

Crushing Hazard.

Contact with moving

parts will cause death

or serious injury.

Keep clear of elevated

components.

82505

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Genie Nacelle élévatrice à flèche

Genie

Genie S-100HD Manuel utilisateur

Genie

Genie S-60 HC Manuel utilisateur

Genie

Genie Z-80/60 Manuel d'installation et d'exploitation

Genie

Genie ZX-135/70 with Jib-Extend Manuel utilisateur

Genie

Genie S-40 TRAX Manuel utilisateur

Genie

Genie TMZ-50/30 Manuel utilisateur

Genie

Genie Z-45/25 Manuel utilisateur

Genie

Genie S-65 XC CE Manuel d'installation et d'exploitation

Genie

Genie TZ-50 Manuel utilisateur

Genie

Genie Z-34 Bi-Energy Manuel utilisateur

Genie

Genie S-120 Manuel utilisateur

Genie

Genie Z45/25J Manuel d'utilisation

Genie

Genie GTH-1056 Manuel d'installation et d'exploitation

Genie

Genie S-60 HC Manuel utilisateur

Genie

Genie Z-40/23N Manuel utilisateur

Genie

Genie S-80 Manuel utilisateur

Genie

Genie Z-34/22 Manuel utilisateur

Genie

Genie Z-80 Manuel utilisateur

Genie

Genie Z-34/22 Manuel utilisateur

Genie

Genie S-105 Manuel utilisateur

Genie

Genie Z-62/40 TRAX Manuel utilisateur

Genie

Genie Z-34/22 Manuel utilisateur

Genie

Genie Z-135/70 Manuel utilisateur

Genie

Genie S-65 Manuel utilisateur

Manuels Nacelle élévatrice à flèche populaires d'autres marques

JLG

JLG Skytrak 6036 Manuel d'utilisation et d'entretien

Terex

Terex Z80H-7733 Manuel utilisateur

Terex

Terex Gyro 4020 Manuel utilisateur

Terex

Terex Genie Z-51/30 J Manuel utilisateur

LGMG

LGMG T65JE Manuel utilisateur

Oshkosh Corporation

Oshkosh Corporation JLG H800AJ Manuel d'utilisation et d'entretien

Oshkosh

Oshkosh JLG 1500SJ Guide d'installation et d'utilisation

Skyjack

Skyjack SJ30AJE Manuel utilisateur

Oshkosh

Oshkosh JLG 800A Guide d'installation et d'utilisation

Terex

Terex Genie Z-135/70 Manuel utilisateur

Skyjack

Skyjack SJ 46AJ Manuel utilisateur

Molift

Molift Quick Raiser 205 Manuel utilisateur

Snorkel

Snorkel SL26RTE Guide de démarrage rapide

Terex

Terex Genie Z-135/70 Manuel d'installation et d'exploitation

Terex

Terex Genie ZX-135/70 Manuel d'installation et d'exploitation

Oshkosh Corporation

Oshkosh Corporation JLG E300A Manuel utilisateur

Terex

Terex Genie GTH-3007 Manuel utilisateur

Skyjack

Skyjack SJ45 T+ Manuel utilisateur
