General International BS5202 Instruction manuelle

BS5202 man v.141114

Model #

SETUP & OPERATION MANUAL

4 inch Benchtop

Metal Cutting

Band Saw

BS5202

FEATURES

●Compact for bench top use

●Heavy duty steel base

●Light and strong cast aluminum

saw head frame

●Cast iron vise opens to 4-1/8

in. (105 mm)

●Pivoting head with scale for

miter cuts to 45 degrees

●Two speeds help to cut ferrous

and non-ferrous metals

●Includes blade

●Adjustable blade guide

●Designed for dry cutting

SPECIFICATIONS

●120 V ~ 60 Hz 600 W motor

●Blade: 52-1/2 x 1/2 x 0.025 in.,

8-12 tpi variable pitch (1335 x

12.7 x 0.64 mm, 2.12 – 3.18

mm)

●Max. cutting capacity (round):

4-1/8 in. (105 mm)

●Max. cutting capacity (square):

4 x 4 in. (102 x102 mm)

●Blade speed:

197/262 ft./min. (60/80 m/min)

●ETL certication

●Net weight: 33 lb. (15 kg)

ENGLISH

THANK YOU

for choosing this General International machine. This tool has been

carefully tested and inspected before shipment and if properly used and

maintained, will provide you with years of reliable service. To ensure

optimum performance and trouble-free operation, and to get the most

from your investment, please take the time to read this manual before

assembling, installing and operating the unit.

The manual’s purpose is to familiarize you with the safe operation, basic

function, and features of this tool as well as the set-up, maintenance and

identication of its parts and components. This manual is not intended

as a substitute for formal woodworking instruction, nor to offer the user

instruction in the craft of woodworking. If you are not sure about the safety

of performing a certain operation or procedure, do not proceed until you

can conrm, from knowledgeable and qualied sources, that it is safe to do so.

Once you’ve read through these instructions, keep this manual handy for

future reference.

GENERAL®INTERNATIONAL

WARRANTY

All component parts of General®International products are carefully

inspected during all stages of production and each unit is thoroughly

inspected upon completion of assembly.

2-YEAR LIMITED WARRANTY

All products are warranted for a period of 2 years (24 months) from the

date of purchase. General®International agrees to repair or replace any

part or component which upon examination, proves to be defective in

either workmanship or material to the original purchaser during this 2-year

warranty period, subject to the “conditions and exceptions” as listed below.

Repairs made without the written consent of General International will void

the warranty.

DISCLAIMER

The information and specications in this manual pertain to the unit as

it was supplied from the factory at the time of printing. Because we are

committed to making constant improvements, General International

reserves the right to make changes to components, parts or features of

this unit as deemed necessary, without prior notice and without obligation

to install any such changes on previously delivered units. Reasonable care

is taken at the factory to ensure that the specications and information in

this manual corresponds with that of the unit with which it was supplied.

However, special orders and “after factory” modications may render some

or all information in this manual inapplicable to your machine. Further, as

several generations of this model of dust collector and several versions of

this manual may be in circulation, if you own an earlier or later version of

this unit, this manual may not depict your machine exactly. If you have any

doubts or questions contact your retailer or our support line with the model

and serial number of your unit for clarication.

TO FILE A CLAIM

To le a claim under our Standard 2-year Limited Warranty, all defective

parts, components or machinery must be returned freight or postage

prepaid to General® International, or to a nearby distributor, repair center

or other location designated by General®International. For further details

call our service department at 1-888-949-1161.

Along with the return of the product being claimed for warranty, a copy of

the original proof of purchase and a “letter of claim” must be included (a

warranty claim form can also be used and can be obtained, upon request,

from General®International or an authorized distributor) clearly stating

the model and serial number of the unit (if applicable) and including

an explanation of the complaint or presumed defect in material or

workmanship.

CONDITIONS AND EXCEPTIONS

This coverage is extended to the original purchaser only. Prior warranty

registration is not required but documented proof of purchase, i.e. a copy

of original sales invoice or receipt showing the date and location of the

purchase as well as the purchase price paid, must be provided at the time

of claim.

ENGLISH

141114

Warranty does not include failures, breakage or defects deemed after

inspection by General®International to have been directly or indirectly

caused by or resulting from; improper use, or lack of or improper

maintenance, misuse or abuse, negligence, accidents, damage in

handling or transport, or normal wear and tear of any generally considered

consumable parts or components.

Repairs made without the written consent of General®International will

void all warranty.

READ ALL INSTRUCTIONS

BEFORE OPERATING

SAVE THESE INSTRUCTIONS

Before attempting to operate your new tool, please read these instructions

thoroughly. You will need these instructions for the safety warnings,

precautions, assembly, operation, maintenance procedures, parts list and

diagrams. Keep your invoice with these instructions. Write the invoice

number on the inside of front cover. Keep the instructions and invoice in a

safe, dry place for future reference.

THE WARNINGS, CAUTIONS AND INSTRUCTIONS discussed

in this instruction manual cannot cover all possible conditions or

situations that could occur. It must be understood by the operator that

common sense and caution are factors which cannot be built into this

product, but must be supplied by the operator.

IMPORTANT SAFETY

INSTRUCTIONS

The purpose of safety symbols is to attract your attention to possible

hazards. The safety symbols, and the explanations with them, deserve

your careful attention and understanding. The safety warnings do not, by

themselves, eliminate any danger. The instructions or warnings they give

are not substitutes for proper accident prevention measures.

DANGER! Indicates an imminently hazardous situation which, if not

avoided, will result in serious injury or death.

WARNING! Indicates an imminently hazardous situation which, if not

avoided, could result in serious injury or death.

CAUTION: Indicates an imminently risky situation which, if not avoided,

could result in minor injuries or slight injury. It may also be used to notify

the user to remain alert regarding unsafe practises which may cause

property damage.

ENGLISH

WARNINGS AND CAUTIONS

Be sure to read, understand and follow all safety warnings and instructions

in the supplied operator’s manual.

WORK AREA

1.KEEP CHILDREN AND BYSTANDERS AWAY.

All children should be kept away from the work area. Don’t let them

handle machines, tools or extension cords. Visitors can be a distraction

and are difcult to protect from injury.

2.KEEP WORKING AREA CLEAN

and be sure adequate lighting is available. Cluttered areas invite

injuries.

3.AVOID DANGEROUS ENVIRONMENTS

Don’t use power tools in damp or wet locations. Keep work area

well lit. Do not expose power tools to rain. Do not use the tool in the

presence of ammable liquids or gases.

4.STORE IDLE EQUIPMENT.

Store equipment in a dry area to inhibit rust. Equipment also should

be in a high location or locked up to keep out of reach of children and

untrained persons.

PERSONAL SAFETY

1.LEARN THE MACHINE’S APPLICATIONS AND LIMITATIONS,

as well as the specic potential hazards particular to this machine.

Follow available safety instructions and safety rules carefully.

2.DON’T OVERREACH.

Keep proper footing and balance at all times. Do not reach over or

across machines that are running.

3.STAY ALERT

Avoid distractions while operating this tool. Watch what you are doing.

Use common sense. Do not operate tool when you are tired. Do not

operate while under medication or while using alcohol or other drugs.

4.WEAR APPROPRIATE APPAREL

Do not wear loose clothing, gloves, bracelets, necklaces,or jewellery

while operating the tool. Wear face, eye, ear, respiratory and body

protection devices, as indicated for the operation or environment. It is

advisable to wear slip-resistant safety footwear.

5.ALWAYS WEAR SAFETY GLASSES

Use ANSI approved safety glasses (in accordance with ANSI Z87.1-

2003.) Also use face or dust mask if cutting operation is dusty, and ear

plugs during extended periods of operation. Everyday eyeglasses have

only impact resistant lenses, they are NOT safety glasses.

6.WEAR BREATHING PROTECTION.

Use of this tool can generate and/or disperse dust, which may cause

serious and permanent respiratory or other injury. Many types of wood

are naturally toxic, especially in dust form. Wear a clean dust mask

if the work involves creating a lot of ne or coarse dust. Always use

NIOSH/OSHA-approved respiratory protection appropriate for the dust

exposure. Direct particles away from face and body.

7.WEAR HEARING PROTECTION,

especially from repeated exposure. This tool is loud. Proper hearing

protection should be worn (in accordance with ANSI S12.6-1997

R2002).

8.GUARD AGAINST ELECTRIC SHOCK

Prevent body contact with grounded surfaces. For example: pipes,

radiators, ranges, refrigerator enclosures. When your body is grounded

the risk of electric shock increases. When working wherever “live”

electrical wires may be encountered, try to ascertain whether there is

a danger of shock. Even so, DO NOT TOUCH ANY METAL PARTS

OF THE TOOL while using it. Hold the tool only by the plastic grip to

prevent electric shock if you contact a live wire.

9.ALWAYS DISCONNECT TOOL BEFORE SERVICING

and when changing accessories such as belts, bits, blades, cutters.

10.WHEN NECESSARY, SUITABLY TIE BACK LONG HAIR

to prevent any risk of it becoming trapped or entangled in moving

parts.

WEAR YOUR

FORESIGHT IS

BETTER THAN

NO SIGHT

ENGLISH

141114

11.MAKE SURE THAT SWITCH IS IN “OFF” POSITION

before plugging in cord to reduce the risk of unintentional starts.

12.NEVER STAND ON TOOL

Serious injury could occur if the tool is tipped or if the cutting tool is

unintentionally contacted.

13.KEEP HANDS WELL AWAY FROM CUTTING SURFACES

and all moving parts. Do not clear chips and sawdust away with

hands. Use a brush.

14.SECURE WORK.

Use clamps or a vise to hold the work. It’s safer than using your hands

and it frees both hands to operate the tool.

15.DISCONNNECT THE PLUG FROM POWER

before making any adjustments. Changing attachments or

accessories can be dangerous if the tool could accidentally start.

TOOL SAFETY

1.MAKE SURE ALL CUTTING TOOLS

are moving at operation speed before feeding.

2.DO NOT FEED THE MATERIAL TOO QUICKLY.

The tool will perform better and be safer working at the rate for which it

was designed.

3.NEVER LEAVE THE MACHINE WITH THE POWER ON.

4.DO NOT FORCE THE MACHINE.

It will do the job better and be safer at a rate for which it was designed.

Don’t force a small tool or attachment to do the work of a larger

industrial tool. Don’t use a tool for a purpose for which it was not

intended.

5.MAINTAIN TOOLS WITH CARE.

Keep tools sharp and clean for better and safer performance. Follow

instructions for lubricating and safe performance. Follow instructions

for lubricating and changing accessories. Keep handles dry, clean and

free from oil and grease.

6.DISCONNNECT THE PLUG FROM POWER BEFORE MAKING ANY

ADJUSTMENTS.

Changing attachments or accessories can be dangerous if the tool

could accidentally start.

7.AVOID UNINTENTIONAL STARTING.

Be sure the switch is in the OFF position before plugging in. Do not

carry the tool with the power connected and your nger on the trigger.

8.KEEP GUARDS IN PLACE

and in working order. If a guard must be removed for maintenance or

cleaning, make sure it is properly attached before using the tool again.

9.DO NOT USE THE TOOL

if it cannot be switched on or off. Have your tool repaired

before using it.

10.CHECK FOR DAMAGED PARTS.

Before using this tool, any part that is damaged should be carefully

checked to determine that it will operate properly and perform its

intended function. Check for alignment of moving parts, binding of

moving parts, breakage of parts, mountings, and other conditions that

may affect its operation. Inspect screws and tighten any ones that

are loose. Any part that is damaged should be properly repaired or

replaced by an authorized service center unless otherwise indicated

elsewhere in the instruction manual. Have defective switches replaced

by an authorized service center. Don’t use the tool if switch does not

turn it on and off properly.

11.OBTAIN ADVICE

from your supervisor, instructor or another qualied person if you are

not thoroughly familiar with the operation of this machine. Knowledge

is safety.

12.USE ONLY RECOMMENDED ACCESSORIES.

Use of accessories NOT recommended by General International

may result in a risk of injury. ensure keys and adjusting wrenches are

removed before turning power on. Left attached, these parts can y off

a rotating part and result in personal injury.

ENGLISH

SERVICE

1.INSPECT AND MAINTAIN THE TOOL REGULARLY.

Have it repaired only by an authorized repair technician.

2.MAINTAIN TOOLS WITH CARE.

Keep tools sharp and clean for better and safer performance. Follow

instructions for lubricating and safe performance. Follow instructions for

lubricating and changing accessories. Keep handles dry, clean and free

from oil and grease.

3.ENSURE THAT THE VENTILATION OPENINGS

are kept clear of debris.

4.IF THE CORDSET IS DAMAGED HAVE IT REPAIRED

only by an authorized service center.

5.SERVICE AND REPAIRS SHOULD BE MADE BY QUALIFIED REPAIR

TECHNICIANS

at an authorized repair center. Improperly repaired tools could cause

serious shock or injury.

6.REPLACEMENT PARTS.

When servicing, use only the manufacturer’s recommended

replacement dentical replacement parts and accessories.

7.THE MANUFACTURER SHALL NOT BE LIABLE

for any changes made to the tool, nor for any damage resulting from

such changes.

SAFETY RULES SPECIFIC TO THIS EQUIPMENT

Because each shop situation is unique, no list of safety guidelines can

ever be complete. The most important safety feature in any shop is the

knowledge and good judgement of the user. Use common sense and

always keep safety considerations, as they apply to your individual shop

situation rst and foremost in mind. If you have any doubts about the

safety of an operation you are about to perform: STOP! Do not perform the

operation until you have validated from qualied individuals if the operation

is safe to perform and what is the safest method to perform it.

WARNING! To avoid mistakes that could cause serious, permanent

injury, do not plug the tool in until the following steps have been

completed:

Assembly and alignment

Learn the use and function of the on/off switch and other adjustments.

Review and understanding of all safety instructions and operating

procedures in this manual.

Review of the maintenance methods for this tool.

1.READ THE WARNING LABELS ON THE TOOL.

2.AVOID UNINTENTIONAL STARTING.

Be sure the switch is in the OFF position before plugging in.

3.ALWAYS CHECK AND MAKE SURE TO REMOVE ANY ADJUSTING

KEYS OR WRENCHES

before turning the tool on. Left attached, these parts can y off a

rotating part and result in personal injury.

4.DO NOT OPERATE THIS MACHINE UNTIL IT IS COMPLETELY

ASSEMBLED

and installed according to the instructions. A machine incorrectly

assembled can cause serious injury.

NOTE: If any parts are damaged or missing, do not attempt to plug in

the power cord and turn the switch on until the damaged or missing parts

are obtained and are installed correctly.

5.KEEP YOUR FACE AWAY FROM THE CUTTING AREA

to avoid inhaling any fumes which may be generated by oily

substances found on ferrous materials.

6.NEVER CLIMB OR STAND ON THE TOOL.

Serious injury could occur if the tool tips. Do not store anything above

or near the tool where anyone might stand on the tool to reach them.

ENGLISH

141114

7.NEVER TURN THE MACHINE ON BEFORE

clearing the table/work area of all objects (tools, scraps of wood, etc.).

Flying debris is dangerous.

8.USE EXTRA SUPPORTS

(tables, saw horses, blocks, etc.) for any workpiece large enough to tip

when not held down to the work table.

9.DO NOT LEAVE THE WORK AREA UNTIL ALL MOVING PARTS

HAVE STOPPED.

Shut off the power to master switches. Childproof the workshop!

10.BEFORE STARTING,

be certain the motor, table, attachments and adjustment knobs are

secured.

11.OBTAIN ADVICE

from your supervisor, instructor, or another qualied person if you are

not thoroughly familiar with the operation of this machine. Knowledge

is safety.

12.NEVER TURN THE MACHINE ON

with the workpiece contacting the cutting surface. Workpiece may be

thrown and cause injury or damage.

13.DISCONNNECT THE PLUG FROM POWER BEFORE MAKING ANY

ADJUSTMENTS.

Changing attachments, making bit changes, adjustments or repairs or

accessories can be dangerous if the tool could accidentally start. Turn

off and unplug the drill press before moving it.

14.TURN THE MACHINE OFF,

disconnect the machine from the power source, when not in operation

and before leaving the machine. Clean the table/work area before

leaving the machine.

15.DO NOT LEAVE THE WORK AREA UNTIL ALL MOVING PARTS

HAVE STOPPED.

Shut off the power to master switches. Childproof the workshop!

16.TO FREE ANY JAMMED MATERIAL, TURN THE SWITCH OFF.

Unplug the tool. Wait for all moving parts to stop before removing the

jammed material.

17.SUPPORT THE WORKPIECE FIRMLY WITH A CLAMP,

vise, or work table when drilling. Hold the workpiece rmly. Loss of

control of the workpiece can result in injury.

18.PROPERLY SUPPORT LONG OR WIDE WORKPIECES.

If a workpiece overhangs the table so that it could fall or tip if not held,

clamp it to the table or provide auxiliary support(s). Loss of control of

the workpiece is dangerous.

19.SUPPORT ROUND WORK PROPERLY

Use V blocks to prevent it from rolling.

20.USE THE RECOMMENDED CUTTING SPEED

for the specic operation and workpiece material — check the label for

information

21.KEEP PULLEY COVER CLOSED

when not making belt adjustments.

22.USE ONLY ACCESSORIES DESIGNED FOR THIS TOOL

to avoid serious injury from thrown, broken parts or work pieces.

DANGER - WARNING! The use of any accessory or connection

different to those indicated in this manual may lead to the risk of injury.

23.DO NOT DISASSEMBLE THE MACHINE:

repairs to the machine must be carried out by skilled personnel only.

Failure to observe this indication could create grave danger to users.

24.AVOID AWKWARD OPERATIONS AND HAND POSITIONS.

A sudden slip could cause a hand to move into the bit.

25.NEVER PERFORM LAYOUT, ASSEMBLY, OR SET-UP WORK ON

THE TABLE

/work area when the machine is running. A sudden slip could cause a

hand or hair to move into the blade Severe injury can result.

ENGLISH

26.DO NOT GET DISTRACTED

and always concentrate on what you are doing. Use common sense.

Never operate the machine when you are tired, sick, or under the

inuence of alcohol, or other drugs.

27.LOCK THE SWITCH IN THE “OFF” POSITION

to prevent unauthorized use. Someone else might accidentally start the

machine and cause injury to themselves.

28.KEEP THESE INSTRUCTIONS.

Refer to them frequently and use them to instruct other users. If you

lend someone this unit, also lend them the instructions.

29.FAILURE TO FOLLOW OPERATING INSTRUCTIONS AND SAFETY

PRECAUTIONS IN THIS INSTRUCTION MANUAL CAN RESULT IN

SERIOUS INJURY.

Read the manual before starting or operating this unit.

HEALTH NOTICE: Some dust created by power sanding, sawing,

grinding, drilling, and other construction activities contain chemicals

known to cause cancer, birth defects or other reproductive harm. Some

examples of these chemicals are:

─Lead from lead-based paints

─Crystalline silica from bricks and cement and other masonry products

─Arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do

this type of work. To reduce your exposure to these chemicals, work in

a well ventilated area, and work with approved safety equipment, such

as those dust masks that are specially designed to lter out microscopic

particles.

ELECTRICAL

WARNINGS AND CAUTIONS

1. BEFORE CONNECTING THE MACHINE to the power source, verify

that the voltage of your power supply corresponds with the voltage

specied on the motor I.D. nameplate. A power source with greater

voltage than needed can result in serious injury to the user as well

as damage to the machine. If in doubt, contact a qualied electrician

before connecting to the power source.

2.MAKE SURE YOUR FINGERS

do not contact the terminals of the power cord plug when plugging in or

unplugging the saw.

3.GROUNDED TOOLS MUST BE PLUGGED INTO AN OUTLET THAT

ITSELF IS PROPERLY INSTALLED AND GROUNDED.

Grounding provides a low-resistance path to carry electricity to ground

away from the operator, should the tool malfunction electrically.

4.DO NOT ABUSE THE CORD.

Never carry your tool by the cord or pull on the cord to unplug it.

Protect the cord from potential sources of damage: heat, oil & solvents,

sharp edges, or moving parts. Replace damaged cords immediately.

5.WHEN WORKING OUTDOORS, USE AN OUTDOOR-RATED

EXTENSION CORD.

An extension cord rated for outdoor use must be marked “W-A” or “W”.

6.THIS TOOL IS FOR INDOOR USE ONLY.

Do not expose electrical power tools to moisture. Rain or wet

conditions can cause water to enter the tool and lead to electric shock.

7.FOLLOW ALL LOCALLY APPLICABLE WIRING CODES

and recommended electrical connections to prevent shock or

electrocution.

ENGLISH

141114

POWER

POWER REQUIREMENTS

This tool is designed to operate on a properly grounded 120 volt, 60 Hz,

single phase, alternating current (AC) power source, fused with a 15 amp

time delayed circuit breaker. It is recommended that a qualied electrician

verify the ACTUAL VOLTAGE at the receptacle into which the tool will be

plugged and conrm that the receptacle is properly grounded. The use of

the proper circuit size can eliminate nuisance circuit breaker tripping when

using your tool.

CAUTION: Do not operate this tool if the actual power source voltage

is less than 105 volts ac, or greater than 132 volts ac. Contact a qualied

electrician if this problem exists. Improper performance, and/or, damage

to the tool will result if operated on inadequate, or excessive power.

GROUNDING INSTRUCTIONS

In the event of an electrical malfunction or short circuit, grounding reduces

the risk of electric shock. The motor of this machine is wired for 120 V

single phase operation and is equipped with a 3-conductor cord and a

3-prong grounding plug to t a grounded type receptacle (B, g 1). Do not

remove the 3rd prong (grounding pin) to make it t into an obsolete 2-hole

wall socket or extension cord.

WARNING! BANDSAW MUST BE GROUNDED. Use a Ground Fault

Interrupter (GFI). Plug the power cord to a standard 120 volt receptacle

protected by a 20 amp circuit breaker.

If an adaptor plug is used (C, g 1), it must be attached to the metal screw

of the receptacle.

NOTE: The use of an adaptor plug is illegal in some areas, including

Canada. Check your local codes. If you have any doubts or if the

supplied plug does not correspond to your electrical outlet, consult a

qualied electrician before proceeding.

EXTENSION CORDS

If you nd it necessary to use an extension cord with your machine, use

only 3-wire extension cords that have 3-prong grounding plug and a

matching 3-pole receptacle that accepts the tool’s plug. Repair or replace a

damaged extension cord or plug immediately.

Make sure the cord rating is suitable for the amperage listed on the motor

I.D. plate. An undersized cord will cause a drop in line voltage resulting in

loss of power and overheating. The accompanying chart shows the correct

size extension cord to be used based on cord length and motor I.D. plate

amp rating. The smaller the gauge number, the larger the wire's capacity.

Total Extension Cord Length

Amp Rating Feet Meters Feet Meters Feet Meters Feet Meters

25 8 50 15 100 30 125 40

3-10 amp 18 ga. 16 ga. 14 ga. 14 ga.

10.1 - 12 amp 16 ga. 16 ga. 14 ga. 14 ga.

12.1 - 16 amp 14 ga. 12 ga. Not Recommended

Use only UL or CSA approved extension cords

WARNING! Do not allow familiarity with your tool to make your

careless. Remember that a careless fraction of a second is sufcient to

inict severe injury.

IMPORTANT: The warnings, cautions and instructions detailed in this

manual cannot cover all possible conditions and situations that occur. It

must be understood by the operator that common sense and caution are

factors that cannot be built into this product, but must be supplied by the

operator.

ENGLISH

FUNCTIONAL DESCRIPTION

INTENDED USE

This machine has been designed and built for cold-cutting metals. For this

operation, the workpiece is held in place by a clamp and the cutting blade

is held in the cutting position by the operator who stands in front of the

machine during use.

●The machine can be used to work on metal or similar materials

●It is not designed to operate on:

• Non-metals

• Organic materials and/or food stuffs

• Materials which may release toxic substances during the work

process.

• Use any type of lubricant during cutting

AMBIENT CONDITION OPERATING LIMITS

●temperatures between 41 ºF and 104 ºF (+ 5 °C and + 40 °C)

●relative humidity 50 % at a temperature of 104 ºF (+ 40 °C)

●maximum operating altitude: 3,281 feet above sea level (1,000 m.a.s.l.)

●this machine must be used in an environment which is protected from

the elements.

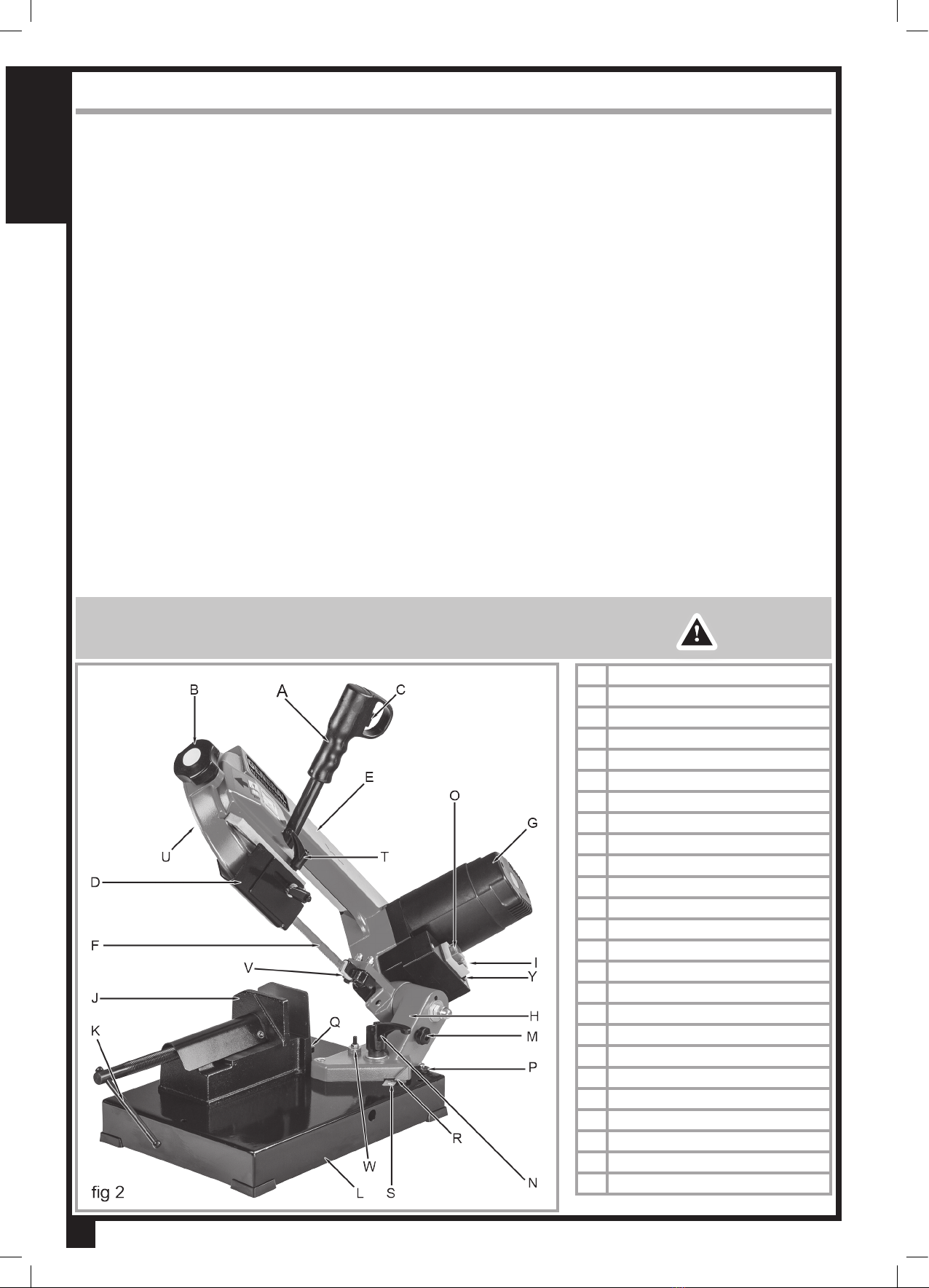

GETTING TO KNOW YOUR BAND SAW

The bandsaw is made up of two main parts:

●the machine body (E, g 2 & 3); the head frame complete with motor

and drive system (G, g 2 & 3). joined, by means of a swivel support

(H. g 2 & 3), to

●the bottom section, made up of a base (L, g 2 & 3) and

vise (J, g 2 & 3).

WARNING! To avoid injury from accidental start, turn the switch off

and remove the plug from the power source outlet before making any

adjustments.

A Control handgrip

B Blade tensioning handwheel

C Start button

D Sliding blade guide

E Machine body

F Blade

G Motor

H Swivel support

I Power on switch

J Vise

K Vise screw handle

L Base

M Arm locking pin

N Swivel support lock knob

O Power off switch

P 0º miter limiter

Q 45º miter limiter

R Miter angle indicator

S Miter angle scale

T Sliding guide lock knob

U Back safety guard

V Lower blade guide

W Cut depth limiter

X Upper blade guide

Y Speed selection switch

Table des matières

Langues :

Autres manuels General International Scie

General International

General International 60-250 Manuel de la liste des pièces

General International

General International 50-225R M1 Manuel de la liste des pièces

General International

General International Excalibur EX-16 Manuel de la liste des pièces

General International

General International 90-140 M1 Manuel de la liste des pièces

General International

General International 50-057 Manuel de la liste des pièces

General International

General International 50-755 M1 Manuel de la liste des pièces

General International

General International 60-350 Manuel de la liste des pièces

General International

General International BT8007 Instruction manuelle

General International

General International 90-290 Manuel de la liste des pièces

General International

General International BT8005 Instruction manuelle

General International

General International MS3002 Manuel de la liste des pièces

General International

General International MS3003 Manuel de la liste des pièces

General International

General International TS4004 Manuel de la liste des pièces

General International

General International MS3005 Instruction manuelle

General International

General International MS3008 Manuel de la liste des pièces

General International

General International 50-070 Instruction manuelle

General International

General International BS5105 Instruction manuelle

General International

General International BS5205 Instruction manuelle

General International

General International 50-760 M1 Manuel de la liste des pièces

General International

General International TS4001 Instruction manuelle

General International

General International 50-275R Manuel de la liste des pièces

General International

General International MS3102 Manuel de la liste des pièces

General International

General International MS3005 Instruction manuelle

General International

General International 50-175 Manuel de la liste des pièces

Manuels Scie populaires d'autres marques

RIDGID

RIDGID BS1400 Manuel utilisateur

ATIKA

ATIKA BWS 400-2 Manuel utilisateur

RGC

RGC FS20 Manuel utilisateur

Makita

Makita M2300 Manuel utilisateur

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuel utilisateur

IMET Spa

IMET Spa SIRIO 370 AF-E Manuel utilisateur

Optimum

Optimum OPTisaw CS 275 Manuel utilisateur

Makita

Makita BPB180 Manuel utilisateur

Stihl

Stihl MS 462 C-M Manuel utilisateur

AEG

AEG TS 250 K Manuel utilisateur

Meec tools

Meec tools 004665 Manuel utilisateur

Makita

Makita LS1018L Manuel utilisateur

Ryobi

Ryobi RCS1400 Manuel utilisateur

DeWalt

DeWalt DCS391 Manuel utilisateur

Sealey

Sealey SA72 Manuel utilisateur

skilsaw

skilsaw SPT88 Instructions de montage

Urrea

Urrea SI810 Dimensions et guide d'installation

EINHELL

EINHELL BKG 210/1 Manuel utilisateur
