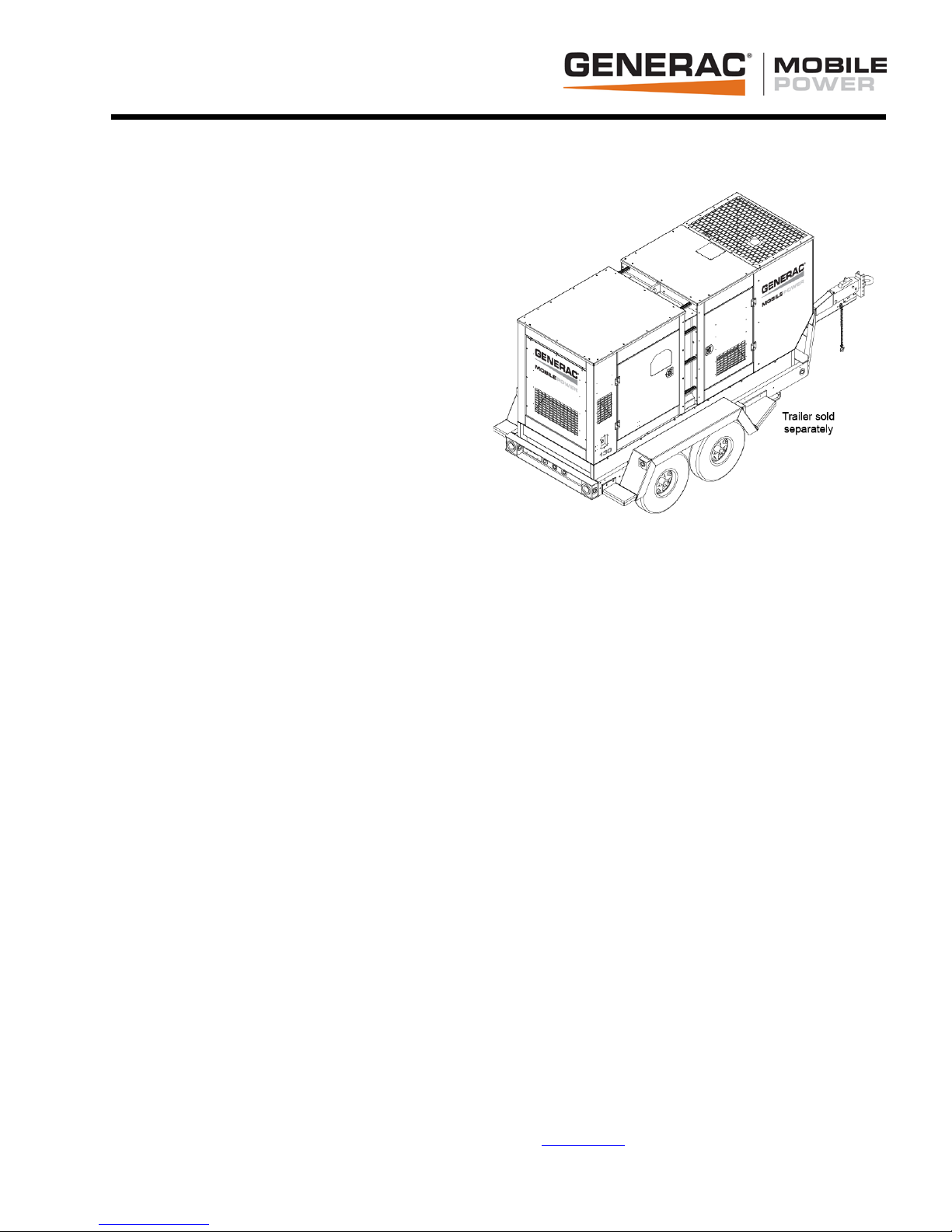

Mobile Generator – MMG130 Specifications

ENGINE

•John Deere®PE4045HFG93 -

turbocharged, diesel engine

oPrime - 152 hp @ 1800 rpm

oStandby - 166 hp @ 1800

rpm

o4 cylinder

o4.5 L displacement

oInterim Tier IV emissions

•Steel, single wall fuel tank

o342 gal. capacity

o44 hr. run time – full load

oFuel tank built into skid of

generator set

•Fuel consumption at prime:

o100% - 7.4 gph (28.0 Lph)

o75% - 5.5 gph (20.8 Lph)

o50% - 3.7 gph (14.0 Lph)

•Cooling system capable of operating at 120°F ambient

•Low coolant shutdown

•Radiator and oil drains plumbed to exterior

•Rubber vibration dampers isolate engine/generator from frame

•Disposable air filter - paper element

•Air filter restriction indicator mounted on control panel

•60 Hz engine/generator

•Electronic isochronous governing

•Utilizes DOC / DPF exhaust filter

•Variable Geometry Turbocharger (VGT)

GENERATOR

•Marathon Electric®

oBrushless

o4 pole

oClass H insulation

•Voltage regulation +/- 1% with Marathon SE350 Voltage Regulator

SYSTEM OUTPUT

•3 selector switch modes:

oSingle phase – 120 / 240V Zig Zag

oThree phase – 120 / 208V Low Wye

oThree phase – 277 / 480V High Wye

MMG130 Specifications Continued:

Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.

Phone: 800-926-9768 Fax: 920-361-2214 www.m-p-llc.com Page 2of 5

06/12

•96 kW / 96 kVA – standby, single phase

•90 kW / 90 kVA – prime, single phase

•107 kW / 134 kVA – standby, three phase

•98 kW / 122 kVA – prime, three phase

SYSTEM CONTROLS

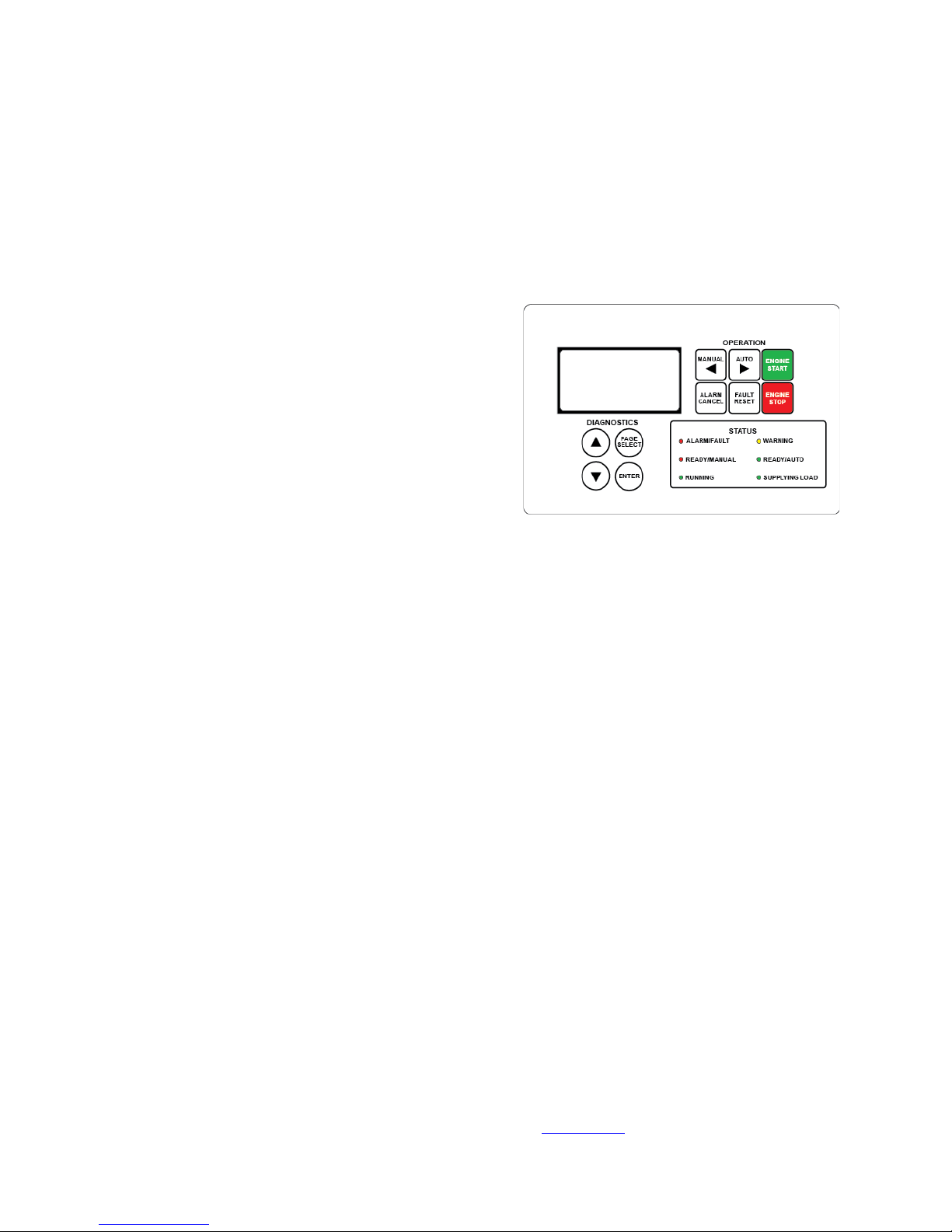

•Microprocessor-based controller

oBacklit, 128x64 pixel resolution display

o-40°F to 185°F operating

temperature range

oThermostatically controlled LCD

heater

oSix LED indicators w/ lamp test

♦Alarm / Fault (Red)

♦Ready / Manual (Red)

♦Running (Green)

♦Warning (Yellow)

♦Ready / Auto (Green)

♦Supplying Load (Green)

•Push buttons for easy operation

oManual or Auto Start

oEngine Start or Stop

oAlarm Cancel & Fault Reset

oScrolling Arrows for Diagnostic Information

♦System kW output display

♦Line output & frequency display

♦Engine diagnostic display

•Oil pressure

•Engine temperature

•Fuel level

•Battery

♦System hours

•Running hours

•kW hours

•Time to service

oAlarm list – warnings / shutdowns are date & time stamped

♦Fuel level: warning – 15%; shutdown – 5%

♦Overspeed protection: shutdown – 115%

♦Oil pressure: warning – 25 psi; shutdown – 20 psi

♦Coolant temperature: warning – 220°F; shutdown – 230°F

♦Battery voltage: over – 15VDC; under – 11VDC

♦Generator over voltage: warning – 110%; shutdown – 111%

♦Generator under voltage: warning – 87%; shutdown – 86%

♦Generator over frequency: warning – 105%; shutdown – 110%

♦Generator under frequency: warning – 95%; shutdown – 90%

♦Over current shutdown

MMG130 Specifications Continued:

Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.

Phone: 800-926-9768 Fax: 920-361-2214 www.m-p-llc.com Page 3of 5

06/12

ELECTRICAL CONTROLS

•Remote start / stop contacts located next to lug box

•Lockable control box door with diagnostics window

•Lockable lug box with safety switch

oTrips main breaker when lug door is opened

oDisables voltage regulator

•Cable entry guides to the lug box

oRestricts access of foreign objects

•Output ground connection lug inside lug box

•Convenience receptacles with individual breakers (restricted use in high wye mode)

o(2) 120V 20 Amp GFCI duplex outlets (Nema 5-20R type)

o(3) 125 / 250V 50 Amp, 3 pole, 4 wire twistlock (Non-Nema 6369)

•Panel mounted rheostat for voltage adjustment - +/- 10%

•1000 CCA wet cell battery

ENCLOSURE

•Generac Mobile Power decals

•Aluminum, sound attenuated enclosure

oUV & fade resistant, high temperature cured, white polyester powder paint

oInsulated and baffled

o68 dB(A) at 23 feet – prime power

•Fully lockable enclosure including doors and fuel fill

•Stainless steel hinges on doors

•Emergency stop switch located on outside of enclosure

•Central lifting point

•Multi-lingual operating/safety decals

•Document holder with operating manual including AC/DC wiring diagrams

TRAILER

•DOT approved tail, side, brake, and directional lights

oRecessed rear lights

•Transportation tie downs

•Safety chains with spring loaded safety hooks

•3” lunette ring hitch

•(2) 6000 lb. axles with surge brakes

•5000 lb. tongue jack with footplate

•7.50x16E-6-W tubeless tires – 10 ply

WEIGHTS & DIMENSIONS

Skid mounted

•Dry weight: 5444 lbs (2469 kg)

•Operating weight: 7929 lbs (3596 kg)

•144 x 50 x 77 in

(3.66 x 1.27 x 1.95 m)

MMG130 Specifications Continued:

Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.

Phone: 800-926-9768 Fax: 920-361-2214 www.m-p-llc.com Page 4of 5

06/12

Trailer mounted

•Dry weight: 6840 lbs (3102 kg)

•Operating weight: 9325 lbs (4230 kg)

•210 x 86 x 93 in

(5.33 x 2.18 x 2.36 m)

WARRANTY

•Engine and generator covered under OEM warranty – consult factory for details.

CERTIFICATIONS

•CSA pending

MMG130 Options

ENGINE OPTIONS

♦In-line engine block heater (Kim Hotstart)

♦Fuel transfer pump

ELECTRICAL CONTROLS OPTIONS

♦Battery disconnect

♦Battery charger – 2A trickle

GENERATOR OPTIONS

♦Super Start Generator - motor starting applications

VOLTAGE OUTPUT OPTIONS

♦4 position phase switch

Single phase – 120 / 240V Zig Zag

Three phase – 120 / 208V Low Wye

Three phase – 277 / 480V High Wye

Three phase – 120 / 240V Delta

♦Dedicated voltage configurations

♦Buck Transformer kit - Provides 120V at GFCI outlets when in 277/480V

♦Cam locks

SYSTEM CONTROLS OPTIONS

♦Auxiliary strobe/audible indication for soft & hard alarm conditions

COOLANT OPTIONS

♦60/40 Coolant - cold weather applications

MMG130 Specifications Continued:

Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.

Phone: 800-926-9768 Fax: 920-361-2214 www.m-p-llc.com Page 5of 5

06/12

ENCLOSURE OPTIONS

♦Fire extinguisher

♦Interior cabinet light

♦Control panel light

FUEL TANK OPTIONS

♦36 hr. single wall fuel tank

♦23 hr. double wall fuel tank

♦120% Containment

TRAILER OPTIONS

♦Tandem axle trailer w/ electric brakes

♦6 pin or 7 spade electrical connectors

♦Spare tire/wheel kit

HITCH OPTIONS

♦2 5/16” ball
