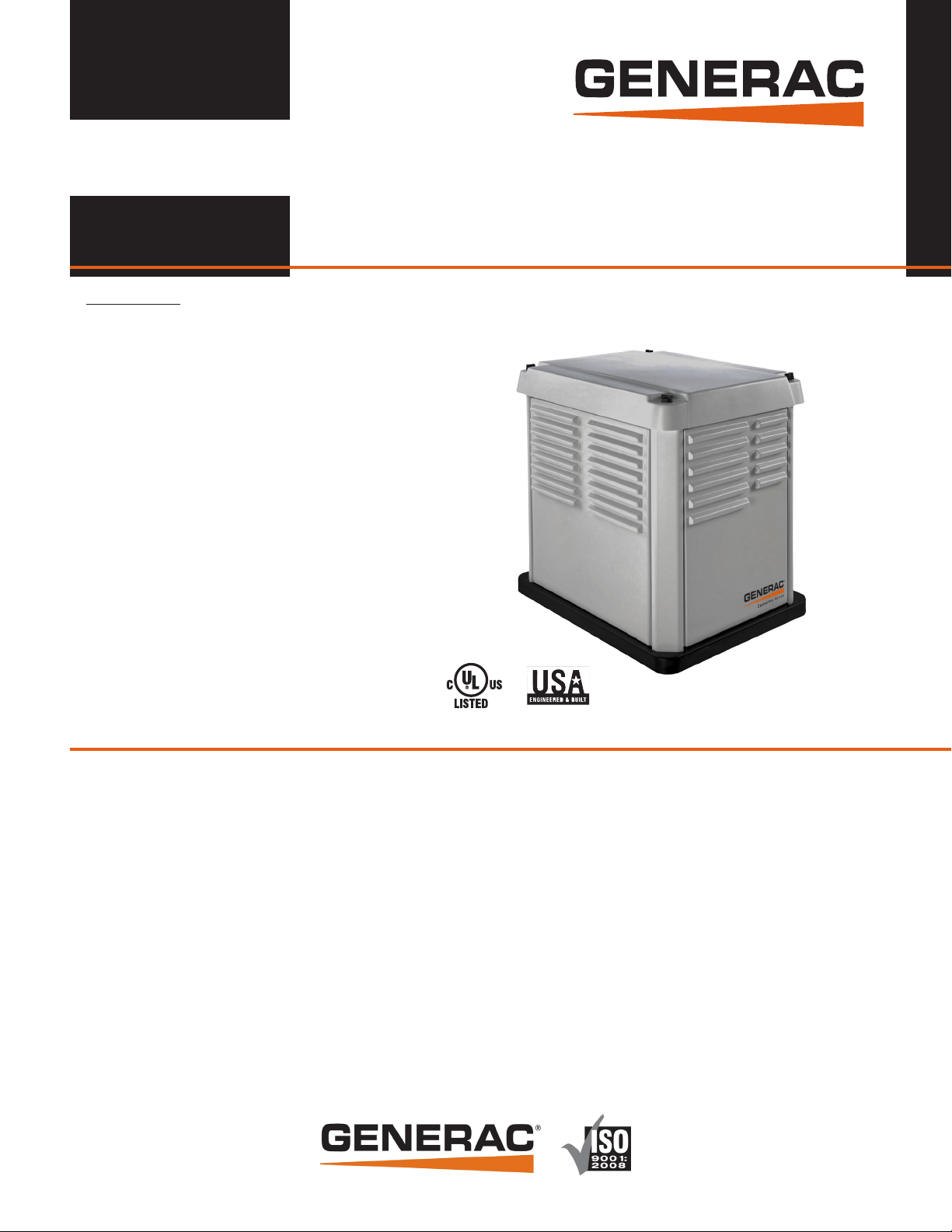

Standby Power Rating

Model 005888-0 (Composite Polymer - Bisque) - 7 kW 60Hz

¡INNOVATIVE DESIGN & PROTOTYPE TESTING are key components of

GENERAC’S success in “IMPROVING POWER BY DESIGN.” But it

doesn’t stop there. Total commitment to component testing, reliability

testing, environmental testing, destruction and life testing, plus testing

to applicable CSA, NEMA, EGSA, and other standards, allows you to

choose GENERAC POWER SYSTEMS with the confidence that these

systems will provide superior performance.

:Offers an extreme value for those who desire automatic backup power at

the most affordable price.

¡TEST CRITERIA:

PROTOTYPE TESTED NEMA MG1-22 EVALUATION

SYSTEM TORSIONAL TESTED MOTOR STARTING ABILITY

¡SOLID-STATE, FREQUENCY COMPENSATED VOLTAGE REGULATION.

This state-of-the-art power maximizing regulation system is standard on

all Generac models. It provides optimized FAST RESPONSE to changing

load conditions and MAXIMUM MOTOR STARTING CAPABILITY by

electronically torque-matching the surge loads to the engine.

¡SINGLE SOURCE SERVICE RESPONSE from Generac’s dealer network

provides parts and service know-how for the entire unit, from the engine

to the smallest electronic component.

¡GENERAC TRANSFER SWITCHES. Long life and reliability are

synonymous with GENERAC POWER SYSTEMS. One reason for this

confidence is that the GENERAC product line includes its own transfer

systems and controls for total system compatibility.

FEATURES

CENTURION®SERIES

ES Standby Generator System

Air-Cooled Gas Engine

7kW

INCLUDES:

• Digital LED Controller

• Automatic Transfer Switch

with Built-In Priority Load Center

• Composite All Weather Enclosure

• Sound Attenuated Enclosure

• External Main Circuit Breaker

• Flexible Fuel Line Connector

• Composite Mounting Pad

• Natural Gas or LP Gas Operation

• 2 Year Limited Warranty

• UL 2200 Listed

2 of 5

ES Standby Generator System - 7 kW features and benefits

Engine

•Generac OHV engine A durable, reliable powertrain for maximum power output.

•Cast iron cylinder walls Rigid construction and added durability provide long engine life.

•Electronic ignition/spark advance These features combine to assure smooth, quick starting every time.

•Pressurized filtration system Better performance, less maintenance and significantly longer engine life.

•Low oil pressure shutdown system Shutdown protection prevents catastrophic engine damage due to low oil.

•High temperature shutdown Prevents damage due to overheating.

•Spin-on automotive type oil filter Captures and collects harmful impurities with easy serviceability.

Generator

•Revolving field

Allows for a smaller, light weight unit that operates 25% more efficiently than a revolving armature generator.

•Displaced phase excitation

Maximizes motor starting capability.

•Automatic voltage regulation Regulates the output voltage to ±5% prevents damaging voltage spikes.

•UL 2200 listed For your safety.

Transfer Switch

•Fully automatic Transfers your vital electrical loads to the energized source of power.

•Remote mounting Mounts near your existing distribution panel for simple, low cost installation.

•Flush mountable Can be installed between studs like a standard electrical panel.

•UL listed For your safety.

Controls

•Auto/Off/Manual switch Selects the operating mode.

•Utility voltage sensing Constantly monitors utility voltage, setpoints 60% dropout, 80% pick-up, of standard voltage.

•Utility interrupt delay Prevents nuisance start-ups of the engine, adjustable 10-30 seconds.

•Engine warm-up Ensures engine is ready to assume the load, setpoint approximately 5 seconds.

•Engine cool-down Allows engine to cool prior to shutdown, setpoint approximately 1 minute.

•Seven day exerciser Operates engine to prevent oil seal drying and damage between power outages.

•Timed Trickle Battery charger Maintains battery charge level to ensure starting.

•Main line circuit breaker Protects generator from overload.

Unit

•Weather protective enclosure Ensures protection against mother nature. Tool-less removal of roof and sides. Three lift-out panels for easy access

to all routine maintenance items. Composite polymer enclosure will not rust and is ideal for harsh and coastal

installations.

•Enclosed critical grade muffler Quiet, critical grade muffler is mounted inside the unit to prevent injuries.

•Small, compact, attractive Makes for an easy, eye appealing installation.

•SAE Sound attenuated enclosure ensures quiet operation.

Installation System

•1ft. (305mm) flexible fuel line connector Easy installation.

7kW

3 of 5

**Sound levels are taken from the front of the generator. Sound levels taken from other sides of the generator may be higher depending on installation parameters. Rating definitions - Standby: Applicable

for supplying emergency power for the duration of the utility power outage. No overload capability is available for this rating. (All ratings in accordance with BS5514, ISO3046 and DIN6271). * Maximum

wattage and current are subject to and limited by such factors as fuel Btu/megajoule content, ambient temperature, altitude, engine power and condition, etc. Maximum power decreases about 3.5 percent for

each 1,000 feet (304.8 meters) above sea level; and also will decrease about 1 percent for each 6° C (10° F) above 16° C (60°F).

Generator

Model 005888-0

Rated Maximum Continuous Power Capacity (LP) 7,000 Watts*

Rated Maximum Continuous Power Capacity (NG) 6,000 Watts*

Rated Voltage 240

Rated Maximum Continuous Load Current – 240 Volts 29.2 / 25

Main Line Circuit Breaker 30 Amp

Phase 1

Number of Rotor Poles 2

Rated AC Frequency 60Hz

Power Factor 1.0

Battery Requirement (not included) Group 26R, 12 Volts and 525 CCA Minimum

Unit Weight (Pounds/Kilos) 250/113.4

Dimensions (L x W x H) in./mm 24.4 x 30.2 x 33/618.5 x 767.5 x 837

Sound output in dB(A) at 23 ft. (7m) with generator operating at normal load** 67

Engine

Type of Engine GENERAC OHV

Number of Cylinders 1

Displacement 432cc

Cylinder Block Aluminum w/Cast Iron Sleeve

Valve Arrangement Overhead Valve

Ignition System Solid-state w/Magneto

Governor System Mechanical

Starter 12 VDC

Oil Capacity Including Filter Approx. 1.1 Qts./1.0L

Operating RPM 3,600

Fuel Consumption

Natural Gas ft³/hr (m³/hr)

1/2 Load

Full Load

Liquid Propane ft3/hr (gal/hr) [Liters/hr]

1/2 Load

Full Load

85 (2.41)

148 (4.19)

36 (0.99) [3.75]

46 (1.26) [4.79]

Note: Fuel pipe must be sized for full load. Required fuel pressure to generator fuel inlet at all load ranges - 5-7" water column (9-13mm mercury) for natural gas, 10-12" water column (19-22mm

mercury) for LP gas.

For Btu content, multiply ft3/hr x 2500 (LP) or ft3/hr x 1000 (NG)

For Megajoule content, multiply m³/hr x 93.15 (LP) or m³/hr x 37.26 (NG)

Controls

Digital LED Indicators Simple user interface for ease of operation.

Mode Switch: Auto Automatic Start on Utility failure. 7 day exerciser.

Off Stops unit. Power is removed. Control and charger still operate.

Manual/Test (start) Start with starter control, unit stays on. If utility fails, transfer to load takes place.

Engine Start Sequence Cyclic cranking: 16 sec. on, 7 rest (90 sec. maximum duration)

Engine Warm-up 5 sec.

Engine Cool-Down 1 min.

Starter Lock-out Starter cannot re-engage until 5 sec. after engine has stopped.

2.5 Amp Timed Trickle Battery Charger Standard

Automatic Voltage Regulator w/Overvoltage Protection Standard

Automatic Low Oil Pressure Shutdown Standard

Overspeed Shutdown Standard, 72Hz

High Temperature Shutdown Standard

Overcrank Protection Standard

Safety Fused Standard

ES Standby Generator System - 7 kW specifications

7kW

4 of 5

7kW

ES Standby Generator System - 7 kW features and benefits

Model 005888-0

No. of Poles 2

Current Rating (Amps) 50

Voltage 120/240 1Ø

Utility Voltage Monitor (Fixed)*

-Pick-up

-Dropout

80%

60%

Return to Utility* approx. 15 sec.

Exercise weekly for 12 minutes* Standard

UL Listed Standard

Total of Pre-wired Circuits

No. 15A 120V

No. 20A 120V

No. 20A 240V

No. 30A 240V

No. 40A 240V

No. 50A 240V

Circuit Breaker Protected

Available RMS Symmetrical

Fault Current @ 250 Volts 10,000

Weight (Pounds/Kilos) 25/11.3

Transfer Switch Features

• Electrically operated, mechanically-held

contacts for fast, positive connections.

• Rated for all classes of load, 100%

equipment rated, both inductive and

resistive.

• 2 pole, 250 VAC contactors.

• 160 millisecond transfer time.

• NEMA 1 (indoor rated) enclosure is standard.

• Flush mountable.

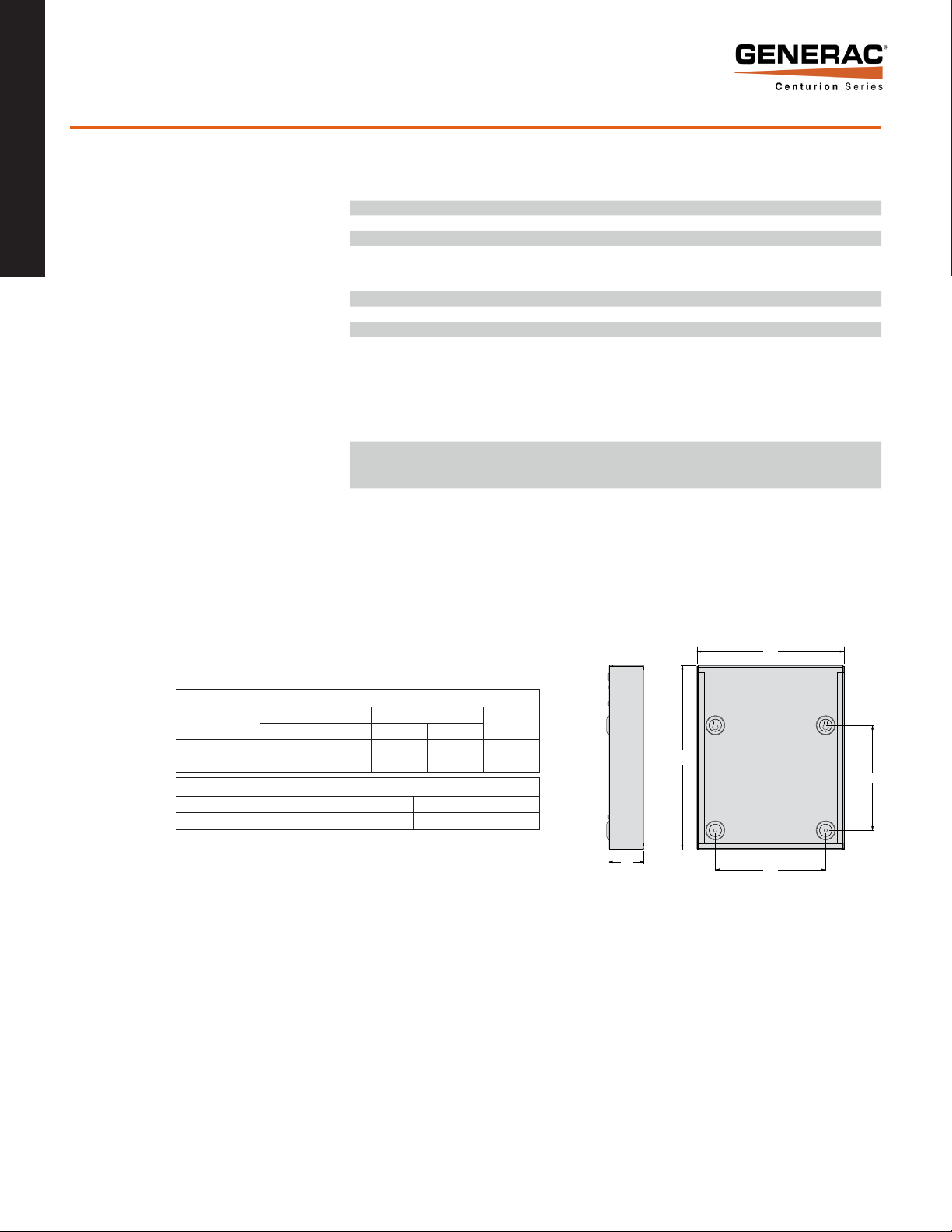

Dimensions Mechanical Dimensions (in inches/mm)

Amps Height Width Depth

H1 H2 W1 W2

50 18.5 in 23 in 10.5 in 15.38 in 3.4 in

470 mm 584 mm 267 mm 391 mm 86 mm

Wire Ranges

Amps Neutral Lug Ground Lug

50 2/0 - #14 2/0 - #14

*Function of Controller

5 of 5

Generac Power Systems, Inc. • S45 W29290 HWY. 59, Waukesha, WI 53189 • centuriongenerators.com

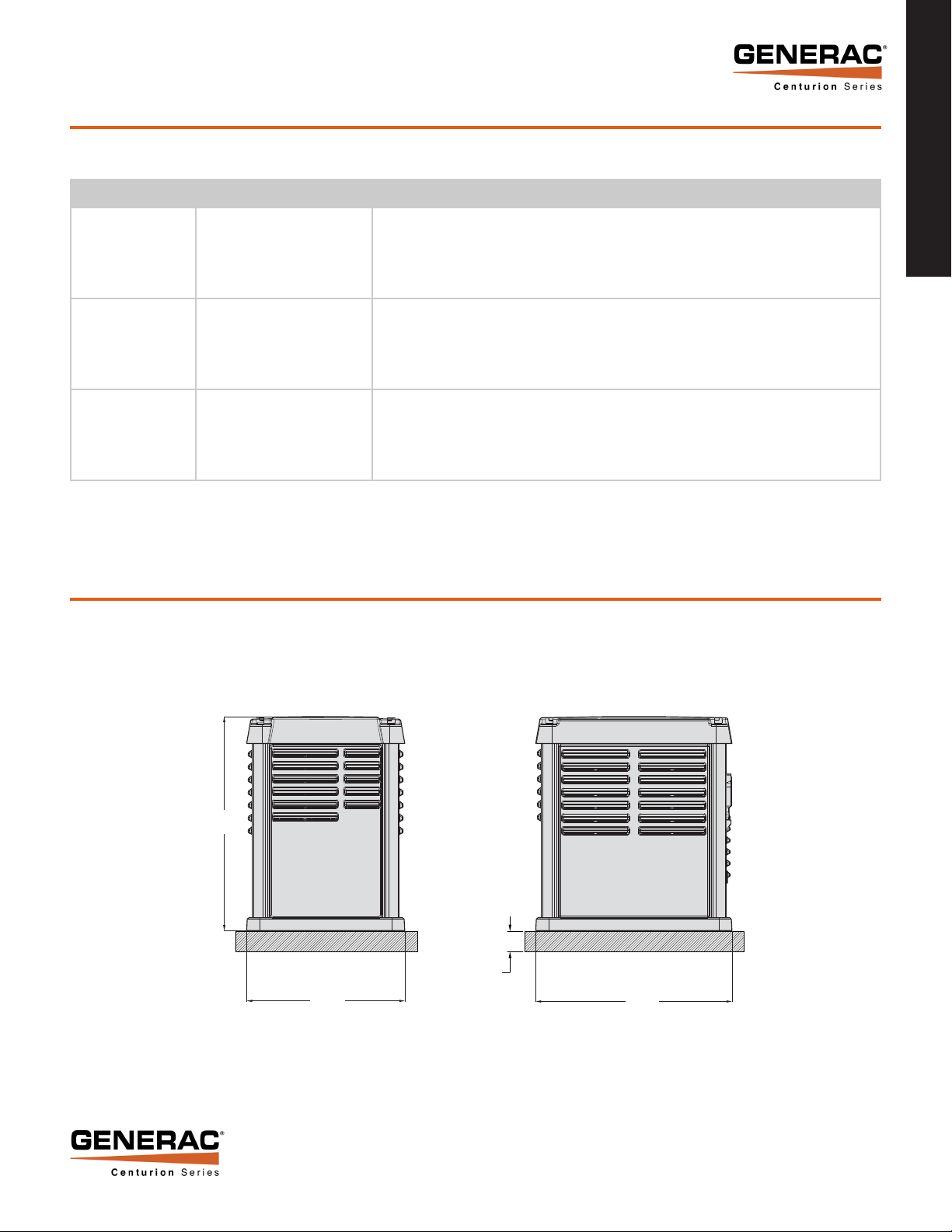

Model # Product Description

005819-0 26R Wet Cell Battery Every standby generator requires a battery to start the system. Generac offers the

recommended 26R wet cell battery for use with all air-cooled standby product.

005865-0 Cold Weather Kit The CorePower cold weather kit is recommended for CorePower units installed in

regions where the temperature regularly falls below 32°F (0°C).

006003-0 Scheduled Maintenance Kit Generac's scheduled maintenance kits provide all the hardware necessary to

perform complete routine maintenance on a Generac automatic standby generator.

ES Standby Generator System - 7 kW available accessories

dimensions

7kW

Design and specifications subject to change without notice. Dimensions shown are approximate. Contact your Generac dealer for certified drawings. DO NOT USE THESE DIMENSIONS FOR INSTALLATION PURPOSES.

RIGHT SIDE VIEW

767.5mm

[30.22 in.]

618.5mm

[24.35 in.]

837mm

[32.95 in.]

FRONT VIEW

76.2mm [3.0 in.]

PEA GRAVEL

MINIMUM
