Generac Power Systems SG050 Manuel utilisateur

This manual should remain with the unit.

Owner’s Manual

Stationary Standby/Emergency Generator

Industrial Standalone Gas or Diesel

LISTED

CUS

Engine: G6.8.1

Type: SG050

Model: 15113410300

Notes

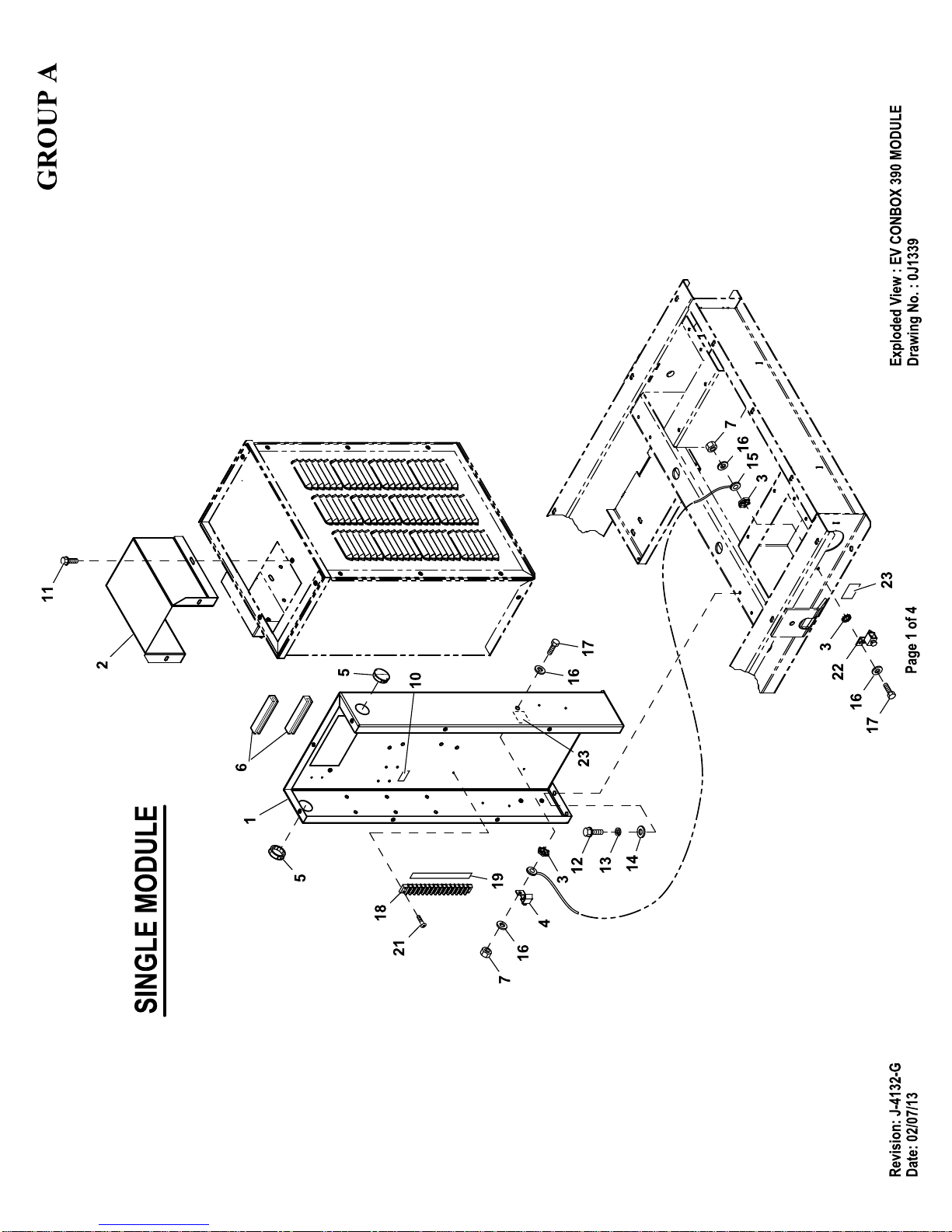

EXPLODED VIEW: EV CONBOX 390 MODULE

DRAWING #: 0J1339 GROUP A

APPLICABLE TO:

REVISION: J-4132-G Page 3 of 4

DATE: 02/07/13

ITEM PART# TY. DESCRIPTION

(1)1 0H95790ST0R 1 MD1 / MD2 CB MODULE 390 ALT

(1)2 0J17560ST0R 1 WIRE TUNNEL, MD1-2 390 ALT

3 0A 56 3 WASHER LOCK SPECIAL 3/8

061383 1 LUG SLDLSS 3/0-# X 13/32 CU

5 0E153 A 2 PLUG PLASTIC 1.50"

6 056326 2 TRIM VINYL BLACK 1/8GP (7.1”LG)

7 0 5772 1 NUT HEX M10-1.5 G8 YEL CHR

10 0A9 57A 1 DECAL NEUTRAL

11 0C2 5 SCREW HWHT M6-1 X 16 N WA Z/JS

12 02 526 SCREW HHTT 5/16-18 X 3/ CZ

13 022129 WASHER LOCK M8-5/16

1 0221 5 WASHER FLAT 5/16-M8 ZINC

15 0 11 0781 1 WIRE ASM, GND 2/0 WIRE 3/8 LUG

16 022131 WASHER FLAT 3/8-M10 ZINC

17 0 95 1 2 SCREW HHC M10-1.5 X 35 C8.8

( )(3)(2)18 0J0 55 REF BLOCK, TERM 1 POS X 8 X 1600V

( )(3)(2)19 0J9078 REF DECAL TB HV CUSTOMER CONN

( )(3)(2)21 0J5 62 REF SCREW THTT M -0.7 X 16 ZP

22 061383 1 LUG SLDLSS 3/0-# X 13/32 CU

23 0G8785A 2 DECAL GROUNDING ELECTRODE

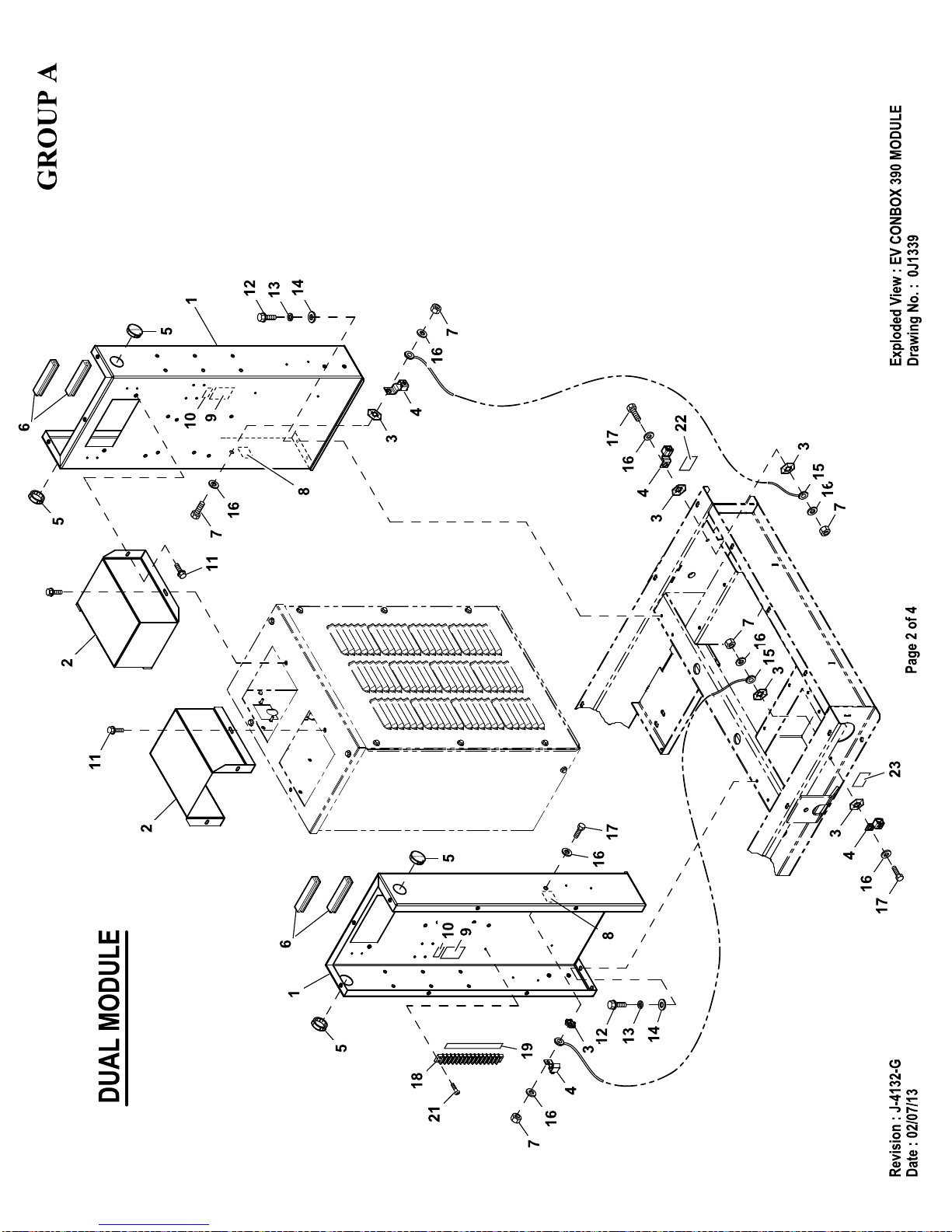

DUAL MODULE

(1)1 0H95790ST0R 2 MD1 / MD2 CB MODULE 390 ALT

(1)2 0J17560ST0R 2 WIRE TUNNEL, MD1-2 390 ALT

3 0A 56 6 WASHER LOCK SPECIAL 3/8

061383 LUG SLDLSS 3/0-# X 13/32 CU

5 0E153 A PLUG PLASTIC 1.50"

6 056326 TRIM VINYL BLACK 1/8GP (7.1”LG)

7 0 5772 2 NUT HEX M10-1.5 G8 YEL CHR

8 067210A 2 DECAL GROUND LUG

9 0H8006 2 DECAL CAUTION ELEC SHOCK SM

10 0A9 57 2 DECAL NEUTRAL

11 0C2 5 8 SCREW HWHT M6-1 X 16 N WA Z/JS

12 02 526 8 SCREW HHTT 5/16-18 X 3/ CZ

13 022129 8 WASHER LOCK M8-5/16

1 0221 5 8 WASHER FLAT 5/16-M8 ZINC

15 0 11 0781 2 WIRE ASM, GND 2/0 WIRE 3/8 LUG

16 022131 8 WASHER FLAT 3/8-M10 ZINC

17 0 95 1 SCREW HHC M10-1.5 X 35 C8.8

( )(3)(2)18 0J0 55 REF BLOCK, TERM 1 POS X 8 X 1600V

( )(3)(2)19 0J9078 REF DECAL, TB HV CUSTOMER CONN

( )(3)(2)21 0J5 62 REF SCREW THTT M -0.7 X 16 ZP

22 067210A 2 DECAL GROUND LUG

NOTES (UNLESS OTHERWISE SPECIFIED):

(1) SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

• MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM.

• CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR

CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H716 ).

(2) WILL BE INSTALLED ON PRIMARY CB MODULES ONLY. NOT REQUIRED WITH LOAD CENTER.

(3) NOT REQUIRED IF EQUIPPED WITH LOAD CENTER.

( ) NOT REQUIRED IF EQUIPPED WITH 0J159 , KIT BATTERY CHARGER POWER CORD.

EXPLODED VIEW: EV CONBOX 390 MODULE

DRAWING #: 0J1339 GROUP A

APPLICABLE TO:

REVISION: J-4132-G Page 4 of 4

DATE: 02/07/13

This page left blank intentionally

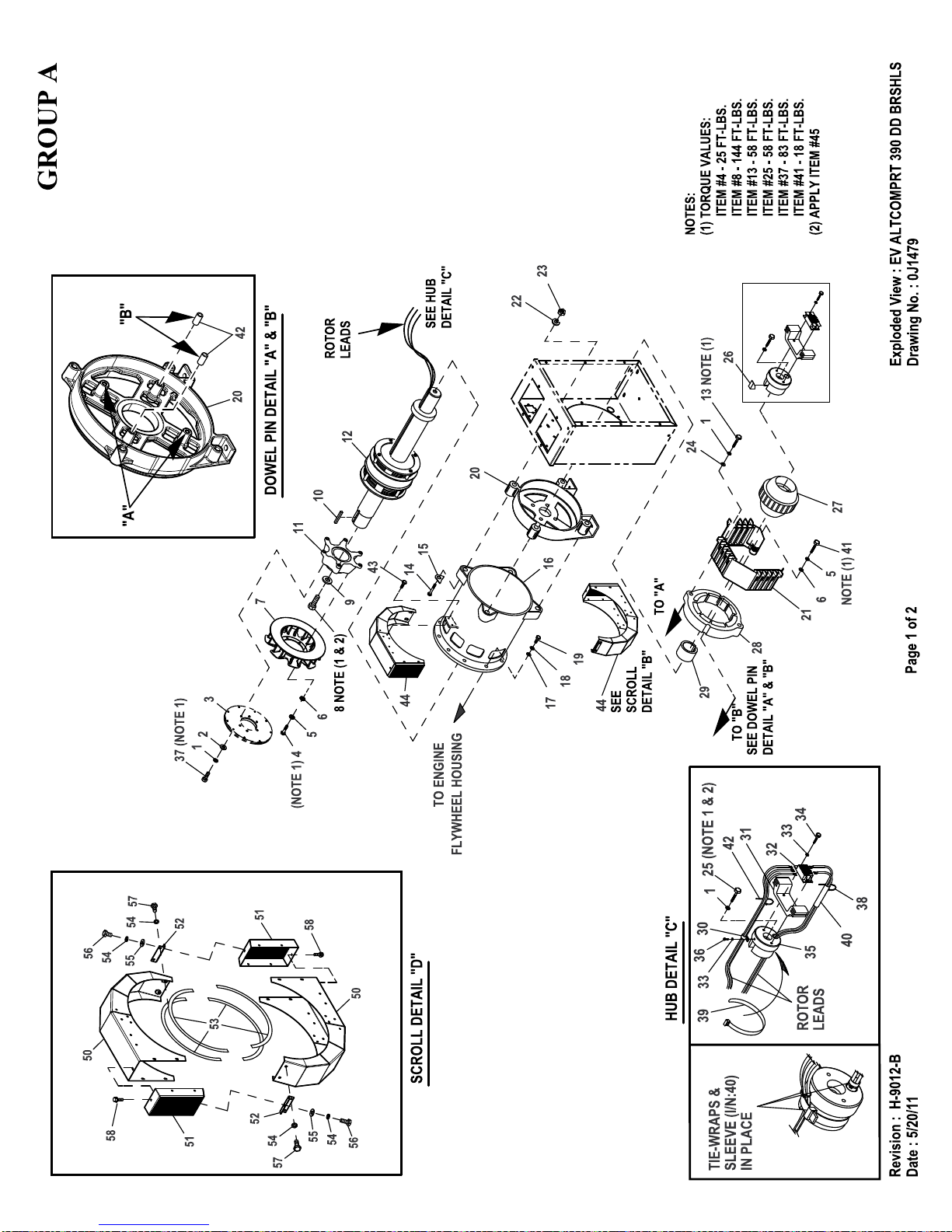

EXPLODED VIEW: 390, BOARD SOLID LEAD TERM BRL

DRAWING #: 0J1479 GROUP A

APPLICABLE TO:

REVISION: H-9012-B Page 2 of 2

DATE: 5/20/11

ITEM PART# TY. DESCRIPTION

1 051769 9 WASHER LOCK M12

2 049808 6 WASHER FLAT M12

3 VARIES REF FLEX PLATE

4 055173 6 SCREW HHC M8-1.25 X 20 G10.9

5 022129 8 WASHER LOCK M8-5 16

6 022145 8 WASHER FLAT 5 16-M8 ZINC

7 0G0724 1 FAN MACHINED 390 SAE ALTERATOR

8 0A2601 1 SCREW HHC M16-2.0 X 45 G8.8

9 0A2602 1 WASHER FLAT .688ID X 3.25OD

10 0A1138 1 KEY SQ 3 8 X 2-1 2 STEEL

11 021941 1 COUPLER 390 SAE

12 VARIES REF ROTOR PER ORDER (SEE BOM)

13 052891 2 SCREW HHC M12-1.75 X 80 C8.8 (1.25” STACK)

068407 2 SCREW HHC M12-1.75 X 90 C10.9 (2.00” STACK)

14 0A5580 4 SCREW HHC M14-2.0 X 140 G8.8

15 0A1633 4 WASHER,390 SAE ALT.

16 VARIES REF STATOR PER ORDER (SEE BOM)

17 022131 12 WASHER FLAT 3 8-M10 ZINC

18 046526 12 WASHER LOCK M10

19 057642 12 SCREW HHC M10-1.5 X 40 G8.8

20 068113 1 CARRIER REAR BRG 15"

21 0H8394A 1 390, BOARD SOLID LEAD TERM BRL

22 043123 4 WASHER LOCK M14

23 051779 4 NUT HEX M14-2.0 G8 YEL CHR

24 022304 2 WASHER FLAT 1 2 ZINC

25 053559 1 SCREW HHC M12-1.75 X 45 C8.8 (1.25” STACK)

068406 1 SCREW HHC M12-1.75 X 60 C10.9 (2.00” STACK)

26 070274 1 KEY SQ 3 8 X 2-3 4 STEEL

27 087271 1 ASSY EXCITER 1.25"STK

087272 1 ASSY EXCITER 2.00" STK

28 068404 1 EXCITER FIELD 1.25 STK

068405 1 EXCITER FIELD 15" 2" LG

29 092950 1 COLLAR SLIP FIT 390 MM

30 020151 1 CLAMP VINYL .312 X .203 Z

31 090063 1 BRIDGE SUPPORT DIODE 15"

32 090152 1 ASSY BRIDGE RECTIFIER

33 023365 3 WASHER SHAKEPROOF INT #8

34 033143 2 SCREW HHM #8-32 X 7 8

35 090064 1 CAP END ROTOR 390MM

36 033133 1 SCREW HHM #8-32 X 3 8

37 063837 6 SCREW HHC M12-1.75 X 30 C10.9

38 028739A 2 TIE WRAP 3.9" X .10" BLK UL

39 085662D 1 TIE WRAP UL 17.7 X .35 BLK HT

40 022661L 1 SLEEVING UL #0 .330 ID

41 042914 2 SCREW HHC M8-1.25 X 90 C8.8 (1.25” STACK)

087712 2 SCREW HHC M8-1.25 X 110 C8.8 (2.00” STACK)

42 0H9157 2 HOLLOW DOWEL PIN, 1 2 X 1-1 4

43 0A2110 2 SCREW SWAGE 1 4-20 X 1 2 Z YC

44 0A4089 1 ASSY SCROLL 390 SAE

45 0A1786 .5CC ADH LOCTITE #8931 AA W S

KIT 0A4089 PARTS

50 0A2491 2 SHROUD ALT SHEET METAL

51 0A2497 2 SCREEN SHROUD SAE

52 0A2496 2 BRKT TENSIONER SAE SCROLL

53 056326 8.4 FT. TRIM VINYL BLACK 1 8GP

54 022097 6 WASHER LOCK M6-1 4

55 022473 6 WASHER FLAT 1 4-M6 ZINC

56 045757 2 SCREW HHC M6-1.0 X 25 G8.8

57 047411 4 SCREW HHC M6-1.0 X 16 G8.8

58 0A2110 12 SCREW SWAGE 1 4-20 X 1 2 Z YC
