Generac Power Systems PWRcell XVT076A03 Instructions d'installation

SAVE THIS MANUAL FOR FUTURE REFERENCE

WWW.GENERAC.COM

1-888-GENERAC

(1-888-436-3722)

https://pwrfleet.generac.com

1-888-GENERAC

(888-436-3722)

Para español, visita: http://www.generac.com/service-support/product-support-lookup

Pour le français, visiter: http://www.generac.com/service-support/product-support-lookup

Installation and Owner’s Manual

Generac PWRcell® Inverters

XVT076A03

XVT114G03

X7602

X11402

009954

(000209b)

WARNING

Loss of life. This product is not intended to

be used in a critical life support application.

Failure to adhere to this warning could result

in death or serious injury.

ii Installation and Owner’s Manual for Generac PWRcell Inverter

Use this page to record important information about your Generac Product

Record the information found on your unit data label on this page. See Serial Number Location.

When contacting an Independent Authorized Service Dealer (IASD) or Generac Customer Service, always supply the complete

model number and serial number of the unit.

Table 1: PWRcell Inverter Important Information

Unit Model Number

Unit Serial Number

Date Purchased

Commissioning Date

(000393a)

WARNING

CANCER AND REPRODUCTIVE HARM

www.P65Warnings.ca.gov.

Installation and Owner’s Manual for Generac PWRcell Inverter iii

Section 1: Safety Rules & General

Information

Introduction ..........................................................1

Read This Manual Thoroughly ....................................1

Safety Rules .........................................................1

How to Obtain Service .................................................1

General Hazards ..................................................2

Electrical Hazards ................................................3

Section 2: General Information

Specifications ......................................................5

Serial Number Location ......................................6

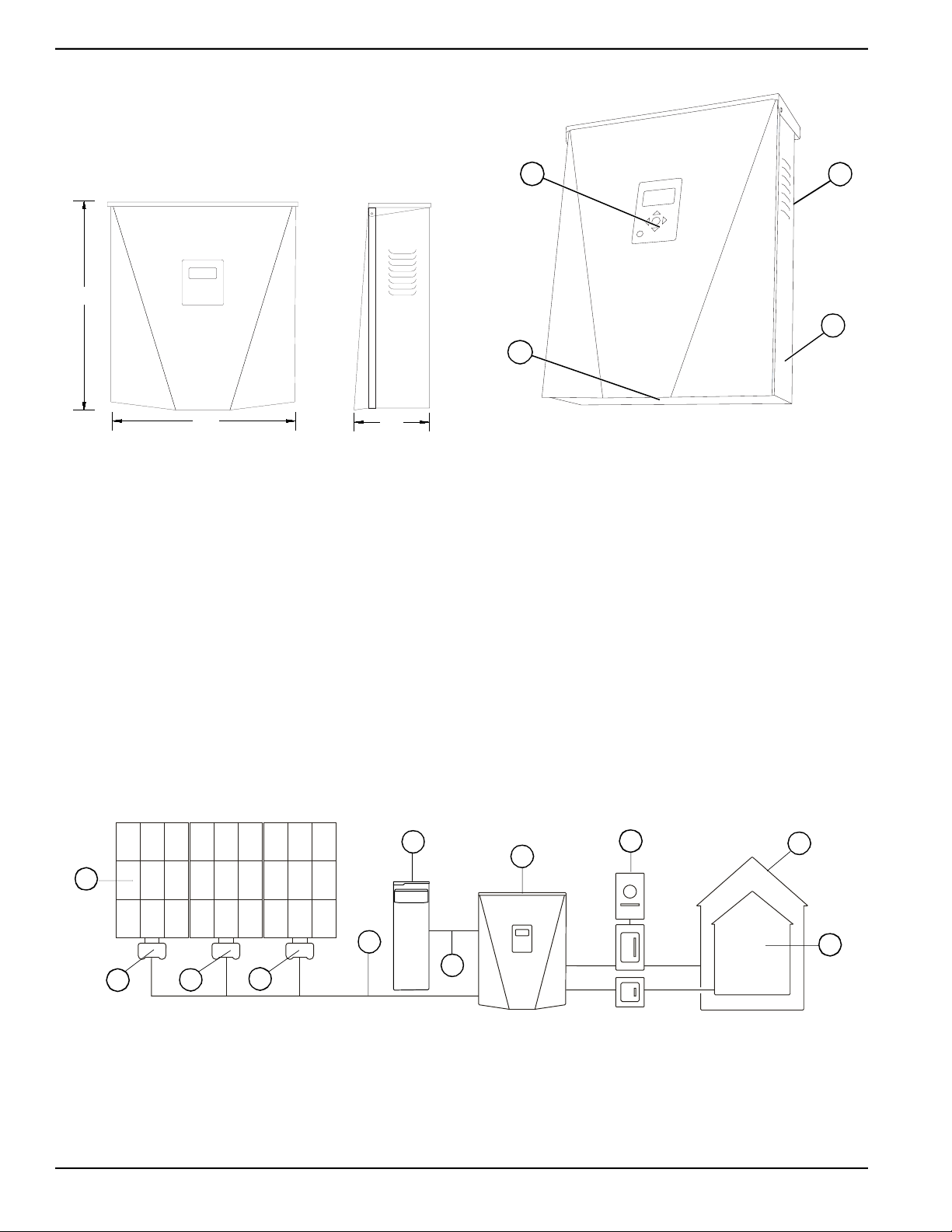

Unit Dimensions .................................................6

Component Locations .........................................6

About PWRcell Inverters .....................................6

Inverter Control Panel .........................................7

REbus Status LED ......................................................7

Inverter LED ................................................................7

Internet LED ................................................................7

Shutdown Mode ...................................................7

Section 3: Location and Compliance

Location ................................................................9

Compliance ..........................................................9

Rapid Shutdown ..................................................9

Voltage and Frequency Trip Thresholds .........10

Voltage Trip Thresholds ............................................10

Frequency Trip Thresholds .......................................10

Section 4: Installing PWRcell Inverter

Mounting Clearances ........................................ 11

Mounting Bracket Dimensions ......................... 11

Mounting the Inverter ........................................ 12

Section 5: Electrical Connections

PWRcell Inverter Wiring Compartment ........... 13

Accessing Wiring Compartment ...................... 14

Wiring Guidelines .............................................. 16

Grounding Bar Wiring ....................................... 16

DC Wiring ........................................................... 17

AC Wiring ........................................................... 17

Protected Loads ................................................ 18

Connecting Ethernet ......................................... 19

Configuring Static IP Settings .......................... 19

Verifying Connectivity ................................................20

Current Transformers (CTs) ............................. 21

Connecting Current Transformers .............................21

Connecting CTs to the Inverter .................................21

Connecting Multiple Sets of CTs ...............................22

Connecting CTs to Multiple PWRcell

Systems / Inverters ...................................................22

CT Calibration ...........................................................22

Other Accessories ............................................. 24

PWRcell ATS .............................................................24

Load Management Options .......................................24

iv Installation and Owner’s Manual for Generac PWRcell Inverter

Section 6: Commissioning

Commissioning the System ..............................25

Connect to High Speed Broadband Internet ...25

Connect PWRcell Inverter to AC Power ..........25

Select Inverter System Mode ............................26

Configure Inverter Settings ..............................26

Configuring Systems with PWRcell Batteries ........... 26

Adjusting Inverter Settings ........................................ 27

Set Export Override (optional) .................................. 28

Adjusting for Peak Shaving ....................................... 28

Enable REbus Devices .....................................28

Test Island Mode ................................................29

Configure Time of Use (optional) .....................29

Configuring and Running a TOU Schedule ............... 29

Enabling Beacon TOU .............................................. 31

Disabling Beacon TOU ............................................. 31

Temporarily Overriding the TOU Scheduler .............. 32

Disabling the TOU Scheduler in Anticipation of a Grid

Outage ...................................................................... 32

Access Installer Configuration Tool

(optional) ............................................................32

How to Access the Installer Configuration Tool ........ 33

Configuring Basic PWRcell Settings ......................... 33

Verifying Inverter Software Version .......................... 34

Set Inverter Grid Compliance (optional) ..........34

Proof of Compliance ................................................. 34

Set Import / Export Compliance (optional) ......35

Commissioning Multiple Inverter Systems .....36

PLM Crosstalk ........................................................... 36

How to identify PLM Crosstalk .................................. 36

Multiple Inverter System Pre-Commissioning

Checklist ................................................................... 36

Multiple Inverter System Commissioning Procedure 36

PLM Crosstalk Recovery Procedure ......................... 37

Section 7: System Operation

General Information .......................................... 39

Operation and User Interface ........................... 39

Home Screen ..................................................... 39

Home Screen Icons ........................................... 39

System Modes Overview .................................. 40

Grid Tie ..................................................................... 40

Clean Backup ........................................................... 40

Priority Backup .......................................................... 41

Self Supply ................................................................ 41

Sell ............................................................................ 42

Island Mode ........................................................ 42

Section 8: Maintenance

Service ................................................................ 43

Accessing Wiring Compartment ...................... 43

Replacing Fuses ................................................ 43

Annual Maintenance ......................................... 44

Inspecting Vents ....................................................... 44

Cleaning Intake Filter ................................................ 44

Section 9: Troubleshooting

General Troubleshooting .................................. 45

Overload Behavior ........................................... 46

Safety Rules & General Information

Installation and Owner’s Manual for Generac PWRCell Inverter 1

Section 1: Safety Rules & General Information

Introduction

Thank you for purchasing a Generac PWRcell® product.

The Generac PWRcell Inverter is a storage-ready

inverter that connects to the PV Link™ optimizers and

PWRcell Batteries to form the Generac PWRcell system.

This manual provides instructions for installing the

PWRcell Inverter, including mounting, wiring, and battery

integration information.

The information in this manual is accurate based on

products produced at the time of publication. The

manufacturer reserves the right to make technical

updates, corrections, and product revisions at any time

without notice.

Read This Manual Thoroughly

If any section of this manual is not understood, contact

the nearest Independent Authorized Service Dealer

(IASD) or Generac Customer Service at 1-888-436-3722

(1-888-GENERAC), or visit www.generac.com for assis-

tance. The owner is responsible for correct maintenance

and safe use of the unit.

This manual must be used in conjunction with all other

supporting product documentation supplied with the

product.

SAVE THESE INSTRUCTIONS for future reference. This

manual contains important instructions that must be fol-

lowed during placement, operation, and maintenance of

the unit and its components. Always supply this manual

to any individual that will use this unit, and instruct them

on how to correctly start, operate, and stop the unit in

case of emergency.

Safety Rules

The manufacturer cannot anticipate every possible

circumstance that might involve a hazard. The alerts in

this manual, and on tags and decals affixed to the unit,

are not all inclusive. If using a procedure, work method,

or operating technique that the manufacturer does not

specifically recommend, verify that it is safe for others

and does not render the equipment unsafe.

Throughout this publication, and on tags and decals

affixed to the unit, DANGER, WARNING, CAUTION, and

NOTE blocks are used to alert personnel to special

instructions about a particular operation that may be

hazardous if performed incorrectly or carelessly. Observe

them carefully. Alert definitions are as follows:

NOTE: Notes contain additional information important to

a procedure and will be found within the regular text of

this manual.

These safety alerts cannot eliminate the hazards that

they indicate. Common sense and strict compliance with

the special instructions while performing the action or

service are essential to preventing accidents.

How to Obtain Service

For assistance, contact the nearest Independent Autho-

rized Service Dealer (IASD) or Generac Customer Ser-

vice at 1-888-436-3722 (1-888-GENERAC), or visit

www.generac.com.

When contacting an IASD or Generac Customer Service,

always supply the complete model and serial number of

the unit as given on its data decal located on the unit.

Record the model and serial numbers in the spaces pro-

vided on the front cover of this manual.

(000100a)

Consult Manual. Read and understand manual

completely before using product. Failure to

completely understand manual and product

could result in death or serious injury.

WARNING

(000001)

DANGER

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

(000002)

WARNING

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

(000003)

CAUTION

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Safety Rules & General Information

2 Installation and Owner’s Manual for Generac PWRCell Inverter

General Hazards

•Connecting the PWRcell Inverter to the electric util-

ity grid must only be done after receiving prior

approval from the utility company.

•If this installation is in Canada, the installation shall

be in accordance with the Canadian Electrical

Code, Part I.

•Only competent, qualified personnel should install,

operate, and service this equipment. Strictly com-

ply to local, state, and national electrical and build-

ing codes. When using this equipment, comply with

regulations established by the National Electrical

Code (NEC), CSA Standard, and the Occupational

Safety and Health Administration (OSHA), or the

local agency for workplace health and safety.

•Protection against lightning surges in accordance

with local electric codes is the responsibility of the

installer.

NOTE: Lightning damage is not covered by warranty.

•Never work on this equipment while physically or

mentally fatigued.

•Any voltage measurements should be performed

with a meter that meets UL3111 safety standards,

and meets or exceeds overvoltage class CAT III.

(000188)

DANGER

Electrocution. Do not wear jewelry while

working on this equipment. Doing so will

result in death or serious injury.

(000191)

DANGER

Automatic start-up. Disconnect utility power and

render unit inoperable before working on unit.

Failure to do so will result in death or serious injury.

(000187)

WARNING

Electrocution. Potentially lethal voltages are generated

by this equipment. Render the equipment safe before

attempting repairs or maintenance. Failure to do so

could result in death or serious injury.

Risk of injury. Do not operate or service this machine

if not fully alert. Fatigue can impair the ability to

operate or service this equipment and could result in

death or serious injury.

(000215a)

WARNING

(000209b)

WARNING

Loss of life. This product is not intended to

be used in a critical life support application.

Failure to adhere to this warning could result

in death or serious injury.

(000640)

WARNING

Equipment damage. Connecting inverter to electric utility

grid must only be done after receiving prior approval

from utility company. Failure to do so could result in

equipment or property damage.

(000155a)

WARNING

Electric shock. Only a trained and licensed electrician

should perform wiring and connections to unit. Failure to

follow proper installation requirements could result in death,

serious injury, and equipment or property damage.

(000182a)

WARNING

Equipment damage. Only qualified service personnel may

install, operate, and maintain this equipment. Failure to

follow proper installation requirements could result in death,

serious injury, and equipment or property damage.

Equipment damage. Connect only to REbus-compatible

devices to the DC bus. Never connect to any other DC

power source. Connecting to other DC power sources

could result in equipment damage. (000598a)

CAUTION

Safety Rules & General Information

Installation and Owner’s Manual for Generac PWRCell Inverter 3

Electrical Hazards

(000104)

DANGER

Electrocution. Water contact with a power

source, if not avoided, will result in death

or serious injury.

(000604)

Electrocution. PWRcell Battery front cover should

be removed by a qualified technician only.

Removing the front cover could result in death,

serious injury, equipment or property damage.

DANGER

(000145)

DANGER

Electrocution. In the event of electrical accident,

immediately shut power OFF. Use non-conductive

implements to free victim from live conductor. Apply

first aid and get medical help. Failure to do so will

result in death or serious injury.

(000599)

Electrocution. Turn battery disconnect OFF and

de-energize REbus before touching terminals.

Failure to do so will result in death, serious injury,

equipment and property damage.

DANGER

(000152)

DANGER

Electrocution. Verify electrical system is

properly grounded before applying power.

Failure to do so will result in death or serious

injury.

Safety Rules & General Information

4 Installation and Owner’s Manual for Generac PWRCell Inverter

This page intentionally left blank.

Installation and Owner’s Manual for Generac PWRcell Inverter 5

General Information

Section 2: General Information

Specifications

Description Units XVT076A03

X7602

XVT114G03

X11402

Max. cont. grid-tied AC power @ 122°F (50ºC) kW 7.6 11.4

Max. cont. AC power in island mode without an external transfer

switch1kW 7.6 7.6*

Max. cont. AC power in island mode w/ external transfer switch and

single 6 module battery cabinet2kW 9.0 --

Max. cont. AC power in island mode w/ external transfer switch and 2

battery cabinets (8 modules minimum)2kW 11.0 --

Peak motor starting current (2 sec) A rms 50

Normal output frequency AC Hz 60

Grid Voltage Line to Neutral (L-N) VAC 120

Grid Voltage Line to Line (L-L) VAC 240 208

Peak efficiency % 97.3 97.7

Optimal split phase imbalance for max. system performance % ≤ 30

Maximum Current Unbalance % -- 0.14

CEC weighted efficiency % 96.5 97.5

AC terminals wire size AWG 14 to 6

DC terminals wire size AWG 18 to 6

STOP terminals wire size AWG 30 to 14

Weight lb (kg) 70.9 (32.1)

Thermal management – forced convection

Weatherization rating – NEMA Type 3R

Enclosure Material – powder-coated steel

Description Units Min Nominal Max

REbus voltage V dc 360 380 420

REbus current A dc 30†

REbus input short circuit current3A dc 30

Max input circuit backfeed current (fault condition) A dc 0

Output power factor rating AC (25%, 50%, 100% of rated power) - 0.96 0.98 0.99

Operating voltage range AC, XVT076A03 / X7602 (L-N) V rms 106 120 132

Operating voltage range AC, XVT076A03 / X7602 (L-L) V rms 212 240 264

Operating voltage range AC, XVT114G03 / X11402 (L-N) V rms 106 120 132

Operating output voltage range AC, XVT114G03 / X11402 (L-L) V rms 184 208 228

Continuous output current AC grid-tied A rms 32

PCS controlled current grid-tied A rms 32

Continuous output current AC islanded1A rms 45

Synchronization Inrush Current A rms/p-p 32.1 / 94.83

Output fault current duration A / ms 50 / 2,000

Protected Loads output overcurrent protection A 50

Full Power operating ambient temperature range4 °F (°C) -4 (-20) +122 (+50)

Utility interconnection voltage and frequency trip limits and trip times

See Voltage and Frequency Trip Thresholds

for more information.

Trip voltage and frequency limits

Trip voltage accuracy

Trip time accuracy % 2% +/- 2 cycles

1 In Island Mode, continuous current output is restricted to 32 A unless backup power is routed through an external transfer switch.

2 Peak performance, values provided for 104º F (40º C)

3 Rating for one DC input. Four total.

4 Includes ambient temperature rising from inverter operation.

* In Island mode XVT114G03 produces only 2 phases 120 VAC L-N, 208 L-L which results in lower power than in grid-tied 3 phase mode. The

low value of the range is for full L-L loading while high value of the range is full L-N loading.

†Inverter limits its REbus current to adhere to its AC power rating. Total REbus current capability from multiple REbus sources may safely

exceed this value as the inverter safely limits the amount utilized.

6 Installation and Owner’s Manual for Generac PWRcell Inverter

General Information

Serial Number Location

Refer to Figure 2-2 to locate unit serial number (D).

Record the information from this tag in Table 1: PWRcell

Inverter Important Information on the inside front cover

of this manual.

Unit Dimensions

Figure 2-1. Unit Dimension

Component Locations

Figure 2-2. Component Locations

About PWRcell Inverters

The PWRcell Inverter connects to PV Link™ optimizers and PWRcell Batteries to form the PWRcell system for grid-

interactive solar-plus-storage. Upon the loss of grid power, PWRcell Inverters disconnect from the grid and provide AC

power to support protected loads when configured to do so. This capability is referred to as islanding. For more

information, see Island Mode in Section 6.

PWRcell Inverters use the REbus™ 380VDC nanogrid to connect to DC-coupled PWRcell devices. The REbus

nanogrid automates the flow of power to enable plug-and-play setup and operation of PWRcell equipment. For more

information about REbus, visit www.generac.com. In Figure 2-3 PWRcell Inverter (E) is directly connected to PV Link

optimizers (B) and PWRcell Battery (C) on DC (REbus) lines (D). To the right of the inverter are AC lines: 120/240 VAC

or 208 VAC for grid and home loads (G) and protected loads (H).

Figure 2-3. Generac PWRcell System Example
