Genaray SSL-36B Manuel utilisateur
USER MANUAL
SSL-36B
36 IN. SOFT STRIP BI-COLOR LED
2SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL
THANK YOU FOR CHOOSING GENARAY
The Genaray SSL-36B is a strip LED with a unique form factor that provides
even illumination along its entire 36-inch length. In the studio, it’s perfect for
lighting full-length portraits, and it excels as a hair or accent light for group
shots. The bright LED array has an integrated diffuser for a soft wraparound,
single-shadow beam. The xture is constructed with full-length barndoors
that can cut the beam to a very narrow strip, which gives precise control over
light and shadow on subjects or backgrounds.
The SSL-36B runs on AC or battery power. Power output is controlled by
a digital control box that adjusts output level in 1% increments for precise
brightness control. Passive, fanless cooling means this light won't create fan
noise that can disrupt a video shoot.
SSL-36B
INTRODUCTION
3
SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL
PRECAUTIONS
· Please read and follow these
instructions, and keep this manual in
a safe place.
· Keep this unit away from water and
any ammable gases or liquids.
· Make sure the unit is powered off
when plugging it into a power source.
· Use only the correct, recommended
voltage.
· Do not attempt to disassemble or
repair the equipment—doing so will
void the warranty, and Genaray will
not be responsible for any damage.
· Handle the unit with care.
· Do not stare directly at the lights
when they are powered on.
· Clean the unit with only a soft, dry
cloth.
· Keep this unit away from children.
· Use only parts provided by the
manufacturer.
· Make sure the item is intact and that
there are no missing parts.
· All images are for illustrative
purposes only.
PRECAUTIONS
4SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL
PRODUCT
OVERVIEW
AC adapter Two-way 5/8 in.
receiver
Lollipop
mount
Ratchet handle
Locking knob
Mounting
pins
FRONT BACK
Power input cableBarndoorsMounting plateDiffuser
Carrying case
V-mount strap
AC power
cable 3-pin XLR cable
5
SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL
PRODUCT OVERVIEW
V-mount battery slot
Battery
release
button
Battery contacts
Power output cable 3-pin XLR input
Hanger
loop
Antenna
port
Antenna
D-tap
power
socket
Brightness up/down controls
Battery power indicator
Brightness indicator
3-way power
switch
Dimmer control box
Color temperature up/down
controls
Channel selector
Color temperature
indicator
Channel indicator
6SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL
INSTRUCTIONS
ALSO INCLUDED MOUNTING THE
SSL-36B
· Light xture
· Dimmer control box with V-mount
· AC adapter
· Power cable
· Lollipop mount
· V-mount strap
· Antenna
· Carry case
2 3

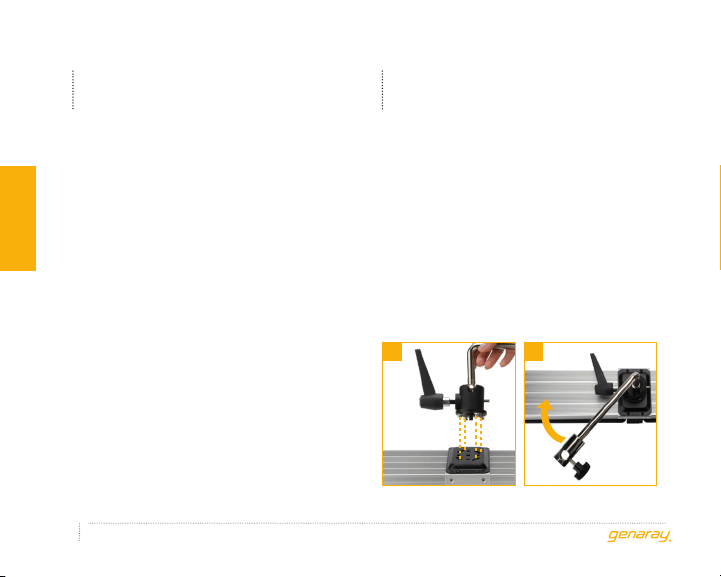

Attaching the Lollipop Mount
1. Close the barndoors, and place the light
facedown on a at surface.
2. Align the lollipop mount with the
mounting plate, and insert the pins into
the mounting plate holes.
3. Make sure the lollipop mount is ush with
the mounting plate, and rotate the lollipop
mount a quarter-turn clockwise until it
clicks into place.
7
SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL
INSTRUCTOONS
Attaching the Lollipop Mount
(continued)
To remove the lollipop mount, press up on
the release button, turn the lollipop mount a
quarter turn counterclockwise, and lift it off
the mounting plate.
3 4
Mounting the SSL-36B to a Light Stand
1. Make sure the ratchet handle is tightened
before mounting the SSL-36B.
2. Loosen the locking knob, and place the
5/8-inch receiver on a light stand.
3. Tighten the locking knob until secure.
4. Loosen the ratchet handle to adjust the
light’s tilt and swivel. Once the light is
aimed, retighten the ratchet handle, and
make sure the xture is secure.
Pro Tip: To prevent the light stand from tipping
over, place a counterweight like a sandbag
over one or two legs of your light stand.
8SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL
INSTRUCTIONS
To Secure the AC Adapter to the Control Box:
1. Wrap the touch-connect strap securely
around the AC adapter.
2. Insert the V-mount adapter into the
V-mount slot of the control box until it
clicks into place.
3. Once the AC adapter is secured to the
control box, use the hanger loop to hang
the control box on a hook or on your light
stand.
POWERING THE
SSL-36B
21
Using the SSL-36B with AC power
1. Connect the AC power adapter to the control
box with the locking 3-pin XLR connector,
and plug the power cable into an outlet.
Important!
The connectors should easily attach. Don’t
use force to connect the control box to the
light xture.
2. Align the notches of the power input cable
and power output cable’s two connectors,
and press them together. Then tighten the
locking collar until secure.
3. Push the 3-way power switch to the AC
position.
12
9
SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL
INSTRUCTOONS
POWERING THE SSL-36B
(CONTINUED)
ADJUSTING THE
LIGHT
Brightness
The brightness control on the control box
can adjust the output from 1% to 100% In 1%
increments. Tap the up and down buttons to
adjust the brightness in 1% increments. Touch
and hold the buttons to rapidly adjust.
Color Temperature
The SSL-36B has a color temperature range
of 3000 to 5600 K.
Tap the color temperature up and down
buttons to change the color temperature in
50 K increments. Touch and hold the buttons
to rapidly adjust.
Using the SSL-36B with Battery Power
1. When attaching a V-mount battery,
make sure the power switch is in
the off position, and disconnect the
AC adapter so the control box is not
plugged into a wall outlet.
2. Align the battery terminals with the
contacts in the battery mount.
3. Place the battery into the mount, and
push the battery toward the contacts
until it clicks into place.
4. Push the 3-way power switch to the DC
position.
To connect gold-mount batteries to the control
box, use a D-tap power cable (not included).
10 SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL
INSTRUCTIONS
Barndoors
Adjust the barndoor to aim or shape the
beam and contain light spill.
Important! Do not operate the light
while the barndoors are closed.
The SSL-36B’s control box has an integrated
transmitter and receiver with four channels.
The Genaray SSL-RC remote (sold separately)
can control multiple SSL-series lights. Refer to
the Genaray SSL-RC user manual for setup and
operation instructions.
To remotely control Genaray SSL series digitally
controlled lights from your SSL-36B’s control
box, follow these steps:
1. Screw the antenna into the antenna port on
each control box.
2. Select the channel for each light by
repeatedly tapping the channel button.
WIRELESS OPERATION
12
ADJUSTING THE LIGHT
(CONTINUED)
