Gen2wave RP70A BIO Guide d'installation
RP70A BIO Quick Manual
Gen2Wave Co.,Ltd
V1.1
Package
2
RP70A BIO Adapter, AC Cord, USB Cable Stylus Pen, String, Quick Manual
Handstrap Leather Case (optional)
NOTE. Items in the box may be changed according to the purchase order.

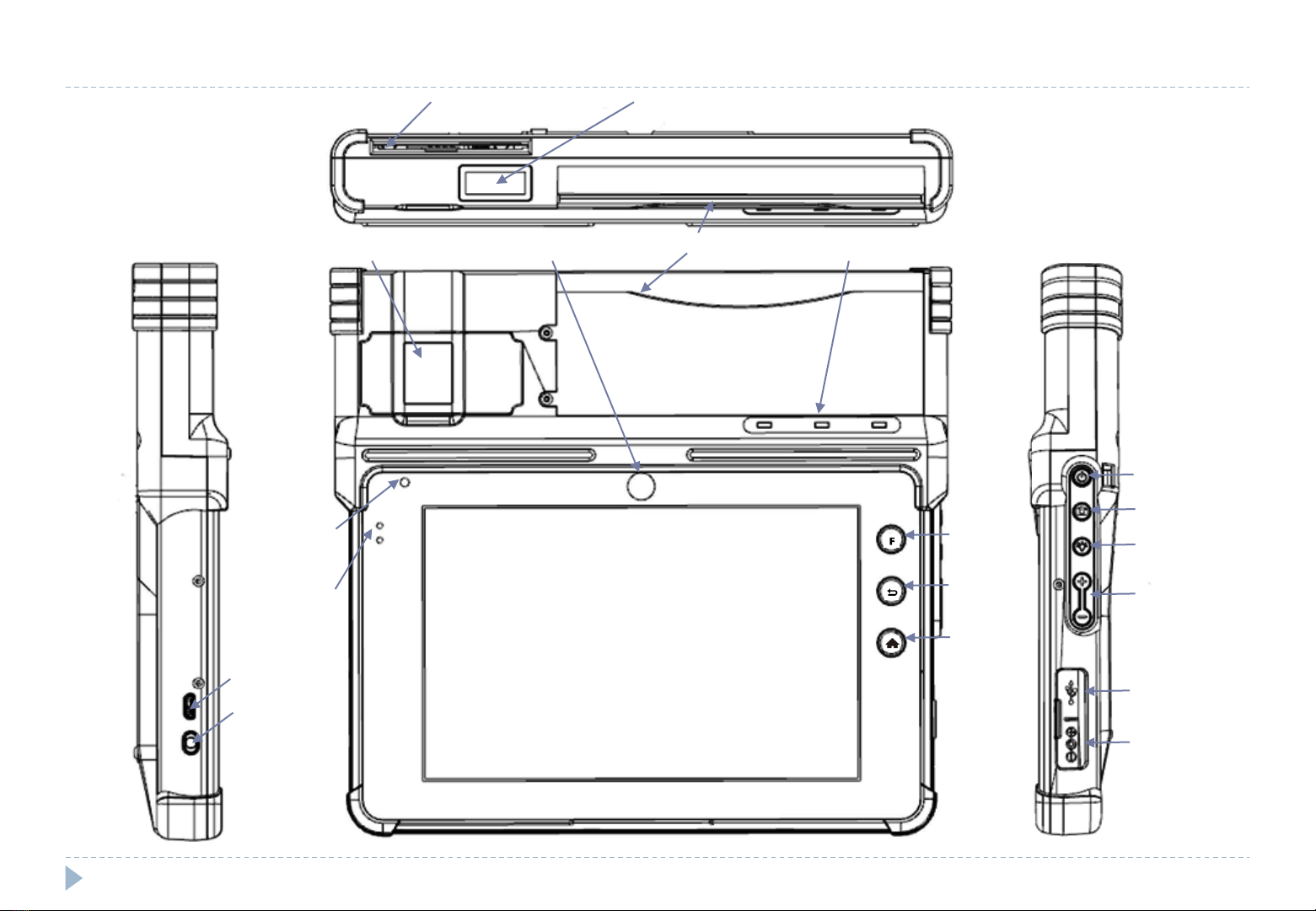

Device Features - 1
3
2D ImagerSmart Card Reader
MRZ Reader
Fingerprint Reader MRZ Reader Status LED
Front Camera
Light Sensor
Power, Charging
Status LED
Function
Back Key
Home Key
Micro USB OTG
3.5mm
Audio Jack
Power Key
Camera Key
Backlight Key
Volume Key
USB A(3.0) Port
DC Jack
(Charging)
Key
Device Features - 2
4
Docking POGO 25PIN
(with the accessory)
SIM, SAM, Micro SD Card Cover Rear Camera & Flash
Iris ReaderNFC Antenna
Hand strap Lock
Screw Hole
Pen String Hole
Speaker
Card Installation
5
How to Insert SIM/SAM cards and a MicroSD card
①Remove the two screws on the SIM, SAM, Micro SD Card Cover. (Driver Plus Type)
②Slide the locker of “SIM, SAM or Micro SD cards” upwards until you hear a “click” sound and then open the locker .
③Slide the “SIM, SAM or Micro SD cards” into the card slot as shown in the picture.
④Cover the locker and slide it downwards to lock it until when you hear a “click” sound.
⑤Put the cover on the RP70A BIO and tighten the screws.
“SIM, SAM or Micro SD cards” can be removed in the reverse order.
①②SIM MicroSD SAM2 SAM1
Slide the cover upwards to open
③
Cover the locker and slide it downwards
Install the “SIM, SAM or SD cards” as shown in the picture.
④
Caution. If you install or change SIM card when device is turned on, you should reboot the device afterward.
SIM
SD
Charging Interface
6
AC Charging
①Open the “USB & DC Jack” Cover.
②Insert the DC Jack in the DC Jack hole.
③Battery LED indicates as follows
OFF : Not Charging Red LED : Charging Green LED : Fully Charged
Micro USB Charging
①Use as USB charger to charge the terminal from a power outlet or connect the cable to a high-power USB port to charge from a host device
②Battery LED indicates as follows :
OFF : Not Charging Red LED : Charging Green LED : Fully Charged
※Adapter voltage must be 5V and current is 2A or higher recommended.
※Charging the battery though a USB port of PC or laptop, or using non recommended output adaptor takes more time.
①②③
Charging LED
Caution. When you use the device for the first time or after time or after not using for long period of time, please charge enough time before using.
Even though you connect the charger, the device may not turn on in the very low voltage state. Please charge the device for 30 minutes ~ 1 hour first.
The device will turn on automatically and the charge LED will turn on red.
①②
Charging LED
※
5V/2A
How to use functions
7
Barcode Scanner
Good Bad
A LED aimer should be on the center of barcodes to
get a successful read.
MRZ Reader
Insert the Passports or ID cards with the OCR
printed page facing the back of the terminal as
shown.
Smart Card Reader
Insert the Smart Cards with the metal co
ntacts in the direction of the picture.
Fingerprint Reader
Scan your finger on the fingerprint
reader as shown.
Iris Reader
Place both eyes on the screen and adjust
the distance to the front and back until it
recognize the IRIS.
Press the Smart Cards downward until it
clicks.
For passports, match the NFC chip of the passport to
the NFC antenna on the device as shown.
How to use power
8
Power On
Press the power button to turn on the device.
Android logo appear on a screen, and the power LED turns on after a short while.
Power Off
Press the power button until the menu appears and touch Power off.
Soft Reset
Press and hold the power button to perform a Soft Reset and touch Restart.
Hard Reset
Press and hold the power button for approximately 7 seconds to perform a Hard Reset.
Factory Reset
Follow the below steps to perform a Factory Reset.
Path : Settings → System → Reset options → Erase all data (factory reset) → RESET TABLET
NOTE. Not all features are available for all RP70A BIO
(Features may vary based on the released option of a RP70A BIO)
Caution. Factory Reset : Erase all data and restore default settings.
