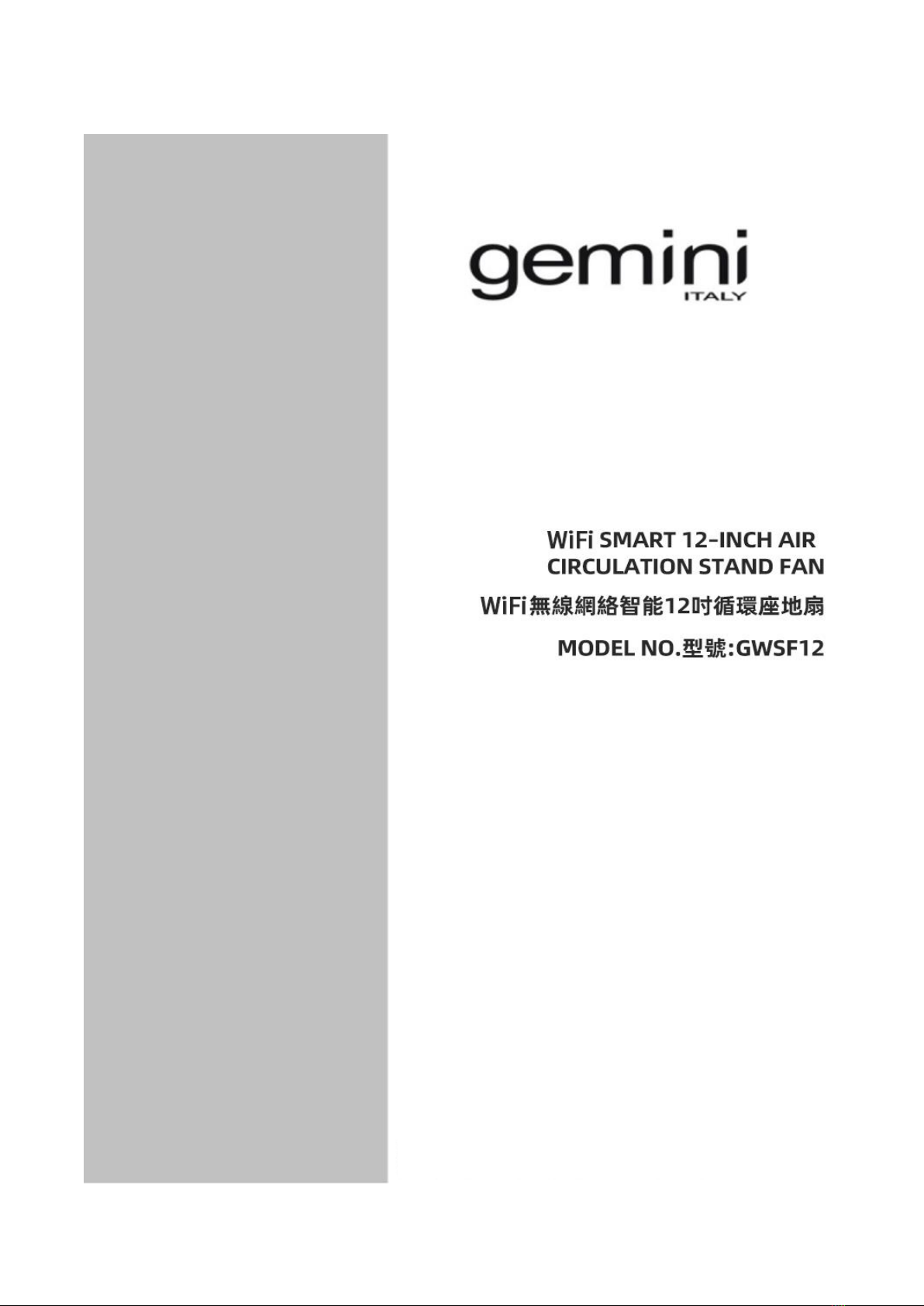

Gemini GWSF12 Manuel utilisateur
1
--
Before using your product for first time,please read this instruction manual.
在使用本產品前，請仔細閱讀本說明書並保存好。
2
Safety Precautions
Thank you for choosing our products. For your consumer rights and interests, please
carefully read the warranty card and keep it properly. Items related to the product
warranty are specified as follows:
-This appliance is not intended for the use by person (including children under 8 years
old), with reduced physical, sensory or mental capabilities or lack of experiences and
knowledge unless they have been given initial supervision or instruction concerning
use of the appliance by a person responsible for their safety.
-Please read and comply with the user manual prior to the initial operation of your
appliance and keep the user manual for later use.
-Do not operate the appliance in way that does not mentioned at the user manual to
avoid accident.
-Children shall not play with the appliance, power cord, any parts and accessories at
any time. Cleaning and user maintenance shall not be made by children unless they
are older than 8 and supervised.
-Never connect to power supply socket and turn on the appliance if the blades, front
/ rear guard are not welly assembled to avoid serious accident.
-Do not turn on the appliance if there is no people supervision.
-Do not let children and pets get close with it, close adult supervision is necessary
when appliance is used by or near children and pets.
-If the appliance fall down, unplug from power supply socket immediately, place the
appliance well on floor, check all parts to confirm no problems, then appliance can
be used again. If you are not sure the appliance is safe to use, take it to repair center
for checking.
-This appliance is not water resistance, never immerse the main body, power plug,
power cord and remote control in water nor rinse it under the tap to avoid accident.
Only use soft dry cloth to clean the main body case.
-This appliance is not water resistance, never use and keep this appliance at or near
bathroom, shower nozzle, swimming pool or outdoor.
-Do not expose the product to high temperatures, hot gas, steam or damp heat from
other sources and under sunlight. Do not place the product on or near an operating
or still hot stove or cooker, do not use the appliance under humidity environment.
-Do not place any combustible and explosion object such as petroleum, paint around
the appliance. Do not use the appliance in an area full of combustible gas. Do not
use spray pesticide or other spray items near the appliance.
-Any time when appliance is operating, do not use anything to cover the front, rear
guard and mist outlet.
-When appliance is operating, do not get close with the front and rear guard to avoid
3
twisting of hair by the blades and get injury.
-Do not place the appliance near curtain, clothes to avoid being inhaled and damage
the appliance.
-Never put your fingers and other objects into the front and rear guard, or any moving
parts of the appliance to avoid injury. Especially take care of children.
-Do not adjust the appliance facing angle horizontally by hands to avoid appliance
damages.
-Do not adjust the facing angle when the appliance is operating, adjust only when
appliance is turned off.
-This appliance must be placed on level and solid surface.
-Do not carry and move the appliance when operating. To carry and move the
appliance, make sure it is turned off and unplug from power supply socket.
Caution
－Check if the voltage indicated on the appliance corresponds to the local mains
voltage before you connect the appliance.
－Do not use the appliance if the plug, the mains cord, the appliance itself, water tanks
and mist transfer pipe is damaged to avoid accident. It must be repaired by our service
center to avoid a hazard. Never repair, assembly and re-equip by yourself.
－Never press, roll, bend the power cord, and keep the power cord away from hot
surfaces.
Never pull the power cord to avoid loosen. And do not put the power cord under carpet
and any other things to avoid damages.
－Power cord must not be stepped or pressed by any things, or bitten by any pets to
avoid damages.
－Do not connect with external timer. This appliance is not intended to be operated by
means of an external timer or a separate remote-control system.
－Do not use the same power sources with other appliances to avoid overload.
－Do not plug or unplug the appliance into power socket with wet hands.
－Make sure the air circulation is enough when using the appliance.
－If you drop the screw inside the appliance when install or uninstall the front guard,
please send the appliance to repair service center for checking and handle.
－Do not disassembly the appliance by yourself.
－Do not expose yourself to wild generated by the appliance for a long time, especially
elder, children and sick people, it may cause health related issues.
－Do not operate the appliance under humid, dusty environment and surface. And do
not keep the appliance under sun light.
－Do not give impact or fall the appliance and press the front and rear guard to avoid
4
damages and accident.
－Before cleaning, assembling or disassembling, make sure the appliance is turned off
and unplug from power supply socket, and it is completely cool down.
－Clean the appliance regularly to avoid too many dust on blades, rear and front
guard.
－Never use scouring pads, abrasive cleaning agents or aggressive liquids such as
petrol or acetone to clean the appliance.
－The appliance is mainly for indoor and household use only.
－If the appliance has abnormal smell, smoke, overheat or abnormal noise or any
problems occur, stop using the appliance immediately, unplug from power supply
socket.
－Remote control use one piece CR2025 3V battery, if you find the remote control is not
function, it may be battery running out of power, change a new battery immediately.
－If you do not use the appliance for long period of time, take the battery out from
remote control, keep it at a safe place which is not easily access by children and pets.
－All photos are for reference only.
Warning
1.Do not connect or disconnect with wet hands as it will cause short circuit or electric
shock.
2.Please keep the fans in steady state using.
3.Without the guidance of technicians, automatic dismantling is not allowed.The inside
of the machine is charged body, so do not wash or plush.
4.Do not cut, damage, pull, twist, knot or press the power wire.
5.Do not put your fingers or other objects into the fan net frame.
6.When cleaning and maintaining this product, the power plug must be disconnected.
7.Do let the children to operate the fan by themselves.
8.Do not exertly more the oscillation manually,because Up-Down and Left-Right
Oscillation is by automatically.
5
The structure of the product
(1)Rear Grille
(2)Front Grille
(3)Blade
(4)Back Cover
(5)Extension Tube
(6)Extended Tube
Switch
(7)Control Display
(8)Remote Control
Placement
(9)Infrared Receiving
Point
(10)Pedestal
(11)AC Connector
(12)Base Fixed Knob
Accessories
Fan *1
User Manual *1
Warranty Card *1
Power Line *1
Remote Controller *1
Bottom View
6
Product Introduction
1.Introduction of Control Panel
1.LED Display
2.ECO Wind
Indicator
3.Natural Wind
Indicator
4.Sleep Wind
Indicator
5.WiFi Function
Indicator
6.Timer Key
7.Model
Conversion Key
8.Up-Down Swing Key
9.Left-Right Oscillation
Key
10.Wind Speed
11.On/Off Key
⚫ON/OFF Key :After connect the main power plug to wall socket,press the
ON/OFF key to turn the fan on.It will be started at a default speed of 8 level once
it is on.Press the key again to turn off the machine.
⚫TIMER OFF Key :Press Timer Off Key to set the turn off hour,the fan will switch
between 1h-9h.Without operation the fan after 5 seconds,the display screen shows
the wind speed and timing switch alternatively switching.
⚫SPEED Key :Product has 12 speed with LED display, from 01-12 as speed. You can
adjust the speed by press “SPEED”key.
⚫SWING Key : Press the swing key to activate the up & down vertical direction of
fan head.
⚫OSC Key : Press OSC key to start left & right.
⚫MODE Key : There are ECO Wind Mode 、 Natural Wind Mode 、 Sleep Wind
Mode.Press the mode key to choose the mode.Under the ECO Wind Mode,the display
screen will display the ambient temperature.The fan will adjust the wind speed into
ideal fan speed according to the ambient automatically.Under the Natural Wind
WiFi
SLEEP
NATURAL
ECO
ON/OFF SPEED OSC SWIMG TIMER MODE
7
Mode, the fan will work at the system setting gear speed.The fan will be quite
operation in Sleep Wind Mode which is soft wind for sleeping.
2.Function Key of Remote Controller
(1) ON/OFF
(2) TIMER
(3) SPEED+
(4) SPEED-
(5) OSC:Left-right direction
(6) SWING:Up-down direction
(7)MODE:ECO/NATURAL/SLEEP
Note:
1. The remote controller is normally used within 6 meters in the front of the fan and the
deviation angle is within 45 degrees.
2. Put a CR2025 battery on the holder,make sure the "+" side face top, and face down.
3. There has a battery inside the remote controller, please take off the insulating strip
before use.After the battery's power is using out,please throw according to battery
classification collection.
8
3. Swing & Oscillation
Press the OSC & SWING key to turn on the automatic oscillation mode.
Left-right oscillation in 100° by automatically Up-down swing in 90° by automatically
Note:It is forbidden to twist the fan head at up-down or left-right oscillation direction
over 90° manually.
Signal Receiver
9
4.Installation
1.Take out the fan's assemble parts
Take out the fan's assemble parts from the packaging and disassemble the fan parts
from the rear head grille.Rotate the front grille at clockwise direction,remove the front
grille and take out the blade.
2.Install the fan Pedestal
3.Install the Rear Grille to motor head
(1) Firsyty remove the PVC casing,align
the motor and pilar with the base
socket the direction shown,and
insert the lower end of the pillar
into the base socket
(3) Turn the screw clockwise direction
and tighten the base bolt to fix it
(2) Put the screw into the bottom
Screw
PVC Casing
Base Socket
Pillar
10
Put the position of the fan rear grille on the motor head（STEP1）, and tighten the knob
clockwise to fix the rear grille cover to motor head(STEP2).
4.Install the Fan Blade
Put fan blade to the motor shaft, and tighten the knob in clockwise direction(STEP1).
Then use the screw to fix the front grille.
Note:Please make sure the fan blade is tightened, otherwise there will be danger!
Cleaning and Maintenance
－Warning
Before clearing, please turn off the power switch and pull out the plug, do not spray
water or spray mist directly on the fan.
－Cleanable Parts
Use the screwdriver to remove the screws between the front grille and the rear grille. Use
the soft cloth or sponge and neutral detergent to wipe the exterior. And let the parts
drying completely after cleaning.
