Gembird KB-2000M Manuel utilisateur

Multimedia

keyboard

2000M Multimedia keyboard

Page 2 of 10

Multimedia

keyboard

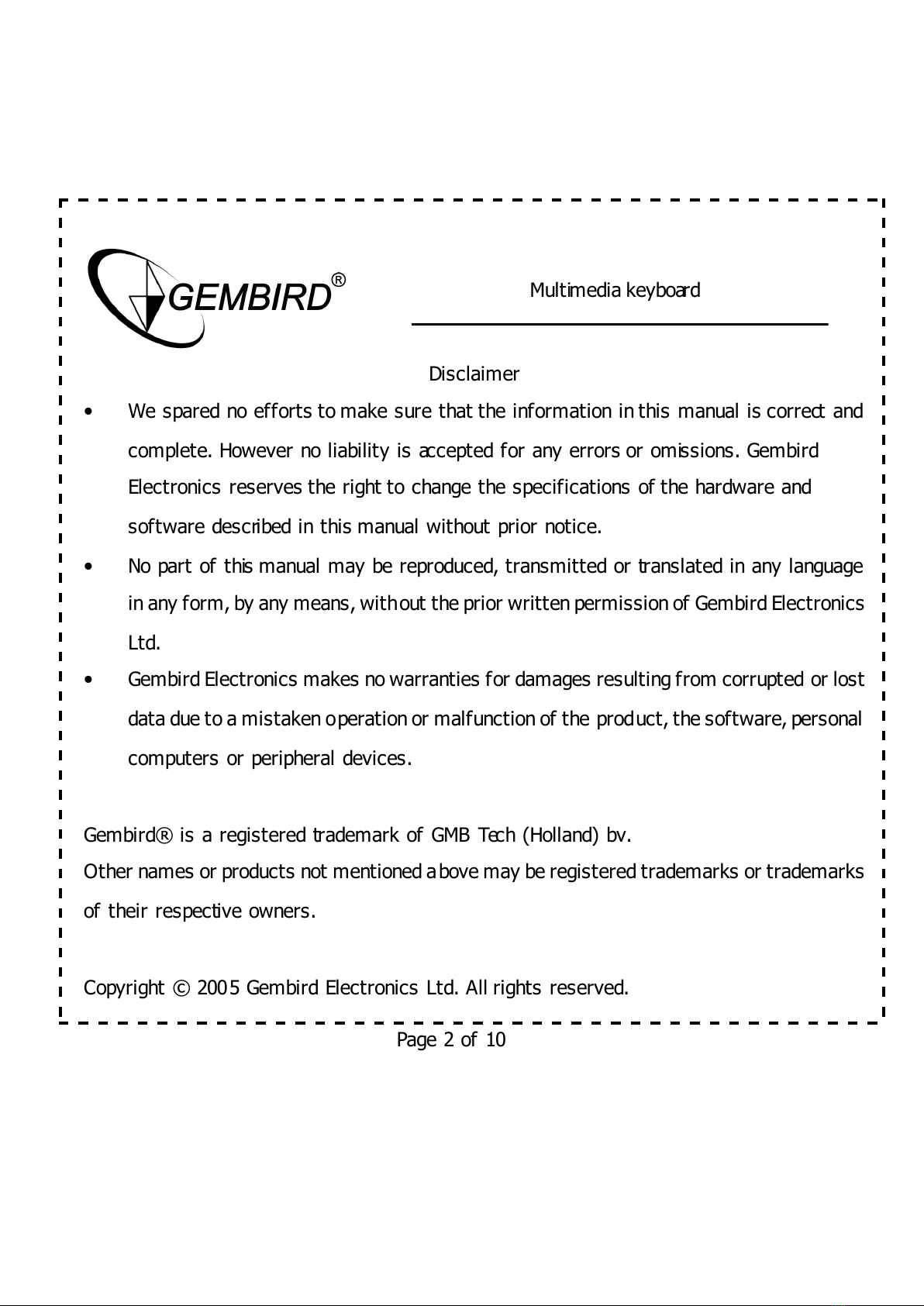

Disclaimer

•We spared no efforts to make sure that the information in this manual is correct and

complete. Howe er no liability is accepted for any errors or omissions. Gembird

Electronics reser es the right to change the specifications of the hardware and

software described in this manual without prior notice.

•No part of this manual may be reproduced, transmitted or translated in any language

in any form, by any means, without the prior written permission of Gembird Electronics

Ltd.

•Gembird Electronics makes no warranties for damages resulting from corrupted or lost

data due to a mistaken operation or malfunction of the product, the software, personal

computers or peripheral de ices.

Gembird® is a registered trademark of GMB Tech (Holland) b .

Other names or products not mentioned abo e may be registered trademarks or trademarks

of their respecti e owners.

Page 3 of 10

Multimedia

keyboard

Introduction

Thank you for buying the Gembird® Multimedia keyboard! This manual will help you install

and use it properly. KB-200M is a Multimedia keyboard with PS/2 or USB interface with the

following main features:

o18 hot keys for the Multimedia and Internet functions

oErgonomic wrist rest

oSpecifications:

•Input power: 5±0.25V DC/25mA Max

•Switch acti ation mechanism: membrane

•Tra el distance: 3.5±0.5mm

•Force: 55g±8g

•Return force:>20G

•Dimensions: 460*171*40mm

•Cable length 1.5M

•Weight: 1280g (140g - palm rest)

•Keycaps pull force: >1.5KG

•Life time: 10 million

KB-2000M User manual

Page 4 of 10

Multimedia

keyboard

Keyboard installation

•USB Connection

Please plug the rectangular USB connector into your computer's rectangular USB

port

•PS/2 Connection

1. Turn off the computer power

2. Attach the purple USB-to-PS/2 adapter (if a ailable) to the USB

connector, and then pl ug it into the computer's purple PS/2 keyboard

port

Page 5 of 10

Multimedia

keyboard

Software Installation

Caution: If you ha e pre iously installed other keyboard or mouse dri ers on your

computer, please uninstall them first.

•Please make sure that the keyboard is properly connected to the computer

•Click "OK"

Page 6 of 10

Multimedia

keyboard

•When installation finishes, please reboot your system

•After the system has been rebooted, an icon will appear in the system tray, in

the bottom right corner of your screen. The icon indicates that the dri er software

has been installed successfully

Note: If you wish to remo e the dri er, please go to the following directory:

START/PROGRAM FILE/Media & Office Keyboard/, and select "Uninstall" to remo e the

software.

Keyboard hotkeys

The Multimedia keyboard has 18 hotkeys.

BACK : Go back to the pre ious web page

ORWARD : Go to the next web page

STOP : Stop default web browser from loading or refreshing a web page

Page 7 of 10

Multimedia

keyboard

RE RESH : Update the contents of the current web page of the default web

browser

SEARCH : Open the "Find "window in the START menu

AVORITES : Open the "Fa orites" group

WEB/HOME : Start your default browser and go immediately to your Home

Web page

MAIL : Start the default E-mail program

PLAY/PAUSE : Play or pause the default media player

STOP : Stops the media

PREVIOUS TRACK : Go to the pre ious track of the default media

player

NEXT TRACK : Go to the next track of the default media player

MEDIA : Start the music CD player or Microsoft Windows Media Player

application

VOLUME DOWN : Press and release, or press and hold to decrease the

olume

VOLUME UP : Press and release, or press and hold to increase the

Page 8 of 10

Multimedia

keyboard

olume

MUTE : Mutes all sound. Press again to resume the sound

CALCULATOR : Start the "CALCULATOR" program

MY COMPUTER : Open the "My Computer" window

SLEEP : You can put the system into sleep mode, if the PC supports power

management. If power management is not enabled, this key will not work

WAKE UP : Exit sleep mode, and return to normal mode

Note: Most hot keys may be re-configured to start other applications or Web pages. Please

refer to "How To Redefine The Hot Keys" for more detail.

How To Redefine The Hot keys

First, you will need to install the "Media & Office Keyboard" software, see section

Install Software abo e.

Once installed, you will see a Keyboard icon at the bottom right of your screen. This

icon will appear e ery time you start the computer.

Page 9 of 10

Multimedia

keyboard

The Hot Keys are already set up once you ha e installed the dri er. If you want to re-define

the Hot Keys, you will ha e to click on the Keyboard icon at the bottom right of your screen.

The Keyboard Properties window will open. Select the "Function" tab at the top of the

window. You will see the following screen:

Now select the Hotkey you would like to redefine, and click "Modify".

The following screen will appear:

Page 10 of 10

Multimedia

keyboard

Apart from the default function, you can redefine the Hotkey to iew a certain Web Site or

to perform a Shortcut.

•Web Site:

Please select the Web Site and enter the required web address and click "OK".

Now click "Apply" to sa e the new Hotkey setting.

•Shortcut:

To assign a program, command or other function, please select the Shortcut

option. Enter the Name and Path to the software you wish to be launched or

alternati ely select Browse to search for the correct software. Click "OK" to

confirm and "Apply" to sa e the Hotkey.

Note: Not all the hot keys on the keyboard can be redefined. Only those hot keys that

appear in the window may be redefined.
