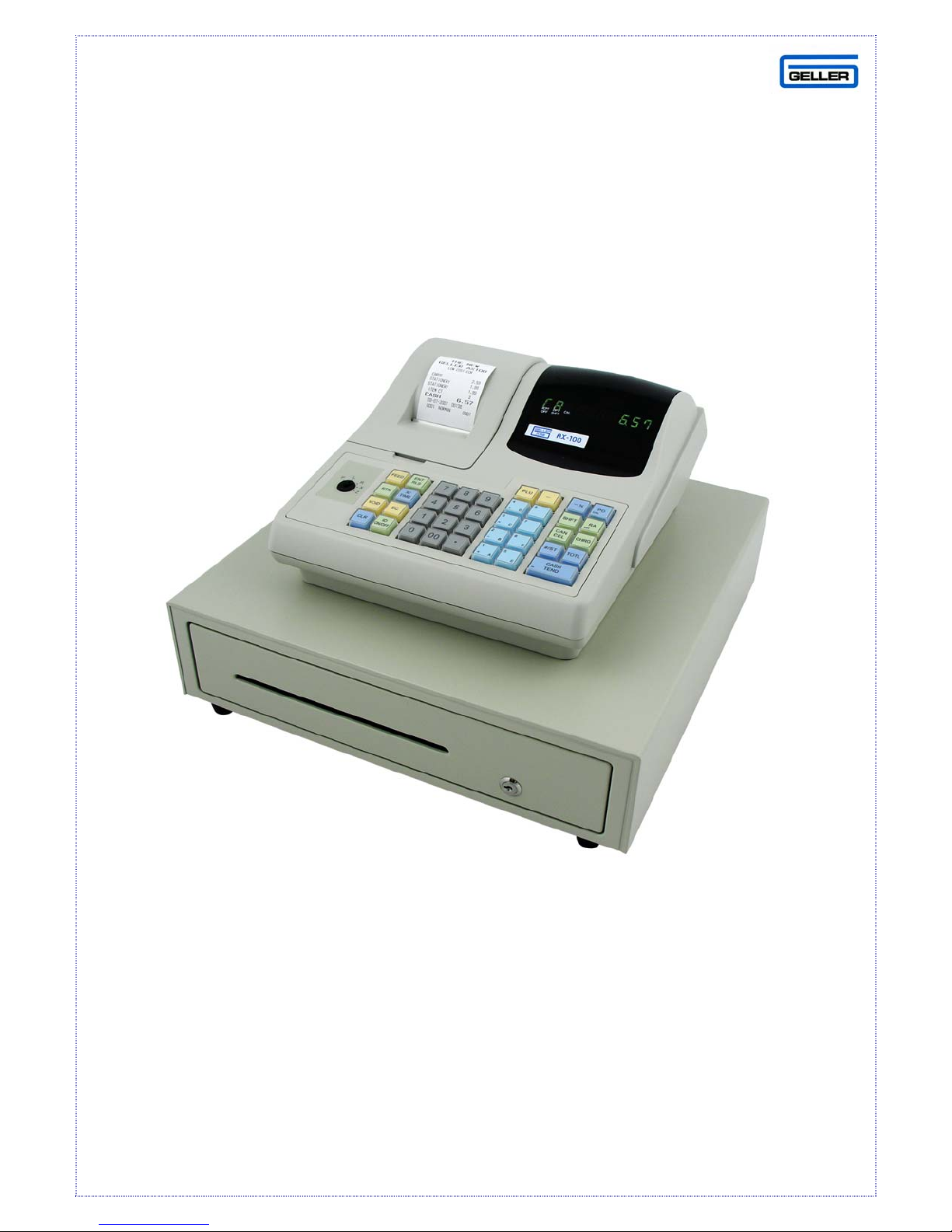

Geller AX-100 Manuel utilisateur

AX-100

AX-100 QUICK SET-UP GUIDE

AX-100

QUICK SET-UP GUIDE

For further information please refer to the standard

Operating Manual supplied with the AX-100

AX-100 Features Covered in this Guide

916 Departments – Programmable Alpha

9200 Plu’s – Programmable Alpha

958mm Single Station Audit Thermal Receipt Printer

9Programmable Customer Receipt Header message and Trailer Message

9Electronic Journal & Management Reports

9PC Link ‘David’ Geller Utility for Programming

9Soft Programmable Keyboard Layout

9Tax Rates

9Receipt On/Off toggle with optional Receipt after sale

9Clerk IDs with Optional passwords

9Programmable Transaction Names

9Negative Items

9Compulsory Cash Declaration

9Training Mode

9Calculator Mode

9Management control with Passwords for reports and Void Functions

Optional - An AX-100 Comms kit is available from your dealer as an option

for programming the cash register via your PC. This includes a 2 metre Cable,

AX-100 David Utilities and supporting documentation.

INDEX

DESCRIPTION Page

AX-100 FEATURES 1

INDEX 2

PAPERROLLS 3-4

PROGRAMMING LAYOUT 5

DIAGRAM EXPLANATION 6

DATE AND TIME SETTINGS 7

FLAG SET-UP PROCEDURES 8

CHARACTER CODE TABLE 9

PROGRAMMING DEPARTMENTS 10

HALO – HIGH AMOUNT LOCK OUT 11

PROGRAMMING THE RECEIPT LOG 12-15

VAT/TAX PROGRAMMING 16

PASSWORDS 17-19

PROGRAM CONFIRMATION 20

ERROR CODES 21

REPORTS – End of Day Report Z1 22

REPORTS – Electronic Journal 23

DISPLAYING A REPORT 24

PC COMMUNICATIONS 25

CABLE CONFIGURATION 26

AX-100 DAVID UTILITY 27

GLOSSARY 28-32

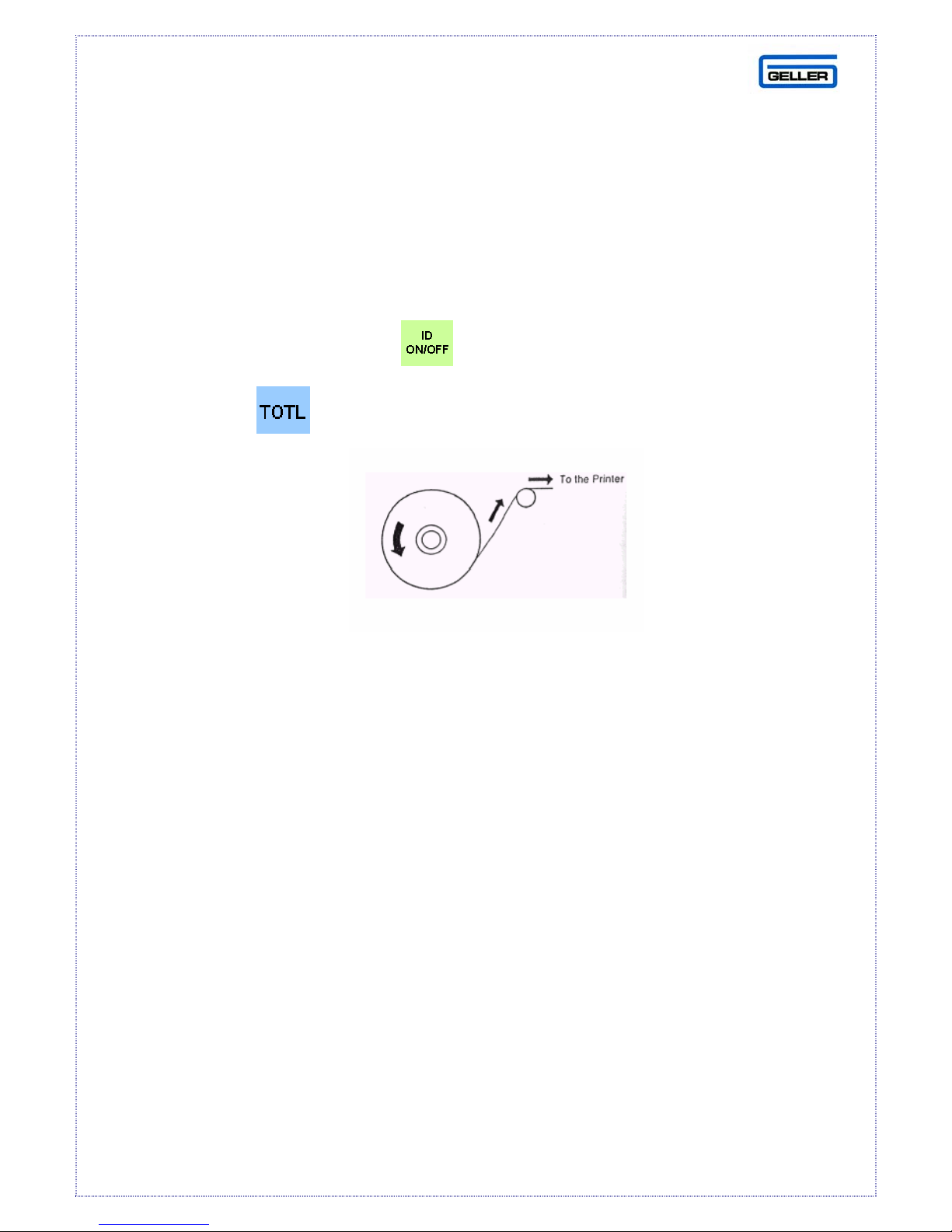

PAPER ROLLS

Installing the Paper Roll into your AX-100

Your cash register comes fitted with a thermal printer which uses a 58mm paper

roll. If a customer receipt is not always required, then there is a paper saving

option available by pressing the button on the keyboard (this is indicated

by an LED on the display). A receipt is available on request after the sale by

depressing the button.

Fig 1

Before installing the paper roll, be sure to do the following:

Orient the paper roll so that it rotates in a counter clockwise direction, as shown in

above.

Note

1. As thermal paper is used, it has a right and wrong side for printing. If you

install it the wrong way round (the heat sensitive side away from the print

head) no printing will be possible.

2. Carefully avoid touching the metal paper cutter when removing the paper

cover, it is very sharp.

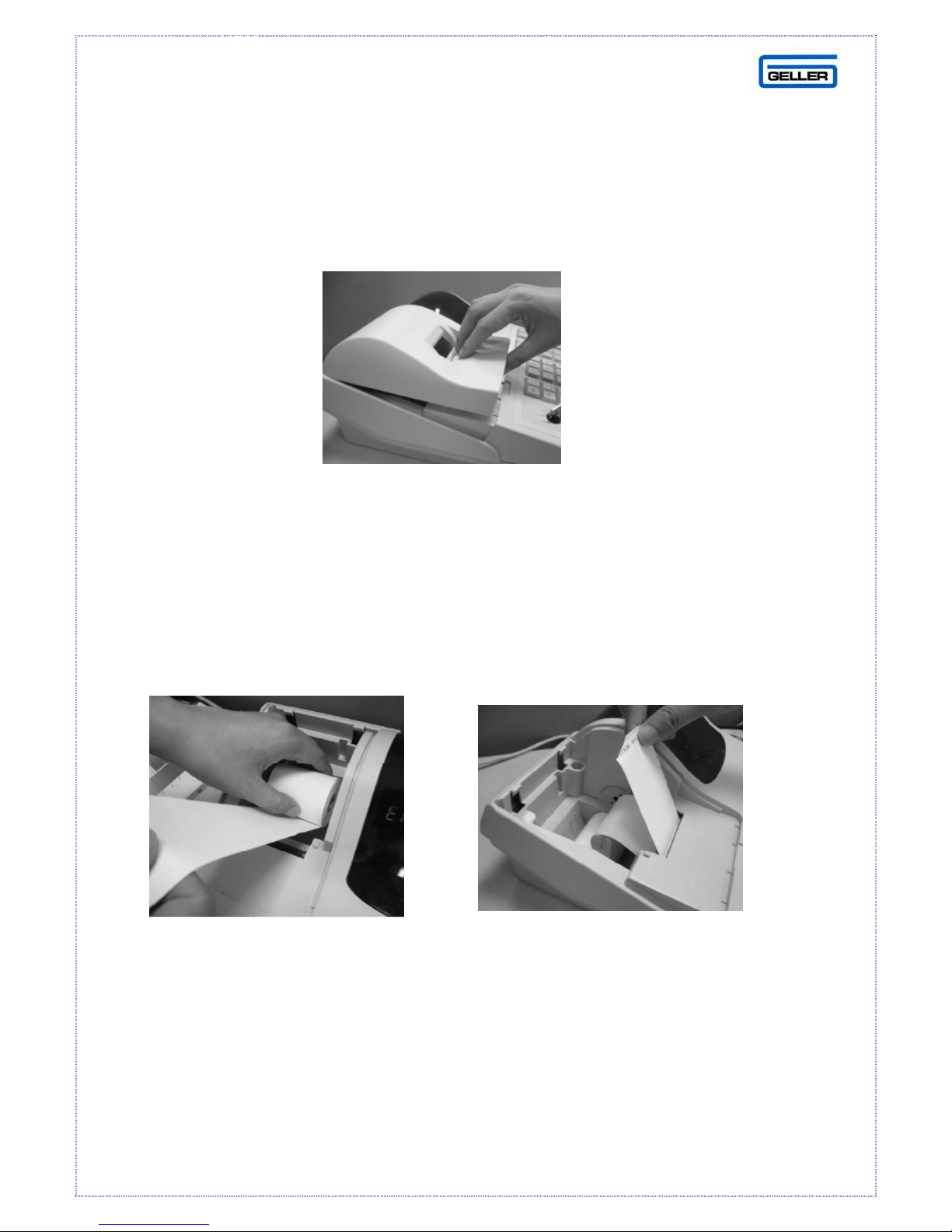

Installing the Paper Roll for the Receipt

1. Ensure the Control lock is in the ‘R’ Position

2. Simply lift up the printer cover from the front as shown below in Fig 2

Fig 2

3. Set the paper roll gently into the paper location as shown in Fig 3

4. Insert the end of the paper roll into the paper entrance as shown in Fig 4

(At this point the paper will feed automatically into position)

5. Press and hold the FEED button until approx 30cm of paper has fed through

6. Replace the printer cover, ensuring that the end of the paper is fed through

the paper tear off slot correctly.

Fig 3 Fig 4

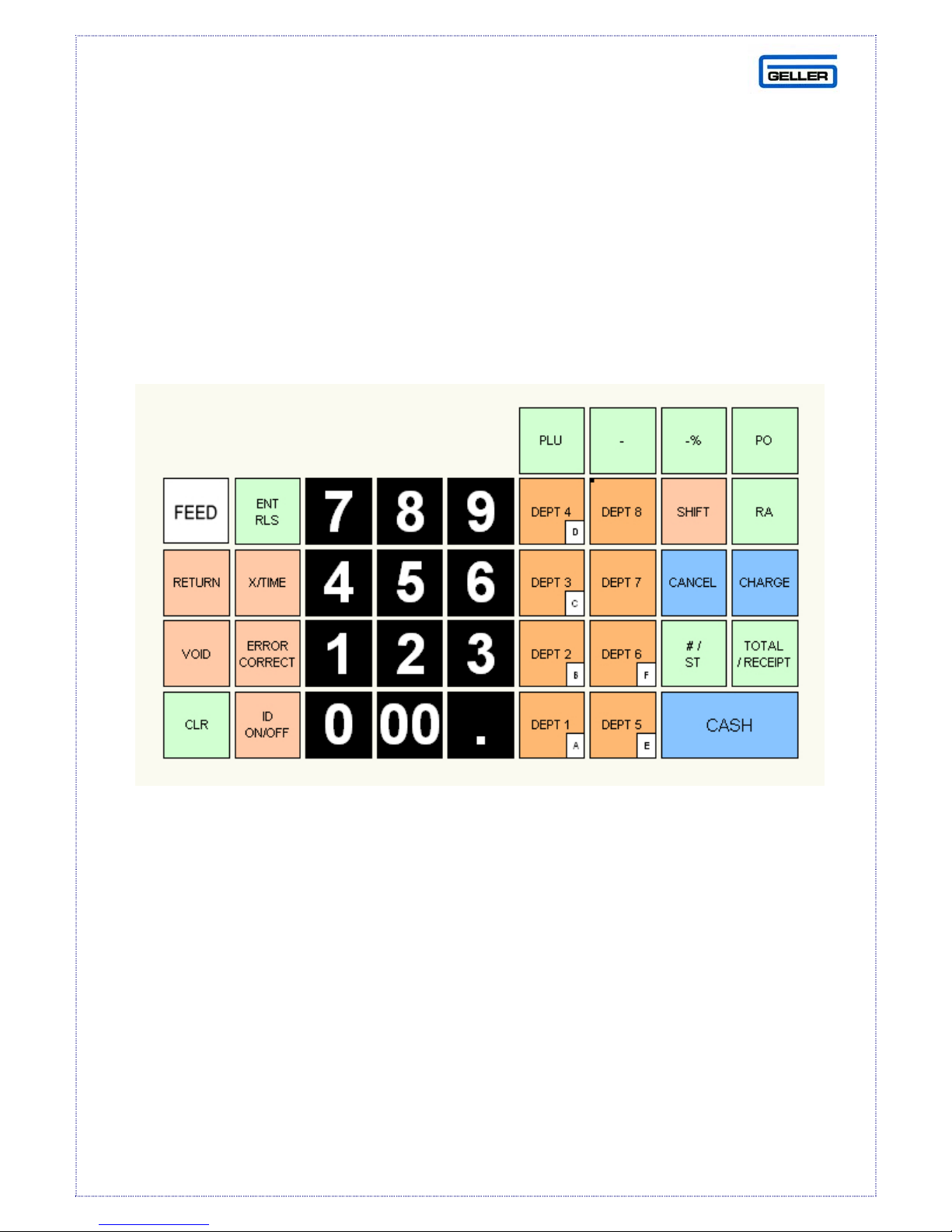

PROGRAMMING LAYOUT

This is the default programming layout which is always activated when the key is

turned to the ‘P’ position. It is advisable to leave the function buttons in their

original positions. It will make it easier to follow the programming instructions.

CASH TEND X/

IME

Diagram Explanation

We have used simple diagrams to indicate programming procedures.

Indicates the Control Lock and the letter describes the position of the

key.

Indicates a numeric button, the number inside the circle is the

button required to be depressed.

Indicates the function button required to be

depressed.

AX-100

SYSTEM CLEAR

WARNING

This procedure will clear all sales data and program settings

Power off by removing plug from wall socket!

The message ‘SYSTEM CLEAR’ will print on the receipt. The ECR’s memory

has now been cleared.

CLR INSERT PLUG/

POWER ON CLR

(HOLD DOWN) (RELEASE AFTER 5 SECONDS)

DATE &TIME SETTINGS

Setting the Date

Example: 20070320 = 20th March 2007

Note:

To check the date, Press the button in the ‘R’ position. Press

again to show the Time.

Setting the Time

Note:

To check the time, Press the button in the ‘R’ position. The

Time will be shown on the display. Pressing the button again

toggles the date and time

IME

CASH

TEND

IME

CASH

TEND

IME

FLAG SET-UP PROCEDURE

The following flag settings will manually configure your AX-100

for a simple operation without the use of the David Software

(Decimal point, receipt print)

(Second receipt, programmable soft keyboard)

(Date format, full size font print)

(Card over tender, no electronic journal)

For an explanation of all the flags, please consult the manual

supplied with the machine.

CASH

TEND

CASH

TEND

CASH

TEND

CASH

TEND

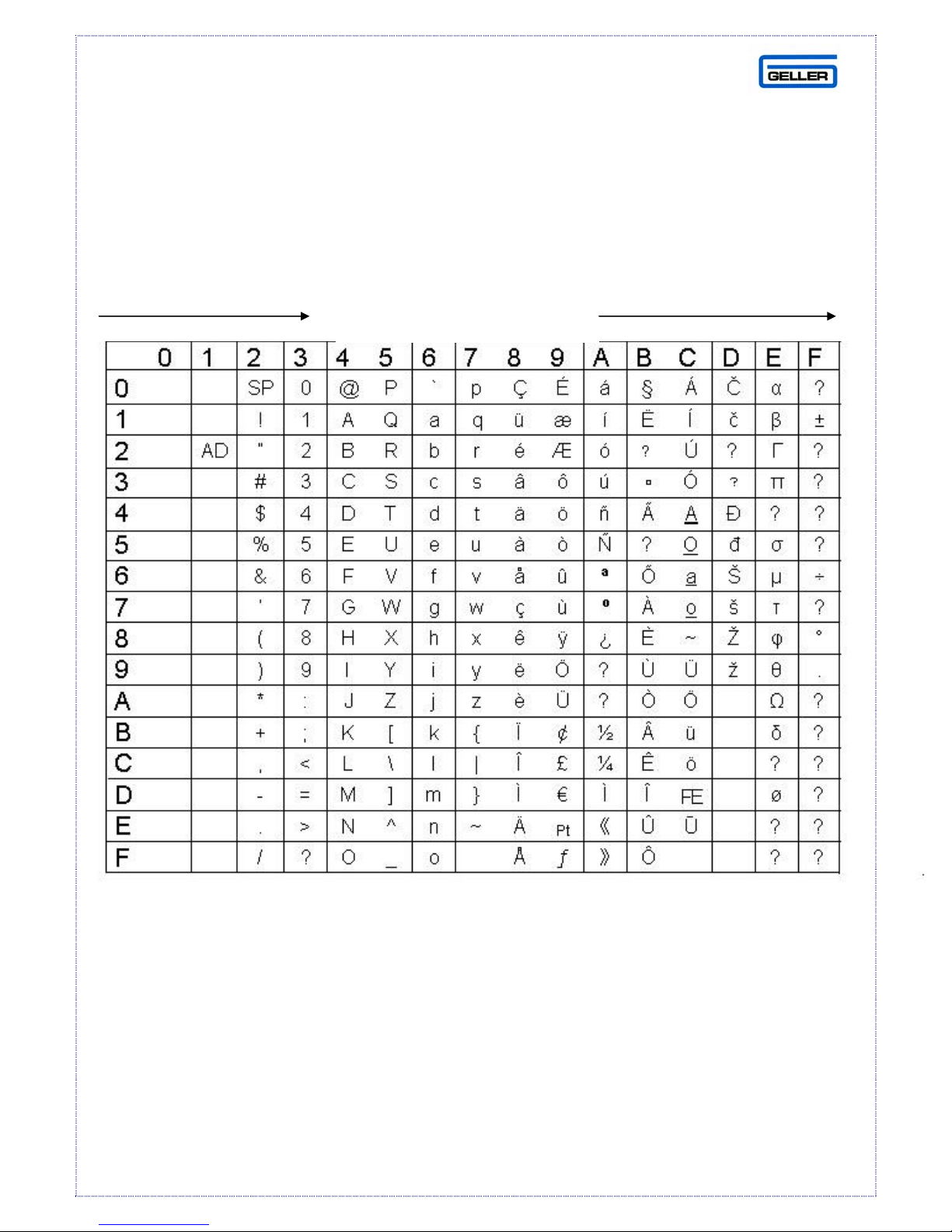

CHARACTER CODE TABLE

The character code table is used as a reference for text input via

Departments, PLUS, Receipt Logos, Clerk Names and Transaction Names

Example

To program the letter N, the value 4E should be entered

To program the letter T, the value 54 should be entered

To program a Space, the code 20 should be entered

To program a Double Size Character, the code 12 should be entered

Select this character first
