Gefran GEFLEX-ETHERNET Manuel utilisateur

80367_MSW_GEFLEX-ETHERNET_0708_ENG

GEFLEX-ETHERNET

INDEX

1Introduction 2

2Features 2

3Dip-switch function 2

4Setup PC Connection 3

5Test Board Connection Using PING Command 7

6Connect the Board to your LAN 7

7Serial line information 8

8Getting process variables map information 8

9GEFLEX-ETH’s Modbus TCP/IP implemented command 9

10 Memory map 13

INSTALLATION AND

OPERATION MANUAL

Software Version: 1.x

Code: 80367 / Edition 01 - 0708 ENGLISH

280367_MSW_GEFLEX-ETHERNET_0708_ENG

1 • Introduction

The Geflex GEFLEX-ETH is IEEE 802.3 compliant supporting Ethernet operation for MODBUS TCP/IP communica-

tion architecture

2 •Features

•IEEE 802.3 compliant

•Full-duplex and half-duplex modes

•Capable of supporting both 10 Mbps and 100 Mbps data rates

•Single RJ45 connection with leds indicator (yellow = link , green = activity)

•One socket available

•All MODBUS/TCP ADU are sent via TCP on registered port 502

•Default address: 192.168.1.100

•Subnet mask: 255.255.255.0

•Default gateway: 192.168.1.1

MODBUS

TCP/IP

CLIENT

MODBUS

TCP/IP

CLIENT

MODBUS

TCP/IP

SERVER

MODBUS

TCP/IP

SERVER

MODBUS

SERIAL

CLIENT

Client

TCP/IP

MODBUS

GEFLEX

SLAVE n GEFLEX

SLAVE n + 1

GEFLEX-ETH

MODBUS Serial

GEFLEX NETWORK

Resetting Parameters to Factory Defaults

At any moment, all of the GTR ETH board parameters can be restored to

the factory default settings. To do so:

1. Set Dip Switch S1 dip 1 = ON (located near RJ45 connector ) ;

2. Restart GTR ETH board;

3. Set Dip Switch S1 dip 1 = OFF ;

S1 dip 2 off = 100Mb (DEFAULT)

S1 dip 2 on = 10Mb

3 •Dip-switch Function

80367_MSW_GEFLEX-ETHERNET_0708_ENG

4 •Setup PC Connection

All the information in this quick guide require that the GEFLEX-ETH communicates with the host PC through a LAN

connection.

In this pages you’ll learn how to configure the PC to communicate with the GEFLEX-ETH using an Ethernet cross

cable or hub/switch. The following steps are based on a Windows XP system.

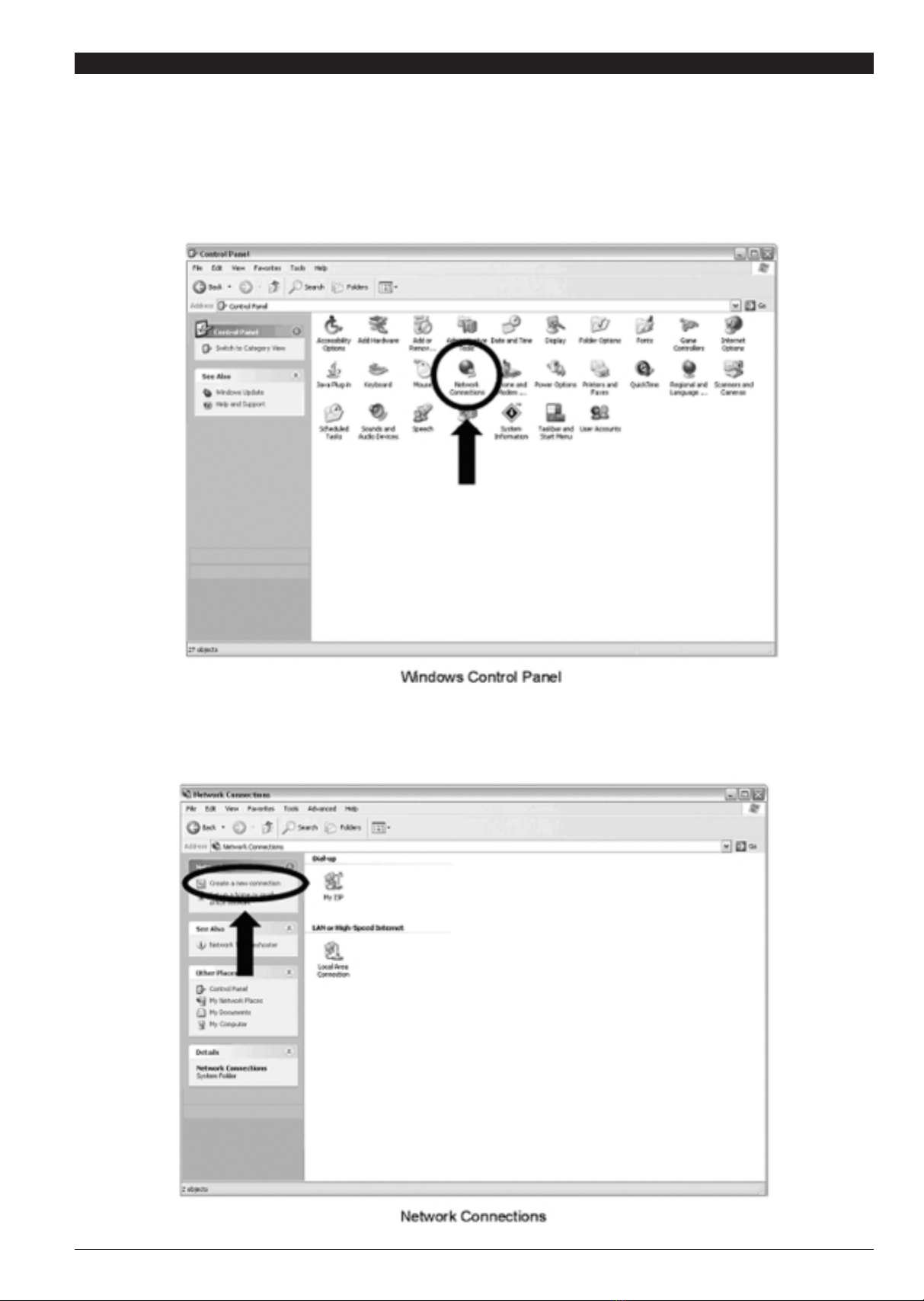

1. Open the Windows Control Panel and open the Network. Connections item:

2. If a Local Area Connection is already available, go to step 8.

Otherwise, run the “New Connection”wizard.

480367_MSW_GEFLEX-ETHERNET_0708_ENG

3. The following dialog box will appear. Click Next.

4. On the next dialog box, select the “Connect to the Internet”option and click the “Next”button.

5. On the next dialog box, select the “Set up my connection manually option and click the “Next”button.

80367_MSW_GEFLEX-ETHERNET_0708_ENG

7. When the last dialog box appears, click the “Finish”button.

8. Open the newly created connection (or the existing connection if you are coming from step 2) and click the

“Properties”button.

6. On the next dialog box, select the “Connect using a broadband connection that is always on”option and click the

“Next”button.

680367_MSW_GEFLEX-ETHERNET_0708_ENG

Click the “OK”button on all LAN setup dialog boxes.

9. Select the “Internet Protocol (TCP/IP)”item and click the “Properties”button.

10. If you have started from an existing connection, write down all of the TCP/IP parameters. You’ll need them later to

restore your LAN settings to the original parameters.

11. Select the manual settings and type in the following values:

IP address: 192.168.1.101

Subnet mask: 255.255.255.0

80367_MSW_GEFLEX-ETHERNET_0708_ENG

5 •Test Board Connection Using PING Command

1. Power up the board and verify the POWER led turn on.

2. Connect the GEFLEX-ETH to the PC through an Ethernet cross cable or hub / switch.

3. Open a Command Prompt window (on Windows XP, from the Windows Start menu, select Run, enter CMD and

click the “OK”button).

4. At the command prompt, type: PING 192.168.1.100

5. If the connection has been properly setup, the PING command will return a positive feedback.

6 •Connect the Board to Your LAN

Before connecting the GEFLEX-ETH board to your LAN, the IP address must be changed to match the LAN

settings.

To change the GEFLEX-ETH’s IP address, do the following.

1. With the GEFLEX-ETH still connected to the PC via the Ethernet cross cable or hub /switch, launch the

GtrEthConfig.exe utility that is located in the CD-ROM.

2. Set the Rotary Switch combobox to match your actual GEFLEX-ETH’s Rotary value.

3. Press the Discovery Net button. You can see actual IP address , subnet mask , default gateway and MAC

adress.

4. Set your parameter and after click on Send Data button.

5. Restart the GEFLEX-ETH Board.

6. Goto to step 2 if you want to see new parameter.

880367_MSW_GEFLEX-ETHERNET_0708_ENG

7 •Getting Serial baud Information

Using this option to get serial baud information from serial network. Send Baud has no effect

8 •Getting Process Variables Map Information

Using this option to get / set Process Variables map

80367_MSW_GEFLEX-ETHERNET_0708_ENG

9 •GEFLEX-ETH’s Modbus TCP/IP implemented command

•01 (0x01) Read Coils

•02 (0x02) Read Discrete Inputs

PDU Example: Read bit 0 from zone 10

Rotary

switch Function

code Hi Lo Hi Lo

10 200 0 1

Rotary

switch Function

code Byte

count Inputs

10 2 1 0

Request Starting Address Quantity of Inputs

•03 (0x03) Read Holding Registers / 04 (0x04) Read Input Registers

PDU Example: Read word 138 from zone 10

Rotary

switch Function

code Hi Lo Hi Lo

10 20138 0 1

Rotary

switch Function

code Byte

count

10 42

Request Starting Address Quantity of words

Hi Lo

1144

Data Value = 400 (hex 190)Resp.

Resp.

•05 (0x05) Write Single Coil

PDU Example: Writing to zone 10 single bit address = 1 data value =0xff00

Rotary

switch Function

code Hi Lo Hi Lo

10 5010xFF 0

Rotary

switch

Request Starting Address Output Value

Resp.

Function

code Hi Lo Hi Lo

5 0 1 0xFF 0

Starting Address Output Value

10 80367_MSW_GEFLEX-ETHERNET_0708_ENG

•06 (0x06) Write Single Register

PDU Example: Writing to zone 10 single word address = 400 data value = 1

Rotary

switch Function

code Hi Lo Hi Lo

10 6 1 144 0 1

Rotary

switch Function

code

10 6

Request Word Address Word Value

Resp.

Hi Lo Hi Lo

1144 0 1

Word Address Output Value

•15 (0x0F) Write Multiple Coils

PDU Example: Writing to zone 10 Multiple Bits address = 10, quantity of bits =2, bits value=3

Rotary

switch Function

code Hi Lo

10 15 010 1 3

Request Quantity of bits Bits Value

Hi Lo

Byte countStarting Address

Rotary

switch Function

code

10 15

Resp.

Hi Lo Hi Lo

010 0 2

Starting Address Quantity of bits

•16 (0x10) Write Multiple registers

PDU Example:

Writing to zone 6 Multiple Words address = 20, quantity of words =2, word 1 value =0 , word 2 value =1000

Rotary

switch Function

code Hi Lo Hi

10 16 020 4 0

Request Quantity of words Word 1

Value

Hi Lo

Byte countStarting Address

Rotary

switch Function

code

10 16

Resp.

Hi Lo Hi Lo

020 0 2

Starting Address Quantity of Words

232

Word 2

Value
