Gefen ex tend it Manuel utilisateur
User Manual
VGAtoADC
Conversion Box
ex•tend•it
1
Congratulations
on your purchase of the ex•tend•it VGA to ADC Conversion
Box. Your complete satisfaction is very important to us.
Gefen’s line of KVM (Keyboard Video & Mouse), DVI, ADC, USB, switches,
extenders, converters and hubs is designed to make computer use more
comfortable, more productive and less expensive.
KVM switches allow access to multiple computers from a single keyboard,
while the extenders give the user control over a computer up to 330 feet
away from the work area.
The ex•tend•it line offers solutions for noise, space and security concerns,
data center control, information distribution, conference room presentation,
and school and corporate training environments.
Our Committment
Gefen will always offer the finest quality product at the best possible
price. Included in that price is a lifetime of free support from a team of out-
standing engineers.
2
Introduction
The ex•tend•it VGA to ADC Conversion Box connects traditional analog
video graphic cards to ADC compliant LCD monitors. The VGA to ADC
Conversion Box, enables users to connect laptops or other legacy
computers that are equipped with HD-15 video connections only.
•Connects computers with HD-15 analog video graphics output to
ADC flat panel displays
• Maintains up to 1920 x 1200 resolution
•Supports and extends any ADC flat panel display
• Supports DDWG standard for DVI compliant monitors
• Supports USB passthrough to the Apple flat panel display
•Installs in seconds
Troubleshooting
If there is no picture after a restart:
1- Verify that all the cables are tightly secured and the power LED is on.
2- Recycle the power on the VGA to ADC Conversion Box.
3- Restart the computer and allow 5-10 minutes to reboot.
4- Make sure your computer is set to the native resolution of your ADC
monitor.
If the picture is blurry or jittery, you can turn the rotary switch next to the DVI connector
with a small flat head screwdriver until the picture is focused and the jitter is gone.
If there is a picture, but at the wrong resolution:
1- Open the monitor control panel and set for the native resolution
of the monitor.
15” Studio Display = 1024 x 768 x 60hz 17” Studio Display = 1280 x 1024 x 60hz
22” Cinema Display = 1600 x 1024 x 60hz
23” HD Cinema Display = 1920 x 1200 x 60hz
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
3
4
How to connect the
VGA to ADC Conversion Box
1- Connect the ADC monitor to the VGA to ADC Conversion Box.
2- Connect the power supply to the VGA to ADC Conversion Box.
3- Connect the supplied VGA cable to the computer VGA port
and the VGA to ADC Conversion Box.
4- Start up the computer.
5- Observe that the power light is ON. The screen will show briefly,
then go dark and eventually come back with the proper setting.
important
Please allow the computer to complete its start-up cycle. (5-10 minutes)
6- You should see a beautiful picture.
5

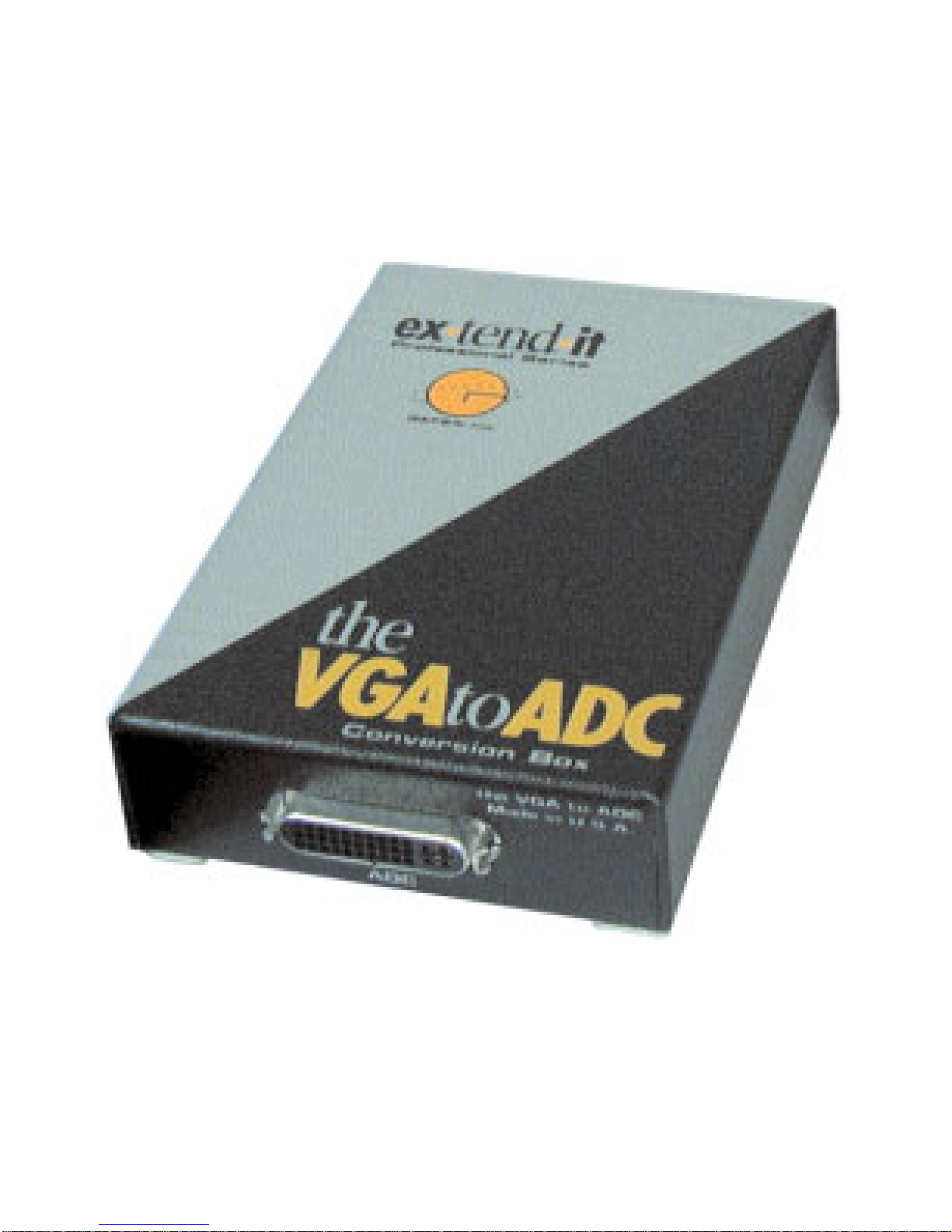

front view
6

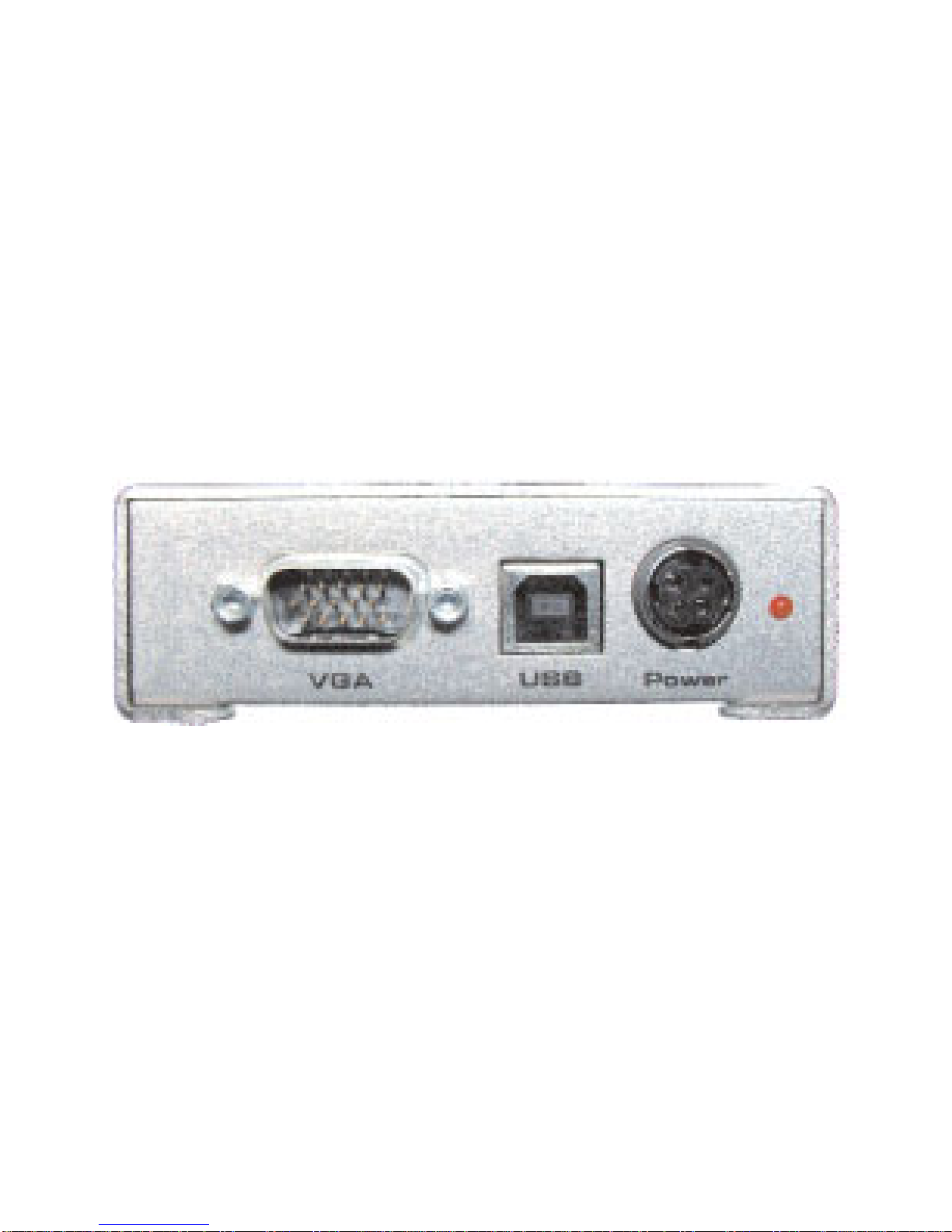

back view

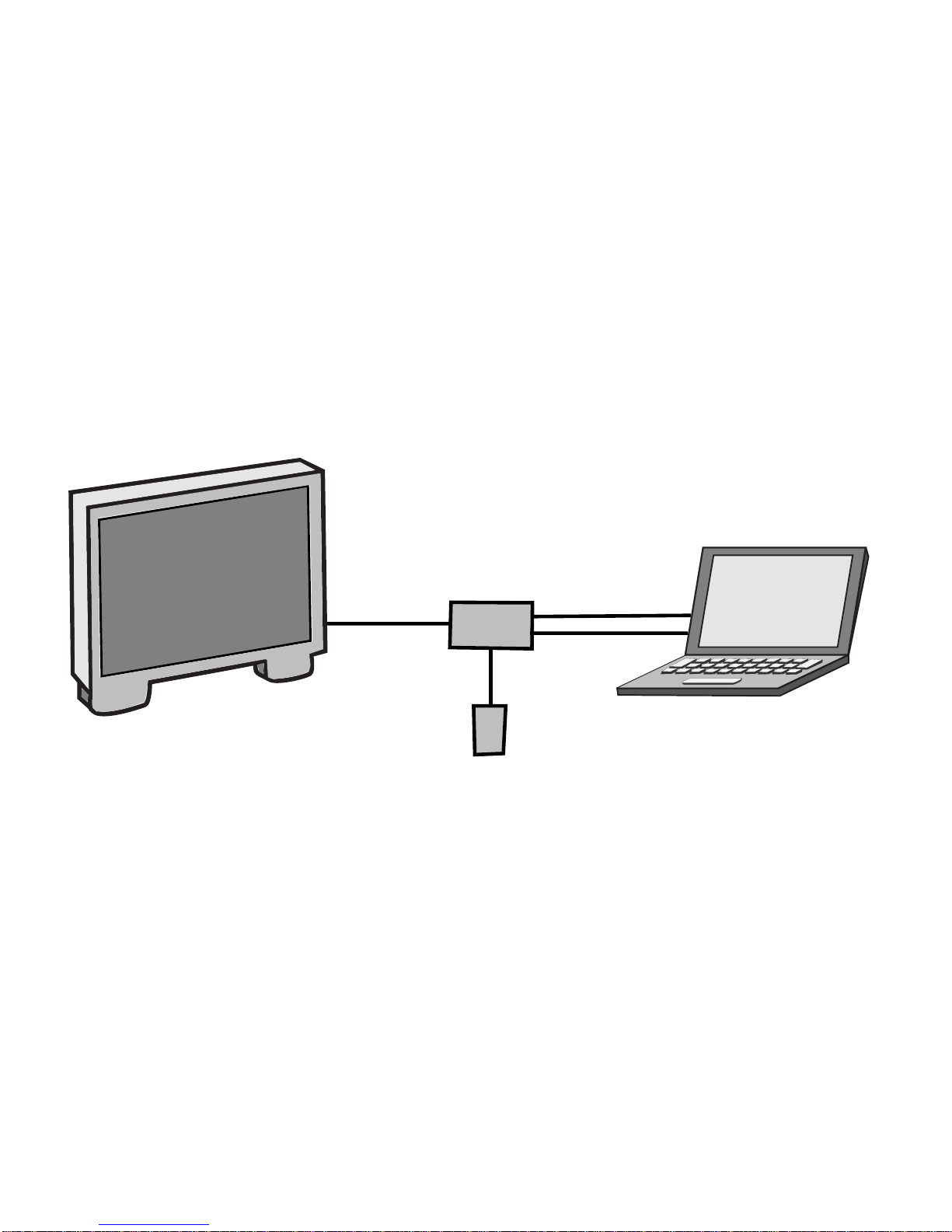

Wiring Diagram
7
VGA
ADC
VGA to ADC
Conversion Box
Power Supply
USB
8
Technical Support:
phone: 818-884-6294
fax: 818-884-3108
email: [email protected]
web: www.gefen.com
Technical Support Hours:
9:00 am – 5:00 pm PST
Monday -– Friday
Write to:
Gefen, Inc.
c/o Customer Service
6265 Variel Avenue
Woodland Hills
CA 91367-9897
USA
Asking for Assistance
Trademarks:
Macintosh is a trademark of Apple Computer Inc.
ex•tend•it is a trademark of Gefen Inc.
The VGA to ADC Conversion Box is a trademark of Gefen Inc.
© Copyright 2002 Gefen Inc. All Rights Reserved
9
Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects
in material and workmanship. If equipment fails because of such defects
and Gefen Inc. is notified within one (1) year from the date of shipment,
Gefen Inc. will, at its option, repair or replace the equipment, provided
that the equipment has not been subjected to mechanical, electrical, or
other abuse or modifications. Equipment that fails under conditions other
than those covered will be repaired at the current price of parts and
labor in effect at the time of the repair. Such repairs are warranted for
ninety (90) days from the day of re-shipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied,
including without limitation, any implied warranty or merchantability or
fitness for any particular purpose, all of which are expressly disclaimed.
The information in this manual has been carefully checked and is
believed to be accurate. However, Gefen Inc. assumes no responsibility for
any inaccuracies that may be contained in this manual. In no event will
Gefen Inc. be liable for direct, indirect, special incidental, or consequential
damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information
contained herein regarding VGA to ADC Conversion Box features and
specifications is subject to change without notice.
All Rights Reserved © Copyright 2002 Gefen Inc.
