Gefen VGA Extender SRN Manuel utilisateur

VGA Extender SRN

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday PST

Write To:

Gefen Inc.

C/O Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

[email protected]

www.gefen.com

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

VGA Extender SRN is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction / Operation Notes1.

Features2.

Panel Descriptions3.

Installing And Operating the VGA Extender SRN4.

Network Cable Wiring Diagram5.

Speciﬁcations6.

Warranty7.

The VGA Extender SRN allows users to extend video signals far beyond the A/V

rack. The VGA Extender SRN can be used to extend an analog VGA signal to cover

distances up to 150 feet. Industry standard Category 5e (CAT-5e) cable is used for

the extension.

How It Works

TheVGAextenderSRNsenderunit connectsto yourcomputer usingthe suppliedVGA

cable. The SRN receiver connects to your monitor - up to 150 feet away. One CAT-5

cable connects the sender and the receiver to each other, extending your video. The

video transmitter and receiver boxes are small and unobtrusive, allowing installation

in small spaces.

INTRODUCTION

OPERATION NOTES

Display information (EDID) is not sent back to the source. Standard VESA• resolutions should be output by most computers without the need of an EDID.

If using a non-VESA standard resolution or if EDID is needed, an EDID storage

and relay device is necessary. Gefen recommends the use of a DVI Detective

(part# EXT-DVI-EDID, EXT-DVI-EDIDN, or EXT-DVI-EDIDP) with two VGA to

DVI adapters

Useindustry standard Category-5(CAT-5) cableto operatetheVGAExtenderSR• system. CAT-5e cable is preferred

Please connect all the cables between the computer and the VGA Extender SR• before powering up the VGA Extender SR unit

The VGA Extender SR units are housed in a metal box for better RF shieldinG•

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE VGA EXTENDER SR SYSTEM

FEATURES

Features

Extends any VGA or high deﬁnition component display up to 150 feet (45• meters)

One CAT-5e cable for extension•

Supports resolutions up to 1080p, 2K, and 1920 x 1200•

Includes:

(1) VGA Extender SRN Sender Unit

(1) VGA Extender SRN Receive Unit

(1) 6 foot VGA cable (M-F)

(1) 5V external power supply

(1) User Manual

Focus

Trim PotBrightness

Trim Pot

VGA In Link Light Power Light

Link Light Power Light

VGA Out

5V DC

Power Input

PANEL DESCRIPTION

The link light will stay on when a VGA connection is made with the source and the

sender unit. If the link light turns off verify that the VGAcable is connected properly

from the source to the sender unit and the display to the receiver unit. The receiver

end link light will stay on as long as a CAT-5e cable is connected between the send-

er and receiver unit

The power light will stay on as long as the power supply is connected to the sender

unit.

Sender

Receiver

Connect the VGA Extender SR sender unit to the VGA output on the back of1. your computer. The supplied six foot M-F VGAcable connects the CPU and

sender unit together.

Connect the VGA Extender SR receiver unit to your monitor with the VGA cable2. that is attached to your monitor.

Connect the CAT5 cable between the VGA Extender SR sender and receiver’s3. CAT5 input.

Plug the 5 volt power supply into the sender unit. The VGAExtender SR re-4. ceiver will draw power from the sender.

NOTE: Display information (EDID) is not sent back to the source. Standard VESA

resolutions should be output by most computers without the need of an EDID. If us-

ing a non-VESA standard resolution or if EDID is needed, an EDID storage and re-

lay device is necessary. Gefen recommends the use of a DVI Detective (part# EXT-

DVI-EDID, EXT-DVI-EDIDN, or EXT-DVI-EDIDP) with two VGA to DVI adapters.

INSTALLING AND OPERATING THE VGA EXTENDER SRN

BRIGHTNESS AND FOCUS TRIM POTS

The brightness and focus adjustments are found on the receiver unit and will help

compensate for issues that can be introduced by outside interference and cable

variances. If the outgoing image is too dark or too bright, the brightness trim pot can

be tuned to help brighten the image. If there is a ghosting or blurring effect on the

image, the focus trim pot can be used to eliminate these artifacts. Insert a small ﬂat

head device, such as a screw driver into either the brightness or focus trim pot hole.

Turn the trim pot in millimeter increments in either a clockwise or counterclockwise

direction. Once the desired brightness and focus are reached, simply remove the

adjustment device from the trim pot hole.

NETWORK CABLE WIRING DIAGRAM

12345678

Gefen has speciﬁcally engineered their products to work with the TIA/EIA-568-B

speciﬁcation. Please adhere to the table below when ﬁeld terminating cable for

use with Gefen products. Failure to do so may produce unexpected results and

reduced performance.

Category 5 cabling comes in stranded and solid core types. Gefen recommends

using solid core cabling.

Pin Color

1 Orange / White

2 Orange

3 Green / White

4 Blue

5 Blue / White

6 Green

7 Brown / White

8 Brown

Video Ampliﬁer Bandwidth..............................................................................350 MHz

Input Video Signal.....................................................................................1.2 Volts p-p

Input Sync Signal...............................................................................5 Volts p-p (TTL)

Horizontal Frequency Range.......................................................................15-70 KHz

Vertical Frequency Range..........................................................................30 - 170 Hz

Video In......................................................................................................HD-15 male

Video out.................................................................................................HD-15 female

Link Connector.....................................................................................RJ-45 Shielded

Power Supply......................................................................................................5V DC

Power Consumption..............................................................................5 Watts (max.)

Dimensions......................................................................................1” W x 1” H x 4” D

Shipping Weight...................................................................................................3 lbs.

SPECIFICATIONS

Table des matières

Autres manuels Gefen Extenseur

Gefen

Gefen EXT-HDMI1.3-CAT5-ELR Manuel utilisateur

Gefen

Gefen EXT-DVI-FM2500 Manuel utilisateur

Gefen

Gefen USB-100 Manuel utilisateur

Gefen

Gefen EXT-2DVI-DLKVM-CAT6 Manuel utilisateur

Gefen

Gefen USB-2.0 Manuel utilisateur

Gefen

Gefen Pro DVI FM 2000 Manuel utilisateur

Gefen

Gefen CAT5-2000 Manuel utilisateur

Gefen

Gefen GTB-DVIKVM-ELR Manuel utilisateur

Gefen

Gefen ext-hdmi-cat5x Manuel utilisateur

Gefen

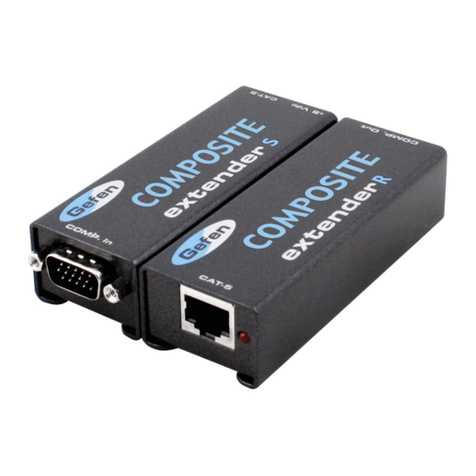

Gefen Composite Extender Manuel utilisateur
