E4H-CE AND E8-CE SERIES

WATER PURIFICATION

MACHINES

3 m3/hr to 45 m3/hr

18,000 gpd to 288,000 gpd

Operation and Maintenance

Manual

INSTRUCTIONS FOR E4H-CE AND E8-CE

WATER PURIFICATION

OPERATION AND MAINTENANCE MANUAL

TABLE OF CONTENTS

Page

1.0 DESCRIPTION 1

1.1 Definitions 1

1.1.1 Permeate Rate 1

1.1.2 Concentrate Rate 1

1.1.3 Feed Rate 1

1.1.4 Reverse Osmosis 1

1.1.5 Membrane Elements 2

1.1.6 Clean-In-Place 2

1.1.7 Flow Control Center 2

1.1.8 Average Pressure 2

1.1.9 Concentration 2

1.1.10 Salt (Ionic) Passage 3

1.1.11 Recovery 3

1.1.12 Salt (Ionic) Rejection 3

1.2 Machine Nomenclature 5

1.3 Features 5

1.4 Specifications for E-CE Series Machines 7

1.4.1 Feed Water Specifications 8

1.4.2 Permeate Flow Rate 8

1.4.3 Concentrate Flow Rate 8

1.4.4 Pressure Range 8

1.4.5 Reverse Osmosis Membrane Element Rejection 9

2.0 INSTALLATION 10

2.1 Feed Water Requirements 10

2.2 Mounting 10

2.3 Plumbing 11

2.4 Power and Electrical Requirements 11

3.0 PREPARATION FOR START-UP 12

3.1 Pretreatment for Water Purification 12

3.2 Initial Start-Up 12

3.3 Daily Start-Up 16

Page

4.0 MACHINE OPERATION AND MAINTENANCE 17

4.1 Daily Log Sheets 17

4.2 Pre-Filter Cartridge 17

4.3 Cleaning 17

4.4 Draining Machine for Shipment 19

4.5 Membrane Element Replacement 19

4.6 Membrane Element Removal 21

5.0 FIELD INSTALLED ACCESSORIES 22

5.1 Pretreatment Shutdown 22

5.2 Permeate Flush 22

5.3 Chemical Pump 24

5.4 Clean-In-Place Installation 24

6.0 TROUBLESHOOTING 25

7.0 FORMS 33

7.1 Return Goods Authorization (RGA) 33

7.2 Start-Up Data Sheet 34

7.3 Daily Log Sheet 35

8.0 WARRANTY/GUARANTEE 36

8.1 Warranty Terms 36

8.2 Warranty Commencement Date 36

8.3 Warranty Service 36

8.4 Voidability of Warranty 37

8.5 Limitations and Exclusions 37

Page

LIST OF FIGURES

Figure Title

1.1 Normal Versus Cross Flow Filtration 1

1.2 Membrane Element With Interconnectors 2

1.3 Principles of Operation 3

LIST OF TABLES

Figure Title

1.1 Flow Specifications for E-CE Reverse Osmosis Machines 7

1.2 Minimum/Maximum Boost Pressure 8

1.3 Membrane Element Specifications 9

2.4 Feed Water Requirements 10

2.5 Connections 11

1.0 DESCRIPTION

E-CE Series Reverse Osmosis (RO) machines are durable pieces of equipment, which, with prop-

er care, will last for many years. These instructions give operation and maintenance details vital

to the sustained performance of the machine. Please read completely before operating your

machine.

1.1 Definitions

The operating definitions provided below will help you further understand your machine

and this manual.

1.1.1 Permeate Rate (Product Water Rate) [Qp]

The Permeate Rate is the flow rate of purified water that passed through the mem-

brane element and out of the membrane element in liter/min (Lpm), cubic

meters/hour (m3/h), gallons/min (gpm) or gallons/hour (gph). Specified perme-

ate rates are based on a feed water temperature of 25°C (77°F). Permeate rate will

vary with temperature.

1.1.2 Concentrate Rate (Wastewater Rate) [Qc]

The Concentrate Rate is the flow of incoming water in Lpm or m3/h (gpm or gph).

1.1.3 Feed Rate [Qf]

The Feed Rate is the flow rate of incoming water in Lpm or m3/h (gpm or gph).

Feed water rate equals permeate plus concentrate rate.

1.1.4 Reverse Osmosis

Reverse Osmosis (RO) is the separation of one component in a solution from

another component of a solution from another component by means of pressures

exerted on a semi-permeable membrane element. The feed solution is separated

into two streams, permeate and concentrate, and collected from both sides of the

membrane element.

Figure 1.1

Normal Versus Cross Flow Filtration

1.1.5 Membrane Elements

Membrane elements are interleaved layers of semi-permeable membrane, spacer,

and permeate carrier spiraled around a central permeate tube make up the mem-

brane element.

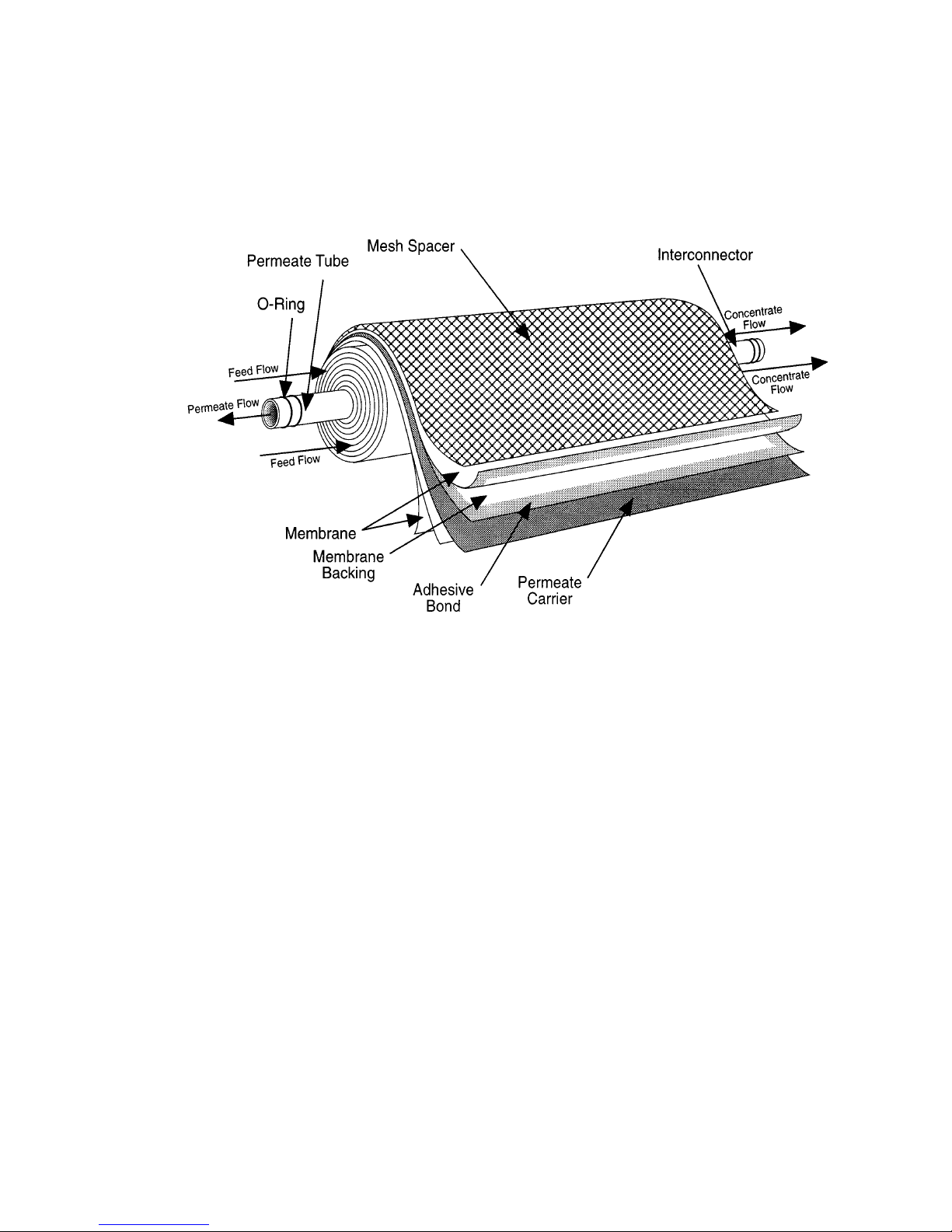

Figure 1.2

Membrane Element with Interconnectors

1.1.6 Clean-In-Place

The abbreviation for Clean-In-Place is CIP.

1.1.7 Flow Control Center

The Flow Control Center features a concentrate flow control valve, a recycle flow

control valve, and a pressure gauge. It is located directly behind the control enclo-

sure.

1.1.8 Average Pressure

PAV G (Average Pressure) = [(PPRIMARY + PFINAL) ÷2]

1.1.9 Concentration

Concentration equals the Total Dissolved Solids (TDS) concentration of a solution

expressed as conductivity (µS/cm) or parts per million (ppm).

Cf= Feed Concentration

Cp= Permeate Concentration

Cc= Concentrate Concentration

Cavg = Average Concentration in Machine

1.1.10 Salt (Ionic) Passage

Ionic Salt Passage equals the percent of dissolved salts passed through the mem-

brane element or 100% minus rejection.

1.1.11 Recovery

Recovery equals permeate rate divided by feed rate and is expressed as a per-

centage. For example, 75% recovery means that out of a given feed rate, 75% is

produced as purified water (permeate).

1.1.12 Salt (Ionic) Rejection

Ionic Salt Rejection equals the percent of dissolved salt rejected by the membrane

element, calculated from an average concentration over the membrane element.

An example of how to calculate salt rejection and recovery is below:

Figure 1.3

Principles of Operation

Given the system case in Figure 1.3:

Average Concentration (Cavg) = [(Cf) + (Cc)]

= [(100 mg/L) + (375 mg/L)]

= 237.5 mg/L

Rejection = [(Cavg) - (CP)] x 100

(Cavg)

= [(237.5 mg/L) + (8.3 mg/L)] x 100

(237.5)

= 96.5%

Passage = (CP) x 100

(Cf)

= (8.3 mg/L) x 100

(237.5)

= 3.5%

Recovery = (QP) x 100

(Qf)

= (18 gpm) x 100

(24gpm)

= 75%

1.2 Machine Nomenclature

E-CE Series water purification machines are numbered in such a way as to indicate the

permeate flow you can expect from the machine and other specifications:

Example: RE, E8-CE-9, 400, 5, 66 - 75

1.3 Features

E4H-CE and E8-CE water purification machines have all the features necessary for safe,

continuous production of high-purity water. This assumes properly pretreated feed water

with a TDS ≤2000 ppm and regular operator maintenance.

·Sixty-six (66) - 75% recovery (E8-CE) or 50 -75% recovery (E4H-CE). Adjust con-

centrate and recycle flows to obtain desired recovery.

·Epoxy-coated carbon steel frame.

·Three hundred fifty (350) square foot or 85 square foot (E4H-CE) membrane ele-

ments with stainless steel (SS) membrane element housings.

RO E8 - CE - 9 400 5 66 - 75

Machine Type Recovery Range

(Reverse Osmosis) 66 - 75% E8-CE

50 - 75% E4H-CE

Machine Series Hertz Operation

CE-E Series 5 = 50 Hertz

(E8: 8-inch housings/membrane elements)

(E4H: 4-inch housings/membrane elements)

CE Marked 400 VAC

3-Phase Starter

Rated Permeate Flow

[9 m3/hour at 25°C (77°F)]
