GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 1

gGE imagination at work

GE Profile Washer

WPGT9150

GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 2

gGE imagination at work

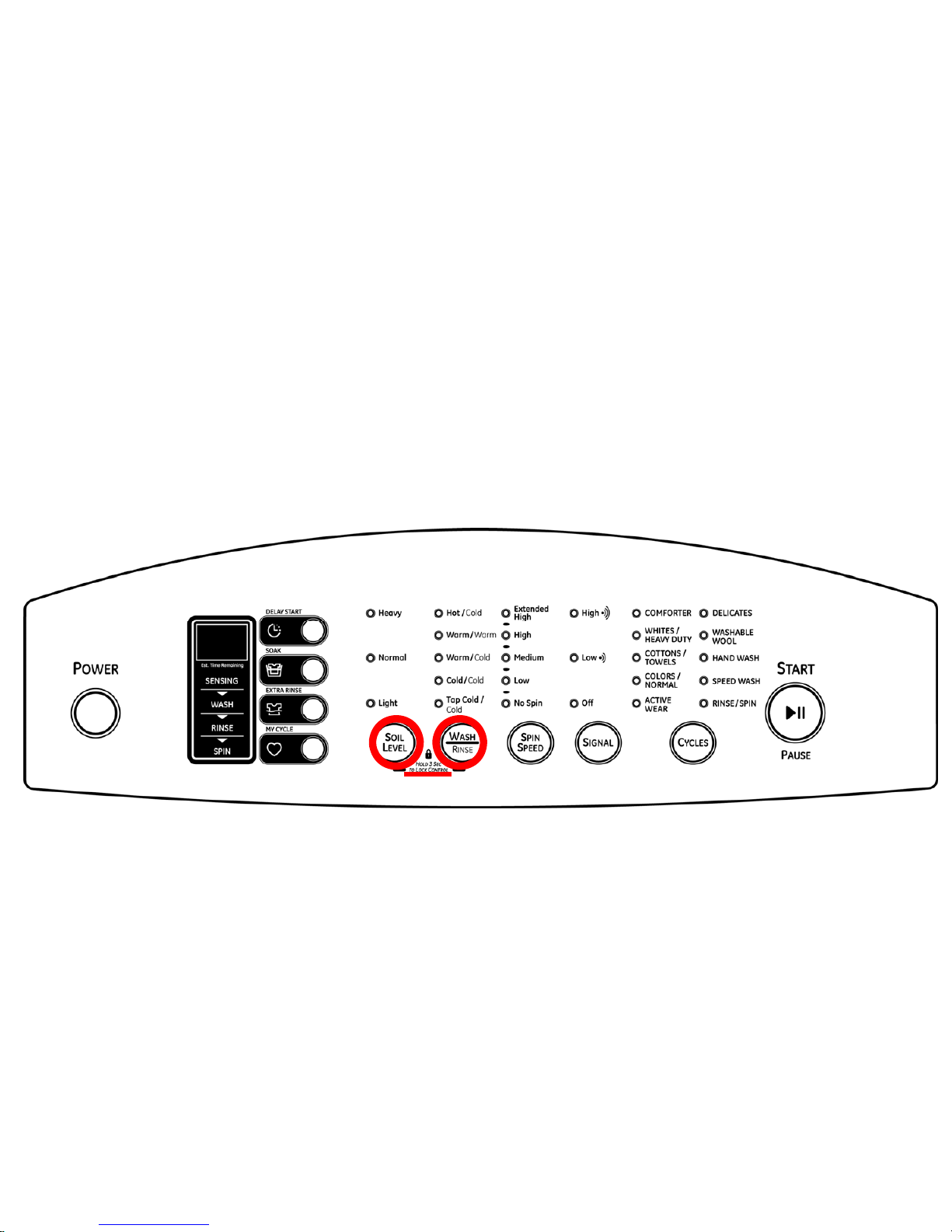

Control Lock

cl

•To lock and unlock control

•Press soil level and wash/rinse for 3 seconds

•Replacement control may be shipped in locked mode

GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 3

gGE imagination at work

WPGT9150 Service Mode

•To Enter Service Mode:

•In idle state (No display on SSD)

•Press and hold Wash/Rinse + Spin Speed then

press Power button to enter service mode

•If control does not display “t1”, the press and

hold sequence was not executed correctly.

•Press POWER to clear display, then re-enter

Service Mode.

GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 4

gGE imagination at work

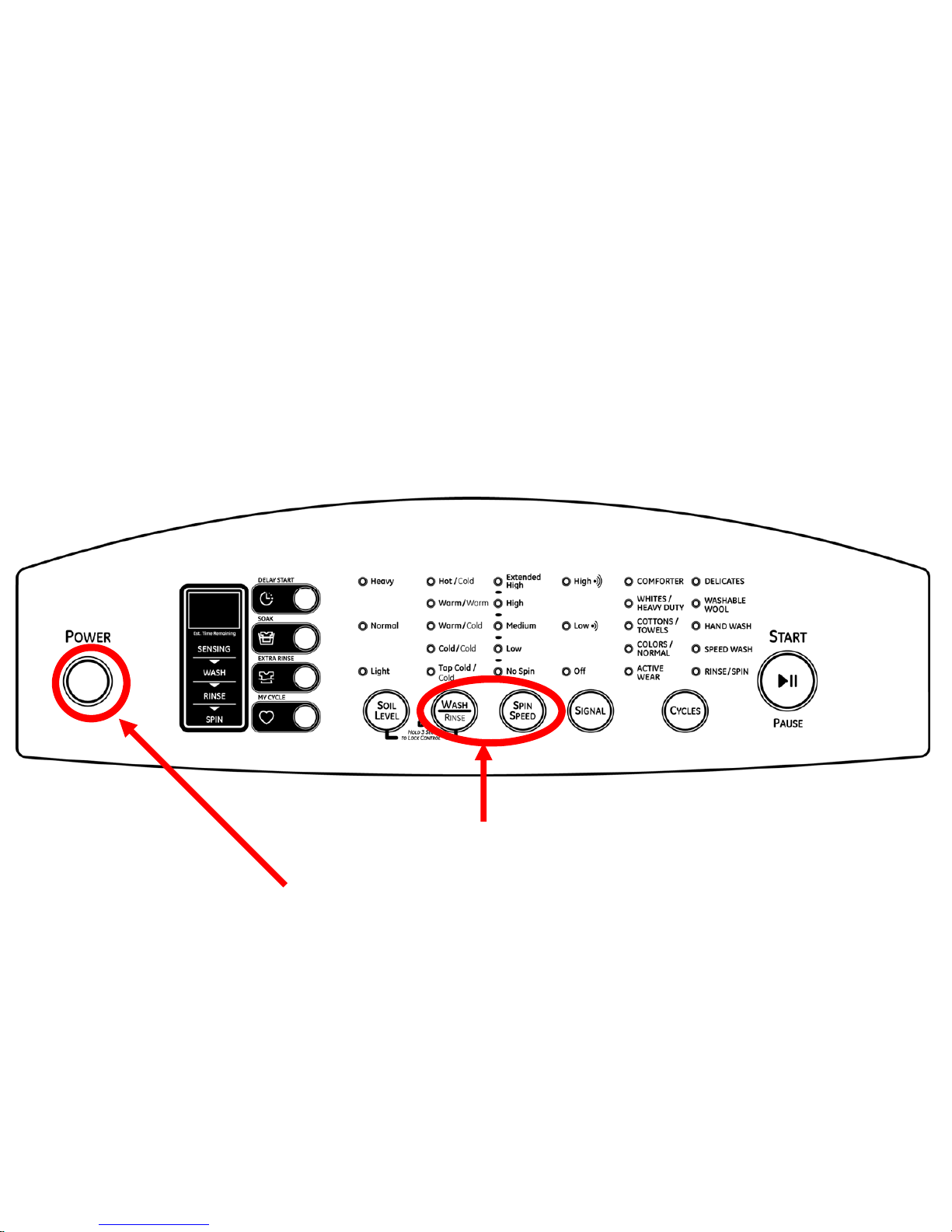

To Enter Service Mode

•First press and Hold Wash/Rinse and Spin Speed buttons

•Then press the Power button

•Display will show t1

t1

GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 5

gGE imagination at work

Service Mode

•Press the Cycles Button to Navigate from Test to Test

(This also exits an existing Test)

•Press the Start Button to enter/enable a Test and to

navigate from subtest to subtest

GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 6

gGE imagination at work

Service Mode

•T1 - LED Check

•T2 - Software Revision

•T3 - Water Valve and Dispenser Check

•T4 - Drain Pump Check

•T5 - Agitate Test

•T6 - Spin Test

•T7 - Controlled Spin Test Approx 230rpm’s

•T8 - Error Code Test

GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 7

gGE imagination at work

Error Codes

Display Error

E1 Over flow Error Critical

E2 Inverter not operating correctly Critical

E4 Inlet Valve Failure Critical

E5 Pump Failure Critical

E6 Clutch Error Critical

E7 Pressure Sensor Failure Critical

E8 Lid Switch Failure Critical

E9 EEPROM Error Control inoperable

D1 Motor not rotate properly Critical

D2 No Brake Resistance Critical

D3 Coupling Error Critical

D4 IPM Thermistor Error Non-Critical

D5 Lid Switch Error

(3 continuous wash cycles without a Lid Switch operation.) Critical

GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 8

gGE imagination at work

Error Codes

•All Error codes will be displayed to

consumer (except for E9 EEPROM error)

•All critical errors will disable washer until

error is cleared

•Power off unit to clear errors (if error

returns, machine will require service)

•D-5 error may not be critical on early

production units (see D5 information)

GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 9

gGE imagination at work

Service Mode

•To Exit Service Mode:

•Press the Power Button.

•If no key is pressed for 15 minutes, the

control will automatically exit Service

Mode and enter the Idle State.

GE Profile HE Washer (3/3/08)

GE CONFIDENTIAL & PROPREITARY INFORMATION - NOT FOR PUBLIC DISCLOSURE

Copyright 2008 General Electric Company 10

gGE imagination at work

Test 1 – LED Component Check

•The display will initially show “t1”.

•Press the Start button, the Display will initially

toggle between “t1” and “H3”. All LED’s turn on.

This cycle will continue until the Start button or

Cycle button is pressed.

•When Start button is pressed, come back to “t1”.

When Cycle button is pressed, Control

advances to “t2
