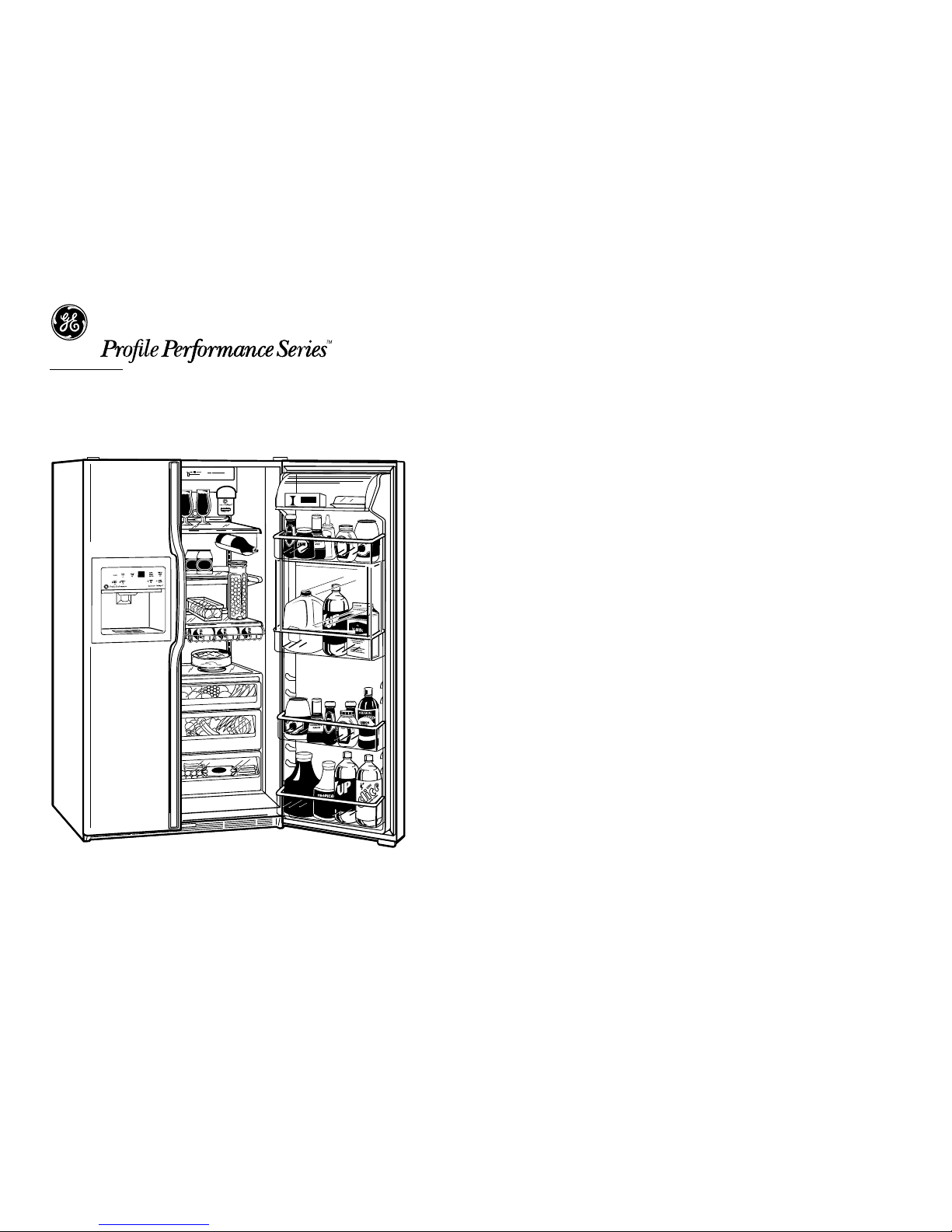

TFX28PBDWW - GE Profile Performance™28.4 Cu. Ft. Side-by-Side Refrigerator with Dispenser
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Specification Created 2/00
Top View
A
E
F
C
D
G
H
B
Front View
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
†If installed against a wall, allow clearance of 11-1/4” on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
15-3/4” Clearance required to remove fresh food full-size pan
without disassembling.
For Built-In appearance allow height space of 69-3/4” on 28 cu. ft.
refrigerators. Plus allow additional space for any neccessary
leveling adjustments.
Height with hinge (in.) A 69-3/4
Height without hinge (in.) B 68-3/4
Depth without Doors (in.) C28
Depth with Doors (in.) D 30-1/2
Depth plus Handle with Doors Closed (in.) E 32-5/8
Depth with Doors open 90° (in.) F 49-3/8
Width with Doors Closed (in.) G 35-3/4
Width with Doors open 90° Less Door Handle(in.) H38
Each side (in.) 1/8†
Top (in.) 1
Back (in.) 1/2
Overall
Dimensions
Air
Clearances
Specification Created 2/00
TFX28PBDWW - GE Profile Performance™28.4 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Meats/Deli
Vegetables
Fruits/Snacks
Features and Benefits
• 28.4 cu ft Capacity (Fresh Food 17.23 cu ft / Freezer 11.18 cu ft)
• Refreshment Center
• Electronic Monitor / Diagnostic System
• Exclusive Water by Culligan™Provides Cleaner, Better Tasting Water and
Ice Through the LightTouch! Dispenser (Chilled Water, Cubes and Crushed Ice)
• Freshness Center™(1 Adjustable Humidity Crisper, 1 Convertible Meat
Keeper with Cold Control and 1 Adjustable Humidity Snack Pan) with
Spill-Proof Cover
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide Out, Spill Proof)
• Quick Space™Shelf
• ShelfSaver™
• 4 ClearLook™Modular Gallon Door Bins (2 Adjustable)
• Dairy Compartment with Glass Butter Dish
• Egg Bin
• Beverage Rack
• 3 Wire Everwhite, Freezer Compartment Shelves (2 Adjustable)
• 1 Wire Everwhite, Slide Out Freezer Basket
• 1 Clear Sliding Freezer Storage Bin
• 4 Freezer Door Shelves (2 Adjustable)
• Quiet Package II
• Color-Matched Premium Deluxe Door Handles
• Model TFX28PBDWW - White on white
• Model TFX28PBDBB - Black on black
• Model TFX28PBDAA - Almond on almond
• Model TFX28PBDCC - Bisque
• Model TFS28PBDBS - Stainless steel
