GE PTV15SAMR Manuel utilisateur

Page 1

gGE Appliances Service Training

_____________________________

TECHNICIAN

SERVICE MANUAL

Refrigerator

MODELS:

PTV15SAMR PTU427SAMR PTQ440SAMR

PTV16SAMR PTU463SAMR PTQ470SAMR

PTV19SAMR PTU527SAMR PTQ530SAMR

PTV20SAMR PTU565SAMR PTQ570SAMR

PTG440SAMR

PTG470SAMR

PTG530SAMR

PTG570SAMR

PUB NO. : SPWR1027E

JULY 2001

Page 2

IMPORTANT SAFETY NOTICE

The information in this service guide is intended fo

use by individuals possessing adequate backgrounds

of electrical, electronic and mechanical experience.

Any attempt to repair a major appliance may result in

personal injury and property damage. The

manufacturer or seller cannot be responsible for the

interpretation of this information, nor can it assume

any liability in connection with its use.

WARNING

To avoid personal injury, disconnect power before

servicing this product. If electrical power is required

for diagnosis or test purposes, disconnect the powe

immediately after performing the necessary checks.

RECONNECT ALL GROUNDING

DEVICES

If grounding wires, screws, straps, clips, nuts, o

washers used to complete a path to ground are

removed for service, they must be returned to thei

original position and properly fastened.

Page 3

THE MANUAL COVERS THE

FOLLOWING MODELS

MODEL # COUNTRY

PTU427SAMR

PTU463SAMR

PTU527SAMR

PTU565SAMR

AUSTRALIA /

NEW ZEALAND

N/A BANGLADESH

N/A CHINA

N/A HONG KONG

N/A INDIA

PTG440SAMR

PTG470SAMR

PTG530SAMR

PTG570SAMR

INDONESIA /

THAILAND /

VIETNAM

N/A JAPAN

N/A KOREA

N/A MALAYSIA

Page 4

THE MANUAL COVERS THE

FOLLOWING MODELS

MODEL # COUNTRY

N/A PAKISTAN

PTV15SAMR

PTV16SAMR

PTV19SAMR

PTV20SAMR

PHILIPPINES

PTQ440SAMR

PTQ470SAMR

PTQ530SAMR

PTQ570SAMR

SINGAPORE

N/A TAIHITI

N/A TAIWAN

Page 5

I. SPECIFICATION

Models

PTV20SAMR

PTU565SAMR

PTQ570SAMR

PTG570SAMR

PTV19SAMR

PTU527SAMR

PTQ530SAMR

PTG530SAMR

PTV16SAMR

PTU463SAMR

PTQ470SAMR

PTG470SAMR

PTV15SAMR

PTU427SAMR

PTQ440SAMR

PTG440SAMR

Type 2-door 2-door 2-door 2-door

Height 1803 1703 1774 1674

Width 754 754 674 674Net dimension (mm)

Depth 560 733 706 706

Rated storage volume (liter) F:139 / R:391 F:139 / R:346

System Heater system

Start AutomaticDefrosting

Finish Automatic

Temperature control Automatic (Adjustable)

No frost freezer ÖÖÖÖ

Interior lamp 1 1 1 1

Caster 2 2

Common

Evaporating pan 1 1 1 1

Ice storage box 1 1 1 1

Transparent plastic shelf 2 2 1 2

Twisted ice tray Twin ice cube maker

Freezer

Transparent door racks 2 2 2 2

Deodorizing device ÖÖÖÖ

Multi air flow ÖÖÖÖ

Chilled room ÖÖÖÖ

Transparent shelf with steel frame 3 2 3 2

Vegetable crisper with moisture

control ÖÖ

Traditional vegetable crisper 1 1 1 1

Transparent door racks 4 3 4 3

Large bottle/beer storage rack 1 1 1 1

Refrigerator

Egg storage bucket 2 2 2 2

Page 6

I. SPECIFICATION

Models

PTV20SAMR

PTU565SAMR

PTQ570SAMR

PTG570SAMR

PTV19SAMR

PTU527SAMR

PTQ530SAMR

PTG530SAMR

PTV16SAMR

PTU463SAMR

PTQ470SAMR

PTG470SAMR

PTV15SAMR

PTU427SAMR

PTQ440SAMR

PTG440SAMR

Silver ÖÖÖÖ

Color

Black ÖÖÖÖ

Rated voltage (V) / Frequency (Hz) 240 VAC / 50 Hz ; 220 VAC / 50 Hz ; 220 VAC / 60 Hz

Rated input (W) 180 180 170 170

Refrigerant (R-134a) charging

quantity 175g 165g 155g 155g

Nte weight (Kg) 83 78 74 63

Poor material SS SS SS SS

Source, Comp. & Net

weight

Recessed handle ÖÖÖÖ

Page 7

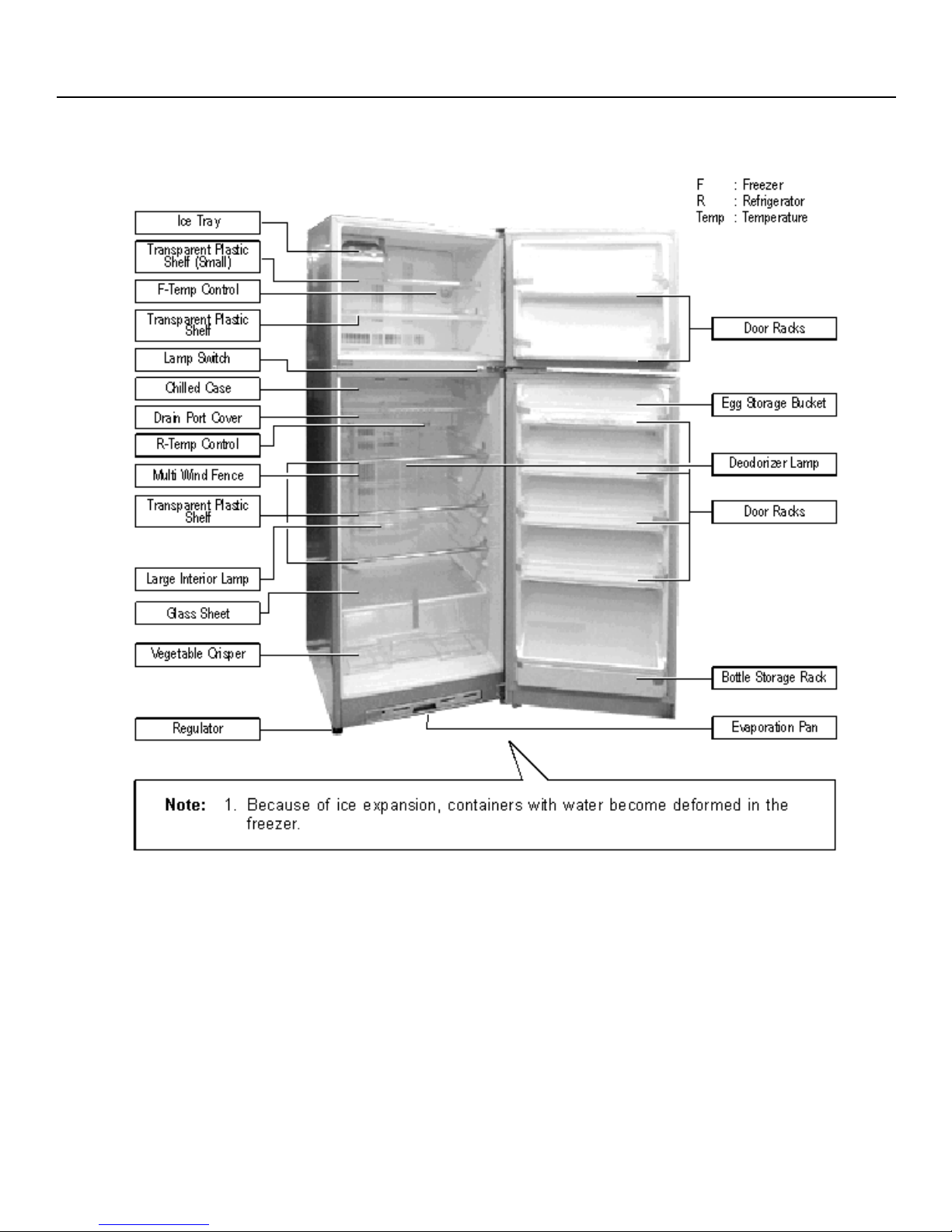

II. PARTS IDENTIFICATION

Features:

Ice tray : Can make and store 1kg of ice cubes.

Chilled Case : The fish and meats which will be cooked within 2 days can store

here, no thawing is required.

Evaporation Pan : Water discharged from the refrigerator is evaporated here.

Door Racks (F) : Short-term storage of frozen food.

Egg Storage Basket : Can store 16 eggs.

Door Racks (R) : Short-term storage of refrigerated food.

Bottle Storage Rack : Can store 5 bottles of beer or soda.

Regulator : For regulation of the refrigerator.

PTV15SAMR / PTU427SAMR / PTQ440SAMR / PTG440SAMR has 2 Transparent Plastic Shelves & 3 Door Racks

PTV16SAMR / PTU463SAMR / PTQ470SAMR / PTG470SAMR has 3 Transparent Plastic Shelves & 4 Door Racks

PTV15SAMR / PTU427SAMR / PTQ440SAMR / PTG440SAMR

PTV16SAMR / PTU463SAMR / PTQ470SAMR / PTG470SAMR

Page 8

II. PARTS IDENTIFICATION

Features:

Ice tray : Can make and store 1kg of ice cubes.

Chilled Case : The fish and meats which will be cooked within 2 days can store

here, no thawing is required.

Evaporation Pan : Water discharged from the refrigerator is evaporated here.

Door Racks (F) : Short-term storage of frozen food.

Egg Storage Basket : Can store 20 eggs.

Door Racks (R) : Short-term storage of refrigerated food.

Bottle Storage Rack : Can store 5 bottles of beer or soda.

Regulator : For regulation of the refrigerator.

PTV15SAMR / PTU427SAMR / PTQ440SAMR / PTG440SAMR has 2 Transparent Plastic Shelves & 3 Door Racks

PTV16SAMR / PTU463SAMR / PTQ470SAMR / PTG470SAMR has 3 Transparent Plastic Shelves & 4 Door Racks

PTV19SAMR / PTU527SAMR / PTQ530SAMR / PTG530SAMR

PTV20SAMR / PTU565SAMR / PTQ570SAMR / PTG570SAMR

Page 9

III. SERVICE GUIDE

3.1 REPLACEMENT OF DOOR

3.1.1 Remove the top hinge cover. Twist

and remove carefully not to hurt the

cover and cabinet with driver.

3.1.2 Remove the screw and top hinge

assy.

3.1.3 Remove the F door assy slightly and

remove it.

3.1.4 Remove the center hingr and remove

the R door assy.

3.1.5 Remove the door liner.

top hinge cover

top hinge

screw

center hinge

fix screw

door liner

remove screw with driverdoor packing

Page 10

III. SERVICE GUIDE

3.2 REPLACEMENT OF HEATER

3.2.1 Draw out the ice storage box.

3.2.2 Pull the case holder of ice silder.

3.2.3 Remove screw and F knob.

3.2.4 Remove F louver and pull the connector.

3.2.5 Remove EV cover screw and remove the

EV cover.

3.2.6 Remove the EV screw and up the EV

assy.

3.2.7 Remove the heater cover.

3.2.8 Remove the screws (2 pcs).

3.2.9 Rend the al. foil and remove heater

support.

3.2.10 Remove heater.

F knob

screw

F louver

F-THM

connector

EV cover assy

fanscrew

EV assy

screw

foil

screw

heaterheater support

heater cover
