GE Profile PSI23MGW Manuel

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

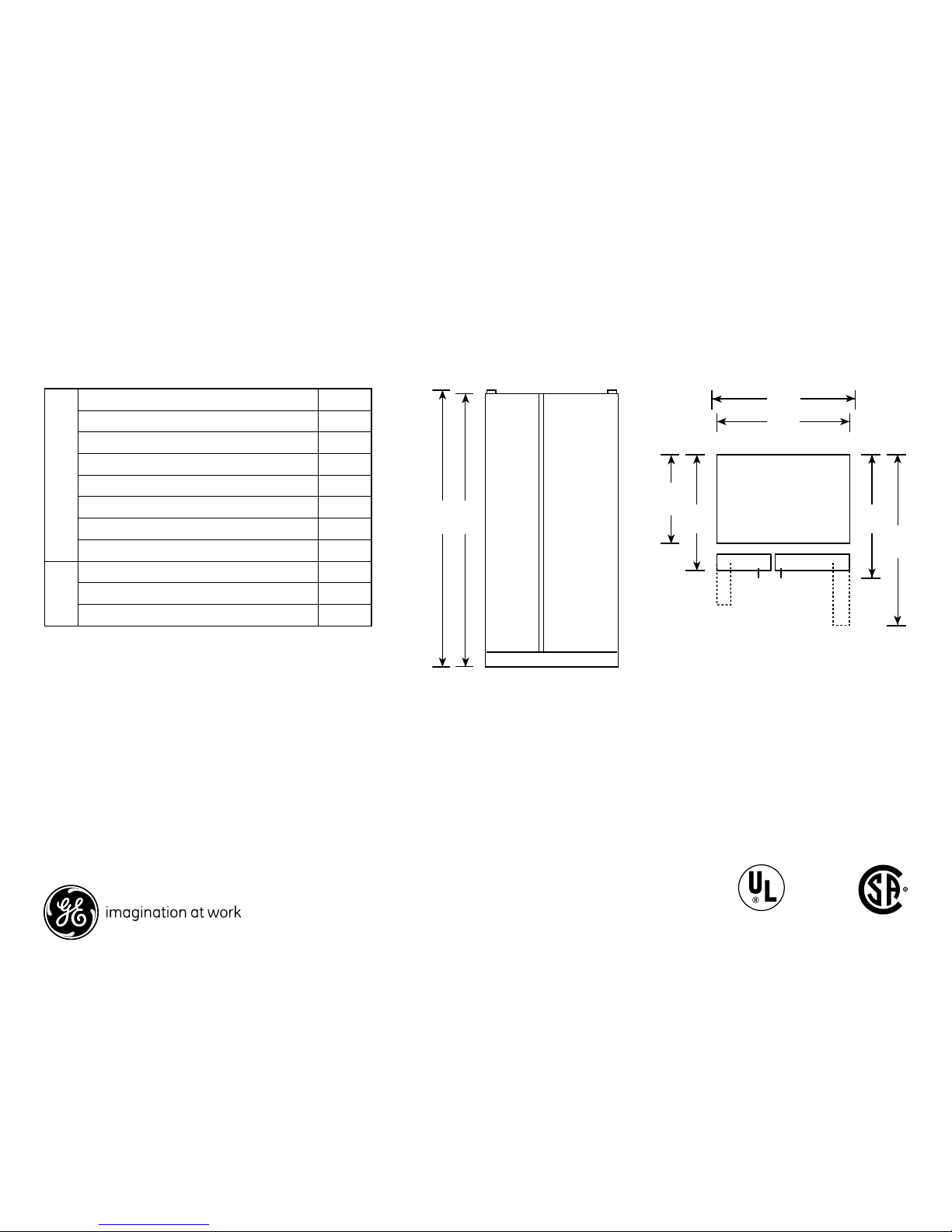

Overall

Dimensions

Height to top of hinge (in.) A 69-1/4*

Height to top of case (in.) B 68-3/4

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†26-3/4

Case depth with door handle (in.) E†29-3/16

Depth with fresh food door open 90° (in.) F†45-9/16

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 40

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1/2

*Height to top of door trim (in.): 70-1/4

†Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 13-15/16" on

freezer side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

Specification Created 2/07

Dimensions and Installation Information (in inches)

210253

"94 SxS Refer

Front View

Top View

PSI23MGW

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

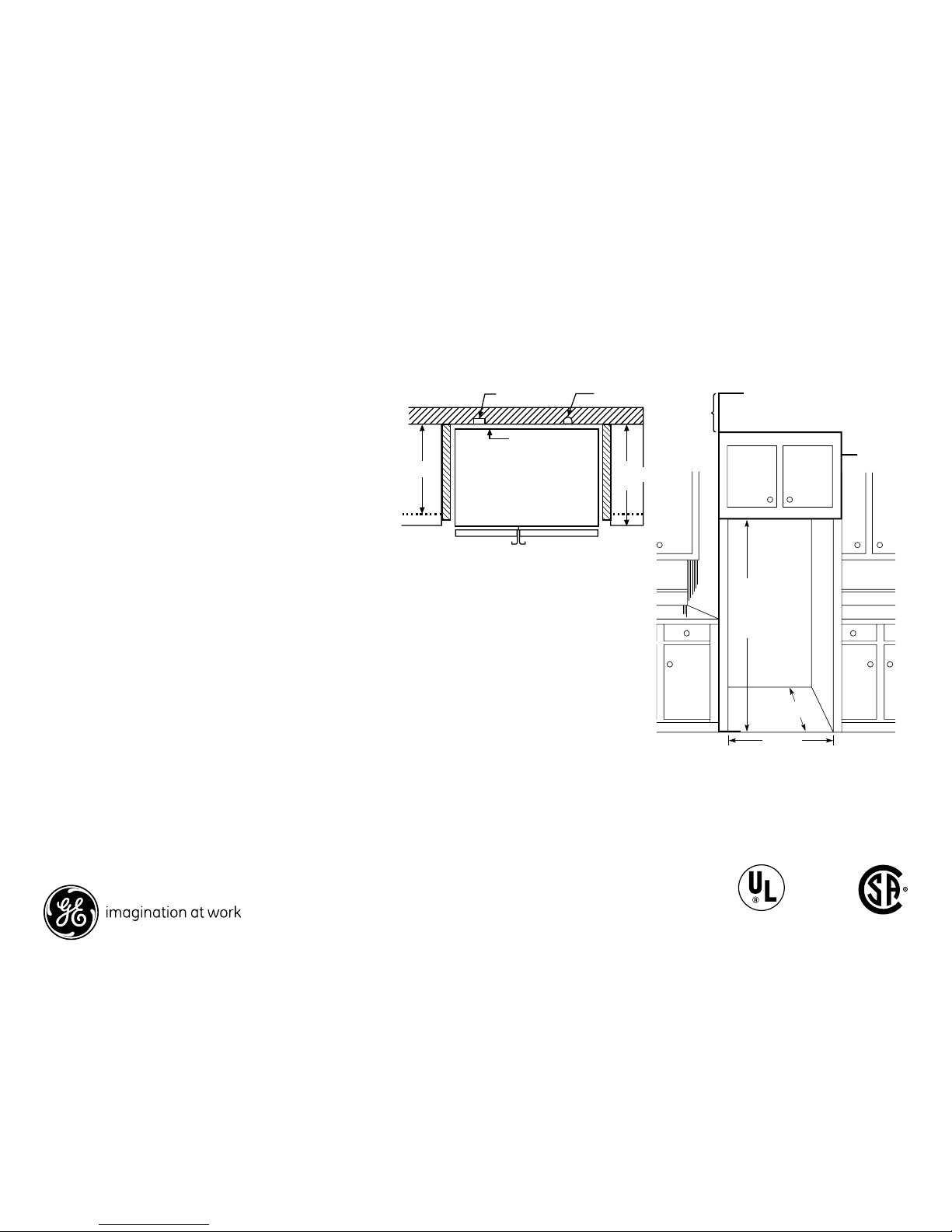

Rough-In Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

36-1/8"

24-1/2"

*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from

the finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models

to allow additional clearance between cabinet doors and top of refrigerator trim

when cabinet doors are in open position.

Collar Trim In. w/ceiling

70-1/4"*

23 cu. ft. models

72-1/4"*

25 cu. ft. models

Listed by

Underwriters

Laboratories

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

ElectricalWater

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

Fig 2A eps

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water

line damage. 48" minimum length, 1/4" diameter water

line tubing recommended.

• When possible, recess both copper water line and electrical

outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.

(See owner’s manual)

• If optional collar trim kit is to be used or anticipated, see collar

trim installation for different rough-in dimensions

**The rough-in dimensions of 70-1/4"/72-1/4" are minimum and

measured from the finished floor to top of opening (or the

underside of the overhead cabinets). For Models with Trim Kit:

If frameless style cabinets are planned for above the refrigerator,

you may need to consider adding a maximum of 1/4" (70-1/2")

to height of opening for 23 cu. ft. models and 1/8" (72-3/8”) for

25 cu. ft. models to allow for additional clearance between the

cabinet doors and the top of refrigerator trim when the cabinet

doors are in open position.

210253

Specification Created 2/07

PSI23MGW

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

210253

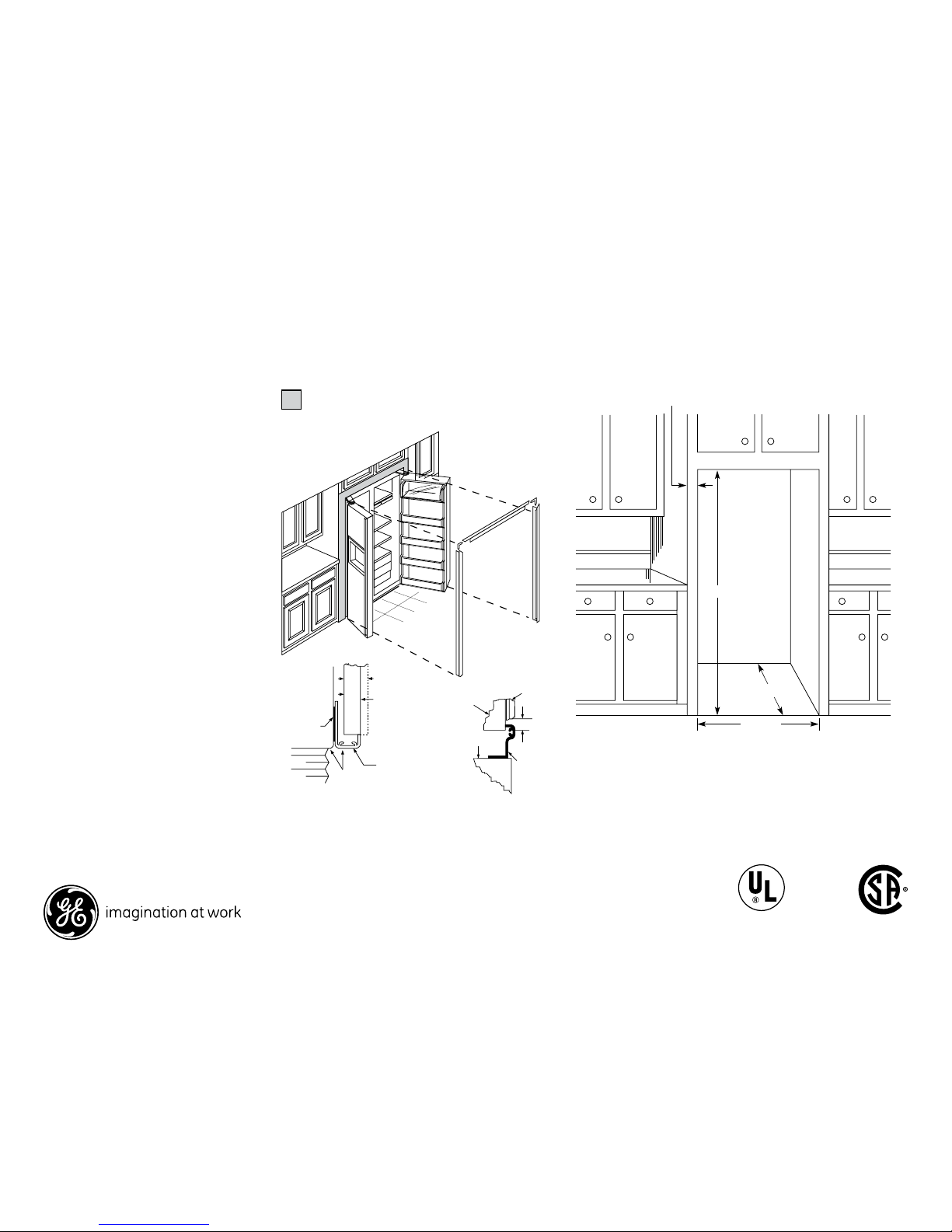

Collar Trim Installation

An enclosure is required to match up to the

trim, see Typical Installation. To obtain the

most integrated look, the cabinet or soffit

above the refrigerator should extend out

to the same depth as the side panels. The

refrigerator opening must have minimum

dimensions of 70-1/4" high x 36-1/8" wide

x 24-1/2" deep as shown at right. If there is

an overhead cabinet, allow 1" for cabinet

door clearance with the top trim piece so

the cabinet doors can be opened without

hitting the top trim. If 1/2" side panels are

used, then side trim and panel will be even.

If 3/4" side panels are used, then some of

the side panel will extend beyond the trim

and must be finished.

IMPORTANT: Before finalizing specifications

for your GE Profile Counter-Depth

Refrigerator, please NOTE:

• A minimum of 36-1/8" is required for

refrigerator installation with collar

• Be sure to allow for 1/2" or 3/4" side

panels in addition to the 36-1/8"

minimum.

Typical Installation

Shaded areas represent front surfaces of side panels and

overhead cabinet or soffit that contacts trim.

Refer collar trim install

70-1/4"*

36-1/8"

24-1/2"*

1/2" minimum

*The rough-in dimension of 70-1/4" is minimum and is measured from the

finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening to allow additional clearance between cabinet doors and

top of refrigerator trim when cabinet doors are in open position.

Collar Trim Installation Art

Rough-In Dimensions and Installation Information (in inches)

Magnetic

Tape

3/4" Cabinet

Side Panel

1/2" Cabinet

Side Panel

Side trim must be installed

flush with the gasket contact

surface on the case.

Refrigerator

Case

Side TrimDoor Gasket

Overhead

Cabinet

Door

Top Trim

Case

Specification Created 2/07

PSI23MGW

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

Order your own custom wood panels to match cabinetry

or other decor.

Panels up to 1/4" thick will fit door frame with no special

preparation. Add filler behind material thinner than 1/4"

for proper fit.

Weight Limits: Total weight of panels (i.e., both freezer

panels)—Fresh Food = 38 lbs., Freezer = 28 lbs.

NOTE: Panels up to 3/4” will require special routing area

around handles. Dimensions may vary depending on

depth of panel.

IMPORTANT: Before finalizing specifications for your

GE Profile Counter-Depth Refrigerator, please NOTE:

• A minimum of 36-1/8" is required for refrigerator

installation with collar

• Be sure to allow for 1/2" or 3/4" side panels in addition

to the 36-1/8" minimum.

210253

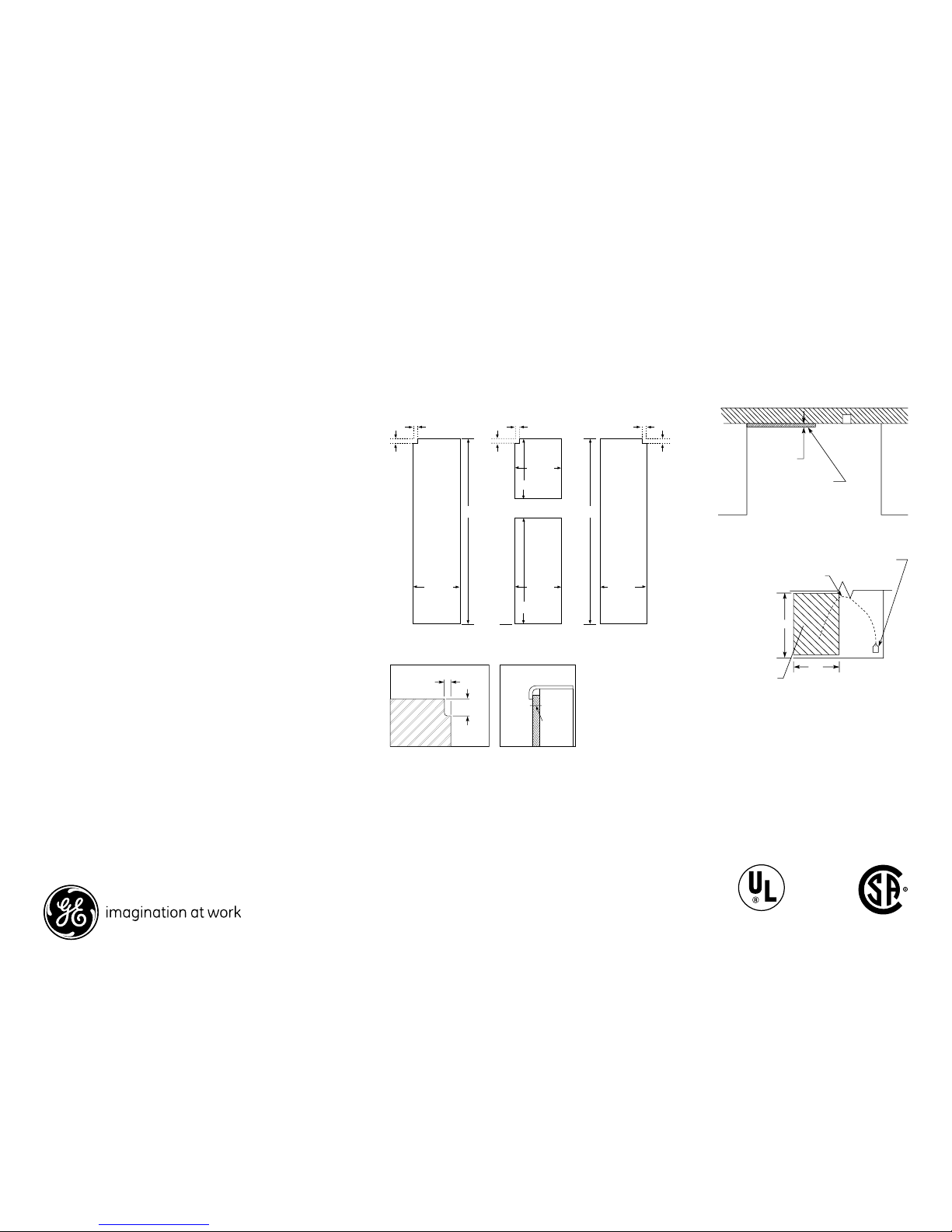

Door Panel Dimensions and Installation Information (in inches)

Installation of Water Outlets

Freezer Panel

without Dispenser

Freezer Panel

with Dispenser

Fresh Food

Panel

(Fresh Food panel shown)

Notch required at top

corner as noted.

Detail C

Freezer Panel

Without Dispenser

Freezer Panel

With Dispenser

Fresh Food

Panel

Cut

out

1/8 1/8

14-15/32 14-15/32

14-15/32

33-5/8

17-7/8

19-15/32

5/16

Cut

out

Cut

out 1/8

5/16 5/16

FRONT

67-9/32 67-9/32

FRONT FRONT

Alternate

water

line location

through floor

1/2"

Water hook-up

on the refrigerator

Recommended water line

location using recess

in rear wall

Recommended

single loop of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

Alternate

water

line location

through floor

1/2"

Recommended water line

location using recess

in rear wall

Recommended single loop

of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

Top View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

In.of water & Electric Ot. Art

Alternate

water

line location

through floor

1/2"

Water hook-up

on the refrigerator

Recommended water line

location using recess

in rear wall

Recommended

single loop of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

Alternate

water

line location

through floor

1/2"

Recommended water line

location using recess

in rear wall

Recommended single loop

of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

Top View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

In.of water & Electric Ot. Art

5/16"

1/8"

Dr. Panel Dim. Detail C

1/4" Max.

Panels 1/4" thick

or less

Dr. Panel Dim. Panel 1/4 Thic

Specification Created 2/07

PSI23MGW

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

PSI23MGWWV

PSI23MGWCV

PSI23MGWBV

PSH25MGWWV

PSH25MGWCV

PSH25MGWBV

DOOR

ALARM

RESET

FILTER

Hold3seconds to Reset

0°FRecommended

LIGHT

WATER

WARMER

ACTUALTEMP

TURBOCOOL

LOCK

Hold3seconds

EXPRESSCHILL

CRUSHED CUBED QUICKICE

SETTEMP

COLDER

37°FRecommended

WARMER

COLDER

FREEZER REFRIGERATOR

210253

Features and Benefits

• Counter-Depth Configuration - Offers a built-in look by fitting almost completely flush with

surrounding cabinetry and blending in with décor

• ClimateKeeper™System - Best Temperature Management System That You Can Buy

• Integrated Dispenser with LED Lighting, PreciseFill & UltraFlow100 - Illuminates the dispenser and

pours water in accurate increments or up to 100 ounces per minute

• ExpressChill™with 1 Setting - Chills beverages quickly with easy one-button selection of 45 minutes

• Slide 'n Store™Full-Extension Freezer Baskets - Extends 12" to 16" beyond the cabinet, providing easy

loading and unloading

• Quick Ice™Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCool™Setting - "Revs up" the refrigerator, cooling it quickly after frequent door openings

• Integrated Ice™System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice

• Tilt-Out Freezer Door Bins - Move forward for convenient access

• Integrated Shelf Support System - Provides strong, yet flexible support

• Adjustable ClearLook™Door Bins - Hold gallon-size containers with style and ease

• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put

• GE Water Plus Filtration System - Delivers clean, great-tasting water and ice through the LightTouch!

Dispenser with indicator light

• FrostGuard™Technology - Protects frozen items from freezer burn by monitoring freezer door

openings and defrosting only when needed

• Model PSI23MGWWV - White on white

• Model PSI23MGWCV - Bisque on bisque

• Model PSI23MGWBV - Black on black

Specification Created 2/07

PSI23MGW

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels GE Réfrigérateur

GE Side by Side Refrigerators Manuel utilisateur

GE GSH25JFXBB - 25 cu. Ft. Refrigerator Instructions de montage

GE 22 Models Manuel de formation

GE GDSS0KCX Manuel

GE GSS25LGMBBB and Guide de sécurité

GE Profile ENERGY STAR PDS20MFS Manuel

GE Profile PCF23MGW Manuel

GE Profile 24 CustomStyle Manuel utilisateur

GE 21 Guide de sécurité

GE Monogram ZICS360NHARH Manuel utilisateur

GE Profile CustomStyle PSH25NGS Manuel

GE GTH18ISXSS Mode d'emploi

GE GSH25JFPACC and Mode d'emploi

GE GDSL3KCYLLS Manuel

GE Monogram ZIS36N Manuel utilisateur

GE GFSF6KEXBB - 25.8 cu. Ft. Refrigerator Instructions de montage

GE GTH18KBR Manuel utilisateur

GE GSHL5KGXLS - CleanSteel 25.4 cu. Ft.... Manuel

GE Monogram ZIS360N Manuel de référence

GE Monogram ZIRS36N LH Manuel utilisateur

GE GTS18IBR Manuel utilisateur

GE Monogram ZFGP21HXSS Manuel utilisateur

GE GMRO5 BLPWW Instructions originales

GE PSS25MGMBBB and Guide de sécurité

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
