†Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 13-15/16" on freezer

side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

"94 SxS Refer

Front View

Top View

Listed by

Underwriters

Laboratories

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Revised 5/08 210202

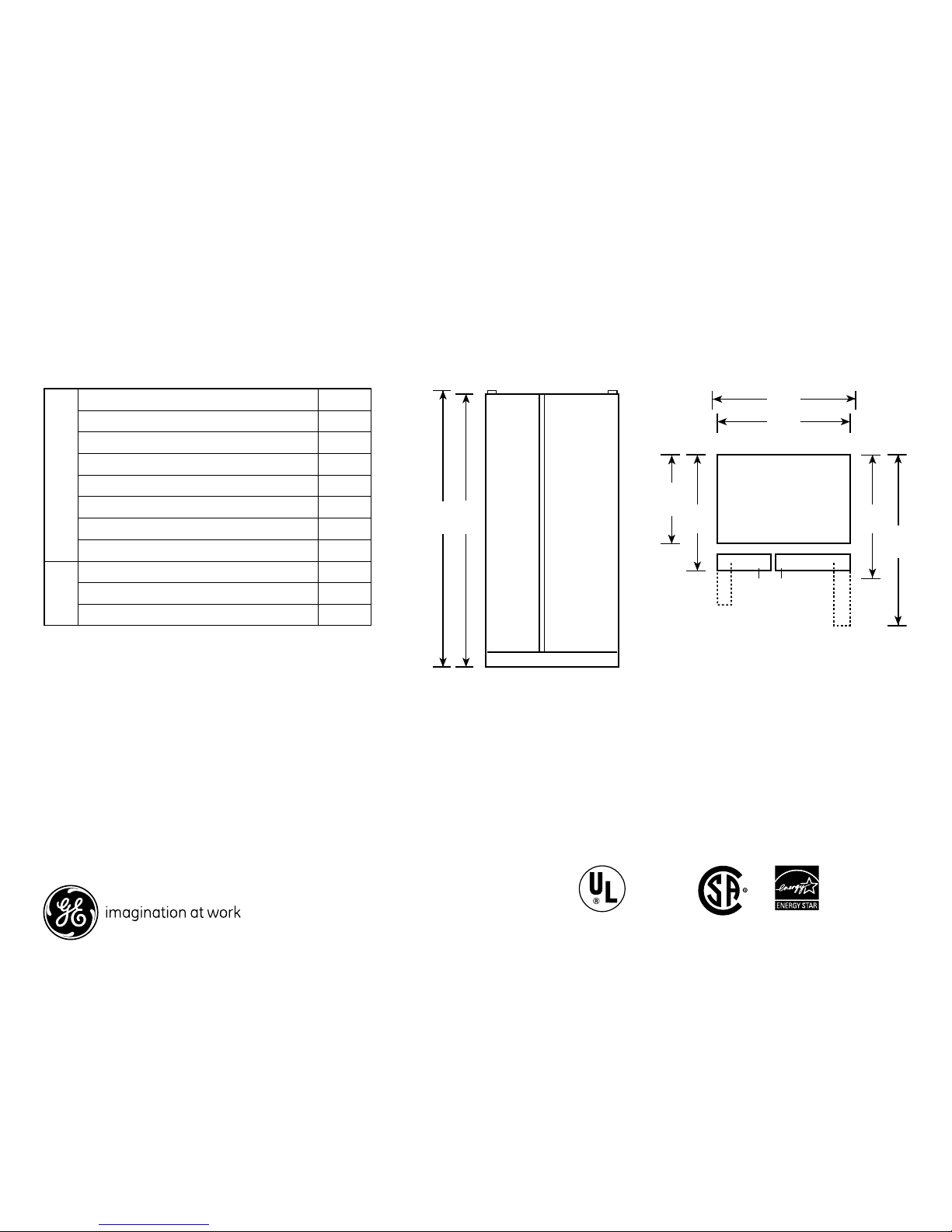

Dimensions and Installation Information (in inches)

Overall

Dimensions

Height to top of hinge (in.) A 72-1/8

Height to top of case (in.) B 71-5/8

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†27-1/8

Case depth with door handle (in.) E†29-5/8

Depth with fresh food door open 90° (in.) F†46

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 41-3/8

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1/2

PSDF5YGX

GE Profile™Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water

line damage. 48" minimum length, 1/4" diameter water

line tubing recommended.

• When possible, recess both copper water line and electrical

outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.

(See owner’s manual)

*The rough-in dimensions of 70" for 23 cu. ft. models and 72-

1/2" for 25 cu. ft. models are minimum and measured from the

finished floor to top of opening (or the underside of the overhead

cabinets). For Models with Trim Kit: If frameless style cabinets

are planned for above the refrigerator, you may need to consider

adding a maximum of 1/4" (70-1/4") to height of opening for 23

cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for

additional clearance between the cabinet doors and the top of

refrigerator trim when the cabinet doors are in open position.

† Model PSDW3YGX is 71-3/4"

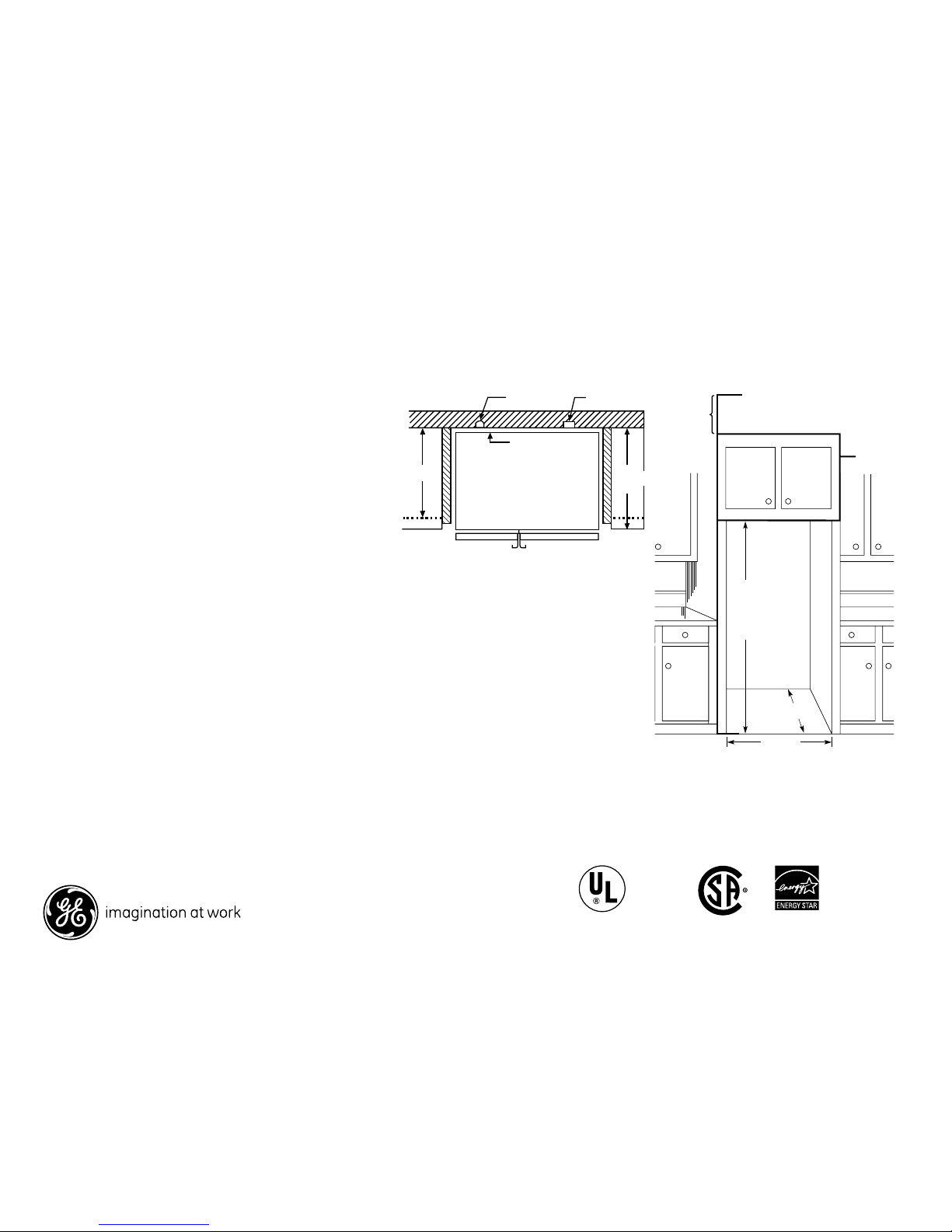

Rough-In Dimensions and Installation Information (in inches)

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

36-1/8"

24-1/2"

Collar Trim In. w/ceiling

70"*†

23 cu. ft. models

72-1/2"*

25 cu. ft. models

*The rough-in dimensions of 70" for 23 cu. ft. models and 72-1/2" for 25 cu. ft.

models are minimum and measured from the finished floor to top of opening

(or the underside of the overhead cabinets). For Models with Trim Kit:

If frameless style cabinets are planned for above the refridgerator, you may

need to consider adding a maximum of 1/4" (70-1/4") to height of opening

for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow additional

clearance between cabinet doors and top of refridgerator trim when cabinet

doors are in open position.

†Model PSDW3YGX is 71-3/4".

Listed by

Underwriters

Laboratories

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Revised 5/08 210202

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

ElectricalWater

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

Fig 2A eps

PSDF5YGX

GE Profile™Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Revised 5/08 210202

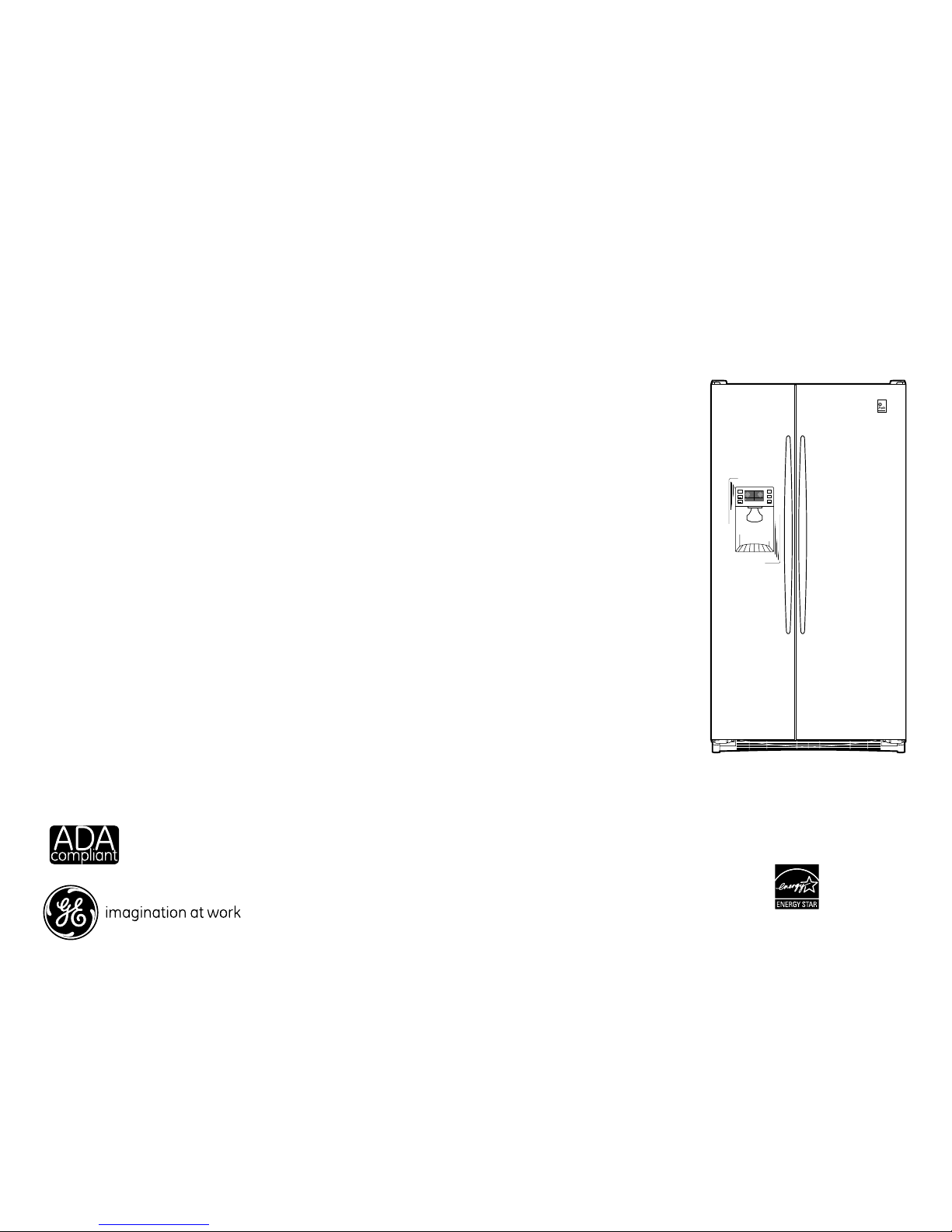

Features and Benefits

• Counter-Depth Design - Offers a built-in look without the built-in expense

• High-Gloss Finish - Provides sleek elegance with a smooth surface

• ClimateKeeper2™System - Keeps food garden fresh longer, while protecting ice from odor transfer,

with its unique dual-evaporator system

• LED Lighting - Casts a clean, beautiful light throughout the fresh food area of the refrigerator

• Color LCD Controls with Touch Screen - Makes it easy to control all the functions of the refrigerator

with just a touch

• Integrated Dispenser with LED Lighting, PreciseFill & UltraFlow100 - Illuminates the dispenser and

pours water in accurate increments or up to 100 ounces per minute

• QuickFreeze Setting - Provides faster, fresher freezing to maintain the flavor and quality of meats

• Electronic Beverage Center - Keeps beverages and treats icy cold and easily accessible

• CustomCool™Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer

• Slide 'n Store™Freezer Basket - Offers easy access and flexible storage

• Quick Ice™Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCool™Setting - Cools the refrigerator quickly after frequent door openings

• Integrated Ice™System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice

• Tilt-Out Freezer Door Bins - Move forward for convenient access

• Integrated Shelf Support System - Provides strong, yet flexible support

• Model PSDF5YGXBB - Black on black

• Model PSDF5YGXWW - White on white

PSDF5YGXWW/BB

PSDF3YGXWW/BB

HOME

HELP

WATER

CRUSHED

LOCK CUBED

Hold3for Seconds

SELECTAMOUNT

BACK ENTER

NEWSETTING

SELECTTYPE

2CUPS

PSDF5YGX

GE Profile™Counter-Depth24.6 Cu. Ft. Side-By-Side Refrigerator
